Chemically resistant liner materials
Compact version up to IP69, remote version IP68
Flange: DN25…1200 / 1…48", max. PN40 / ASME Cl 300
4…20 mA, pulse, frequency, status, HART®

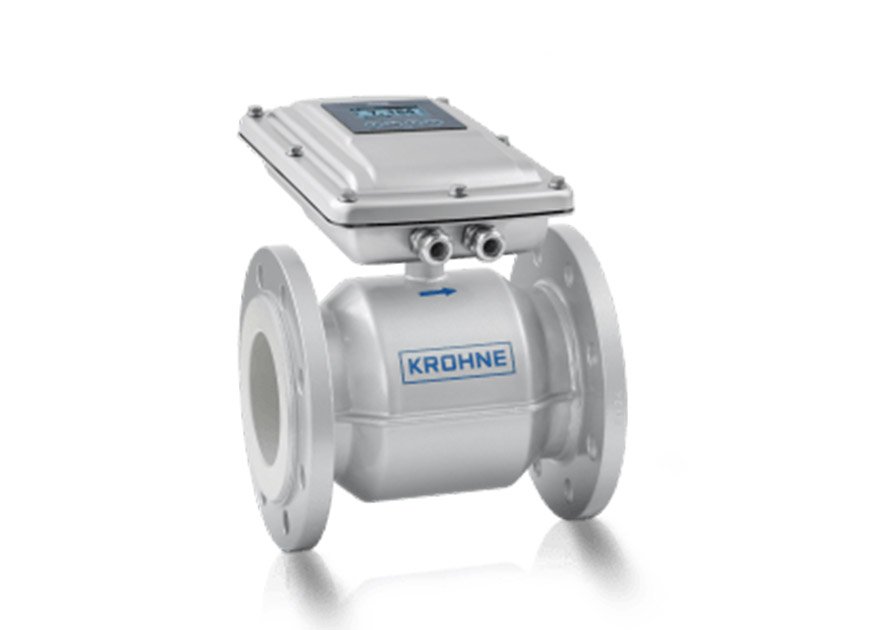

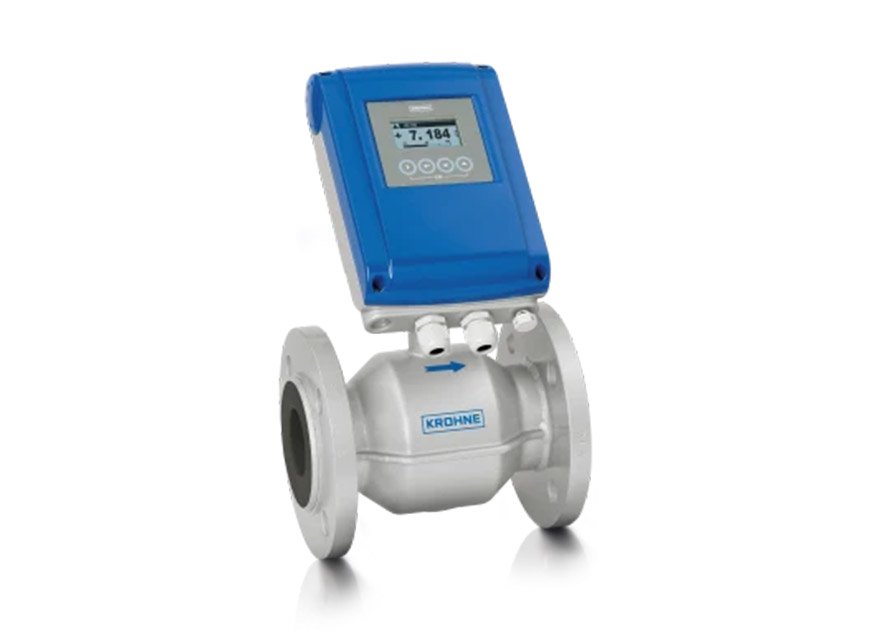

The OPTIFLUX 2100 is an electromagnetic flowmeter (EMF) for standard water and wastewater applications. It is the ideal solution for all general flow applications where reliable flow measurement with sufficient yet not extremely high accuracy is required. Installation in measurement chambers subject to (constant) flooding is possible with the remote IP68 / NEMA 6P rated version.
Its wear resistant liner materials as well as its full bore design without moving parts make the OPTIFLUX 2100 an effective replacement of mechanical water meters in drinking water distribution networks. The meter features a wide range of approvals necessary for potable water measurement. A full on-site verification of the meter without process interruption can be carried out using the OPTICHECK service tool.
· Bi-directional flow measurement over a wide dynamic range
· Optional for subsoil installation and constant flooding
· Proven and unsurpassed life time, huge installed base
· Standard wet calibration
· PP or hard rubber liner: suitable for low concentrated chemicals
· Tamper proof
· Standard measurement accuracy: ±0.3% or ±1mm/s of measured value (MV)
· Diagnostics incl. conductivity, electrode error, ambient and process temperature etc.
· Full bore design: No moving parts, no wear, no pressure loss
· Meets potable water standards: ACS, DVGW, NSF, TZW, WRAS etc.
· For hazardous areas: ATEX, IECEx, FM, CSA
· On-site verification of flowmeter with OPTICHECK service too
Specification | Details |
Product Model | OPTIFLUX 2100 (Electromagnetic Flowmeter, EMF) |
Sensor / Converter | Sensor: OPTIFLUX 2000; Converter: IFC100 |
Measurement Principle | Faraday's Law of Electromagnetic Induction |
Measured Media | Conductive liquids, standard water, wastewater, potable water, neutral slurries |
Minimum Conductivity | ≥ 5 µS/cm (≥ 20 µS/cm for pure water) |
Nominal Diameter (DN) | DN25 ~ DN1200 (1" ~ 48") |
Accuracy | ±0.3% of measured value (MV) or ±1 mm/s (whichever is greater) |
Repeatability | ±0.1% of measured value |
Rangeability (Turndown) | 1000:1 (bi-directional flow) |
Flow Velocity Range | 0 ~ 12 m/s (bi-directional) |
Process Temperature | • PP liner: -20°C ~ +80°C• Hard rubber liner: -20°C ~ +90°C |
Process Pressure | Max. 40 barg (580 psig) (PN40 / ASME Class 300) |
Liner Materials | Hard rubber, Polypropylene (PP) |
Electrode Materials | SS316L (Mo2Ti), Hastelloy B, Hastelloy C, Titanium, Tantalum, Platinum, Platinum-Iridium |
Electrode Types | Standard, RE (scraper), WE (replaceable) (≥ DN350) |
Wetted Body Material | Carbon Steel (standard) |

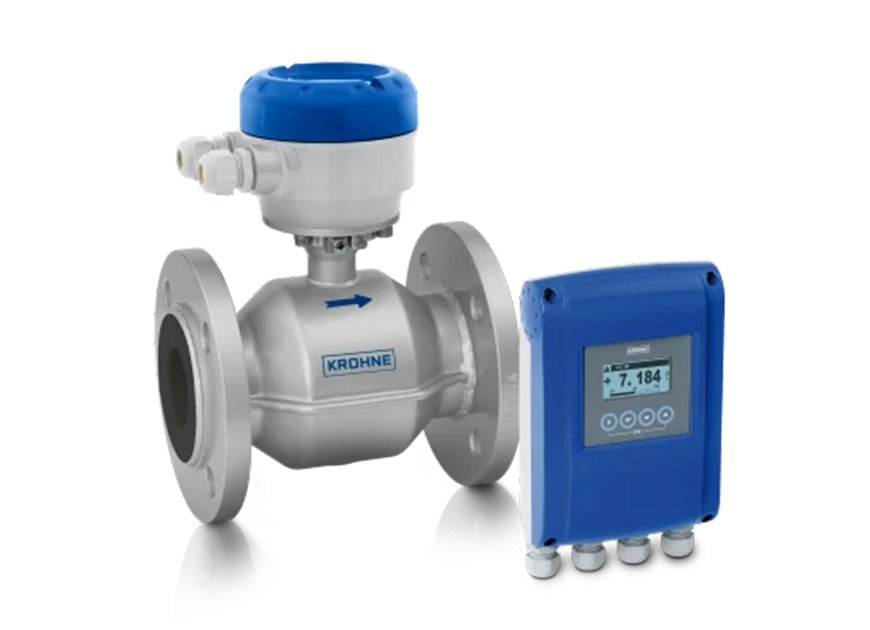

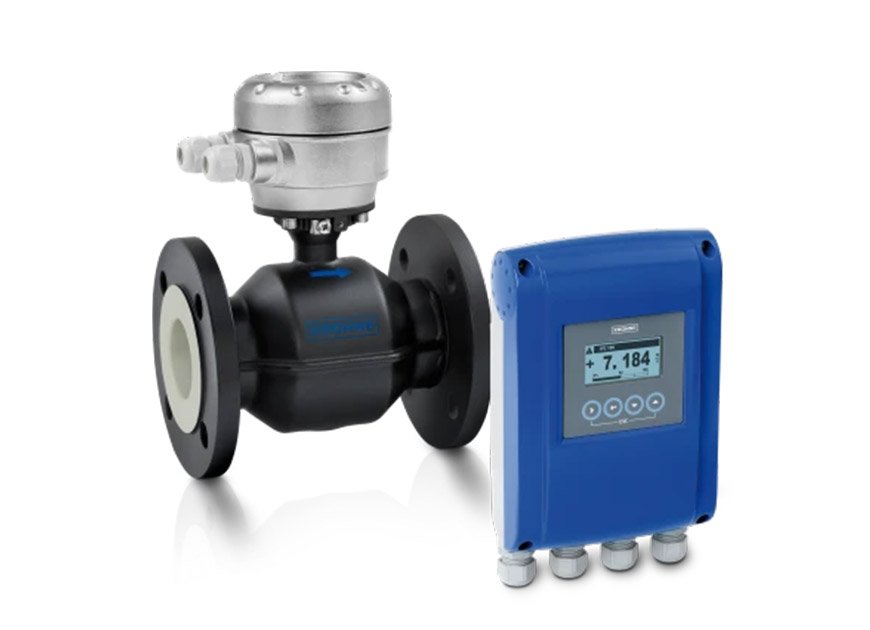

Mounting Type | C (Integral), W (Wall-mounted Remote) |
Power Supply | 100 ~ 240 VAC (50/60 Hz); 24 VDC (optional) |
Analog Output | 4 ~ 20 mA DC (galvanically isolated, HART® 7 compatible) |
Digital Communication | HART® 7 (standard) |
Discrete I/O | Pulse / Frequency output, Status output |
Display | Multi-line backlit LCD (optional) |
Ambient Temperature | -40°C ~ +65°C |
Ambient Humidity | 5 ~ 100% RH (non-condensing) |
Enclosure Rating | • Integral (C): IP69K • Remote (W): IP68 / NEMA 6P |
Grounding | Virtual Reference (grounding rings optional) |
Self-Diagnostics | Empty pipe, air bubble, electrode fault, conductivity monitoring, temperature diagnostics |
Hazardous Area Approvals | ATEX, IECEx, FM, CSA |
Potable Water Approvals | ACS, DVGW, NSF, TZW, KTW, WRAS, KIWAKROHNE 科隆 |
Key Features | Standard water/wastewater meter; IP68 submersible/burial; tamper-proof; full bore no pressure loss; wide bi-directional range; on-site verification via OPTICHECK tool |
Packaging: Original box
