Rosemount DIN-Style Temperature Sensors
RTDs (0065) and Thermocouples (0185) available to meet any process requirement
DIN-style for easy installation and replacement Integrated temperature assembly with Rosemount transmitters available.

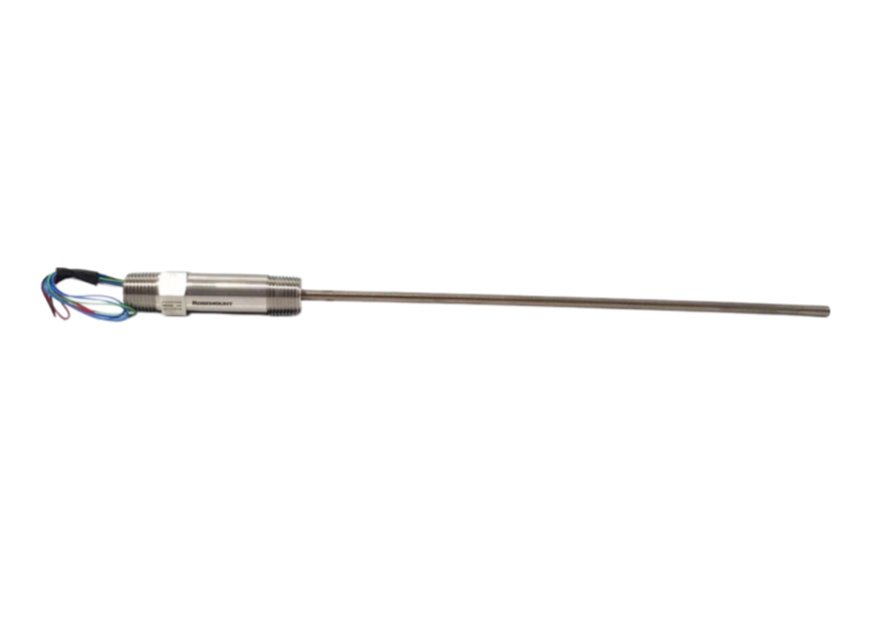

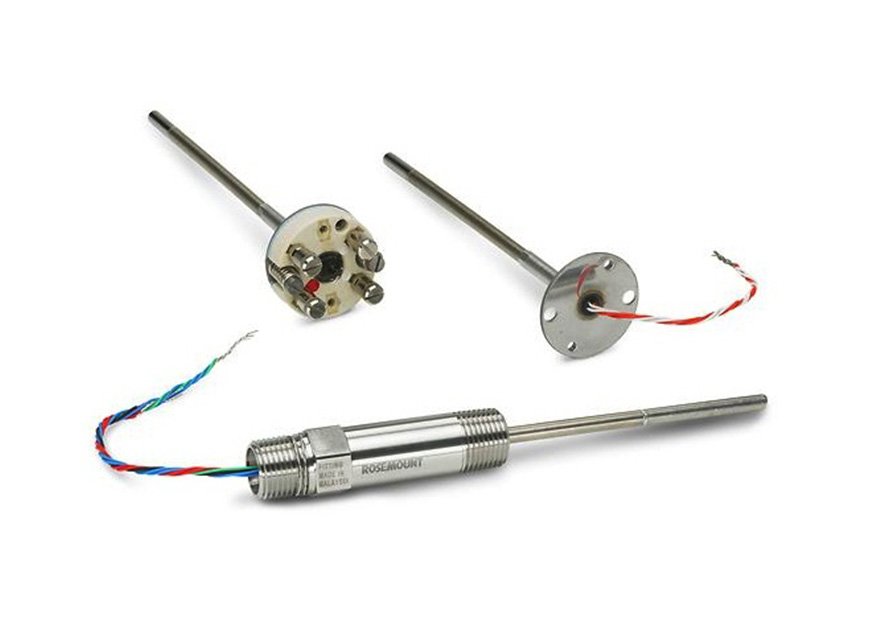

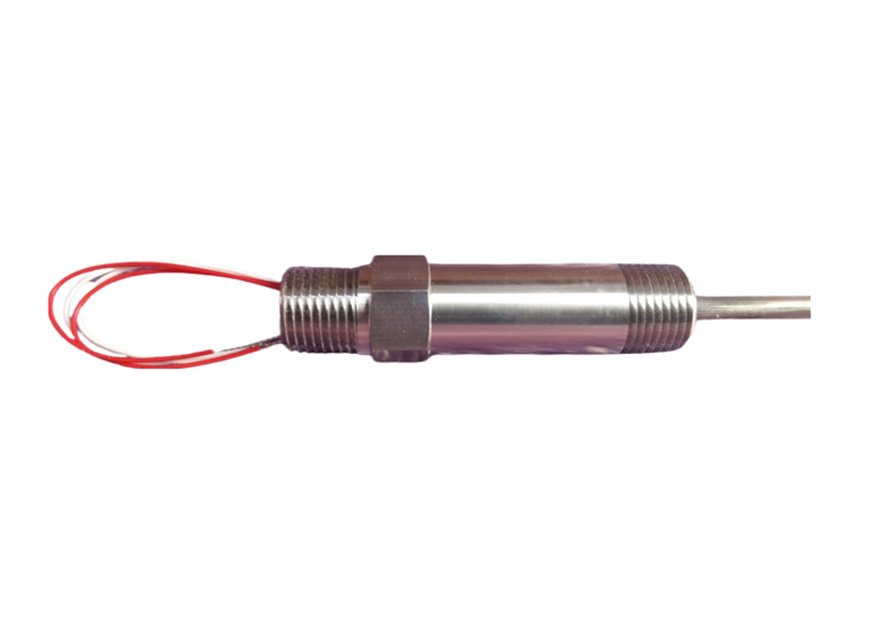

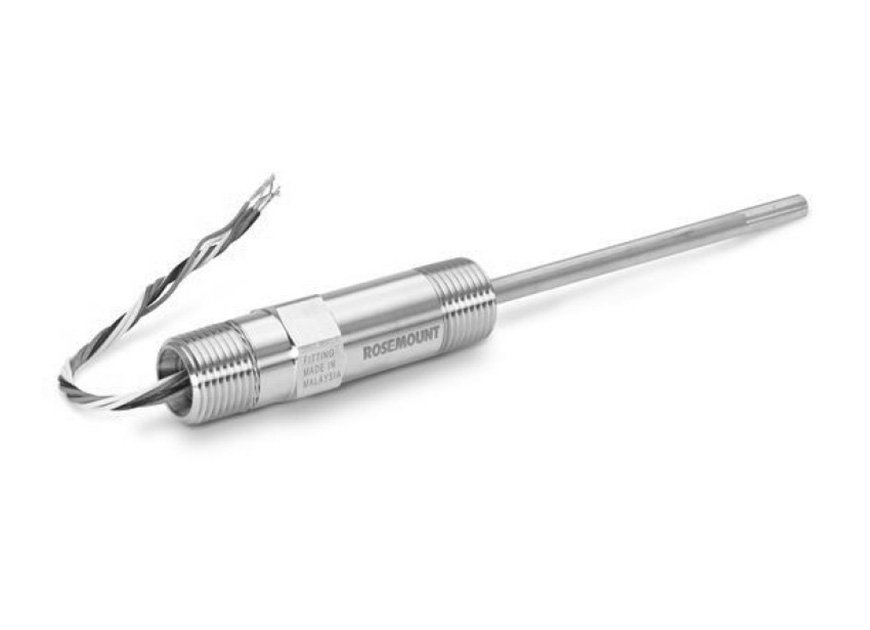

As an industry-standard Pt-100 resistant temperature detector (RTD), the Rosemount 65 RTD Temperature Sensor is a single or dual element device designed per IEC 751 and capable of covering a wide range of temperatures.
This sensor is vibration resistant and the connection heads feature fast mounting and replacement. This RTD includes a calibration option of Class A or B accuracy or a calibration schedule option with Callendar-Van Dusen constants.
Features
l ·Industry-standard sensor per IEC 751 with single or dual element design offers reliable and flexible performance
l ·Resilient sensor withstands high vibration industrial applications
l ·DIN-style sensor connection heads allow for quick mounting and replacement
l ·Sensor selections cover a wide range of temperatures from –321 to 1112°F (–196 to 600°C) to meet process demands
l ·Terminal block, flying leads and spring-loaded threaded adapters enable remote or integral mounting configuration
l ·Callendar-Van Dusen constants allow for transmitter-sensor matching and provide the highest level of accuracy
l ·Optional Class A accuracy ensures critical temperature measurement points meet tolerance standards and accuracy
l ·Option for thermowell assembly increases protection from corrosive environments
l ·Measurement Instrument Directive (MID) calibration options for custody transfer applications
l ·Global hazardous location approvals meet local requirements
Parameter | Details |
Sensor Type | Platinum RTD (Pt100, α = 0.00385 °C) |
Element Configuration | Single element (4-wire); Dual element (3-wire) |
Temperature Ranges | Standard: -50 to 450 °C (-58 to 842 °F)
Extended: -196 to 600 °C (-321 to 1112 °F) |
Accuracy Class | IEC 60751 Class A (optional); Class B (standard) |
Response Time | ≤ 9 seconds (50% response in flowing water, IEC 60751) |
Self-Heating | ≤ 0.15 °C/mW (per IEC 60751) |
Immersion Error | Minimum 60 mm immersion depth recommended |
Insulation Resistance | ≥ 1,000 MΩ at 500 VDC (room temperature) |
Sheath Material | 316L Stainless Steel (standard) |
Sheath Diameter | 6 mm (standard) |
Vibration Resistance | ≤ ±0.05 °C ice-point shift (3 g, 10-500 Hz, 150 h) |
Wiring Termination | Terminal block; Flying leads; Spring-loaded ½-in NPT adapter |
Calibration Options | Callendar-Van Dusen constants; MID custody transfer calibration |
Safety Approvals | ATEX, IECEx, CSA, FM (hazardous locations) |
Standards | IEC 60751, EN 60751 |

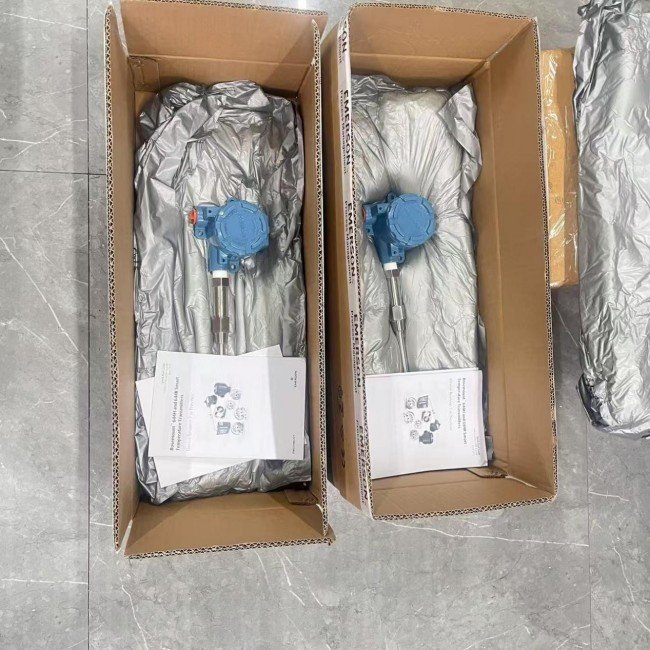

Packaging: Original bag and box
