l RTD, TC, potentiometer, linear resistance and bipolar mV input
l Wide ambient operating temperature range of -50 to +85 °C
l 2.5 kVAC galvanic isolation
Basic temperature transmitter offers a cost effective solution for temperature monitoring points

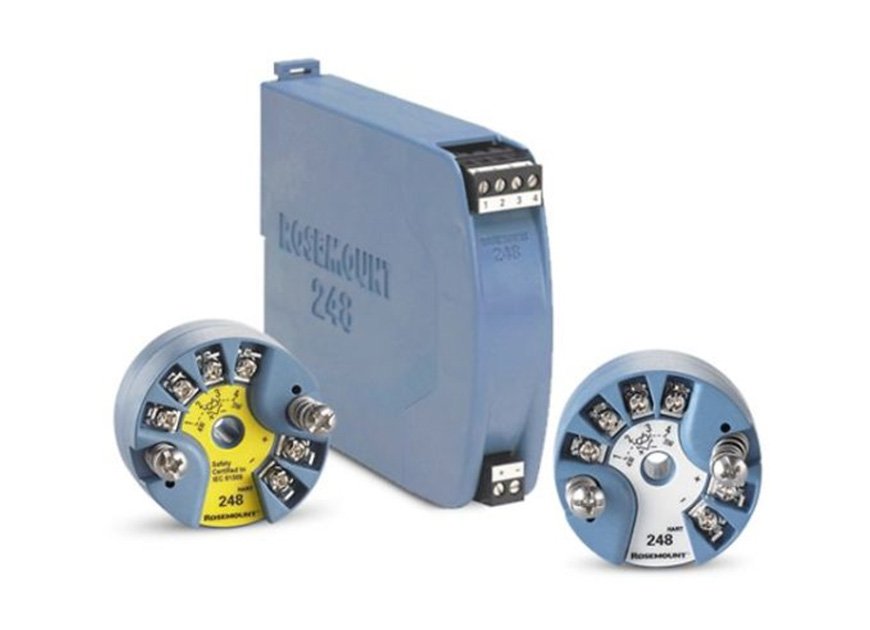

l DIN B style head mount transmitter offers variety of enclosure options HART® /4–20 mA Protocol
l Single sensor capability with universal sensor inputs (RTD, T/C, mV, ohms) Transmitter-sensor matching with Callendar-Van Dusen constants
l SIL2 Capable: IEC 61508 certified by an accredited third party agency for use in safety instrumented systems up to SIL 2
Standard transmitter design provides flexible and reliable performance in process environments
l Offers improved measurement accuracy and reliability over direct-wiring a sensor to the digital control system for a lower overall installation cost
l One-year stability rating reduces maintenance costs
l Open/short sensor diagnostics assist with detecting issues in the sensor loop
l Compensation for ambient temperatures enhances transmitter performance

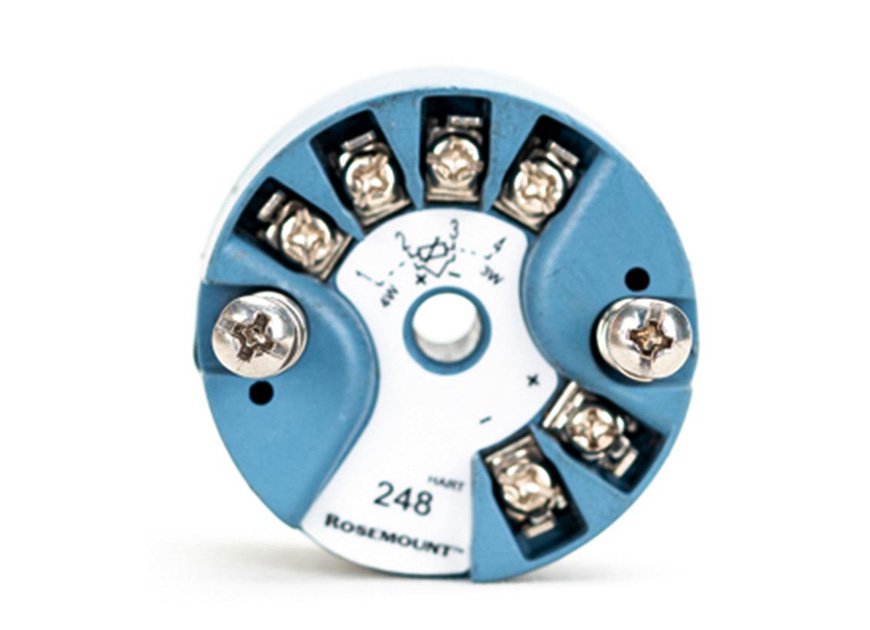

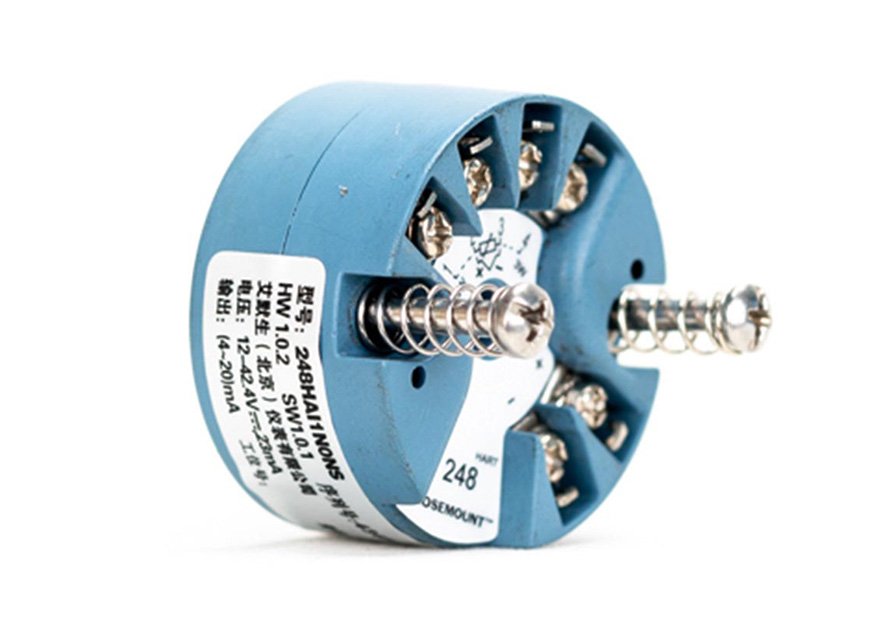

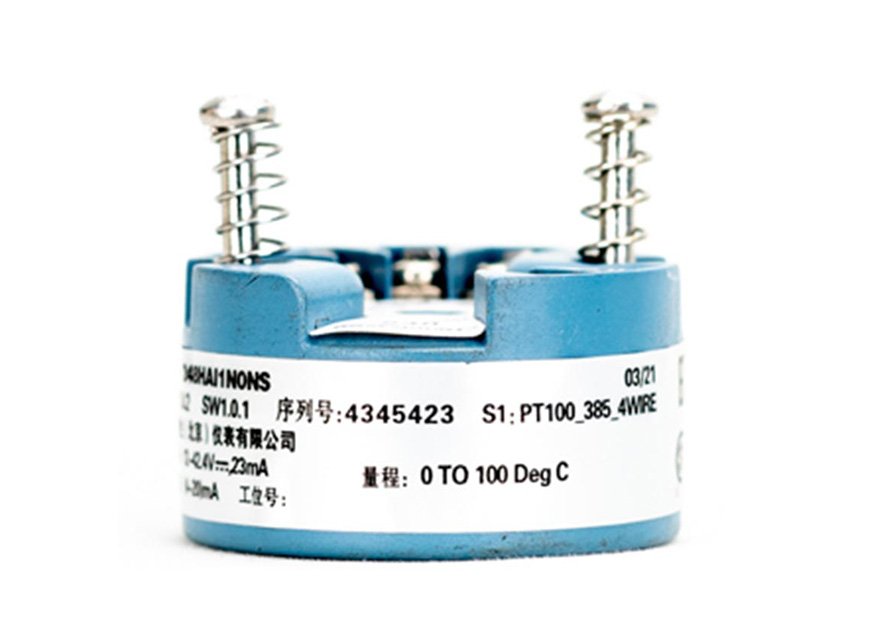

Product Name | Rosemount 248 Temperature Transmitter Module |
Measurement Accuracy | ±0.05% of span |
Input Type | RTD, Thermocouple, millivolt, ohm |
Temperature Range (Sensor) | -200°C to 850°C |
Ambient Temperature Range | -40°C to 85°C |
Output Signal | 4-20 mA with HART® protocol |
Power Supply | 10.5 to 45 V DC |
Certifications | ATEX, IECEx, CSA, FM |
Display | Optional LCD with backlight |
Sensor Types Supported | Pt100, JPt100, Ni120, Cu10, etc. |
Thermocouple Types | J, K, T, E, R, S, B, N, C |
Communication Protocol | HART® 5/7 |
Housing Material | 316 Stainless Steel |
Process Connection | 1/2″ NPT or M20×1.5 |
Response Time | ≤300 ms |
Loop Resistance | 600 Ω at 30 V DC |
Calibration | Field-configurable via HART® |
Stability | ±0.05% per year |
Environmental Protection | IP66/IP67 |
Hazardous Area Certification | Class I Div 1/Zone 0 |

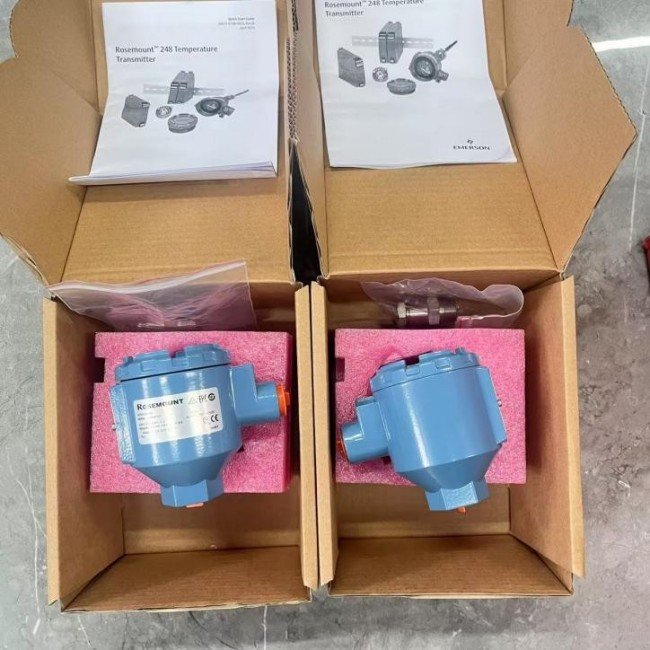

Packaging: Original bag and box
