Basic temperature transmitter offers a cost effective solution for temperature monitoring points

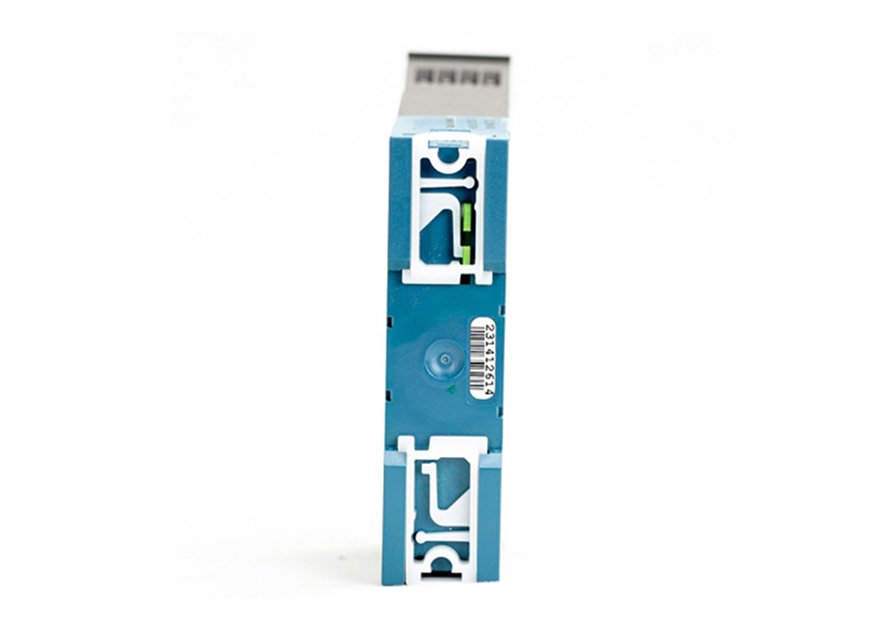

l Rail mount
l HART® /4–20 mA Protocol
l Single sensor capability with universal sensor inputs (RTD, T/C, mV, ohms)
l Transmitter-sensor matching with Callendar Van Dusen constants
l Meets NAMUR NE21, NE43, NE44, NE89 and NE107 compliant diagnostics information
Standard transmitter design provides flexible and reliable performance in process environments
l Offers improved measurement accuracy and reliability over direct-wiring a sensor to the digital control system for a lower overall installation cost
l One-year stability rating reduces maintenance costs
l Open/short sensor diagnostics assist with detecting issues in the sensor loop
l Compensation for ambient temperatures enhances transmitter performance
Specification Category | Details |

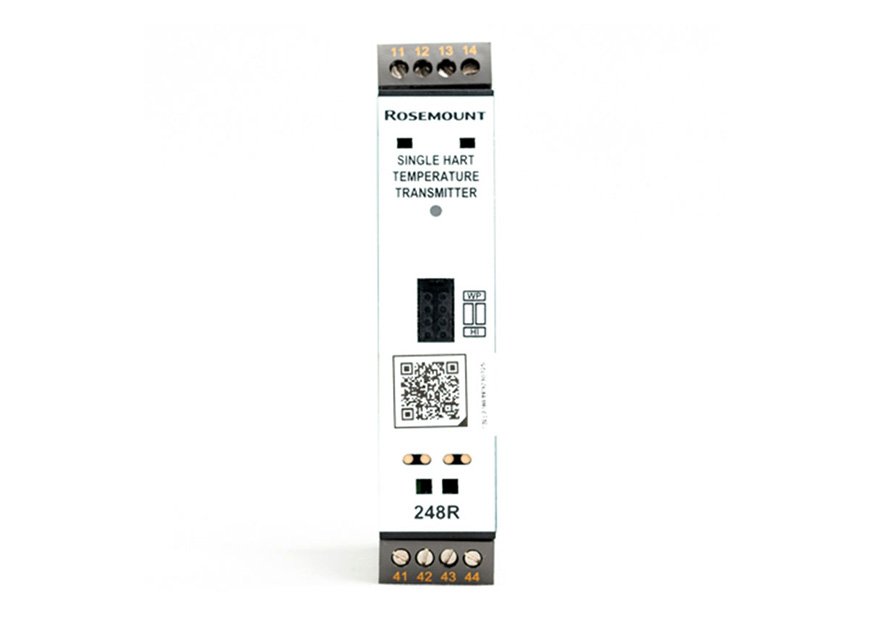

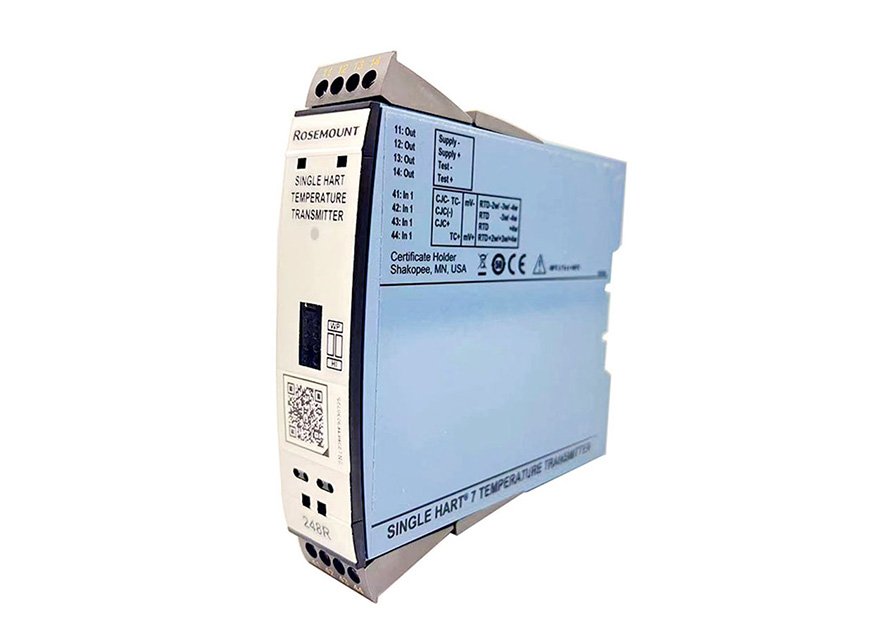

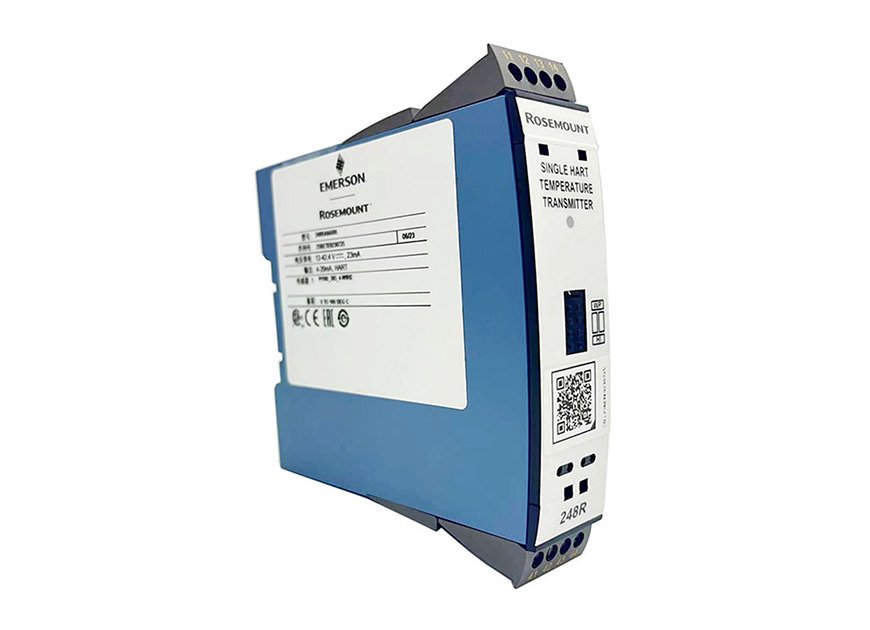

Model | Rosemount 248R (Rail Mount) |
Input Type | Universal: 2/3/4 wire RTD, Thermocouple (T/C), mV, Ohms |
Output Signal | 2 wire 4–20 mA with HART® 7 protocol |
Power Supply | 12.0–42.4 VDC; Load: 250–1100 Ω |
Isolation | Input/output: 500 VAC rms (707 VDC) test |
Accuracy (Typical) | ±0.15 °C (Pt100 IEC 751)Emerson |
Stability | ±0.1% of reading or 0.1 °C (whichever is greater) per year |
Operating Temp | Standard: –50 to +85 °C; BR5: –60 to +85 °C; BR6: –70 to +85 °C |
Storage Temp | –50 to +120 °C |
Response Time | < 0.5 s update; < 5 s warm up (damping = 0)Emerson |
Damping | 0–32 s (default: 5 s) |
Dimensions (H×W×D) | 109 × 23.5 × 104 mm |
Weight | 150 g |
Protection | IP20 |
Diagnostics | Open/short sensor detection; NAMUR NE107Emerson |
Certifications | ATEX, IECEx, CSA, NEMA, RoHS |

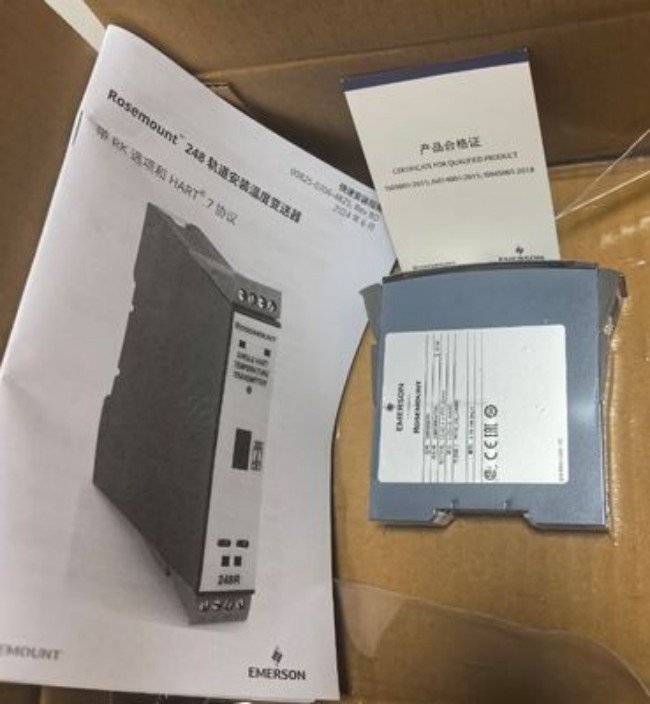

Packaging: Original bag and box
