Basic temperature transmitter offers a cost effective solution for temperature monitoring points
l Single sensor capability with universal sensor inputs (RTD, T/C, mV, and ohms)
l IEC-approved WirelessHART® protocol
l Large LCD display
Standard transmitter design provides flexible and reliable performance in process environments
l One-year stability rating reduces maintenance costs
l User-centric device dashboards communicate important diagnostics and ensure process health
l Open/short sensor diagnostics assist with detecting issues in the sensor loop
l Compensation for ambient temperatures enhances transmitter performance
l Four user-configurable alerts provide increased process information and measurement point insight
Wireless delivers innovative wireless solutions for temperature measurement and overall transmitter performance
l Self-organizing network delivers information rich data with >99 percent data reliability and establishes a highly stable network
l Smart Wireless capabilities extend the full benefits of Plantweb™ to previously inaccessible temperature measurement locations
l Emerson SmartPower™ solutions provide an intrinsically safe Power Module, allowing field replacements without removing the transmitter from the process, keeping personnel safe and reducing maintenance costs
l Emerson’s layered approach to wireless network security ensures that data transmissions are secure
Specification Category | Details |
Model | Rosemount 248 (Wireless Field Mount) |
Input Type | Universal: 2/3/4 wire RTD, Thermocouple (T/C), mV, Ohms |
Output Signal | WirelessHART® (IEC 62591), 2.4 GHz (2400–2485 MHz), 15 channels, IEEE 802.15.4 modulation |
Wireless Specs | Internal omnidirectional antenna (WP5); Update rate: 1 sec–60 min (user configurable); Network reliability: >99% |
Power | SmartPower™ green power module (field replaceable); Life: 10 years (1 min update, 21°C); Lithium thionyl chloride; IS rated |
Accuracy (Typical) | Pt100 IEC 751: ±0.45 °C (–200–850 °C); Thermocouple variants listed in datasheet |
Stability | ±0.15% of reading or 0.15 °C (whichever greater) per 12 months |
Operating Temp | –40 to +85 °C (–40 to +185 °F); BR5/BR6 options available |
Storage Temp | –40 to +85 °C (–40 to +185 °F) |
Humidity | 0–99% non condensing |
Enclosure/IP | Engineered polymer; IP66/IP67; NEMA 4X |
Dimensions | Compact (approx. 44 mm dia × 40 mm); Lightweight (~50 g) |
Display | Optional 5 digit LCD (M5) for temp, % range, diagnostics |
Diagnostics | Open/short sensor detection; NAMUR NE107; Self calibration; 4 user configurable alarms |
EMC/Compliance | EN61326, NAMUR NE21; Global approvals (ATEX, IECEx, CSA, INMETRO, TIIS, NEPSI, EAC) |
Vibration | Tested to IEC 60770 1: Direct mount 10–2000 Hz/3 g; Remote mount 10–500 Hz/2 g |
Calibration | 5 point (C4); 3 point certificate (Q4); Transmitter sensor matching (Callendar Van Dusen |

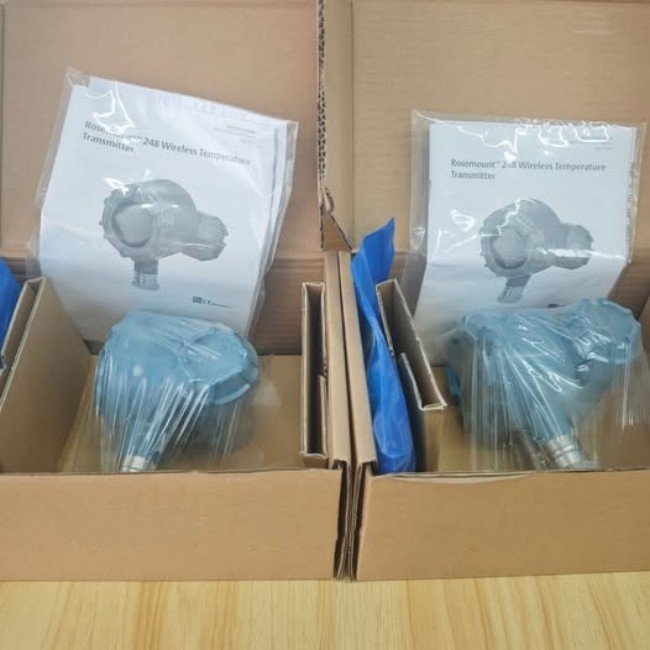

Packaging: Original bag and box
