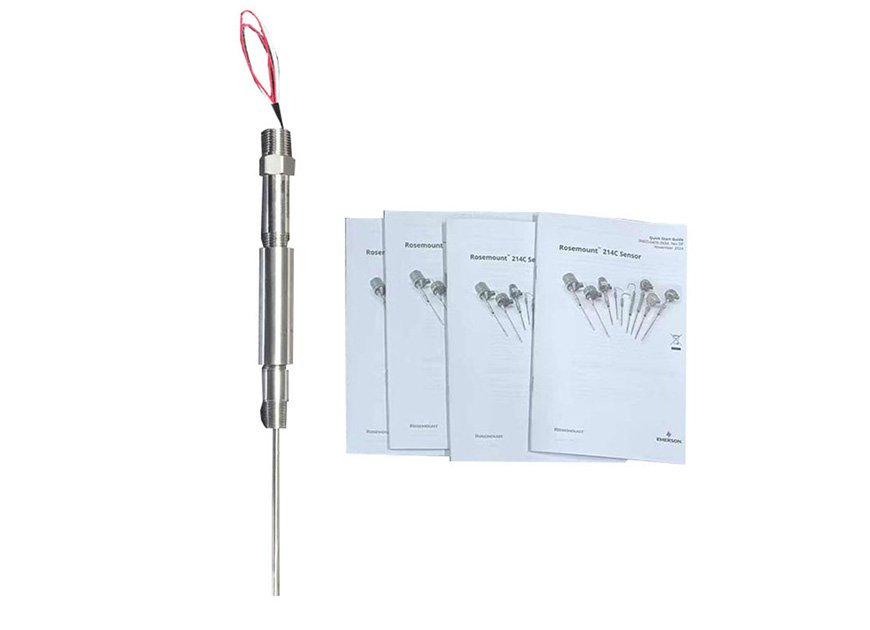

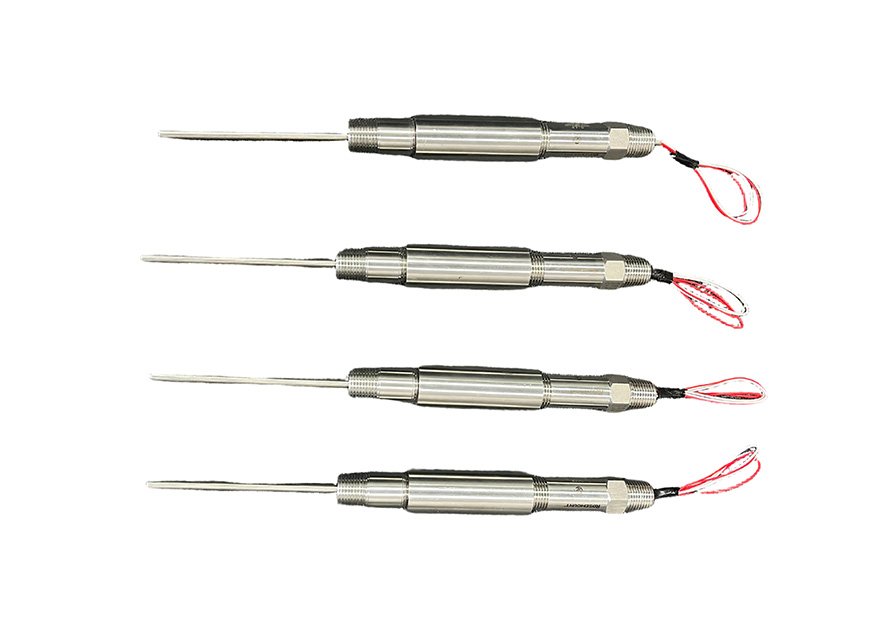

Rosemount 214C Temperature Sensors

Temperature Range
For wire-wound element, 0.05 °C (0.020 ) maximum ice-point resistance shift after 1g vibration between 20 and 500 Hz for 150 hours according to IEC 60751:2008
Lead Wires
24 AWG wire, FEP insulated; color coded per IEC 60751
Time Constant / Response
10.8 seconds maximum required to reach 50% sensor response when tested in flowing water according to IEC 60751:2008
Stability
±0.15 °C (0.059 ) maximum ice-point resistance shift following 1,000 hours at maximum specified temperature when measured per methods defined in IEC 60751:2008
Insulation Resistance
1000 MΩ minimum insulation resistance when measured at 500 VDC at room temperature
Calibration Options
IEC 751 Class A or B; Single point calibration; Calibration schedule or customer-specified calibration range, both with Callendar-Van Dusen constants

Features

· Single or dual element Pt-100 RTD with thin-film or wire-wound designs meets various application requirements

· Thin film sensor engineered to withstand high vibration industrial applications

· Wire-wound design for applications requiring high accuracy, dual-elements and/or are subjected to high temperatures

· Covers a wide range of temperatures from -321 to 1112°F (-196 to 600°C) for application flexibility

· Callendar-Van Dusen constants allow for transmitter-sensor matching and offer the highest level of accuracy

· Optional Class A accuracy ensures critical temperature measurement points meet tolerance and accuracy standards

· Adaptable design with a variety of enclosure and connection head options meet varying application demands

· Includes spring-loaded or compact spring-loaded mounting styles for adaptability

· North American approvals meet hazardous location requirements

Specification

Packaging & Shipping

Packaging: Original bag and box
