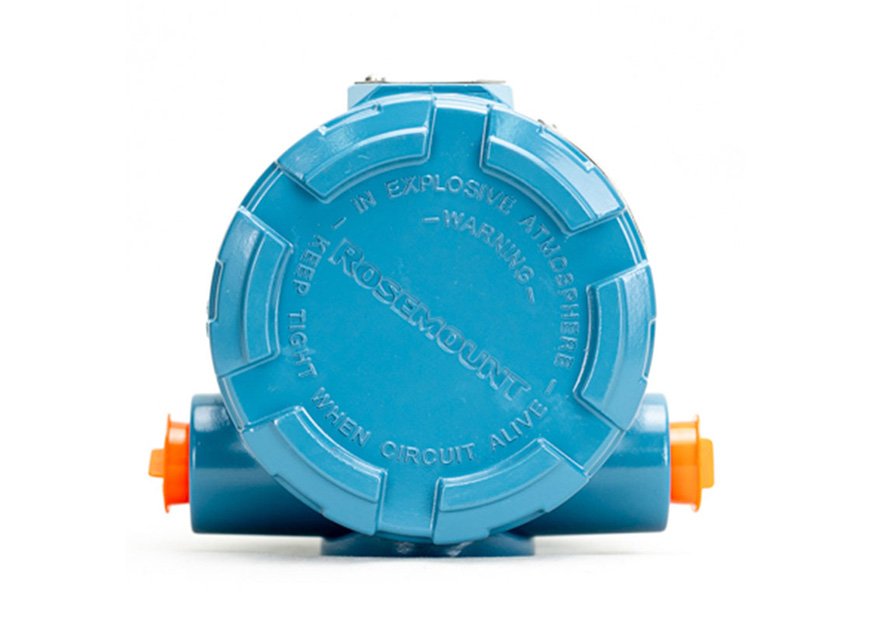

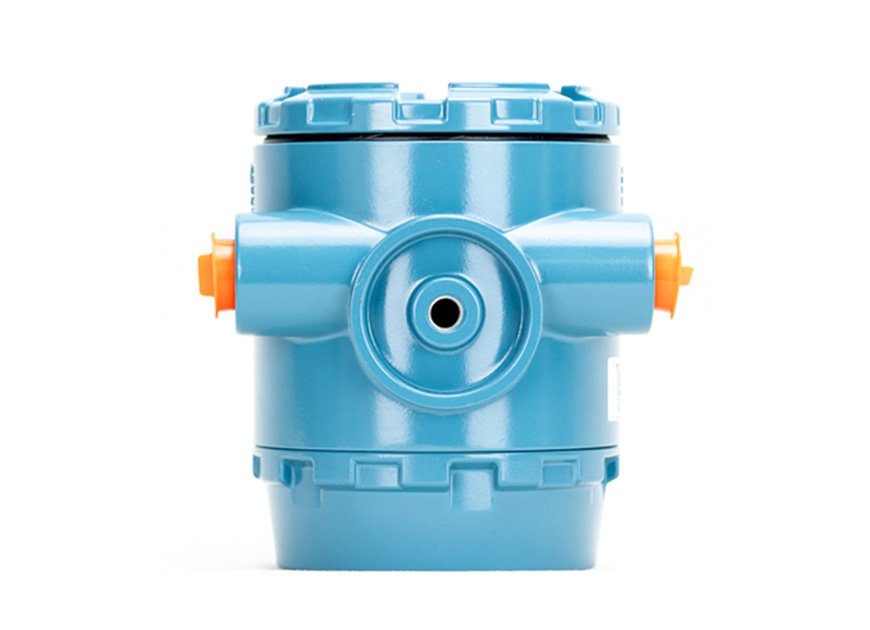

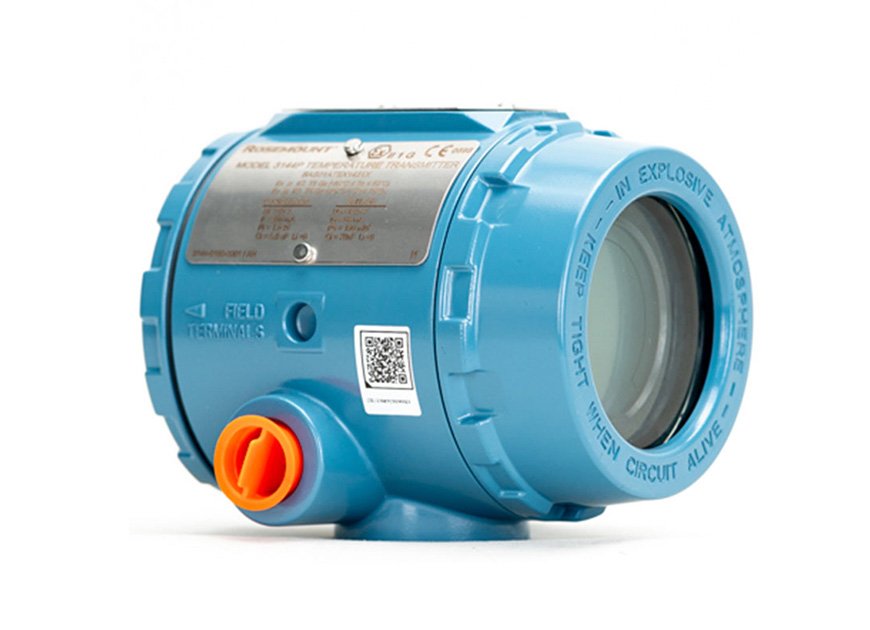

The Rosemount 3144P Temperature Transmitter provides high accuracy, stability and reliability for your temperature measurements. It features a dual-compartment housing to ensure reliability and advanced diagnostics to keep your measurement point up and running. When combined with Rosemount X-well™ Technology and the Rosemount 0085 Pipe Clamp sensor, this transmitter can provide accurate measurement of process temperature, eliminating the need for a thermowell or process penetration.
Rosemount X-well Technology provides a Complete Point Solution™ for accurately measuring process temperature in monitoring applications without the requirement of a thermowell or process penetration.
l Simplify temperature measurement point specification, installation and maintenance, and eliminate possible leak points.
l Calculates a repeatable and accurate process temperature measurement via an in-transmitter thermal conductivity algorithm.
l Measures pipe surface and ambient temperature, and utilizes the thermal conductivity properties of the installation and process piping in order to provide an accurate process measurement.
Industry-leading temperature transmitter delivers unmatched field reliability and innovative process measurement solutions
l Superior accuracy and stability
l Dual and single sensor capability with universal sensor inputs (RTD, T/C, mV, ohms)
l Comprehensive sensor and process diagnostics offering
l SIL3 Capable: IEC 61508 certified by an accredited 3rd party agency for use in safety instrumented systems up to SIL 3 (minimum requirement of single use [1oo1] for SIL 2 and redundant use [1oo2] for SIL 3) n Dual-compartment housing

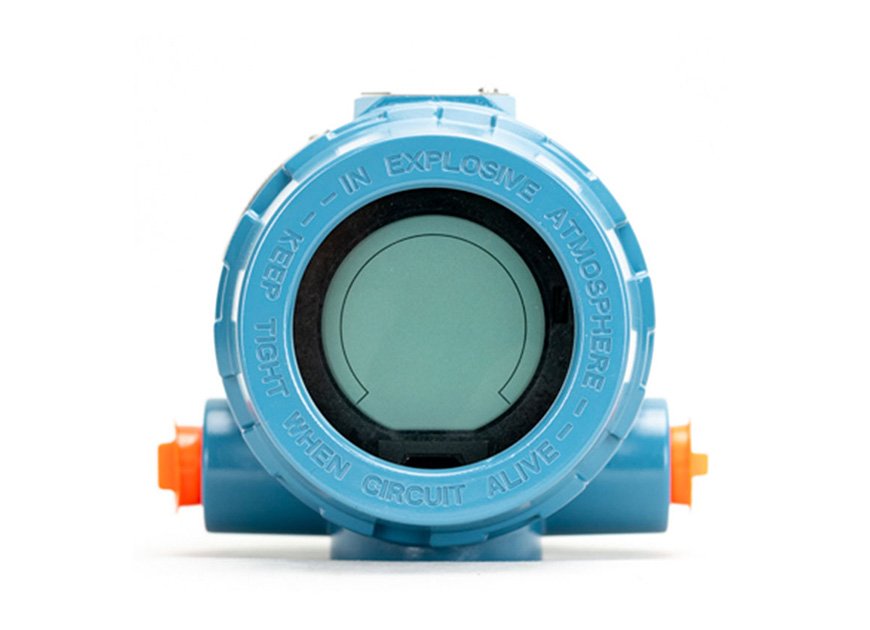

l Large LCD display
l 4–20 mA /HART® with selectable revisions (5 and 7)
l FOUNDATION Fieldbus, compliant to ITK 6.0 and NE107 standards
Improve efficiency with best-in-class product specifications and capabilities
l Reduce maintenance and improve performance with industry leading accuracy and stability.
l Improve measurement accuracy by 75 percent with transmitter-sensor matching.
l Ensure process health with system alerts and easy to use device dashboards.
l Easily check device status and values on local LCD display with large percent range graph.
l Achieve high reliability and installation ease with the industry's most rugged dual compartment design.
Optimize measurement reliability with diagnostics designed for any protocol on any host system
l Thermocouple degradation diagnostic monitors the health of a thermocouple loop, enabling preventative maintenance. n
l Minimum and maximum temperature tracking tracks and records temperature extremes of the process sensors and the ambient environment. n
l Sensor drift alert detects sensor drift and alerts the user. n
l The Hot Backup feature provides temperature measurement redundancy.
Explore the benefits of a Complete Point Solution from Emerson n
l An “Assemble To Sensor” option enables Emerson to provide a complete point temperature solution, delivering an installation-ready transmitter and sensor assembly. n
l Emerson offers a selection of RTDs, thermocouples, and thermowells that bring superior durability and Rosemount reliability to temperature sensing, complementing the Rosemount Transmitter portfolio.
Emerson Rosemounte 3144P Temperature Transmitter | |
Parameter | Specification |
Measurement Type | Temperature (RTD, Thermocouple, Ohms Input) |
Input Sensors Supported | RTD (Pt100, Pt1000), Thermocouples (Types B, E, J, K, N, R, S, T), Ohms Input |
Temperature Range | -200°C to +850°C (-328°F to +1562°F) based on sensor type |
Accuracy | ±0.1°C (standard RTD), ±0.25°C (optional enhanced accuracy) |
Output Signal | 4–20 mA (HART® 7), FOUNDATION Fieldbus, or PROFIBUS PA |
Power Supply | 10.5–42 V DC (loop-powered for 4–20 mA models) |
Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
Response Time | <1 second (programmable damping) |
Ambient Temperature | -40°C to +85°C (-40°F to +185°F) |
Vibration Resistance | 2g RMS (10–2000 Hz) |
Shock Resistance | 50g (11 ms half-sine) |
EMC Immunity | 30 V/m (80 MHz–1 GHz) |

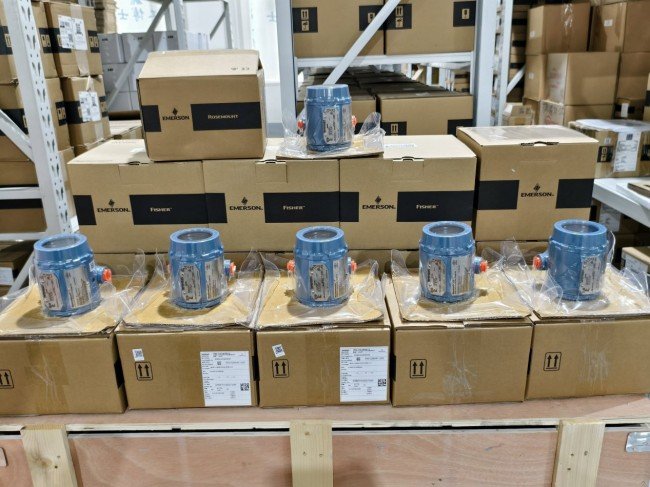

Packaging: Original bag and box
