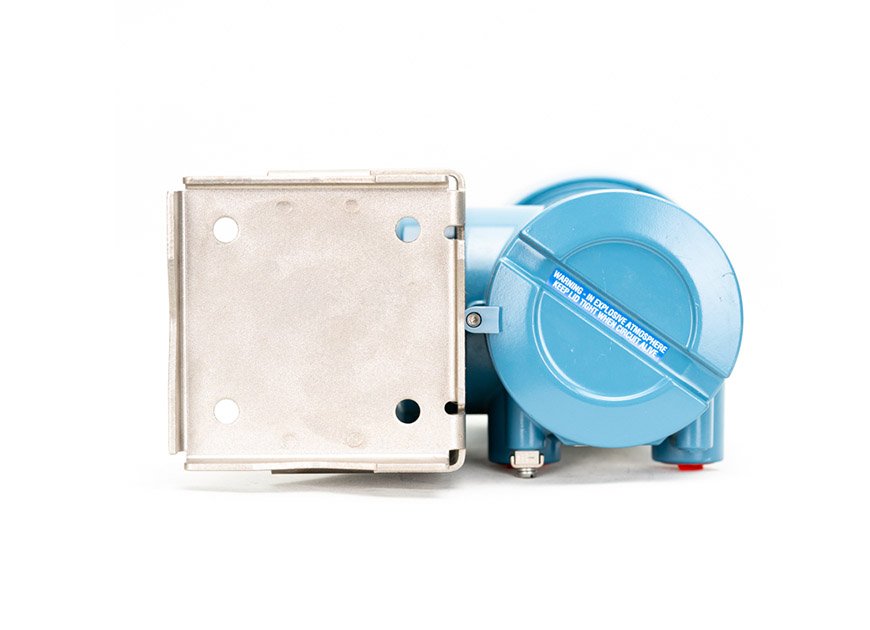

Powered by MVD Technology, these versatile field-mount transmitters are built with an advanced architecture and provide a wide variety of I / O and application flexibilities, making them the top choice for compact integral mounting.
Maximize flexibility with integral or remote mounting
Receive diagnostics for performance under entrained gas and batching from empty applications with MVD digital processing
Lower wiring costs and install easily and quickly
Eliminate the need for additional instruments with concentration and net flow measurement
Rely on custody-transfer approval and certification for SIL2 and SIL3
Gain real-time and in-process measurement integrity assurance with Smart Meter Verification
Gain access to additional diagnostics and process information without added wiring costs with WirelessHART™
Simplify flow-meter access with rugged Class I, Division 1 / Zone 1 housing with an optional local operator interface
Specification | Micro Motion 1700 (Single Variable) | Micro Motion 2700 (Multivariable) |
Product Type | Single-variable field/integral mount flow transmitter | Multivariable field/integral mount flow & density transmitter |
Measured Variables | Mass flow, Volume flow | Mass flow, Volume flow, Gas standard volume, Density, Temperature, Drive gain |
Signal Technology | MVD (Multivariable Digital) Signal Processing | MVD (Multivariable Digital) Signal Processing |
Housing Material | Cast aluminum (polyurethane painted) / 316L SS | Cast aluminum (polyurethane painted) / CF3M Stainless Steel |
Environmental Rating | NEMA 4X, IP66 | NEMA 4X, IP66 |
Mounting Options | Integral mount (F/R/H/T-Series sensors)Remote mount (4-wire & 9-wire) | Integral mount (360° rotatable)Field (wall/pipe) mountRemote mount (4-wire & 9-wire) |

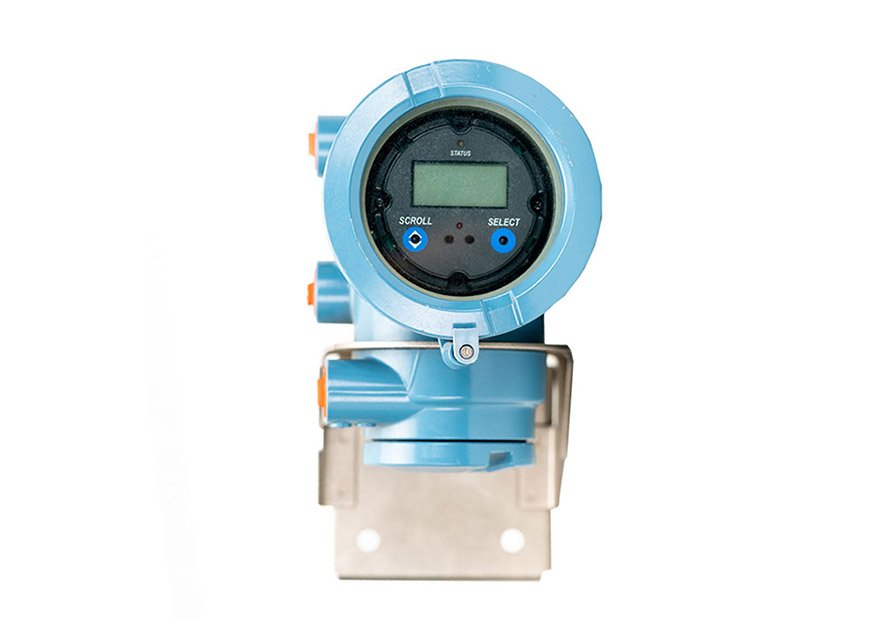

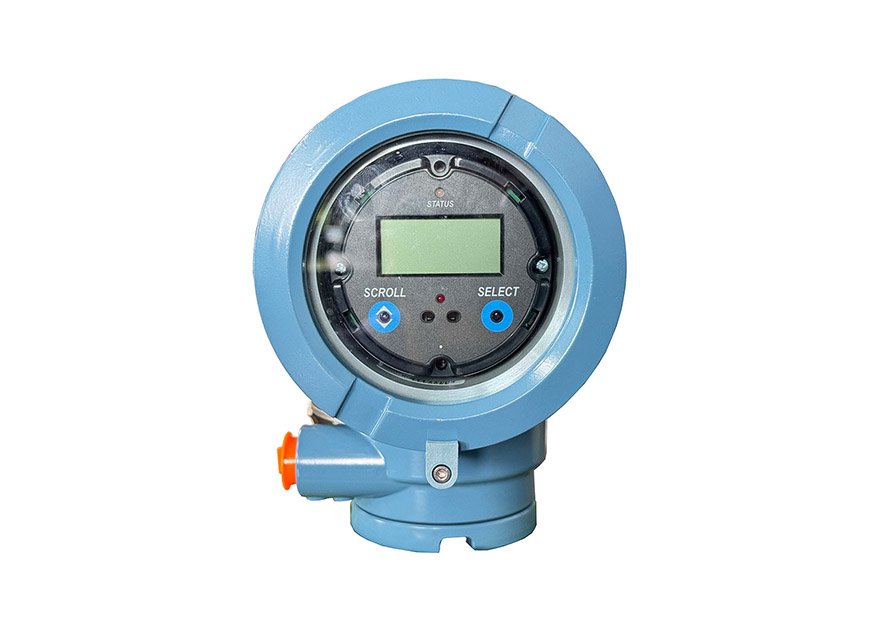

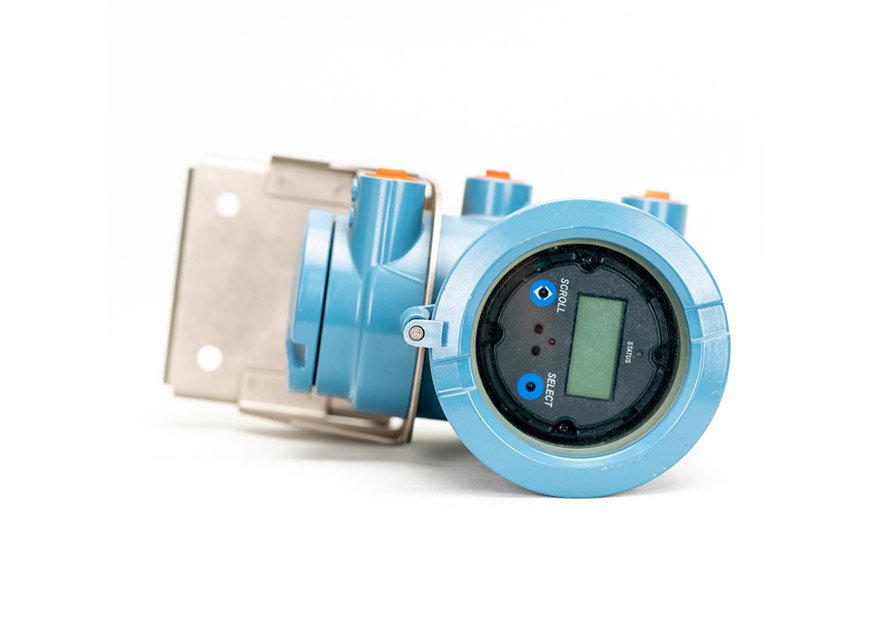

Local Display | 2-line LCD, 2 optical touch keysGlass / plastic lens | 2-line segmented LCD, optical controlsStatus LED, tempered glass lens |
Power Supply | Auto-switching: 85–265 VAC, 18–100 VDC6 W typical, 11 W max | Auto-switching: 85–265 VAC, 18–100 VDC6 W typical, 11 W max |
Weight (Aluminum, Remote) | 4-wire: 7 lb (3 kg) w/o display8 lb (4 kg) w/ display9-wire: 13 lb (6 kg) w/o display14 lb (6 kg) w/ display | 4-wire: 7 lb (3.2 kg) w/o display8 lb (3.6 kg) w/ display9-wire: 13 lb (5.9 kg) w/o display14 lb (6.3 kg) w/ display |
Outputs (Standard) | • (1) 4–20 mA analog (HART)• (1) Frequency/pulse• Configurable to discrete output | Analog I/O: • (1) 4–20 mA (HART) • (1) Frequency/Discrete outputEmerson Configurable I/O: • (1–2) 4–20 mA• (1–2) Frequency/Discrete• (1) Discrete InputEmerson |
Communication | HART (Bell 202) | HART, Modbus RS485, FOUNDATION Fieldbus, PROFIBUS PA, WirelessHART (THUM) |
Hazardous Area | Class I Div. 1/2, Zone 1/2ATEX, IECEx, UL, CSA, NEPSI | Class I Div. 1/2, Zone 1/2ATEX, IECEx, UL, CSA, NEPSI |
Key Features | Basic flow measurementCompact integral designSmart Meter Verification | Multi-variable measurementEnhanced diagnosticsPetroleum API optionFull Smart Meter Verification |
Compatible Sensors | F-Series, R-Series, H-Series, T-Series, ELITE (4-wire & 9-wire) | All Micro Motion Coriolis sensors (F/R/H/T/ELITE/G-Series) |

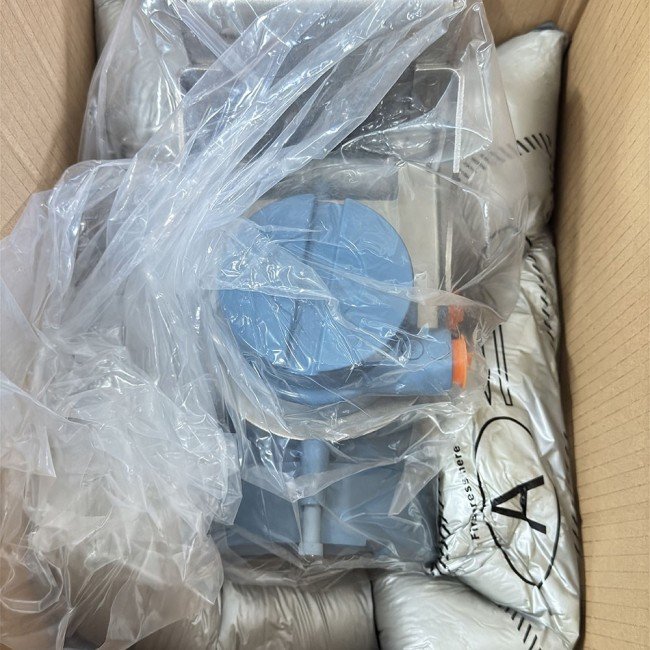

Packaging: Original box
