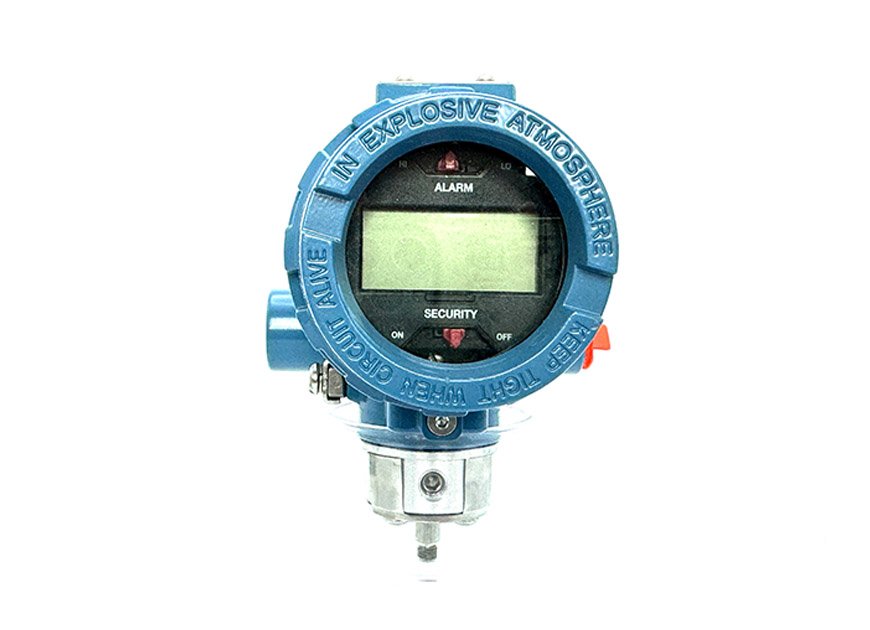

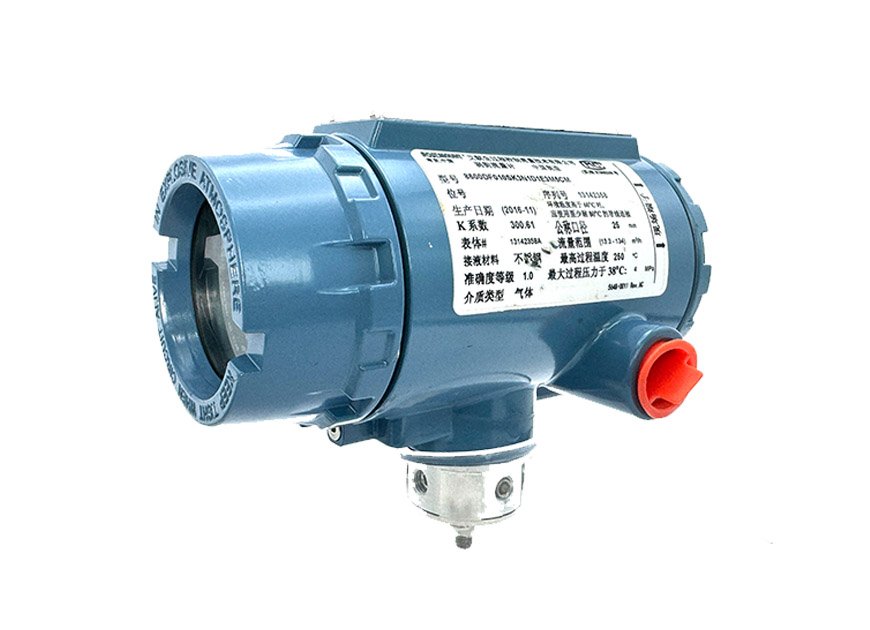

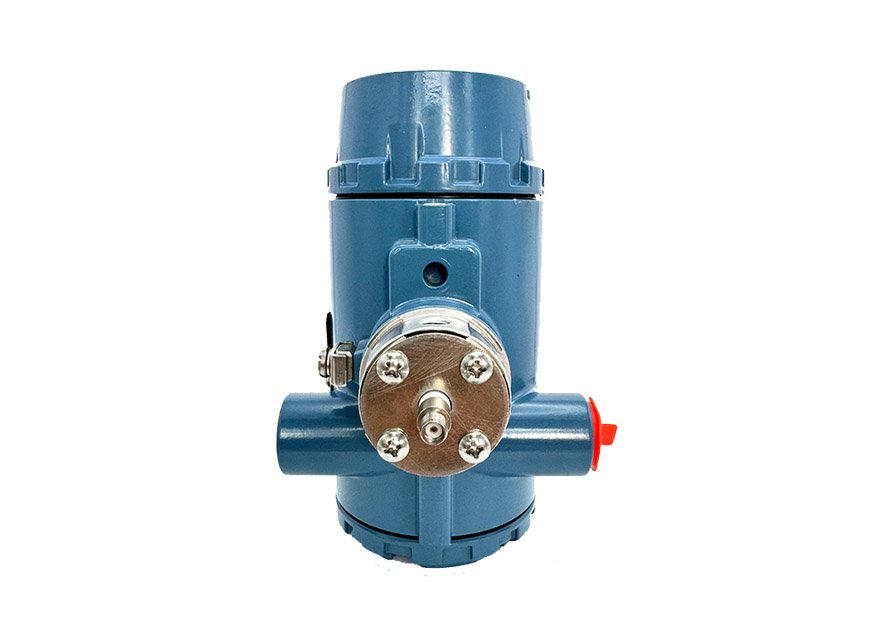

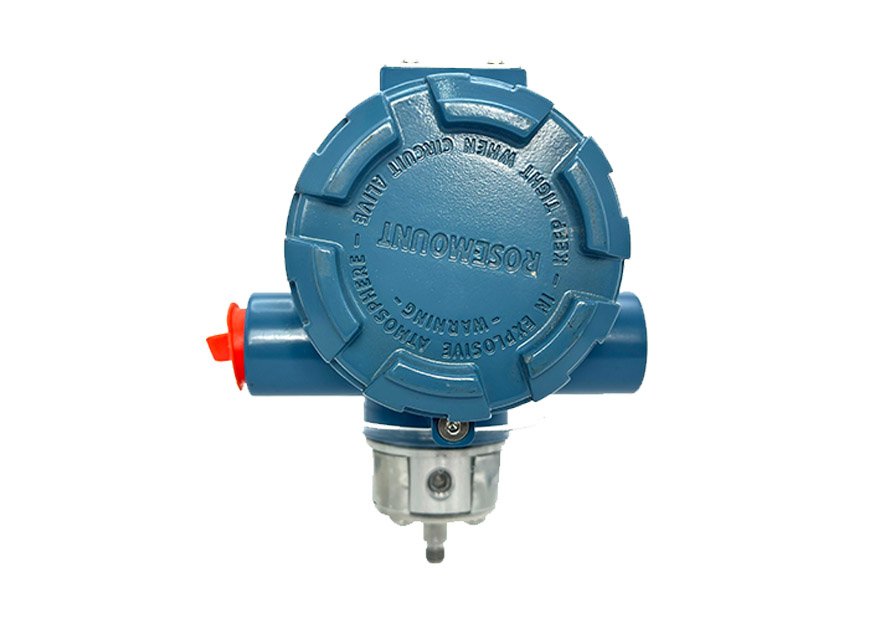

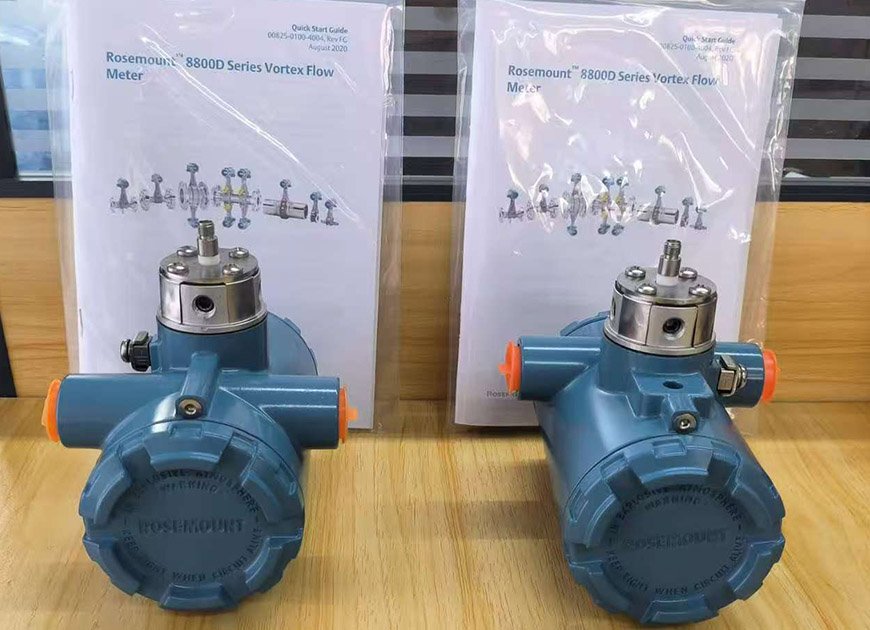

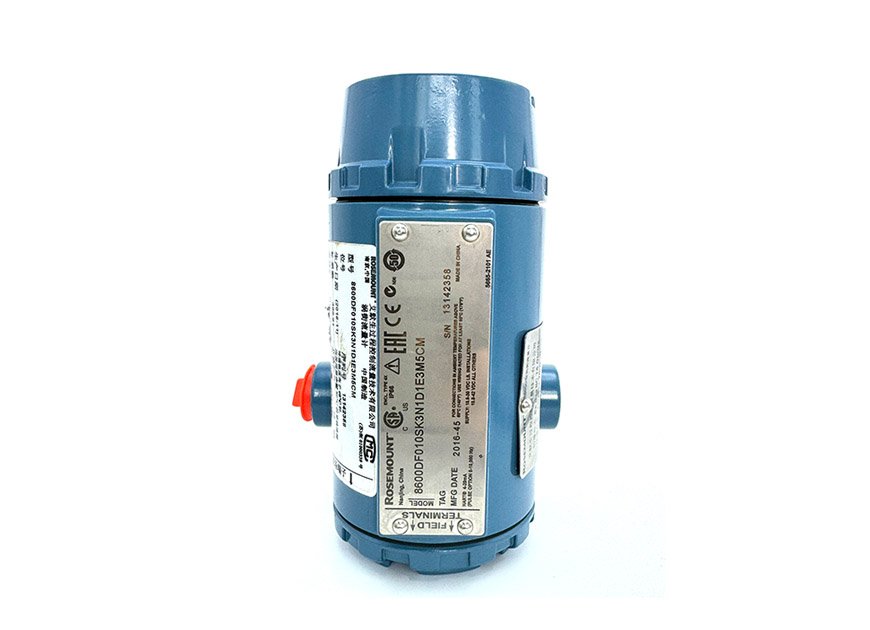

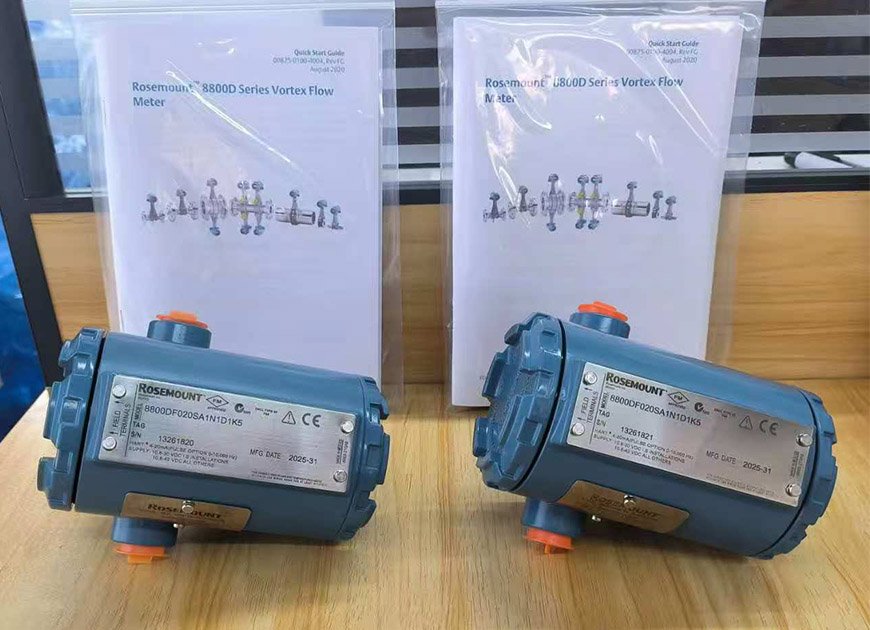

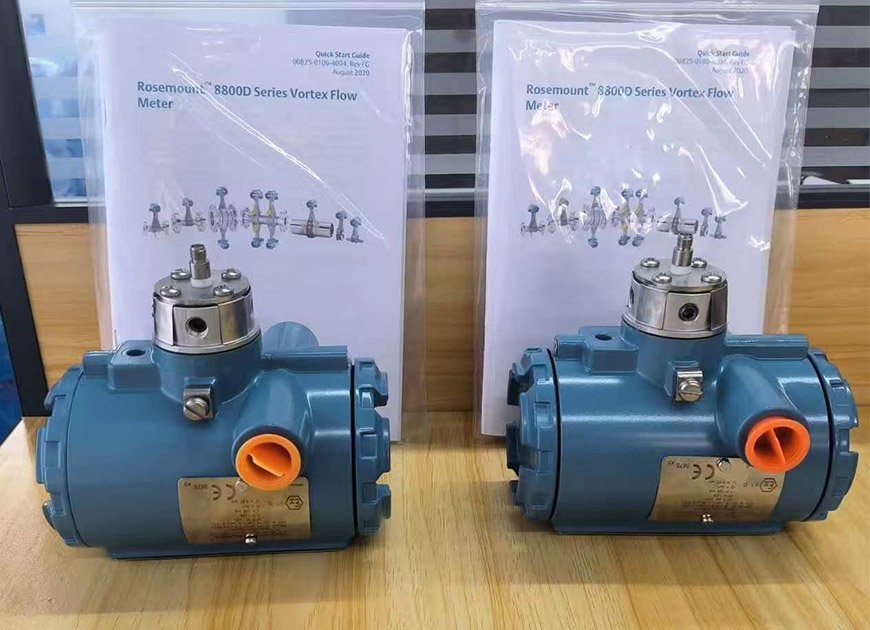

The Rosemount 8800 Series Flow Meter is a well-established solution for industrial flow measurement, known for its robust design and reliable performance in demanding process environments. The 8800 series is widely used across oil & gas, chemical, and general process industries where accurate and stable flow measurement is required.
Specification | Details |
Product Type | Vortex Flowmeter (Flanged / Wafer / Dual-sensor / Reducer styles) |
Line Sizes | ½ – 12 in (DN15 – DN300 mm) |
Accuracy (Uncompensated) | ±0.65% of volumetric rate (liquids)±1.00% of volumetric rate (gas & steam) |
Accuracy (Multivariable) | ±0.70% mass flow (water, MTA/MCA)±2.00% mass flow (steam, MTA/MCA)±1.20–2.50% rate (steam, MCA/MPA, pressure dependent) |
Flow Turndown | Up to 38:1 (single sensor)15:1 (dual sensor) |
Process Temperature | -330°F to 800°F (-200°C to 427°C) |
Pressure Rating | ANSI Class 150, 300, 600, 900, 1500DIN PN10 – PN160JIS 10K – 40K |
Wetted Materials | 316/316L SS (CF3M)Nickel Alloy C-22 (UNS N06022/CW2M)High temp CS (A105/WCB)Low temp CS (LF2/LCC)Duplex SS (UNS S32760/6A) |
Output Signals | 4–20 mA with HART 5/74–20 mA + HART + scalable pulseFOUNDATION Fieldbus ITK6Modbus RS 485 (4 variables) |
Power Supply | 12–42 VDC / 90–250 VAC 50/60 Hz |
Enclosure Rating | NEMA 4X, IP66, IP67 |
Ambient Temperature | -40°C to +85°C (-40°F to +185°F) |
Key Features | Dual sensor option, signal spectrum analysis, empty pipe detection, in situ verification |
Hazardous Approvals | ATEX, IECEx, UL, CSA, SIL 2/3 |

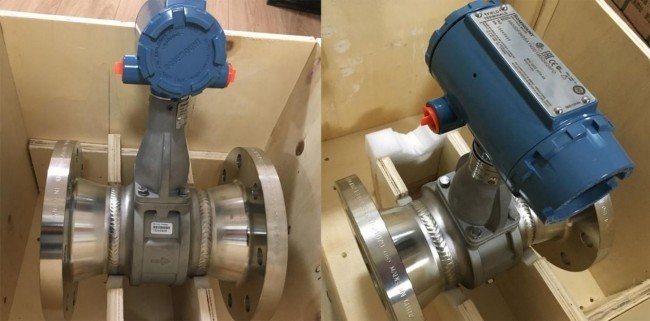

Packaging: Original box
