■ Best-in-class performance on liquid mass flow, volume flow, and density measurements in a compact design (up to ±0.05% liquid mass accuracy and up to ±0.5 kg/m3 liquid density accuracy)
■ Superior sensitivity in a compact design to reduce variability in process control
■ Rugged design minimizing process, mounting, and environmental effects
■ Cleanable, self-draining design for critical process control service
■ Compact design enables installation flexibility
■ Broad range of I/O offerings including HART™, Profibus-DP, FOUNDATION™ fieldbus, 4-20 mA, and wireless capabilities
■ No moving parts to wear or replace minimizes maintenance for long-term reliability
■ 316L stainless steel wetted parts construction with up to a 15 Ra surface finish (0.38 μm) for hygienic compatibility
■ Robust sensor design

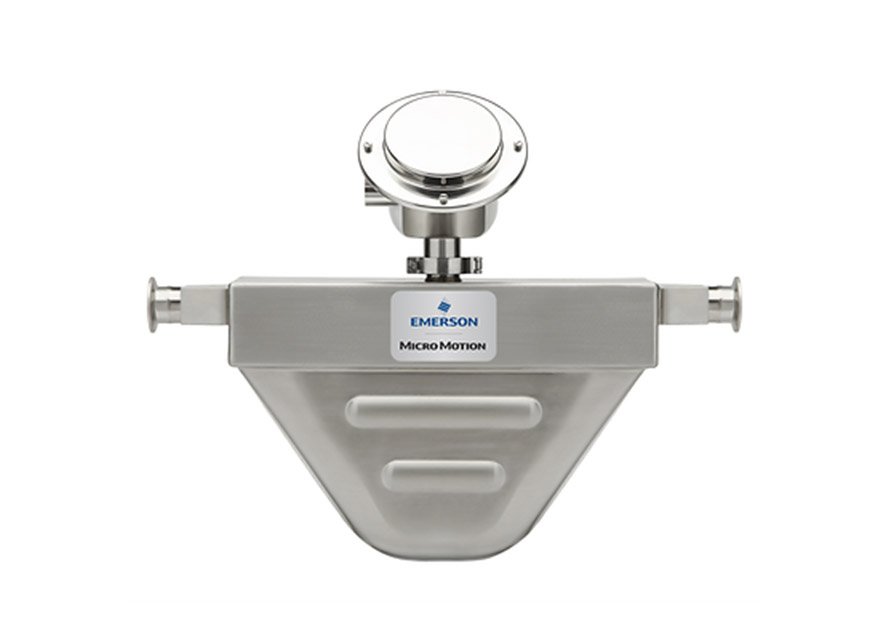

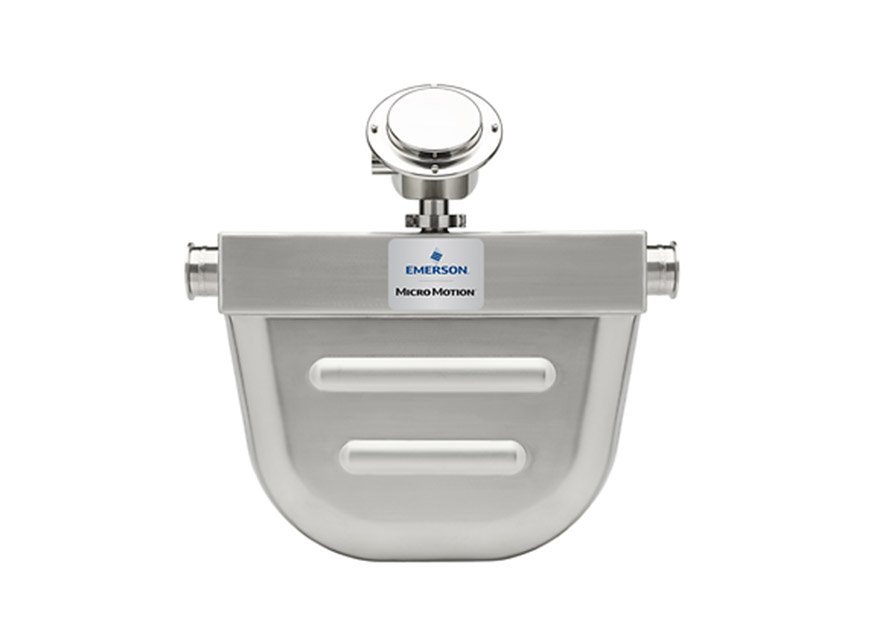

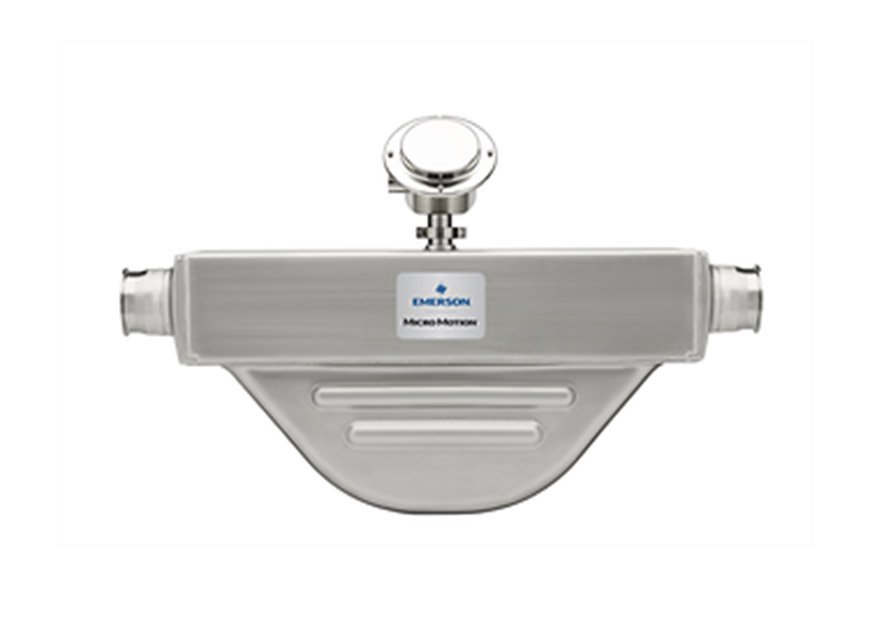

Micro Motion H-Series meters deliver superb measurement with exceptional flow and density performance as well as outstanding reliability in a compact hygienic design for use in sanitary process control environments.
Optimal flow and density fit for hygienic process control applications
■ High performance rugged measurement in a compact self-draining design
■Low frequency, high sensitivity fit-and-forget meter provides robust measurements even under demanding process conditions

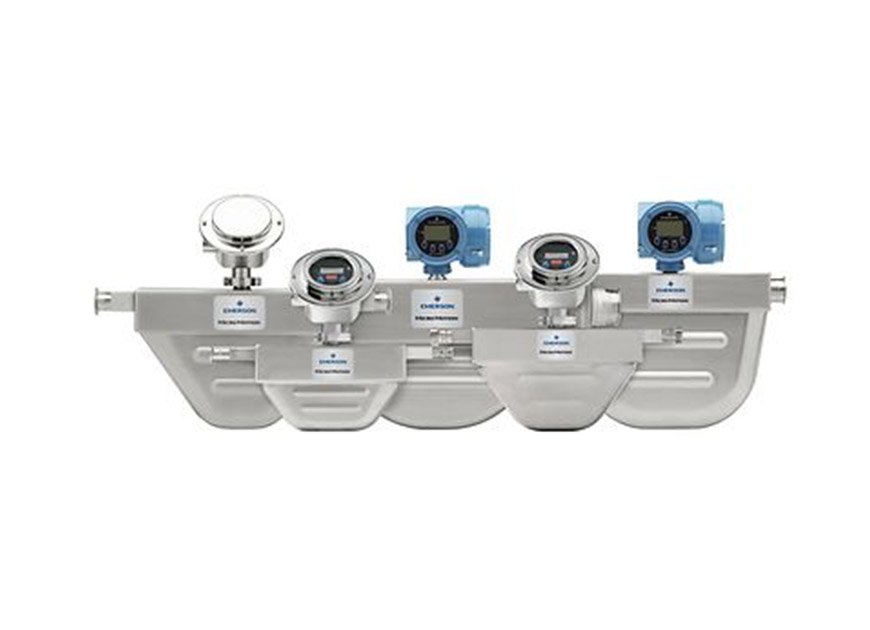

■ Multiple line sizes provide an ideal platform for batching, distribution, allocation and intra-plant measurement applications
■ Included as standard with the option to license flow range detection and other advanced meter health diagnostics
■ Runs comprehensive tests that can be scheduled, run locally, or from the control room to provide confidence in your meter functionality and performance
■ Verifies that your meter performs as well as the day it was installed, giving you assurance in less than 90 seconds
■ Saves significant expenditure by reducing labor and extending or eliminating calibration intervals without interrupting the process
■ Available with the most extensive offering of transmitter and mounting options for maximum compatibility with your system
■ State of the art, ISO/IEC 17025 compliant calibration stands achieving ±0.014% uncertainty drive best in class measurement accuracy
■ The most robust communication protocol offering in the industry including Smart Wireless
■ True multi-variable technology measures necessary flow and density process variables simultaneously Widest range of installation and process condition flexibility
■ Featuring a low pressure drop, low weight design that reduces installation and commissioning costs
■ Unmatched MVD™ transmitter technology with digital signal processing (DSP) delivers the fastest response rates enabling accurate batch and process measurement
■ Design flexibility enables operation in SIP, CIP and sanitary where ASME BPE, 3-A, and EHEDG compliance is required
Specification | Details |
Product Series | Micro Motion H-Series (H025, H050, H100, H150, H200, H300, H400) |
Measuring Principle | Coriolis Effect (Simultaneous Mass Flow, Volume Flow, Density & Temperature Measurement) |
Line Sizes (DN / Inch) | DN6 (1/4"), DN15 (1/2"), DN25 (1"), DN40 (1.5"), DN50 (2"), DN80 (3"), DN100 (4") |
Flow Ranges (Liquid) | 0.001 ~ 90,700 kg/h (0.002 ~ 200,000 lb/h) |
Mass Flow Accuracy (Liquid) | ±0.15% of rate (Standard) ±0.10% of rate (Optional) ±0.05% of rate (High Accuracy, H400) |
Mass Flow Repeatability (Liquid) | ±0.05% of rate (Standard) ±0.025% of rate (High Accuracy, H400) |
Volume Flow Accuracy (Liquid) | ±0.25% of rate (Standard) ±0.15% of rate (Optional) ±0.05% of rate (High Accuracy, H400) |
Volume Flow Repeatability (Liquid) | ±0.05% of rate |
Mass Flow Accuracy (Gas) | ±0.50% of rate (Standard) ±0.35% of rate (High Accuracy, H400) |
Mass Flow Repeatability (Gas) | ±0.25% of rate (Standard)±0.175% of rate (High Accuracy, H400) |
Density Accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (Standard) ±0.001 g/cm³ (1.0 kg/m³) (Optional) ±0.0005 g/cm³ (0.5 kg/m³) (High Accuracy) |
Density Range | 0.0 ~ 3.0 g/cm³ |
Temperature Accuracy | ±1 °C ±0.5% of reading |
Process Temperature Range | -100 °C ~ +204 °C (-148 °F ~ 400 °F) |
Max Working Pressure | Standard (S): 1,450 psig (100 barg) Hygienic (F): 1,015 psig (70 barg) |
Wetted Materials | 316L Stainless Steel (Standard) |
Surface Finish | 15 Ra, 30 Ra, 32 Ra (Hygienic Polishing) |
Process Connections | Hygienic (Tri-Clamp, Luer Lock), Flanged (ANSI/DIN), Threaded (NPT) |
Sensor Design | Dual-tube, Compact, Fully drainable & self-emptying, Hygienic |
Transmitter Models | 1600, 2500, 2700, 3500, 3700, 5700 |
Power Supply | 4-20 mA Loop, 18-100 VDC, 85-265 VAC |
Communication Protocols | HART, Modbus, FOUNDATION Fieldbus, PROFINET, Ethernet/IP |
Protection Class | IP66 / IP67, NEMA 4X |
Hazardous Area Approvals | ATEX, IECEx, UL, CSA, NEPSI (Div. 1 & 2) |
Hygienic Approvals | 3-A, EHEDG, FDA, USP Class VI |
Key Features | • Ultra-hygienic, fully drainable design • High-precision measurement• Multi-variable measurement (flow/density/temp) • Smart Meter Verification (self-diagnostic) • Suitable for CIP/SIP processes |
Typical Applications | Food & Beverage, Pharmaceutical, Biotechnology, Personal Care, Hygienic Chemical |

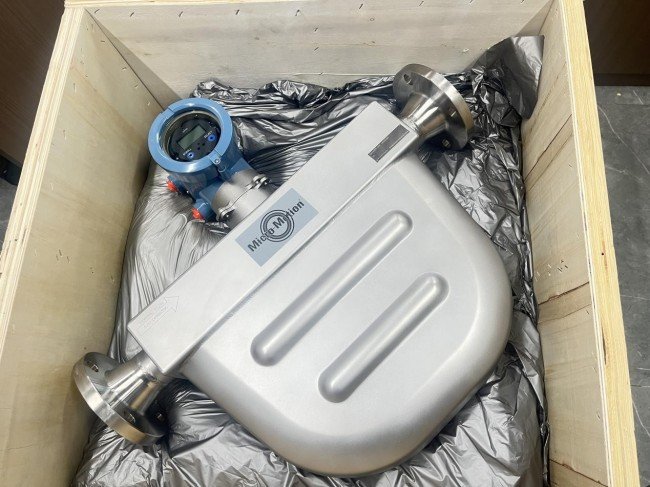

Packaging: Original box
