■ Faster processing speed delivers the best response even in the most challenging applications such as meter proving, filling & dosing, and batching
■ Smart Meter Verification™ provides you with the confidence you need in your meter performance
■ Zero verification confirms the calibration and indicates when it’s time to re-zero the meter
■ Approved for custody transfer and certified for SIL2 and SIL3, which provides measurement confidence and reliability A window into your process
■ Easy access to detailed measurement history gives you valuable insight into your process for better troubleshooting and optimization
■ Real-time indication of multi-phase flow events allow for greater process control
■ High-accuracy density measurement reduces or eliminates waste in your process while the embedded historian records upsets and process deviations
Transmitter
■ Designed to minimize the time and expertise needed to install and operate the flow meter
■ Configurable I/O version, provides up to five fully configurable input/output channels that can be easily upgraded with changing needs
■ Ethernet version includes multiple protocols on dual channels, plus a configurable I/O channel
■ PROFIBUS® -PA version includes PROFIBUS-PA output, a fixed mA Output channel, and a configurable Frequency/ Discrete Output channel
■ FOUNDATION™ Fieldbus version includes IEC-61158-2 FOUNDATION Fieldbus output, a fixed mA Output channel, and a configurable Frequency/Discrete Output channel
■ Intrinsically safe output version, includes up to four configurable intrinsically safe output channels that can easily be upgraded with changing needs
■ Offline configuration and auditing through new file shuttling capability
■ Wi-Fi display option enables point-to-point wireless communication in order to configure and characterize the meter, download historical files, and run Smart Meter Verification for troubleshooting purposes.
Note:Only available for a Micro Motion 5700 Transmitter with configurable inputs and outputs.
■ Marine Bunkering Software option The MID-certified bunker application enables the Micro Motion 5700 Transmitter to work as a central unit for an MID-approved bunker system. This application captures two-phase flow during a bunker measurement and handles multiple inputs and outputs from pressure, temperature, liquid detectors, and ticket printers
Specification | Details |

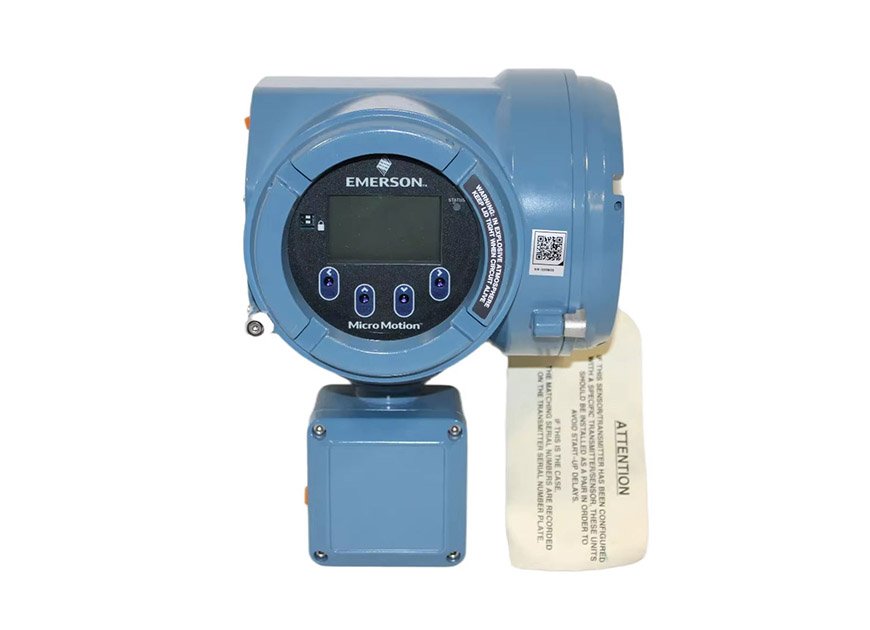

Product Type | Multivariable Field-mount & Integral-mount Coriolis Transmitter |
Measured Variables | Mass flow, Volume flow, Gas standard volume, Density, Temperature, Viscosity (optional), Drive gain |
Signal Processing | Advanced MVD (Multivariable Digital) Signal Processing |
Mounting Options | • Integral mount (360° rotatable) with all Micro Motion sensors• Field (wall/pipe) mount |

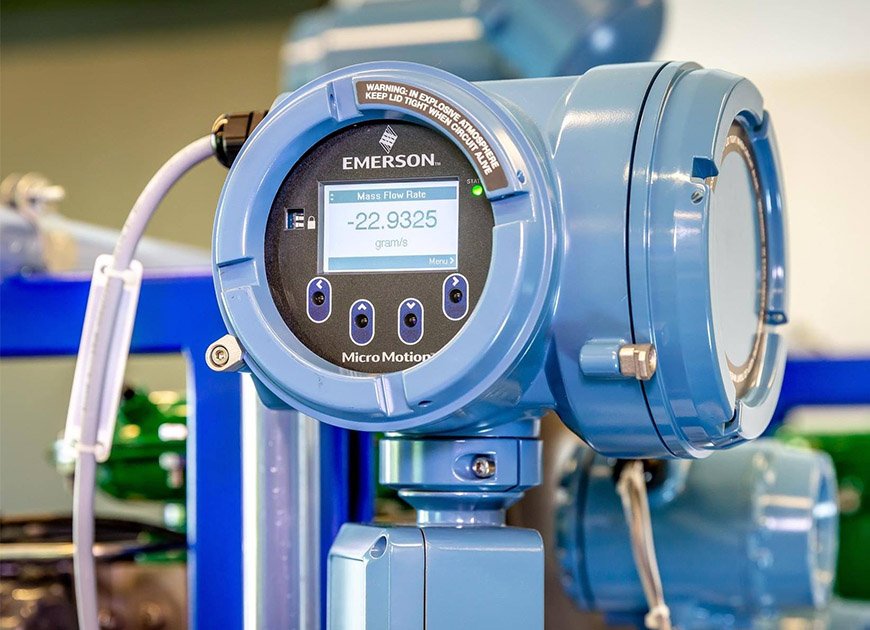

Local Display | Graphical backlit LCDFour-button optical touch controlsStatus LEDMulti-language: English, German, French, Spanish, Portuguese, Russian, Chinese, Japanese |

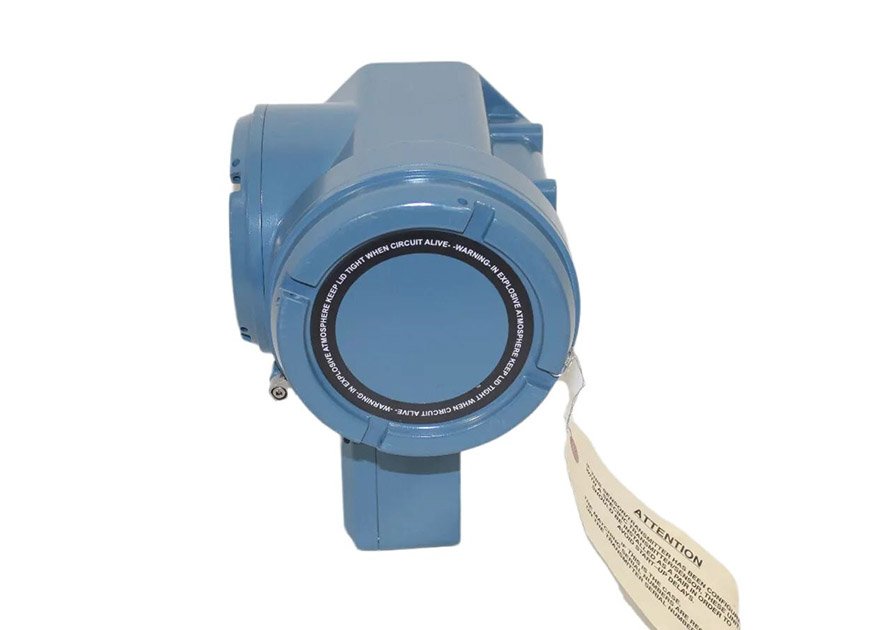

Housing Material | • Aluminum (polyurethane coated) • 316L Stainless Steel (SS) optional |
Environmental Rating | NEMA 4X, IP66, IP67Emerson |
Ambient Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
Power Supply | • Auto-sensing AC/DC: 85–265 VAC, 50/60 Hz • 18–100 VDC • 6 W typical, 11 W max |
I/O Configuration (Configurable) | Up to 5 licensable channels: • 1–3 × 4–20 mA (analog) • 1–3 × Pulse / Frequency (FO) • 1–3 × Discrete Output (DO) • 1–2 × Discrete Input (DI) • 1 × mA Input • 1 × Modbus RS-485 • Universal Service Port (USB) |
Intrinsically Safe (IS) Version | Up to 4 IS channels: • Channel A: mA / HART • Channel B: mA • Channel C: mA / FO • Channel D: FO |
Communication Protocols | HART, Modbus RS-485, FOUNDATION Fieldbus, PROFIBUS PA, PROFINET, Ethernet/IP, WirelessHART (THUM adapter), Wi-Fi (optional) |
Fault Signaling | • Upscale: 21.0–23.0 mA (default 22.0 mA) • Downscale: 1.0–3.6 mA (default 2.0 mA) |
SIL Certification | SIL 2 / SIL 3 capable (with internal readback loop) |
Hazardous Area Approvals | ATEX, IECEx, UL, CSA, NEPSIClass I Div. 1/2, Zone 1/2 |
Compliance | NAMUR NE 80, NE 95, NE 132 |
Weight (Aluminum) | • Field-mount: ~3.2 kg (7 lb)• Integral-mount: ~2.7 kg (6 lb) |
Key Features | • Full multivariable measurement • Advanced diagnostics & Smart Meter Verification • Fully configurable I/O • Graphical user interface • Wi-Fi configuration option • SIL & extensive hazardous area approvals |
Compatible Sensors | All Micro Motion Coriolis: F, R, H, T, ELITE, G, TA-Series |

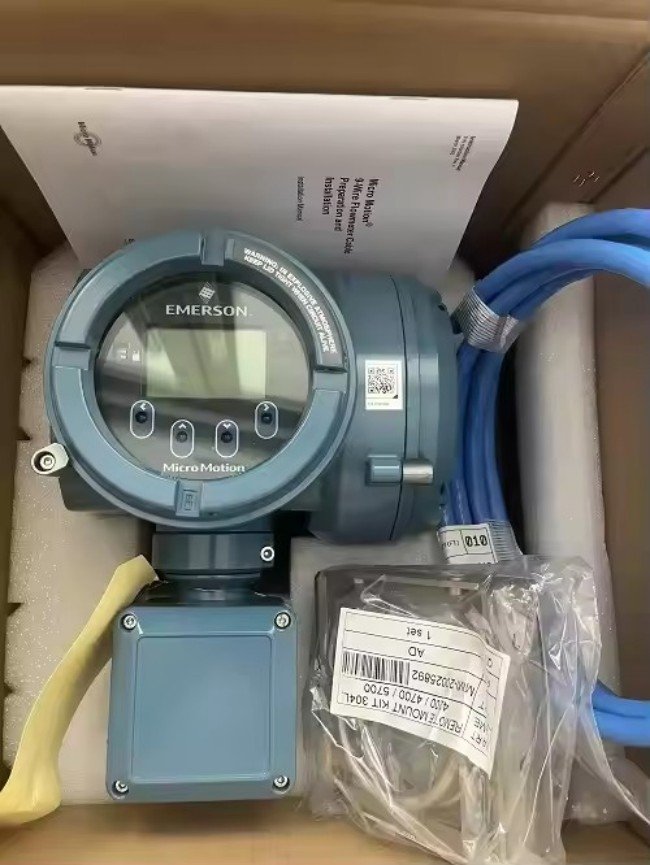

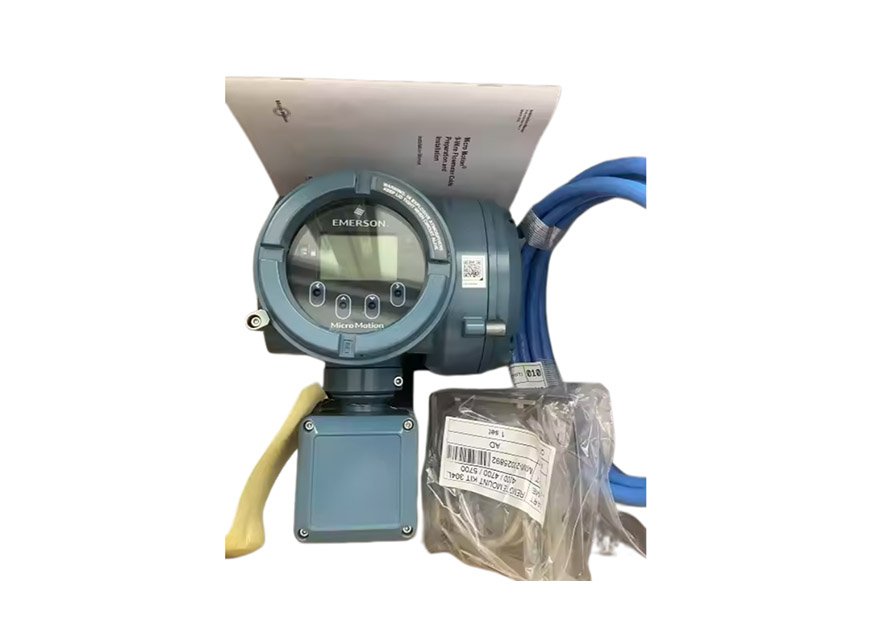

Packaging: Original box
![]()
