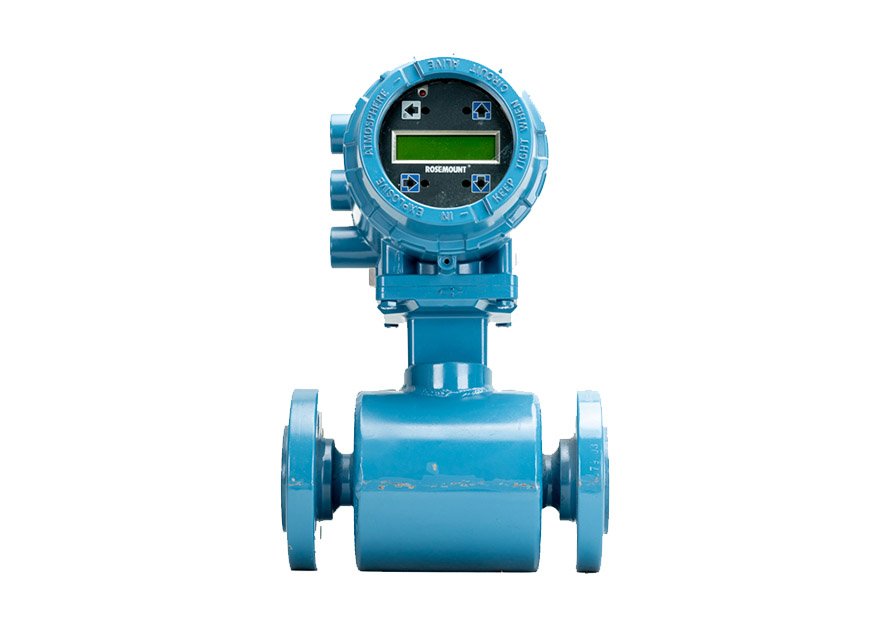

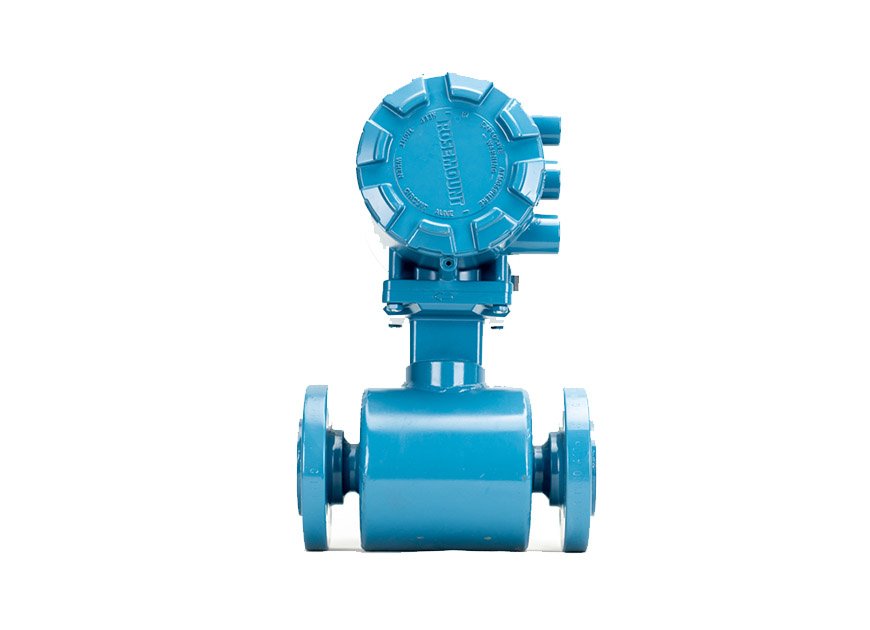

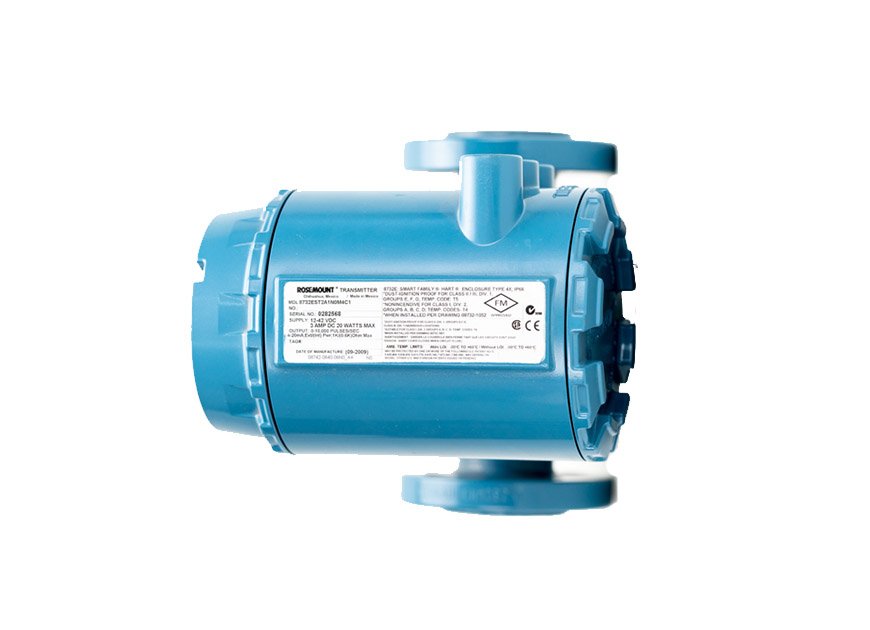

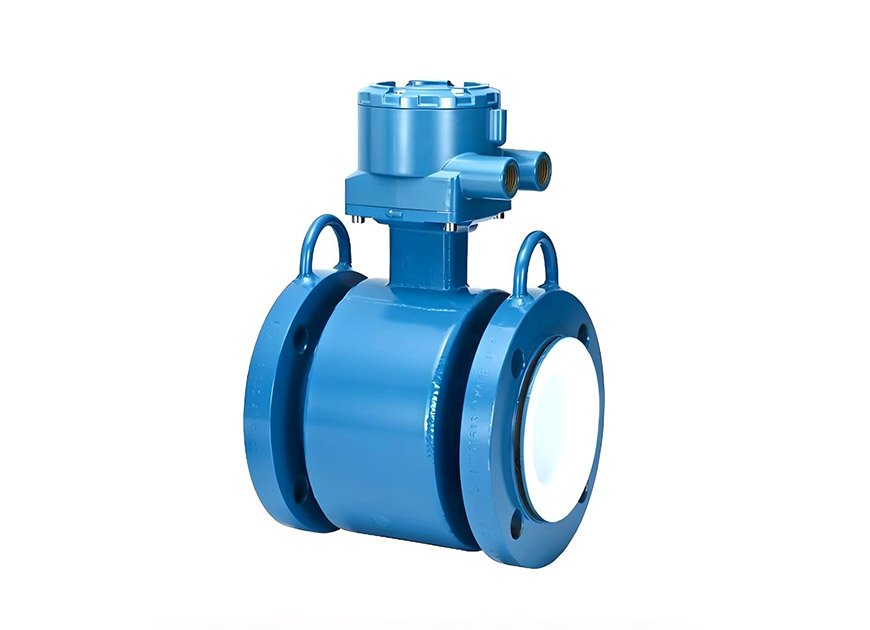

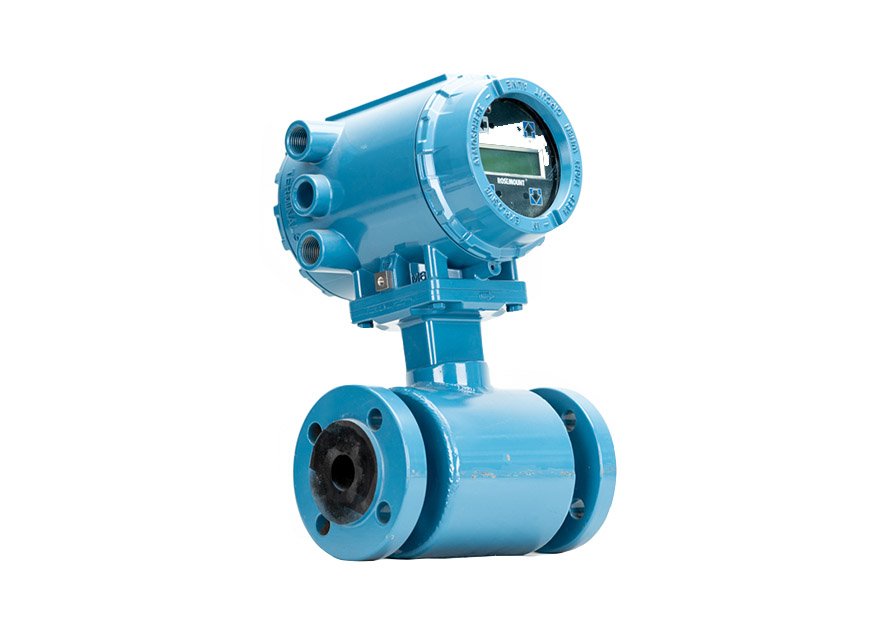

Rosemount 8705 Flanged Magnetic Flow Meter Sensors provide long-lasting, reliable performance in even the most challenging applications. An all-welded construction provides a hermetic seal that protects against moisture and other contaminants. The sealed housing ensures maximum sensor reliability by protecting all internal components and wiring from even the most aggressive environments. A removable and replaceable terminal block enables easy repair in the field without the need to replace the entire meter.
· For maximum protection, a fully welded sensor housing provides a hermetic seal
· Avoid process shutdown with a removable and replaceable terminal block that enables repairs in the field
· Capture any potential process fluid leakage with optional secondary containment compartments to surround electrodes
· Ensure reliability in the harshest environments with an all-welded sensor housing
· Guard against installation damage and leading-edge wear with an optional lining protector
· Minimize maintenance and repair with an obstructionless design featuring no moving parts
Specification | Standard Version | High Accuracy Version | High Pressure / High Temperature Version |
Product Designation | Rosemount 8705 Standard Magnetic Flow Meter | Rosemount 8705 High Accuracy Magnetic Flow Meter | Rosemount 8705 High Pressure/High Temperature Magnetic Flow Meter |
Measurement Principle | Faraday's Law of Electromagnetic Induction | Faraday's Law of Electromagnetic Induction | Faraday's Law of Electromagnetic Induction |
Applicable Media | Conductive liquids, slurries, process fluids with minimum conductivity ≥ 5 μS/cm | Conductive liquids, slurries, process fluids with minimum conductivity ≥ 5 μS/cm | Conductive liquids, slurries, process fluids with minimum conductivity ≥ 5 μS/cm; special liners for corrosive/abrasive media |
Nominal Pipe Size (NPS/DN) | 1/2 inch to 120 inch (DN15 to DN3000) | 1/2 inch to 120 inch (DN15 to DN3000) | 1/2 inch to 24 inch (DN15 to DN600) |
Flow Velocity Range | 0.1 m/s to 10 m/s (0.3 ft/s to 32.8 ft/s); bi-directional flow measurement | 0.1 m/s to 10 m/s (0.3 ft/s to 32.8 ft/s); bi-directional flow measurement | 0.1 m/s to 10 m/s (0.3 ft/s to 32.8 ft/s); bi-directional flow measurement |
Measurement Accuracy | ±0.25% of reading (over 10:1 turndown ratio) | ±0.15% of reading (over 20:1 turndown ratio) | ±0.25% of reading (over 10:1 turndown ratio) |
Repeatability | ±0.1% of reading | ±0.05% of reading | ±0.1% of reading |
Maximum Operating Pressure | 1500 psi (103 bar) standard | 1500 psi (103 bar) standard | Up to 6000 psi (414 bar) |
Operating Temperature Range | -40 °C to +180 °C (-40 °F to +356 °F) | -40 °C to +180 °C (-40 °F to +356 °F) | Up to +260 °C (+500 °F) with high temperature liners |
Power Supply | 10-30 VDC (loop-powered for 4-20mA output); 85-265 VAC (line-powered option) | 10-30 VDC (loop-powered for 4-20mA output); 85-265 VAC (line-powered option) | 10-30 VDC (loop-powered for 4-20mA output); 85-265 VAC (line-powered option) |
Output Signals | 4-20 mA DC analog output (loop-powered); HART 7 digital communication over 4-20mA loop | 4-20 mA DC analog output (loop-powered); HART 7 digital communication over 4-20mA loop | 4-20 mA DC analog output (loop-powered); HART 7 digital communication over 4-20mA loop |
Optional Communication Protocols | FOUNDATION Fieldbus H1, PROFIBUS PA, Modbus RTU/TCP, EtherNet/IP | FOUNDATION Fieldbus H1, PROFIBUS PA, Modbus RTU/TCP, EtherNet/IP | FOUNDATION Fieldbus H1, PROFIBUS PA, Modbus RTU/TCP, EtherNet/IP |
Standard Electrode Material | 316L Stainless Steel | 316L Stainless Steel | 316L Stainless Steel |
Optional Electrode Materials | Hastelloy C276, Titanium, Tantalum, Platinum-Iridium Alloy | Hastelloy C276, Titanium, Tantalum, Platinum-Iridium Alloy | Hastelloy C276, Titanium, Tantalum, Platinum-Iridium Alloy |
Standard Liner Material | PTFE (Polytetrafluoroethylene) | PTFE (Polytetrafluoroethylene) | PFA (Perfluoroalkoxy) for high temperature/corrosion resistance |
Optional Liner Materials | PFA, FEP, Polyurethane, EPDM Rubber, NBR Rubber | PFA, FEP, Polyurethane, EPDM Rubber, NBR Rubber | FEP, Polyurethane, EPDM Rubber, NBR Rubber |
Enclosure Protection Rating | IP66 / IP67, NEMA Type 4X / 6P | IP66 / IP67, NEMA Type 4X / 6P | IP66 / IP67, NEMA Type 4X / 6P |
Explosion Protection Certifications | ATEX, IECEx, FM, CSA, CCC; Intrinsic Safety (Ex ia), Flameproof (Ex d), Non-incendive (Ex nA) options | ATEX, IECEx, FM, CSA, CCC; Intrinsic Safety (Ex ia), Flameproof (Ex d), Non-incendive (Ex nA) options | ATEX, IECEx, FM, CSA, CCC; Intrinsic Safety (Ex ia), Flameproof (Ex d), Non-incendive (Ex nA) options |
Core Diagnostic & Control Features | Bi-directional flow measurement, empty pipe detection, electrode coating detection, self-diagnostics, auto-zero calibration, configurable flow units, data logging, event logging | Bi-directional flow measurement, empty pipe detection, electrode coating detection, self-diagnostics, auto-zero calibration, configurable flow units, data logging, event logging, advanced signal processing | Bi-directional flow measurement, empty pipe detection, electrode coating detection, self-diagnostics, auto-zero calibration, configurable flow units, data logging, event logging, high pressure/temperature compensation |
Typical Applications | Water & wastewater treatment, chemical processing, oil & gas production, power generation, food & beverage, pharmaceutical, pulp & paper | High-precision process control, custody transfer, chemical dosing, food & beverage batching, pharmaceutical production | High pressure/high temperature process applications, oil & gas upstream/downstream, chemical processing, power generation boiler feedwater |

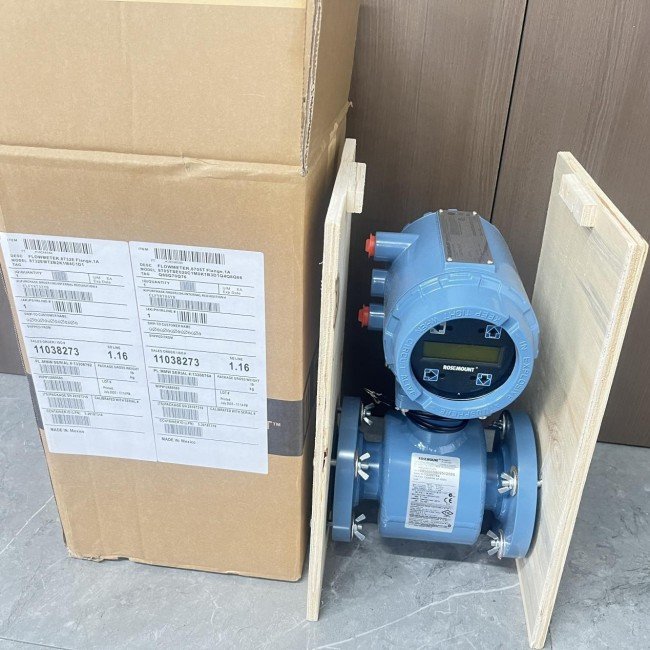

Packaging: Original box
