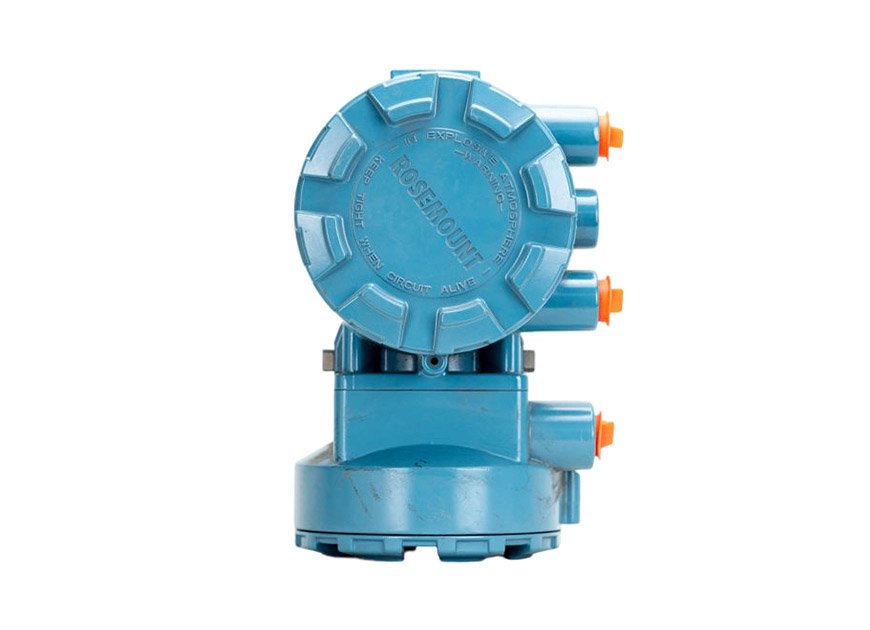

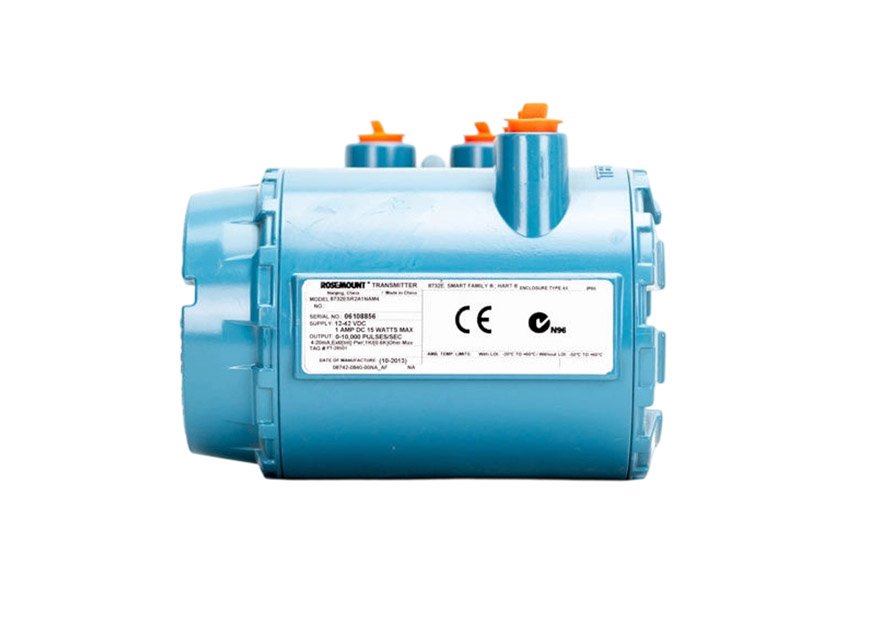

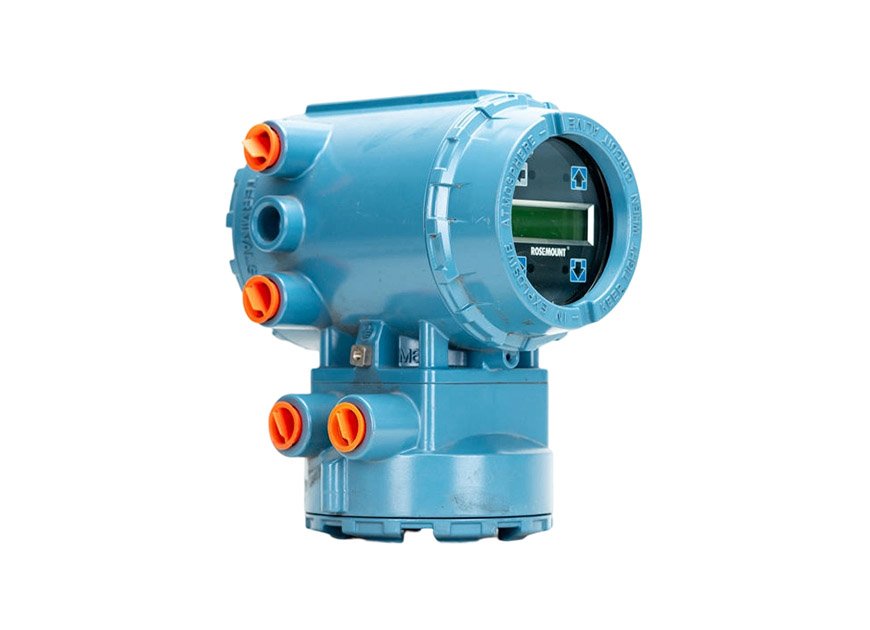

A dual-compartment transmitter housing provides isolation from the external environment. Advanced diagnostics and through-the-glass Local Operator Interface offer unparalleled process insight.
Continually monitor meter health and performance without stopping the process with Smart Meter Verification
Prevent moisture ingress with dual-compartment transmitter housing
Improve process management with advanced Digital Signal Processing
Optimize control in noisy applications with High Process Noise diagnostic and Selectable Coil Drive Frequency options
Tunable Empty Pipe diagnostic minimizes issues and false readings when the pipe is empty
Quickly verify installation integrity with Ground and Wiring Fault Detection diagnostic
Simplify adjustments in hazardous environments without removing the cover using optical switches for configuration
Universal transmitter capabilities enable reduced inventory and consistent interface for any magnetic flow meter sensor
Specification | Details |
Product Type | Field-mounted magnetic flow meter transmitter |
Mounting | Field (wall/pipe) mount; remote mount (integral not available) |
Accuracy | ±0.15% of volumetric flow rate (13:1 turndown) ±0.25% of volumetric flow rate (40:1 turndown) |
Flow Rate Range | 0.04 to 39 ft/s (0.01 to 12 m/s), forward & reverseFull scale: -39 to 39 ft/s (-12 to 12 m/s), continuously adjustable |
Conductivity Requirement | ≥5 µS/cm (5 micromhos/cm) |
Coil Drive Current | 500 mA DC |
Power Supply | • 90–250 VAC, 50/60 Hz• 12–42 VDC |
Power Consumption | • Max 15 W (DC)• Max 40 VA (AC) |
Output Signal | 4–20 mA analog with HART®Optional: FOUNDATION Fieldbus, PROFIBUS PA, Modbus |

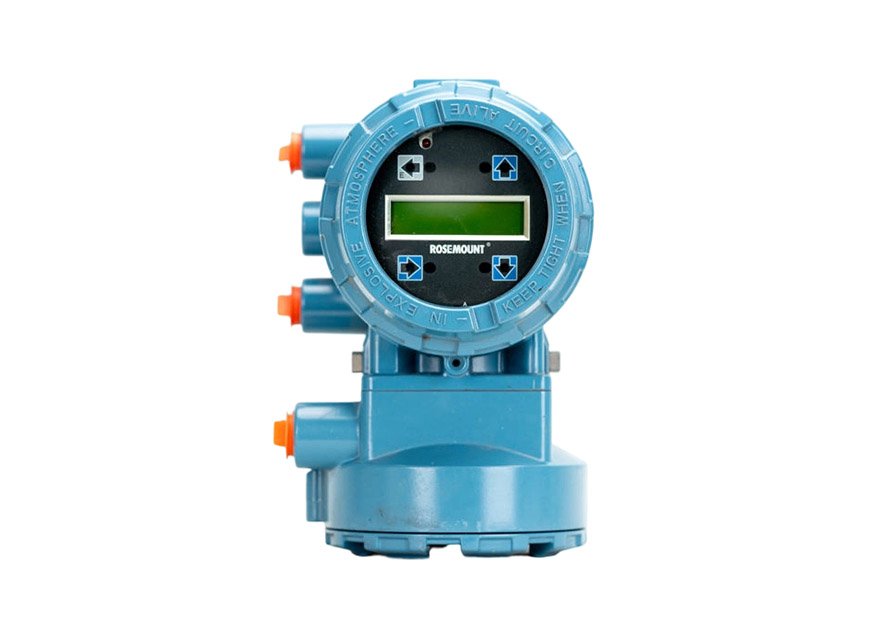

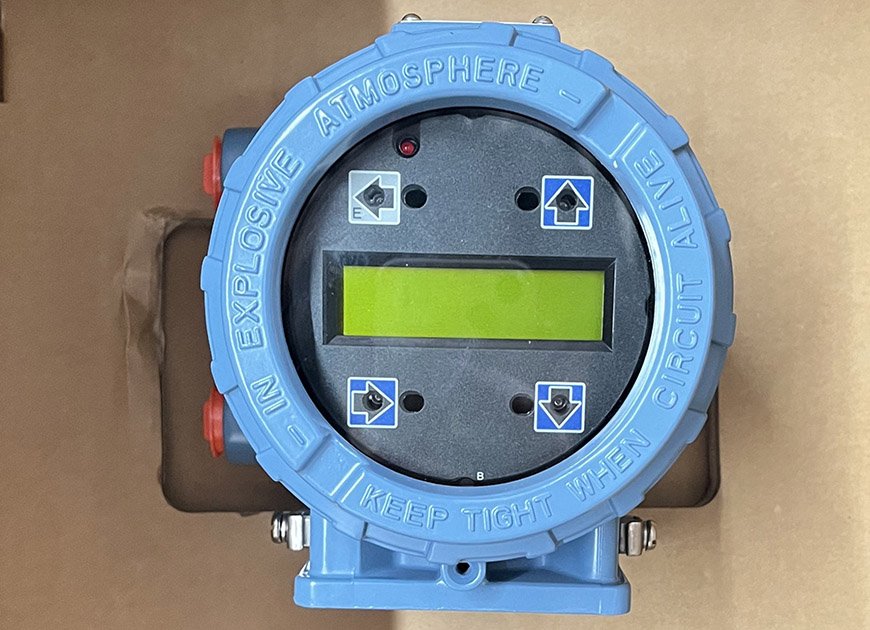

Local Operator Interface | 2-line, 16-character backlit LCD4-button optical touch (no cover removal in hazardous areas) |
Housing Material | Aluminum (polyurethane coated) / 316L SS optional |
Environmental Rating | NEMA 4X, IP66, IP67 |
Ambient Temperature | -40°C to +65°C (-40°F to +149°F) |
Sensor Compatibility | Rosemount: 8705, 8707, 8711, 8721, 570TMCompatible with most AC/DC sensors from other manufacturers |
Diagnostics | Ground fault, high process noise, empty pipe detection, transmitter fault, sensor fault, meter verification (8714i) |
Hazardous Area Approvals | ATEX, IECEx, UL, CSA, NEPSIClass I Div. 1/2, Zone 1/2 |
Fuse Ratings | • AC (90–250V): 1A, 250V fast-acting• DC (12–42V): 3A, 250V fast-acting |
Key Features | Dual-compartment housing, advanced digital signal processing, non-intrusive optical buttons, comprehensive diagnostics |

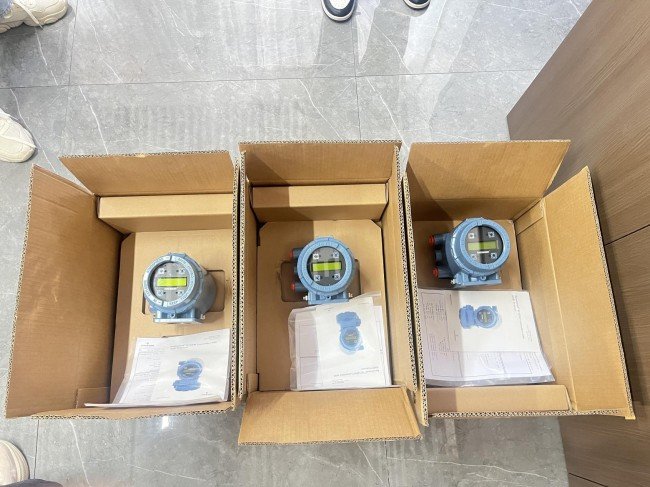

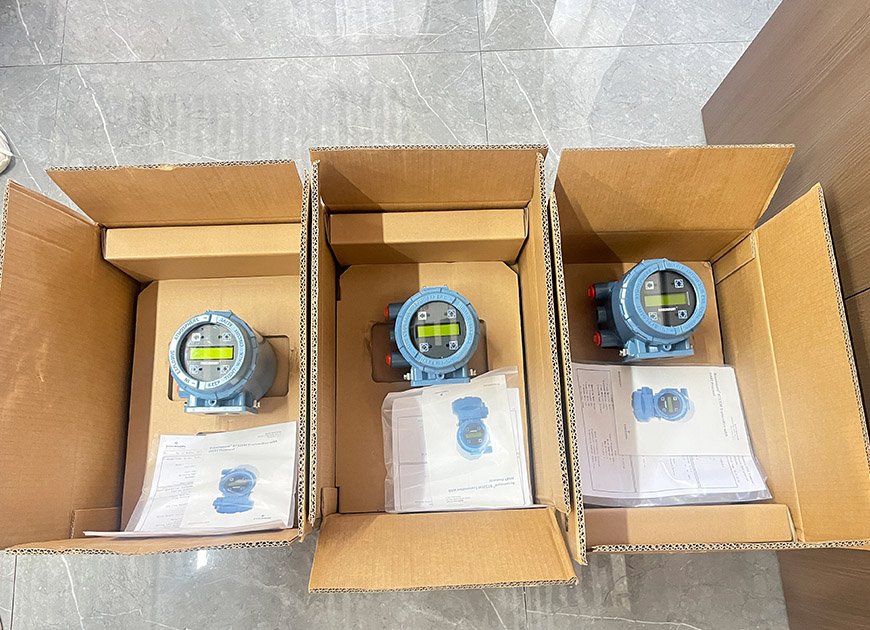

Packaging: Original box
