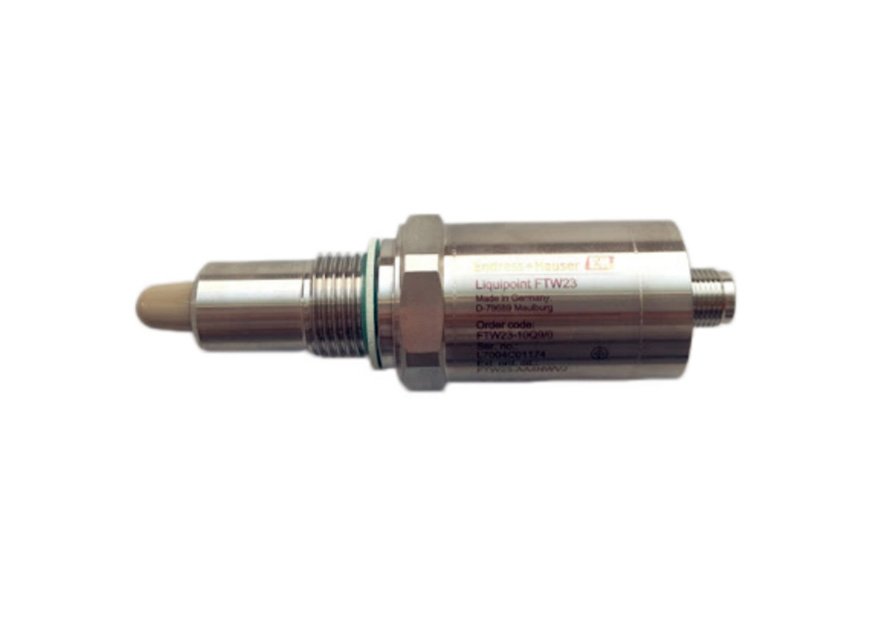

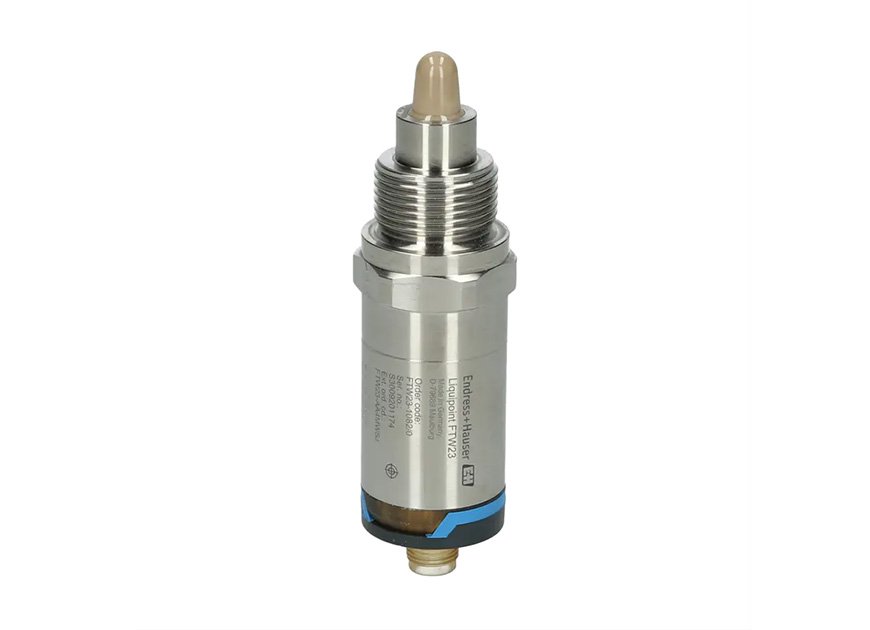

Liquipoint FTW23
Capacitance point level measurement
Point level switch for liquids
in the food and beverage industry
The Liquipoint FTW23 is a point level switch for water-based liquids.
It is used preferably in storage tanks, mixing vessels and pipes. Developed and built
for the food and beverage industry, the Liquipoint FTW23 meets international
hygienic requirements.
The Liquipoint FTW23 can be used permanently in process temperatures up to
100 °C (212 °F) and in cleaning and sterilization processes to 135 °C (275 °F) for 60
minutes.
• Individual adjustment to each medium not necessary
• Easy installation thanks to compact design - even in tight conditions or where
access is restricted
• Robust stainless steel housing, optionally available with M12x1 connector with
IP69K protection
• Onsite function check via LED indication
• Function test of the switch output with test magnet
• Can be cleaned and sterilized in place (CIP/SIP)
• 3-A and EHEDG certificates
• Meets the requirements of EU 1935/2004, 10/2011, 2023/2006 and FDA 21
CFR 177.2415
Specification | FTW23 (Capacitive) | FTW33 (Conductive) |

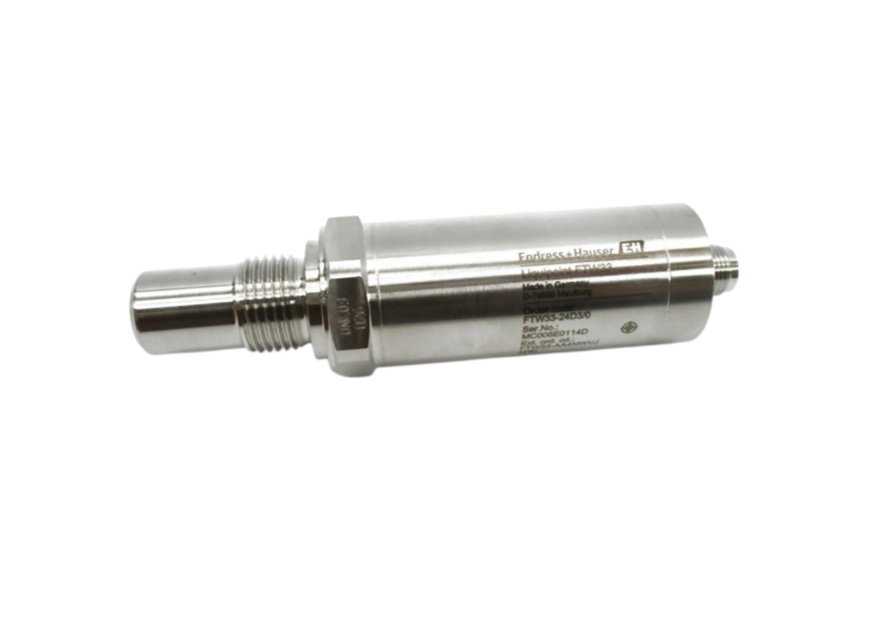

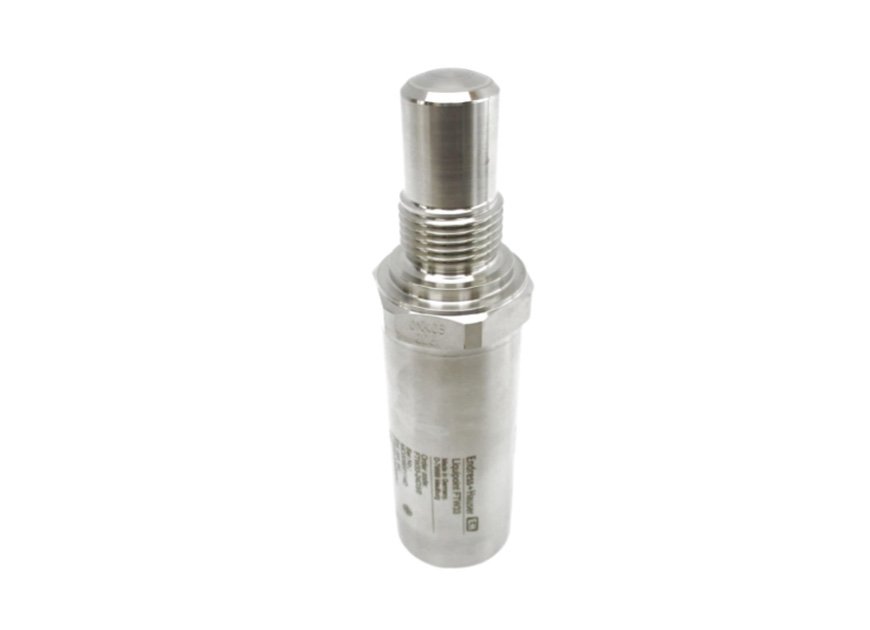

Product Series | Liquipoint FTW23 | Liquipoint FTW33 |
Measuring Principle | Capacitance (dielectric change) | Conductivity (electrical resistance) |
Application | Water-based liquids, non-adhesive media | Liquids, pastes, viscous & heavily adhesive media; foam detection |
Mounting Design | Threaded, standard probe | Flush-mounted (front-bündig) |
Process Connection | Thread: G ¾", NPT ¾" | Thread: G ¾", NPT ¾"; Hygienic (clamp, Varivent) |
Probe Length | Standard (fixed) | Flush (0 mm) |
Process Temperature (Standard) | -20 … +100 °C (-4 … +212 °F) | -20 … +100 °C (-4 … +212 °F) |
Process Temperature (CIP/SIP) | -20 … +135 °C (-4 … +275 °F), 1 h | -20 … +150 °C (-4 … +302 °F), 1 h |
Process Pressure | Vacuum … 16 bar (Vacuum … 232 psi) | Vacuum … 25 bar (Vacuum … 362.5 psi) |
Medium Requirements | Dielectric constant (εᵣ) > 1.5 (via IO-Link) | Conductivity > 1 μS/cm or εᵣ > 2 |
Wetted Materials | 316L stainless steel, PTFE | 316L stainless steel |
Housing | Aluminum / 316L SS | Aluminum / 316L SS |
Protection Class | IP66 / IP67 / IP69K; NEMA 4X | IP66 / IP67 / IP69K; NEMA 4X/6P |
Supply Voltage | 10 … 30 VDC | 10 … 30 VDC |
Output Signal | 3-wire PNP; IO-Link | 3-wire PNP; IO-Link |
Switching Accuracy | ±2 mm (0.08 in) | ±2 mm (0.08 in) |
Hysteresis | Typ. ±1 mm (0.04 in) | Typ. ±1 mm (0.04 in) |
Build-up Compensation | Passive | Active (adhesion compensation) |
Calibration | Plug & play (no calibration) | Plug & play (no calibration) |
Hazardous Area | ATEX, IECEx (Gas & Dust) | ATEX, IECEx (Gas & Dust) |
Key Features | • Cost-effective • Non-adhesive liquids • Standard threaded mount | • Flush mount • For viscous/pasty media • Active adhesion compensation • Foam detection |

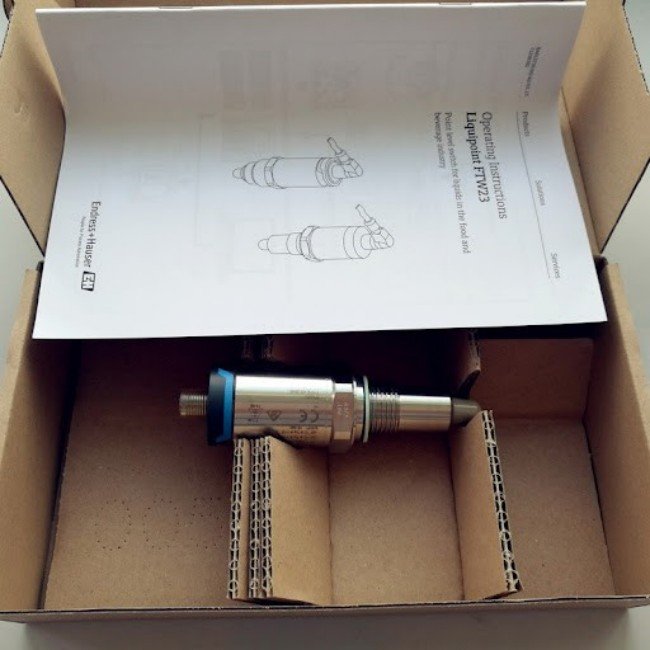

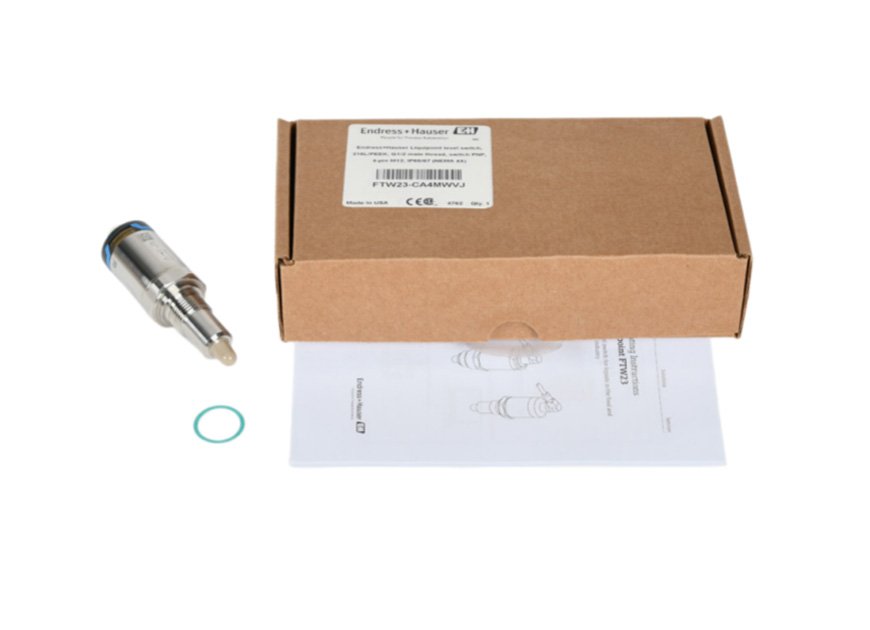

Packaging: Original box
