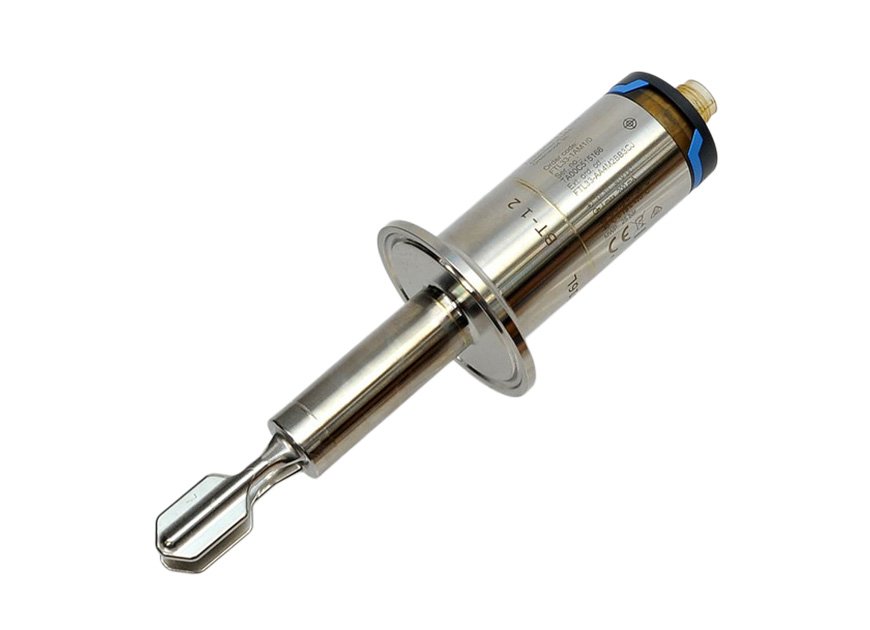

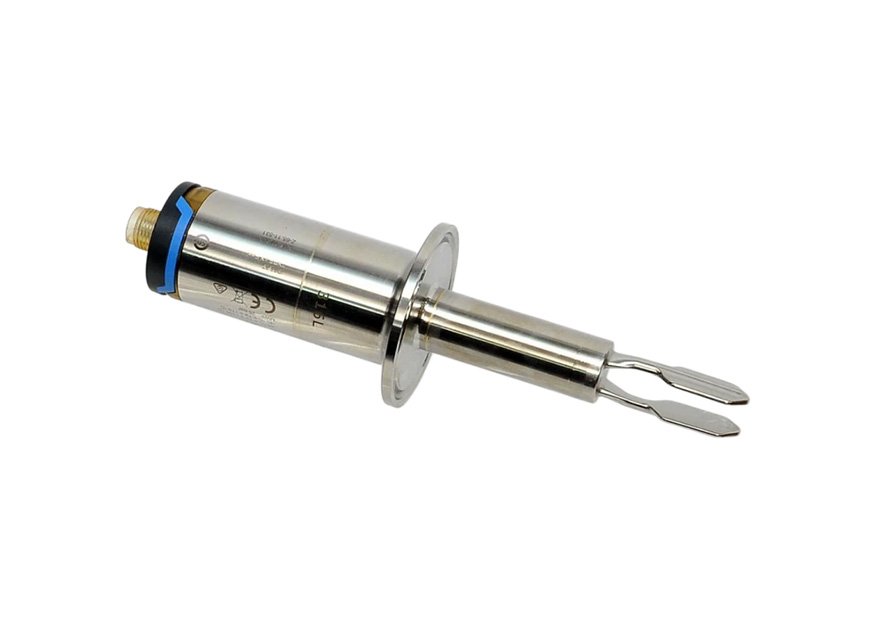

Liquiphant FTL33 is a point level switch for liquids. The FTL33 is especially designed for food & beverage applications where hygienic requirements are requested. The Liquiphant is used for overfill protection or pump dry-run protection. The IO-Link capability allows easy parameter setting.
Compact:- Smallest vibronic sensor in the market
Safe: - Continuous self-monitoring
- Reliable switching independent of media properties
Easy:- No calibration
- Plug & play
-IO-Link connectivity
l Process connections: Threads, hygienic process connections, M24 process adapter
l Temperature: -40 to +150°C (-40 to +302°F)
l Pressure: -1 to +40bar (-14.5 to +580psi)
l Surface roughness: 0.76µm or 1.5µm
l Overfill protection and leakage detection WHG, hygienic certificates, final inspection report

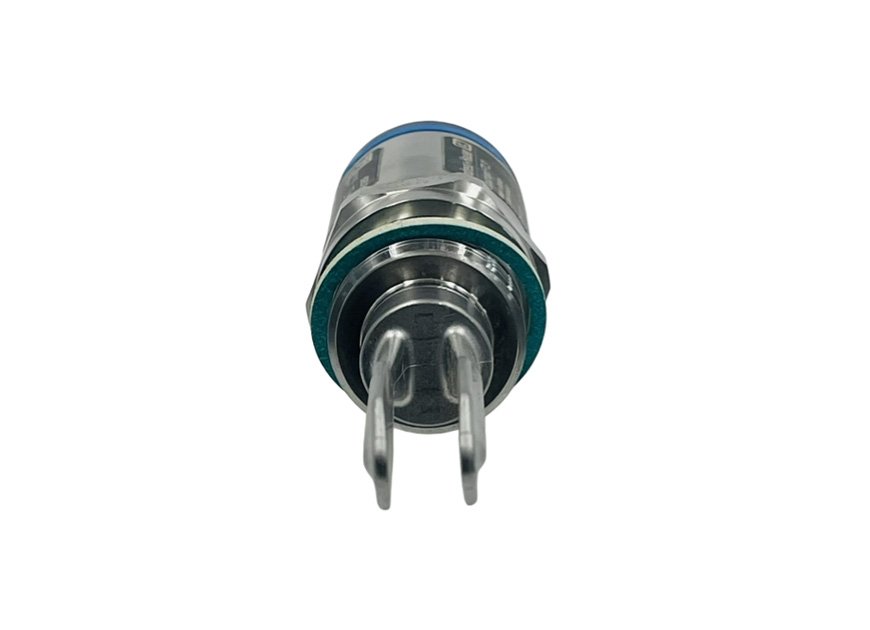

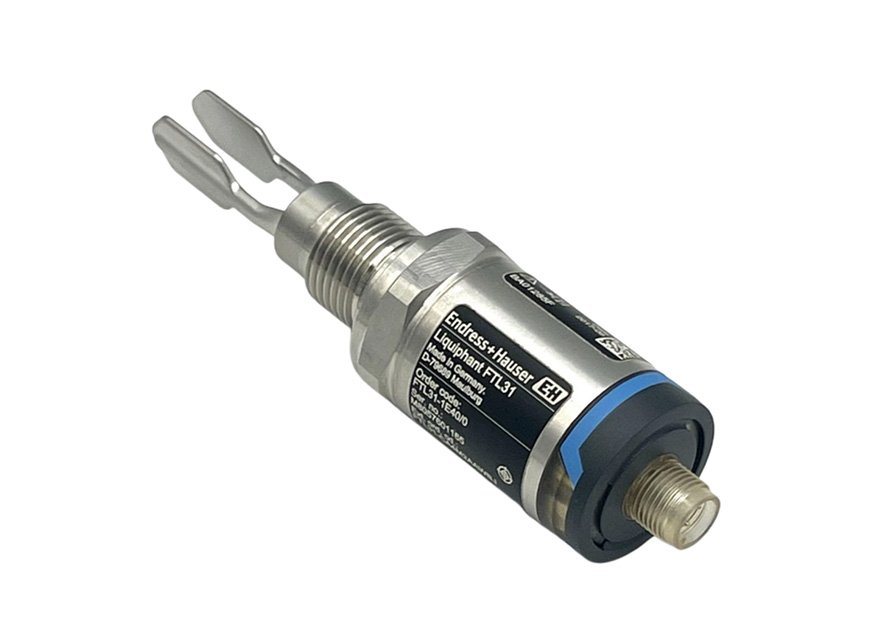

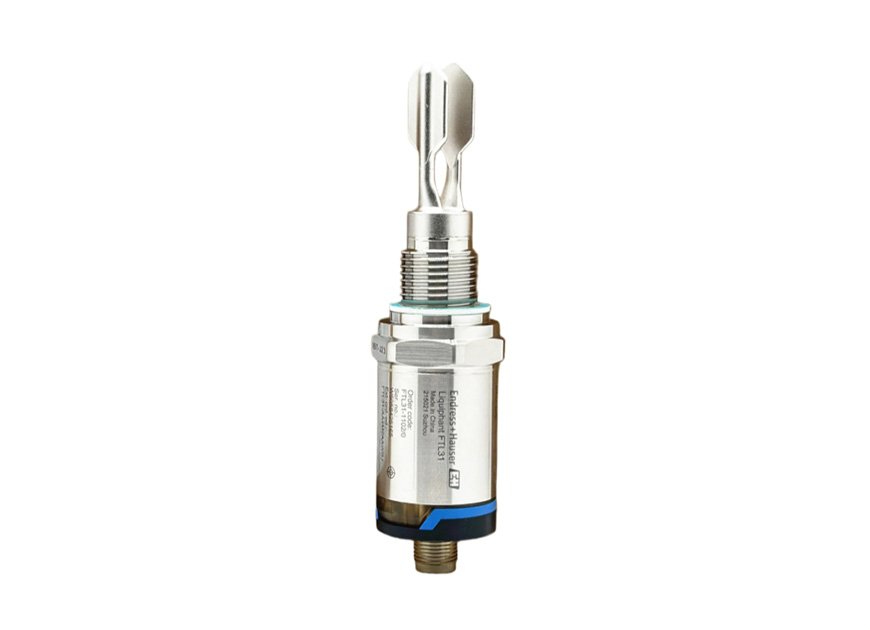

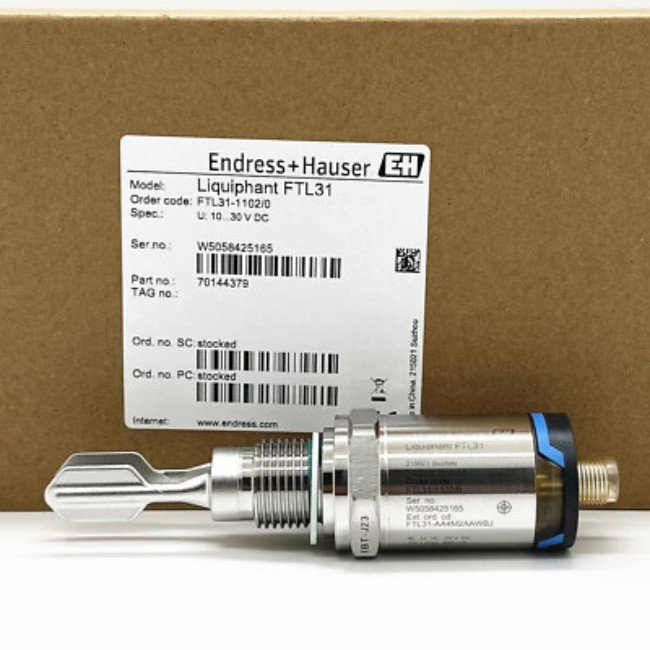

Liquiphant FTL31 is a point level switch for liquids. The FTL31 is designed for industrial applications in all industries, mainly the machinery industry. The Liquiphant is used for overfill protection or pump dry-run protection in cleaning systems. The IO-Link capability allows easy parameter setting.
Compact:- Smallest vibronic sensor in the market
Safe:- Continuous self-monitoring
-Reliable switching independent of media properties
Easy:- No calibration
- Plug & play
- IO-Link connectivity
l Process connections: Threads
l Temperature: -40 to +150°C (-40 to +302°F)
l Pressure: -1 to +40bar (-14.5 to 580psi)
l Surface roughness: 3.2µm
l Overfill protection and leakage detection WHG, marine approvals, final inspection report
Parameter | FTL31 | FTL33 |
Product Type | Compact vibronic (tuning fork) point level switch | Hygienic compact vibronic point level switch |
Measuring Principle | Vibrating tuning fork (resonance frequency shift) | Vibrating tuning fork (resonance frequency shift) |
Primary Application | General industry, machinery, OEM, cooling/lubrication systems | Food & beverage, pharmaceuticals, hygienic processes (CIP/SIP) |
Process Temperature | -40 … +150 °C (-40 … +302 °F) | -40 … +150 °C (-40 … +302 °F) |
Process Pressure | Vacuum … 40 bar (Vacuum … 580 psi) | Vacuum … 40 bar (Vacuum … 580 psi) |
Min. Medium Density | ≥ 0.7 g/cm³ (optional: ≥ 0.5 g/cm³) | ≥ 0.7 g/cm³ (optional: ≥ 0.5 g/cm³) |
Max. Medium Viscosity | Up to 10,000 mPa·s (cP) | Up to 10,000 mPa·s (cP) |
Process Connections | Thread: G ½, ¾, 1", NPT ½, ¾, 1" | Thread (G/NPT), M24 adapter, Tri-Clamp, DIN11851, flush mount |
Wetted Parts Material | 316L stainless steel | Electropolished 316L stainless steel |
Surface Roughness (Ra) | 3.2 µm | 0.76 µm or 1.5 µm (hygienic finish) |
Output Signals | 3-wire DC-PNP (200 mA), 2-wire AC/DC (250 mA) | 3-wire DC-PNP (200 mA), 2-wire AC/DC (250 mA) |
Supply Voltage | 10 … 30 VDC (PNP); 20 … 253 VAC/DC (2-wire) | 10 … 30 VDC (PNP); 20 … 253 VAC/DC (2-wire) |
Communication | IO-Link (v1.1), Bluetooth® (SmartBlue) | IO-Link (v1.1), Bluetooth® (SmartBlue) |
Housing Material | 316L stainless steel | 316L stainless steel (electropolished) |
Protection Class | IP66 / IP67 / IP69K (high-pressure washdown) | IP66 / IP67 / IP69K (CIP/SIP compatible) |
Ambient Temperature | -40 … +80 °C (-40 … +176 °F) | -40 … +80 °C (-40 … +176 °F) |
Safety & Certifications | ATEX, IECEx, CSA, WHG, Marine, CRN | ATEX, IECEx, CSA, WHG, EHEDG, 3-A, FDA, ASME BPE |
Key Features | Ultra-compact, no calibration, test magnet, self-monitoring | Hygienic design, flush mount, CIP/SIP, smooth crevice-free surface |

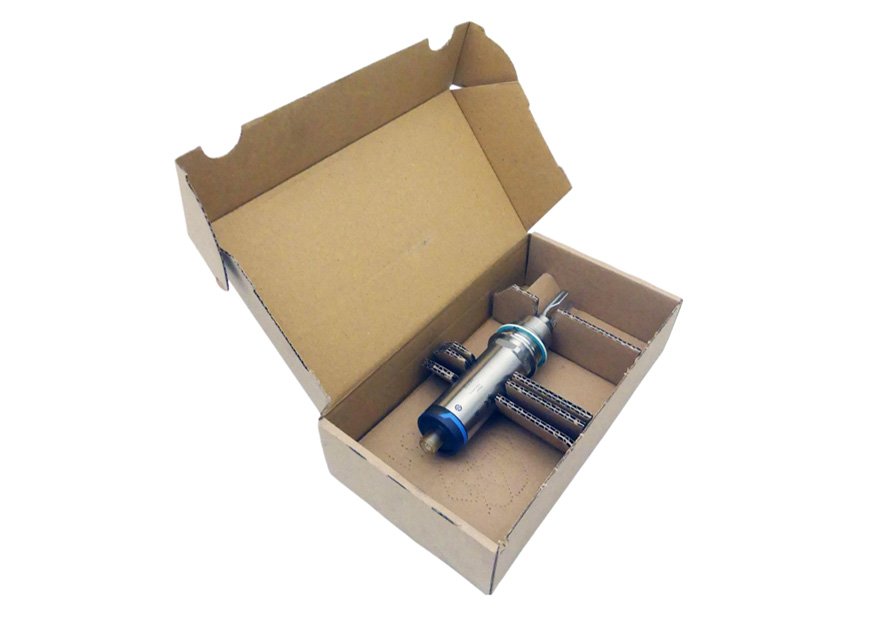

Packaging: Original box
