Level measurement in liquids
• Continuous, non-contact level measurement of liquids, pastes and sludges
• Process connections: Flanges
• Maximum measuring range: 80 m (262 ft)
• Temperature: –196 to +450 °C (–321 to +842 °F)
• Pressure: –1 to +160 bar (–14.5 to +2321 psi)
• Accuracy: ±1 mm (±0.04 in)
• PTFE antenna or ceramic sealed high-temperature antenna
• Reliable measurement thanks to strong signal focusing, even with multiple internal fixtures
• Easy, guided commissioning with intuitive user interface
• Bluetooth®wireless technology for commissioning, operation and maintenance
• SIL2 as per IEC 61508, SIL3 for homogeneous redundancy
• Easy guided proof testing for SIL and WHG
• Longer calibration cycles with Radar Accuracy Index
Parameter | Details |

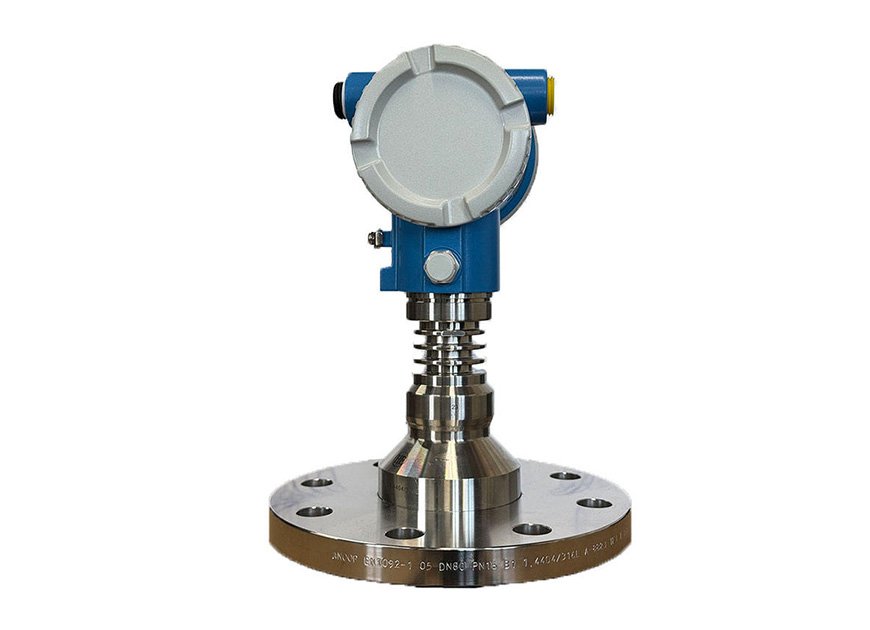

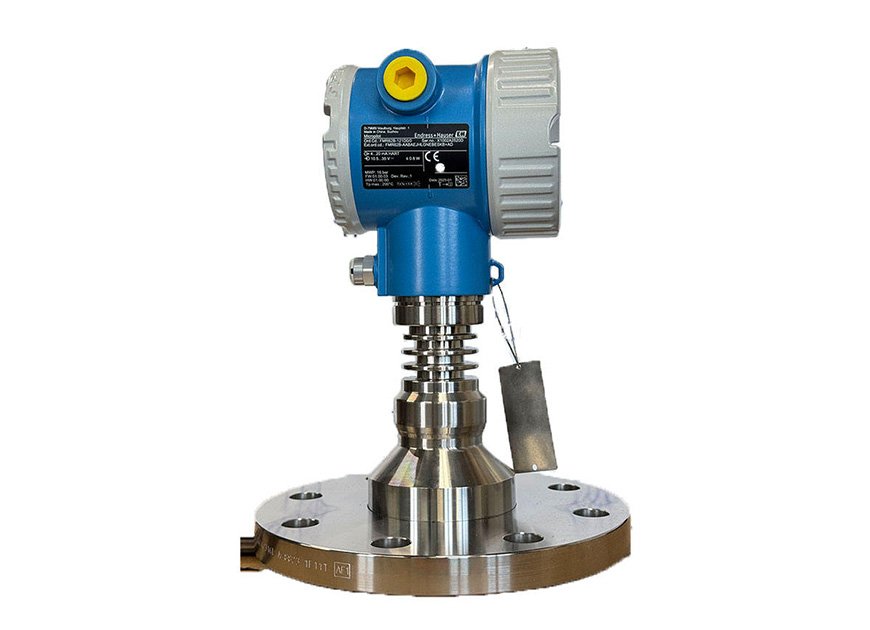

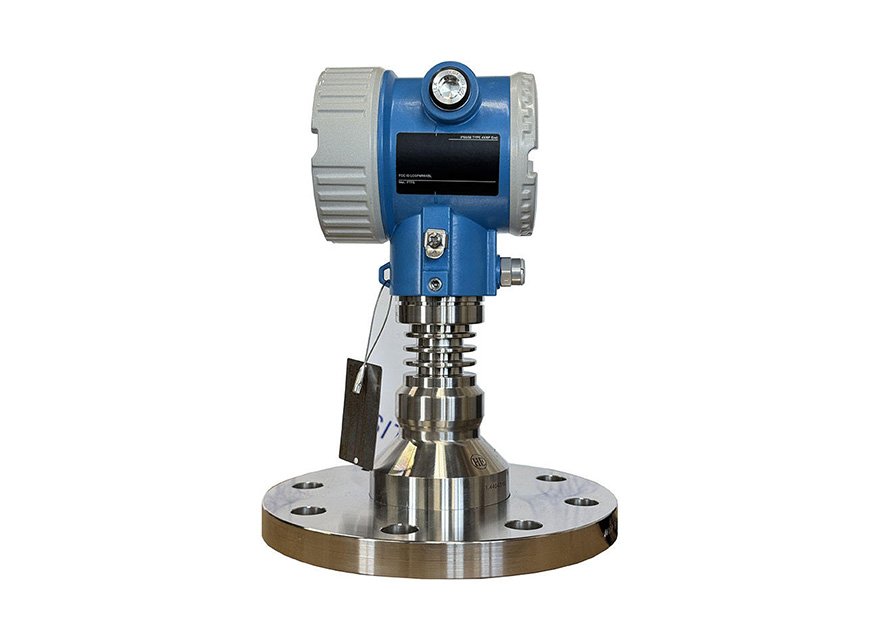

Product Model | Micropilot FMR62B |
Measuring Principle | Non-contact 80 GHz (W-band) FMCW radar |
Application | Continuous level measurement of liquids, pastes, slurries |
Max. Measuring Range(by Antenna Type) | • Horn, 316L, 65 mm: 80 m (262 ft) • Drip-off, PTFE, 50 mm: 50 m (164 ft) • Cladded Flush Mount, PTFE, 50 mm: 50 m (164 ft) • Cladded Flush Mount, PTFE, 80 mm: 80 m (262 ft) |
Accuracy | ±1 mm (±0.04 in) for distances > 0.8 m |
Process Temperature | -196 … +450 °C (-321 … +842 °F) |
Process Pressure | Vacuum … 160 bar (2320 psi) |
Operating Frequency | 80 GHz (W-band) |

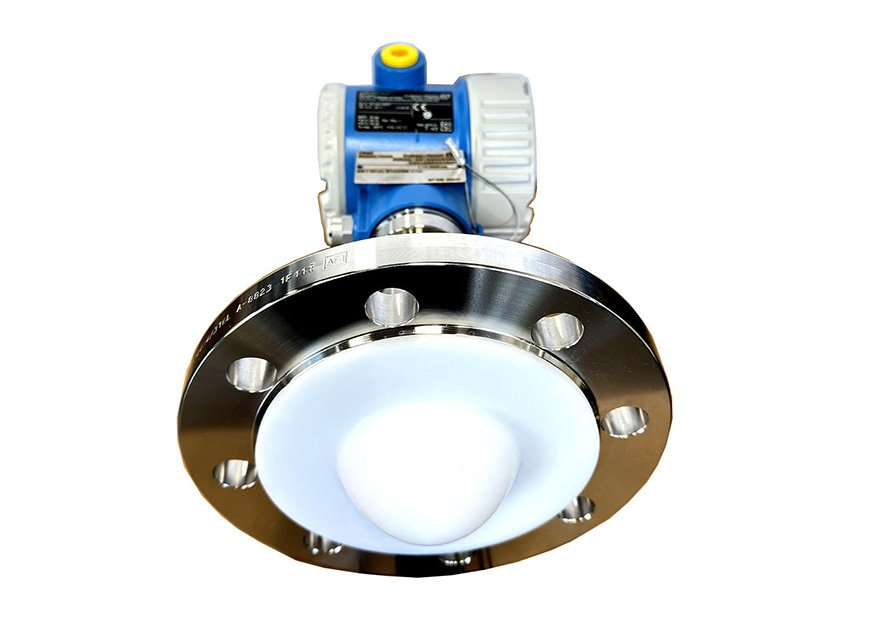

Antenna Options | • Horn, 316L, 65 mm • Drip-off, PTFE, 50 mm • Cladded Flush Mount, PTFE, 50 mm • Cladded Flush Mount, PTFE, 80 mm |
Wetted Materials | 316L stainless steel, PTFE |
Process Connections | Flanges (EN1091-1 B2; ASME B16.5 RF; JIS B2220 RF) |
Output Signals | • 2-wire 4–20 mA HART• PROFIBUS PA• PROFINET (Ethernet-APL) |
Power Supply | 9 … 32 VDC (standard); 9 … 24 VDC (Ex i) |
Ambient Temperature | -40 … +85 °C (-40 … +185 °F) |
Housing | Single/dual compartment; aluminum, 316L stainless steel |
Ingress Protection | IP66 / IP68 (NEMA TYPE 4X/6P) |

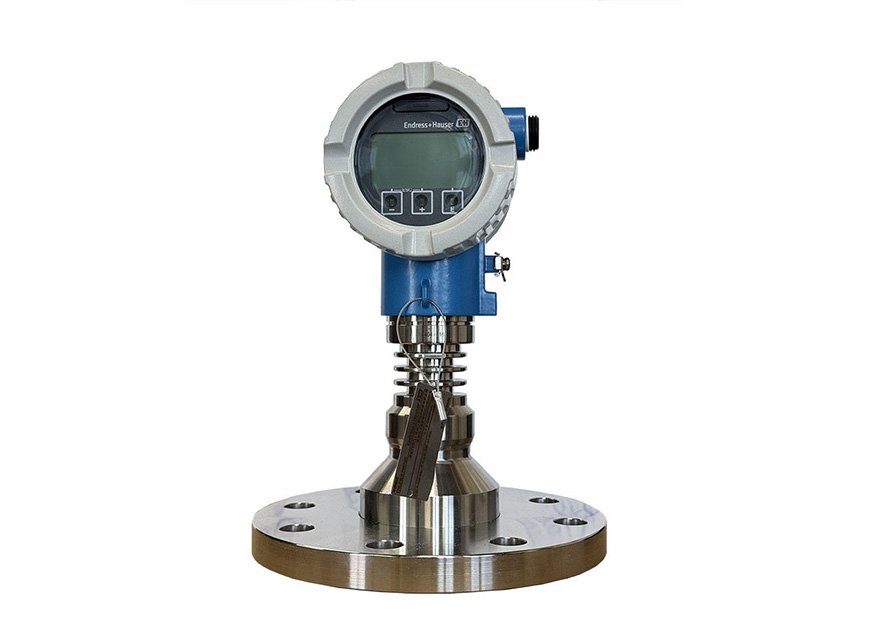

Local Display | Backlit LCD with touch buttons; plain text status (NAMUR NE 107) |
Communication | HART, PROFIBUS PA, PROFINET, Bluetooth® (SmartBlue) |
Special Features | Heartbeat Technology, HistoROM, SIL 2/3 capable, guided SIL-locking, Bluetooth commissioning |
Approvals | ATEX, IECEx, CSA, SIL 2/3, WHG, CE, RoHS, FCC, Industry Canada |
Packaging: Original box
