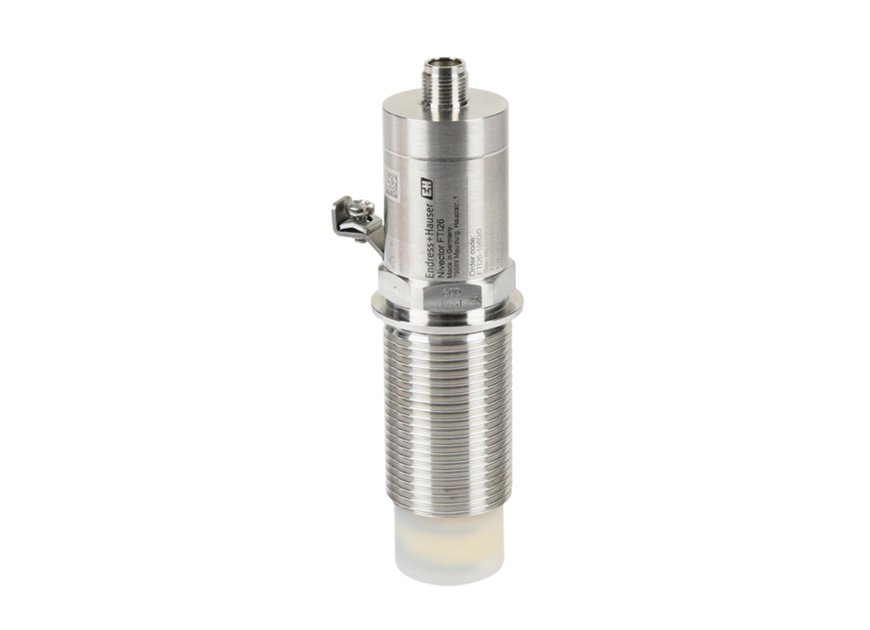

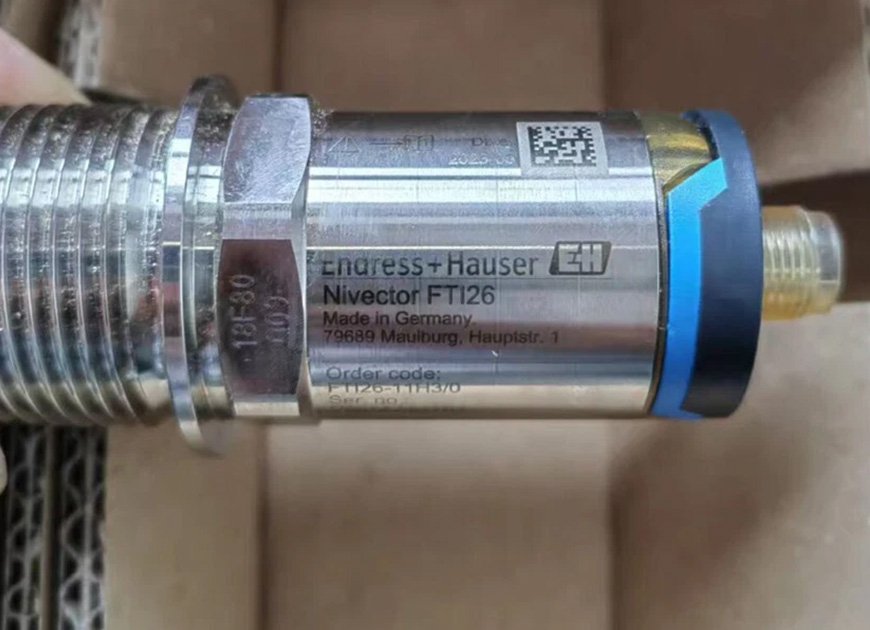

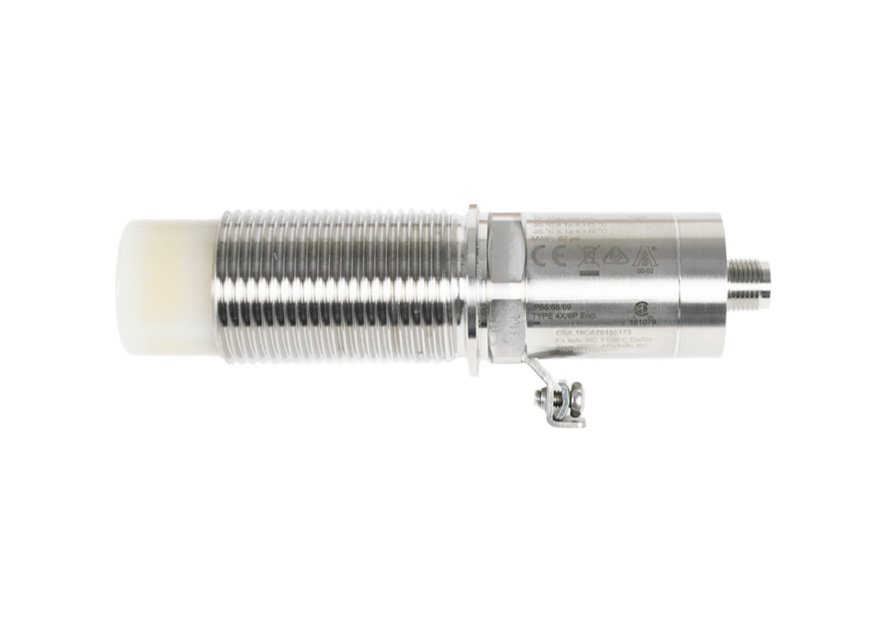

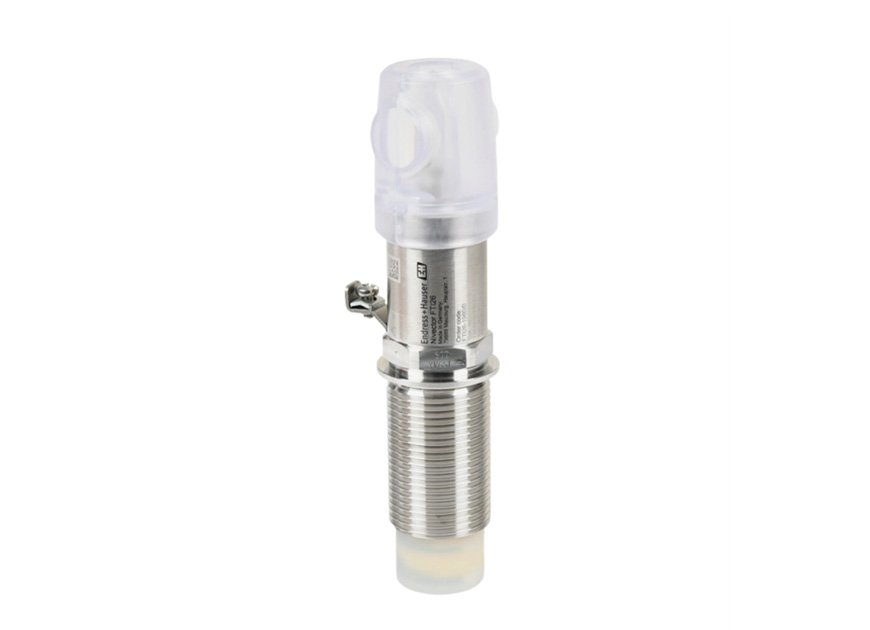

Nivector FTI26 Capacitance
Point level switch for powdered and fine-grained solids
Reliable minimum or maximum detection of powders or fine-grained bulk solids in silos.
• Typical application examples: plastic granules, detergent, grain, sugar, spices, milk powder, animal feed
• Easy installation thanks to compact design - even in tight conditions or where access is restricted.
• Also suitable for use in
• Food industry
• Hazardous atmospheres formed by combustible dust, zone 20
• Process temperatures of –20 to +80 °C (–4 to +176 °F).
• Onsite function check via LED indication
• Robust stainless steel housing, optionally available with M12x1 connector with IP69 protection
• Easy and cost-effective commissioning: Precalibration in factory (plug and play)
• Hygienic design, 3-A and EHEDG certificates
• Meets the requirements of EU 1935/2004
• FDA-compliant
• DC-PNP Output and IO-Link communication
Specification | FTW26 (Liquipoint) |
Product Series | Liquipoint FTW26 |
Measuring Principle | Conductive (electrode resistance measurement) |
Application | Water-based, conductive liquids (conductivity > 1 µS/cm) |
Probe Type | Flexible rope probe (multi-electrode) |
Probe Length | 1.0 m, 2.0 m, 3.0 m, 4.0 m, 5.0 m (3.3, 6.6, 9.8, 13.1, 16.4 ft) |
Process Connection | G 1", NPT 1" |
Process Temperature | -30 … +80 °C (-22 … +176 °F) |
Process Pressure | -1 … +6 bar (-14.5 … +87 psi) |
Wetted Materials | Electrodes: 316L SSRope: PTFE / Polypropylene |
Housing | Aluminum (standard) / 316L SS |
Protection Class | IP66 / IP67 |
Ambient Temperature (Ta) | -30 … +60 °C (-22 … +140 °F) |
Supply Voltage | Via NAMUR isolator (e.g., FTL325N) |
Output Signal | NAMUR (IEC 60947-5-6) |
Switching Accuracy | ± 5 mm (0.2 in) |
Hysteresis | Typ. ± 3 mm (0.12 in) |
Adhesion / Foam | Foam suppression (ignores conductive foam) |
Calibration | Plug & play (no calibration) |
Hazardous Area | ATEX, IECEx (Gas & Dust) |
Key Features | • Flexible rope for deep tanks• NAMUR output (safe area)• Foam-tolerant• Cost-effective for water-based liquids |
Typical Uses | Water tanks, waste water, storage silos, deep open pits |

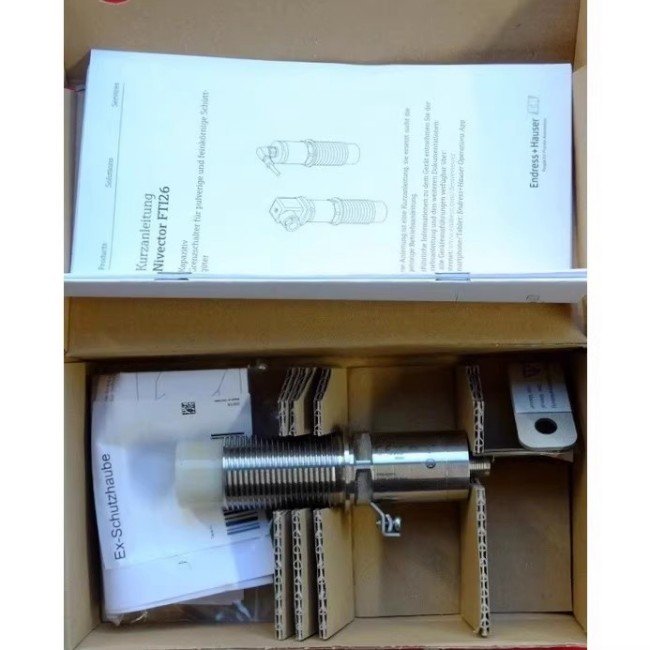

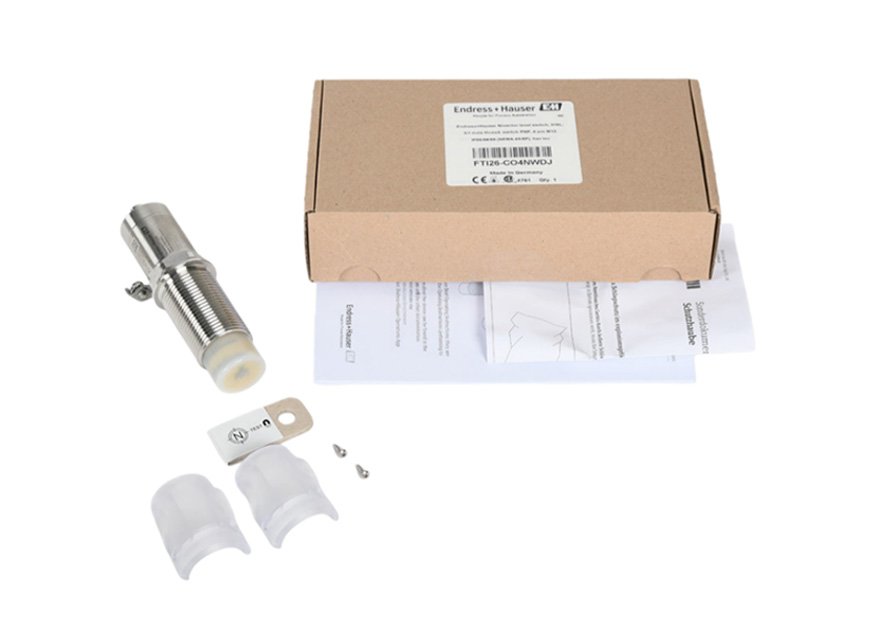

Packaging: Original box
