Continuous level measurement for liquids
The device is independent of the dielectric constant (DC) as of a liquid conductivity of 100 µS/cm and allows measurement of various liquids without the need for recalibration.
• Process connections: Flanges and threads
• Process pressure: Vacuum to +100 bar (+1450 psi)
• Measuring range: 0.42 to 10 m (1.38 to 33 ft)
• Temperature: –80 to +200 °C (–112 to +392 °F)
• International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, marine approvals
• Use also in safety systems requiring functional safety to SIL2 in accordance with IEC 61508
• Reliable and universal application thanks to a wide range of certificates and approvals
• No calibration necessary (factory preconfiguration). No calibration necessary for media with a conductivity of 100 µS/cm and higher
• Material in contact with the process made of corrosion-resistant material, FDAlisted materials

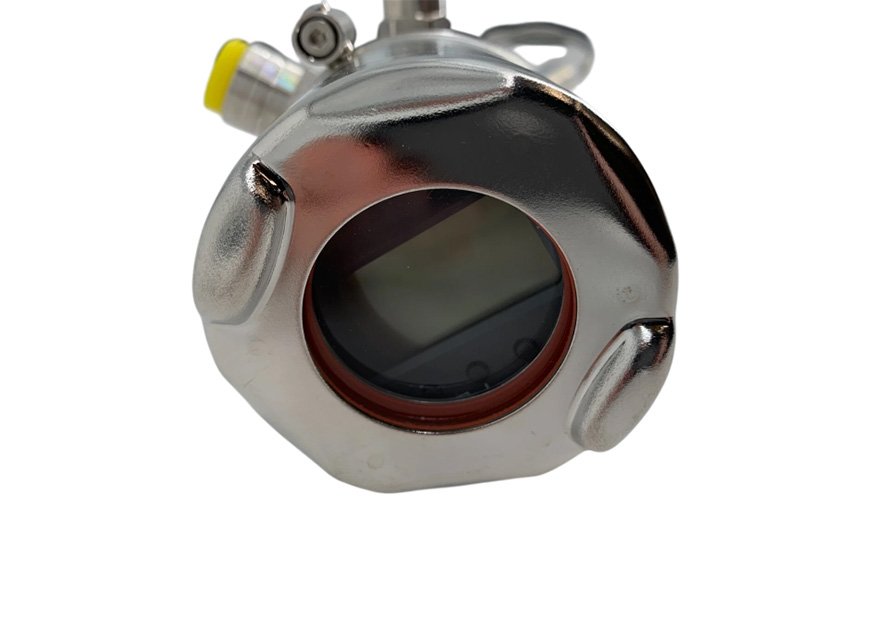

• Menu-guided local configuration via plain text display (optional)
• Two-stage overvoltage protection
Parameter | Details |

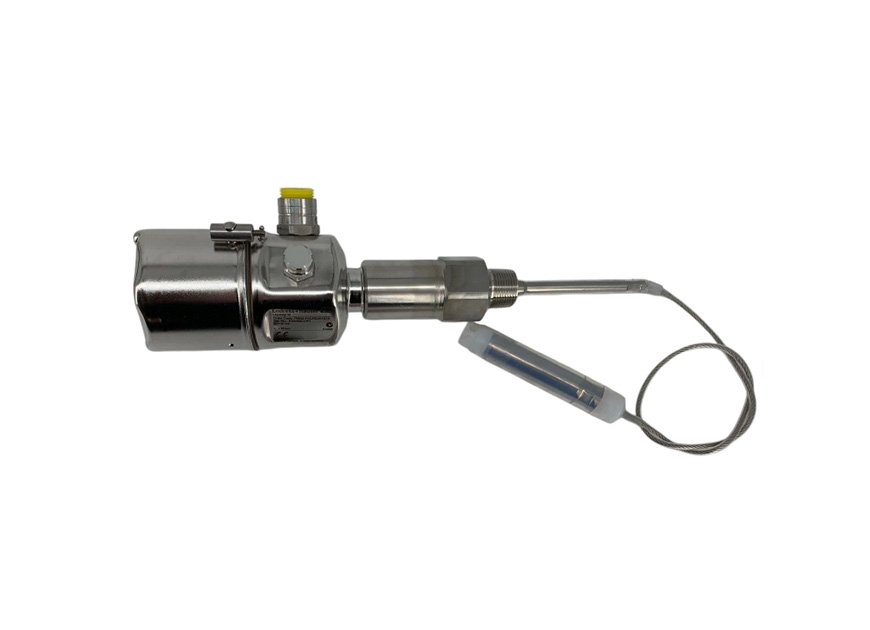

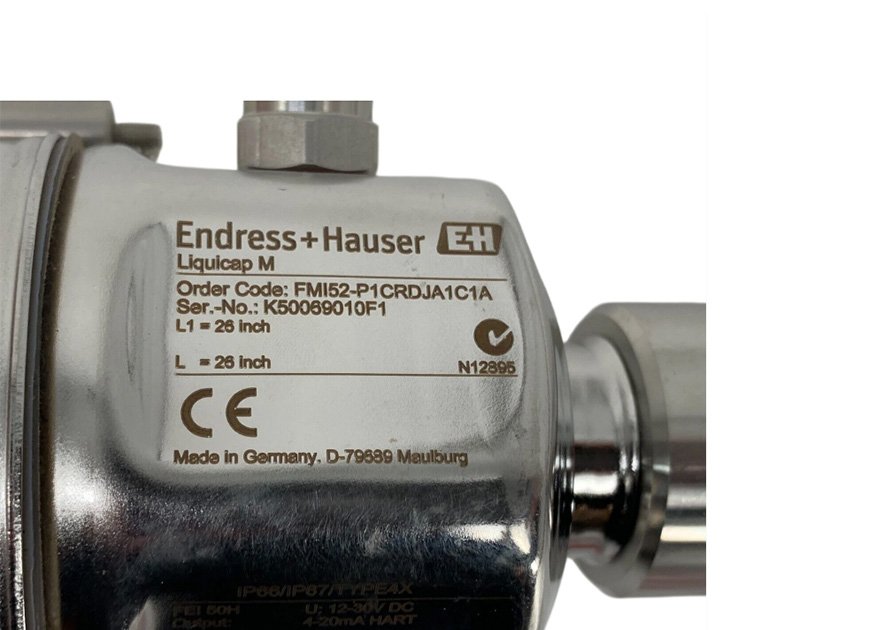

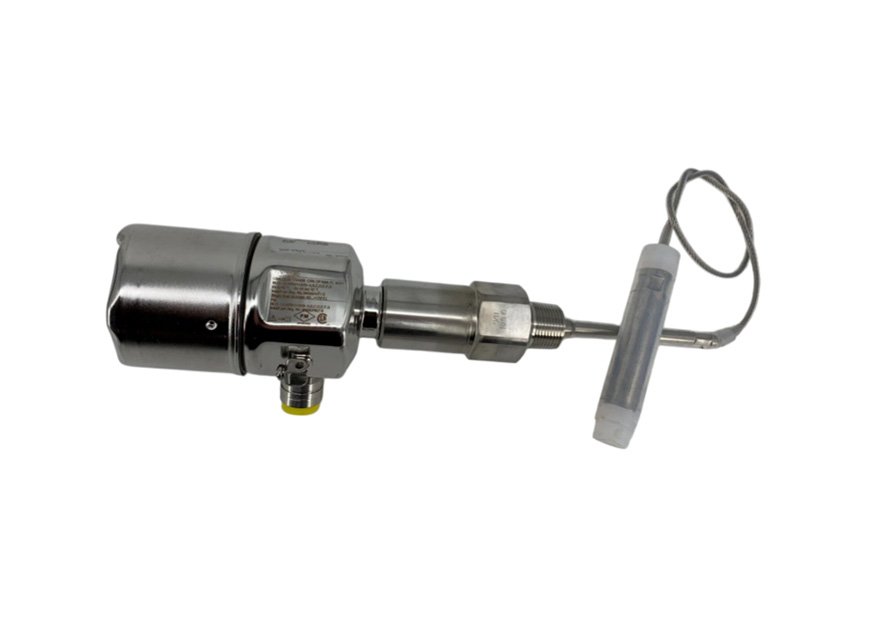

Product Name | Liquicap FMI52 |
Measuring Principle | Capacitance / RF admittance (fully insulated flexible rope/cable probe) |
Application | Continuous level & interface measurement for liquids; buildup prone media, high viscosity, high temperature/pressure, large measuring ranges / deep tanks |
Probe Type | Fully insulated flexible rope (cable) probe (FEP / PFA insulated) |
Measuring Range | 0.42 … 10.0 m (1.38 … 33 ft) |
Accuracy / Repeatability | ±0.1% of span |
Process Temperature | -80 … +200 °C (-112 … +392 °F) |
Process Pressure | Vacuum … 100 bar (Vacuum … 1450 psi) |
Medium Conductivity | ≥ 100 µS/cm (measurement independent of dielectric constant) |
Process Connection | Thread (G/NPT 1½", 2"), Flange |
Wetted Materials | Probe: 316L SS + FEP / PFA insulation Seal: Viton, EPDM |
Electronics | FEM52 (2 wire electronics) |
Supply Voltage | 11.4 … 35 VDC (2 wire) |
Output Signal | 4–20 mA HART (2 wire) |
Load Capacity | Max. 600 Ω |
Response Time | ≤ 0.5 s |

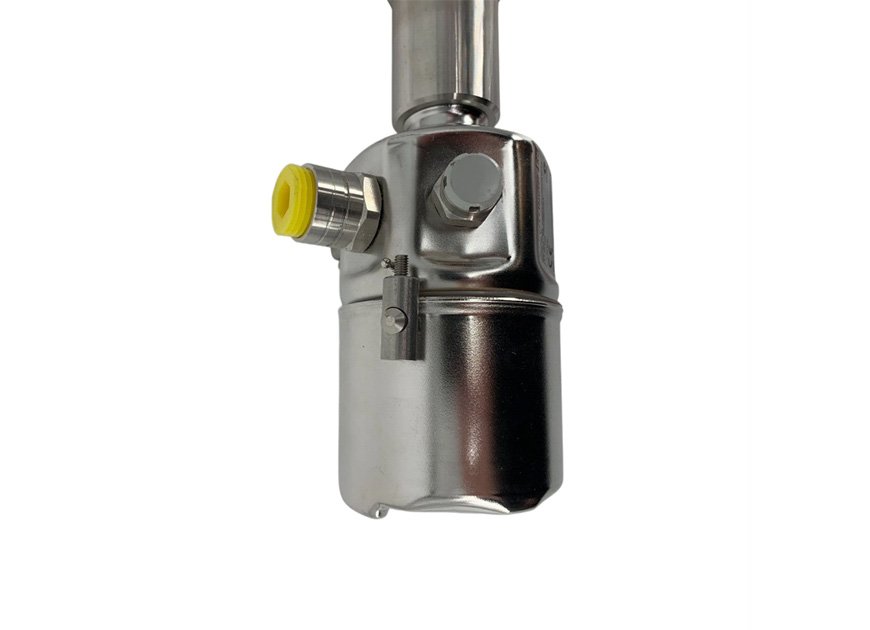

Housing | Aluminum (standard), 316L SS (option) |
Protection Class | IP66 / IP67 / NEMA 4X |
Ambient Temperature | -40 … +80 °C (-40 … +176 °F) |
Certifications & Approvals | ATEX, IECEx, FM, CSA, SIL 2 (IEC 61508), WHG, 3A, EHEDG, FDA, Marine |
Key Features | • Flexible rope probe (up to 10m) for deep tanks• Insensitive to product buildup• No recalibration (≥100 µS/cm)• Insensitive to dielectric constant• High temp/pressure rated |
Packaging: Original box
