Endress +Hauser Levelflex FMP50 FMP51 FMP52 FMP53 FMP54 FMP55 FMP56 FMP57 Guided-wave radar

Application

• Rod or rope probe

• Process connection: thread ¾" or adapter flange

• Process temperature: –20 to +80 °C (–4 to +176 °F)

• Process pressure: –1 to +6 bar (–14.5 to +87 psi)

• Maximum measuring range: rod 4 m (13 ft); rope 12 m (39 ft)

• Accuracy: ±2 mm (±0.08 in)

• International explosion protection certificates; WHG (German Water Resources

Act); EN10204-3.1

• Linearity protocol (3-point, 5-point)

Your benefits

• Reliable measurement even in variable product and process conditions

• Integrated data memory

• Maximum reliability thanks to multi-echo tracking

• SIL2 as per IEC 61508, SIL3 for homogeneous redundancy

• Intuitive user interface in local language

• Bluetooth®wireless technology for commissioning, operation and maintenance

• Easy proof testing for SIL and WHG

• Heartbeat Technology™

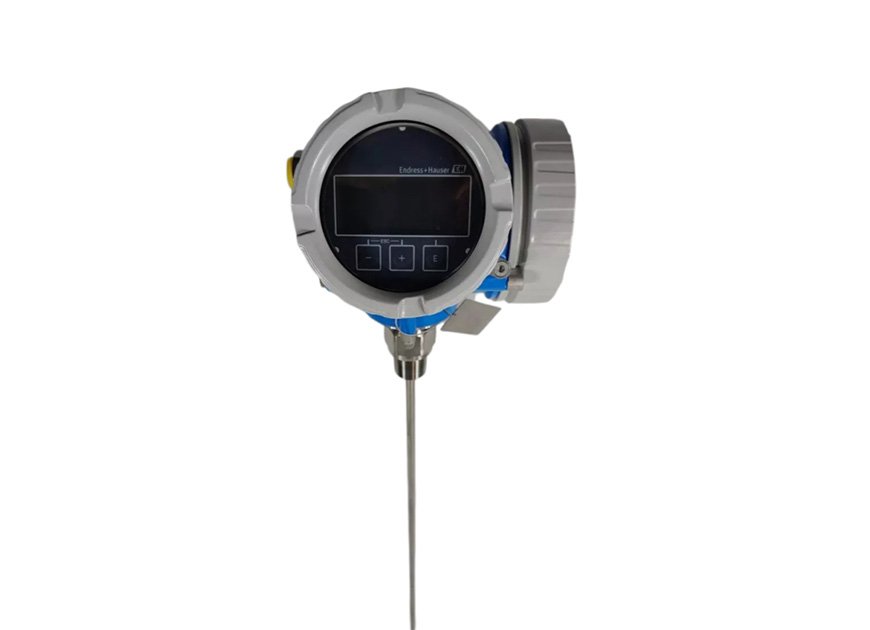

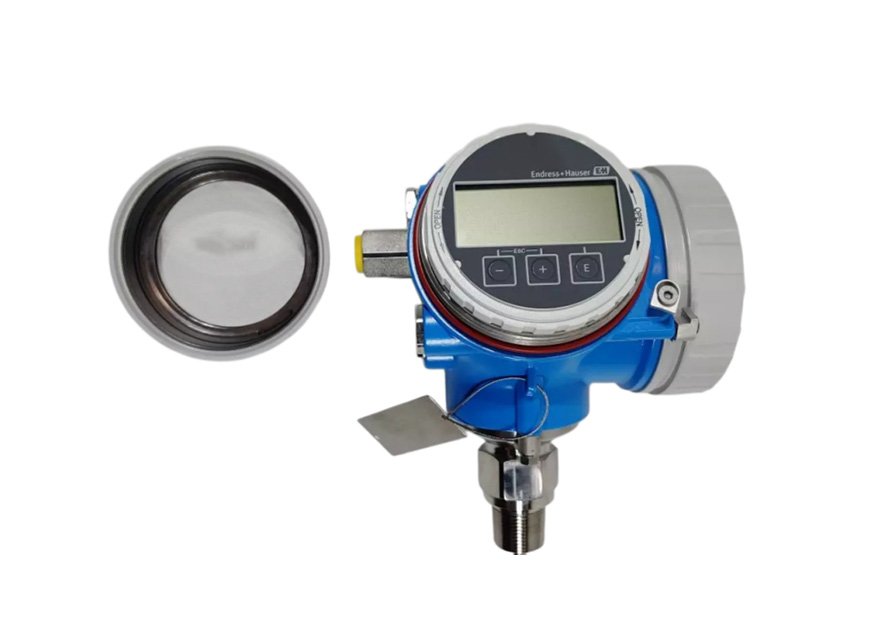

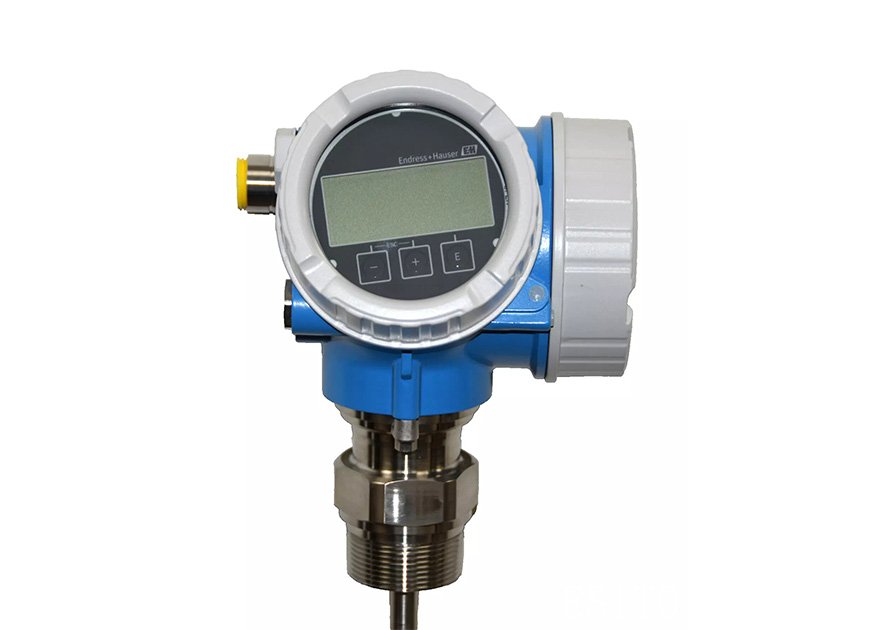

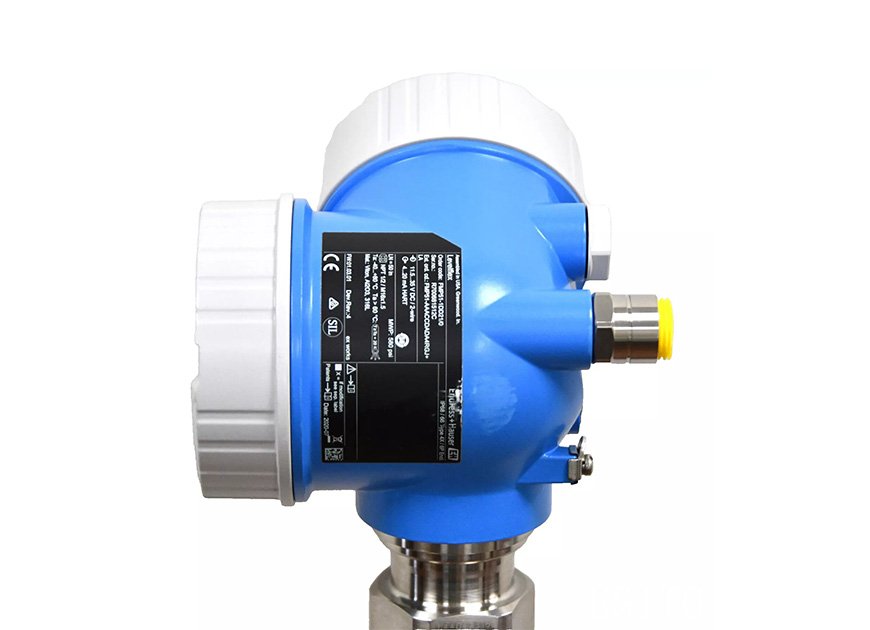

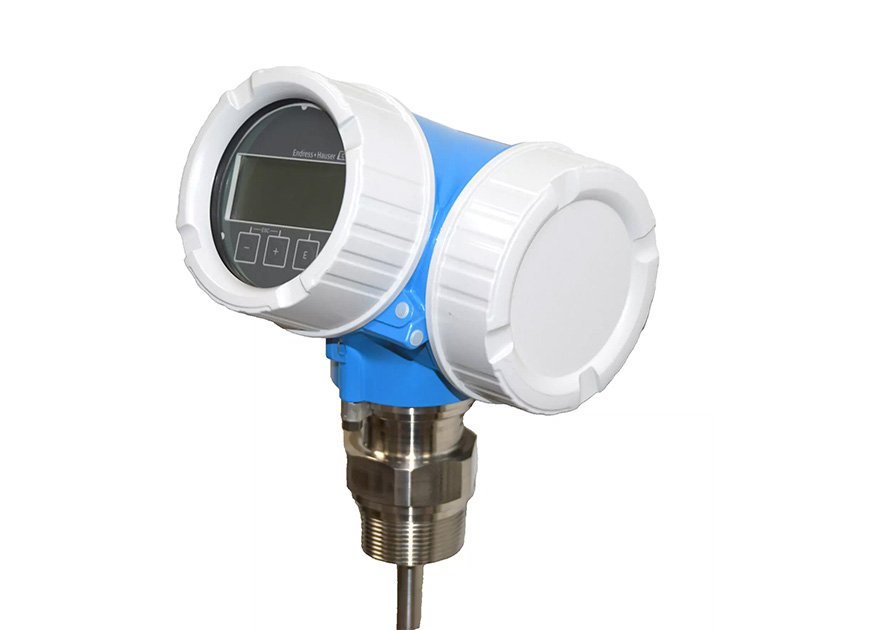

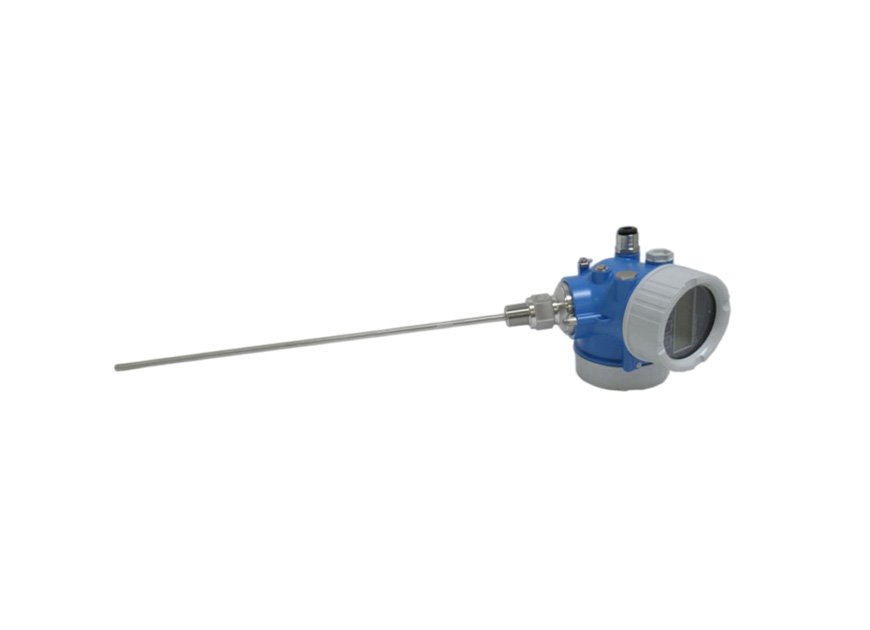

Levelflex FMP51, FMP52, FMP54

Guided Level-Radar

Level and interface measurement in liquids

Application

• FMP51 - premium device for level and interface masurment in liquids.

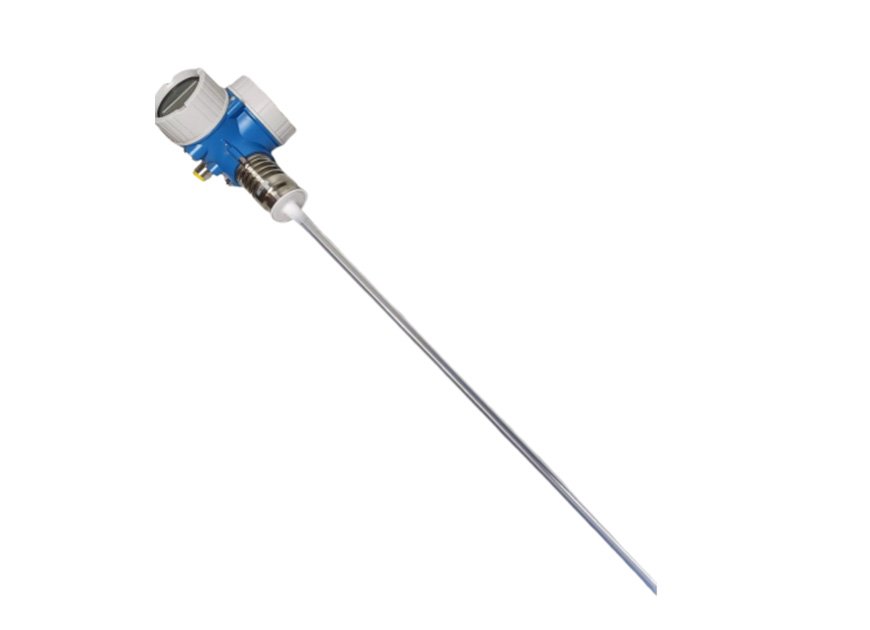

• FMP52 - premium device with coated probe for the use in aggressive liquids. Material of wetted parts FDA listed and USP Class VI compliant.

• FMP54 - premium device for high-temperature and high-pressure applications, mainly in liquids.

• Measuring range up to 45 m (148 ft)

• Process connection starting 3/4" thread or flange

• Temperature range: –196 to +450 °C (–321 to +842 °F)

• Pressure range: –1 to 400 bar (–14.5 to 5 800 psi)

• The following interfaces are available for system integration:

– HART with 4...20 mA analog

– PROFIBUS PA (Profile 3.02)

– FOUNDATION Fieldbus

• Used for level monitoring (MIN, MAX, range) up to SIL 2 (single device) or SIL 3 (redundancy, even if homogeneous), independently assessed by TÜV as per IEC 61508

Your benefits

• Reliable measuring:

– in case of moved surface and foam

– for changing media

– in dust applications (FMP54 only)

• High availablility

• Integrated data memory

• Factory precalibrated to probe length

• Intuitive, menu-guided operating concept in national languages

• Simple integration into control or asset management systems

• Exact instrument and process diagnosis to assist fast decisions

• Approvals: ATEX, IEC Ex, CSA, FM, NEPSI

Pressure Equipment Directive PED (FMP54 only) 3-A (FMP52 only)

FMP53:

Level measurement in hygienic applications

Application

• Rod probe

• Process connections for hygiene requirements (Tri-Clamp, 11851, 11864, NEUMO, Varivent N, SMS)

• Temperature: –20 to +150 °C (–4 to +302 °F)

• Pressure: –1 to +16 bar (–14.5 to +232 psi)

• Maximum measuring range: Rod 6 m (20 ft)

• Accuracy: ±2 mm (±0.08 in)

• International explosion protection certificates; WHG; EN10204-3.1; EHEDG; 3-A; CoC ASME-BPE

• Linearity protocol (3-point, 5-point)

Your benefits

• Reliable measurement even for changing product and process conditions

• HistoROM data management for easy commissioning, maintenance and diagnostics

• Highest reliability due to Multi-Echo Tracking

• Hardware and software developed according to IEC 61508 (up to SIL3)

• Seamless integration into control or asset management systems

• Intuitive user interface in national languages

• Easy proof test for SIL and WHG

FMP55:

Interface measurement in liquids

Application

• Rod, rope or coax probe

• Process connection: 1.5" thread or flange

• Temperature: –50 to +200 °C (–58 to +392 °F)

• Pressure: –1 to +40 bar (–14.5 to +580 psi)

• Maximum measuring range: Rod 4 m (13 ft); rope 10 m (33 ft); coax 6 m (20 ft)

• Accuracy: ±2 mm (±0.08 in)

• International explosion protection certificates; ship building approval; EN10204-3.1

• Linearity protocol (3-point, 5-point)

Your benefits

• Reliable measurement even for changing product and process conditions

• HistoROM data management for easy commissioning, maintenance and diagnostics

• Highest reliability due to Multi-Echo Tracking

• Hardware and software developed according to IEC 61508 (up to SIL3)

• Seamless integration into control or asset management systems

• Intuitive user interface in national languages

• Easy proof test for SIL

FMP56 FMP57:

Level measurement in bulk solids

Application

• Rod or rope probe

• Process connection: Starting 3/4" thread or flange

• Temperature: –40 to +185 °C (–40 to +365 °F)

• Pressure: –1 to +16 bar (–14.5 to +232 psi)

• Maximum measuring range: Rod 4 m (13 ft); rope 45 m (148 ft)

• Accuracy: ±2 mm (±0.08 in)

• International explosion protection certificates; EN10204-3.1

• Linearity protocol (3-point, 5-point)

Your benefits

• Reliable measurement even for changing product and process conditions

• HistoROM data management for easy commissioning, maintenance and diagnostics

• Highest reliability due to Multi-Echo Tracking

• Hardware and software developed according to IEC 61508 (up to SIL3)

• Seamless integration into control or asset management systems

• Intuitive user interface in national languages

• Easy proof test for SIL

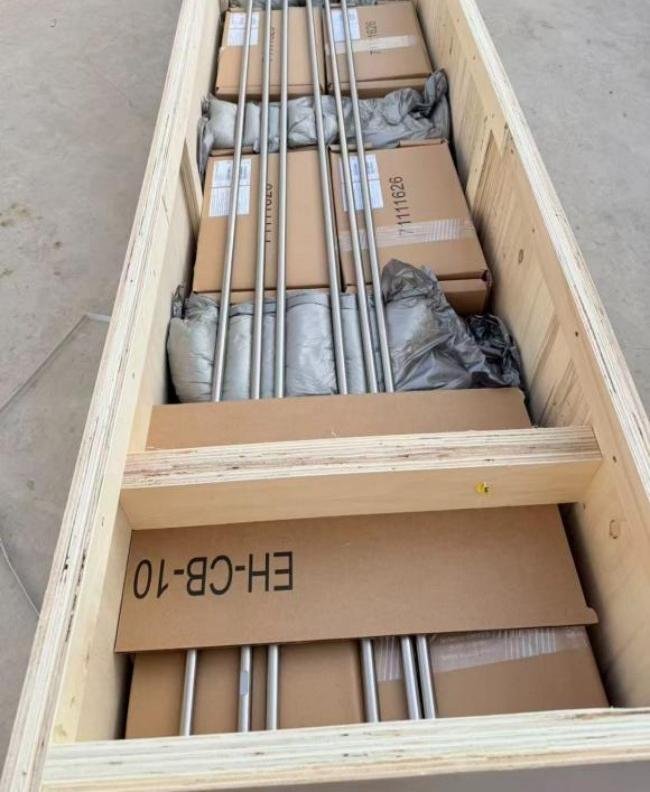

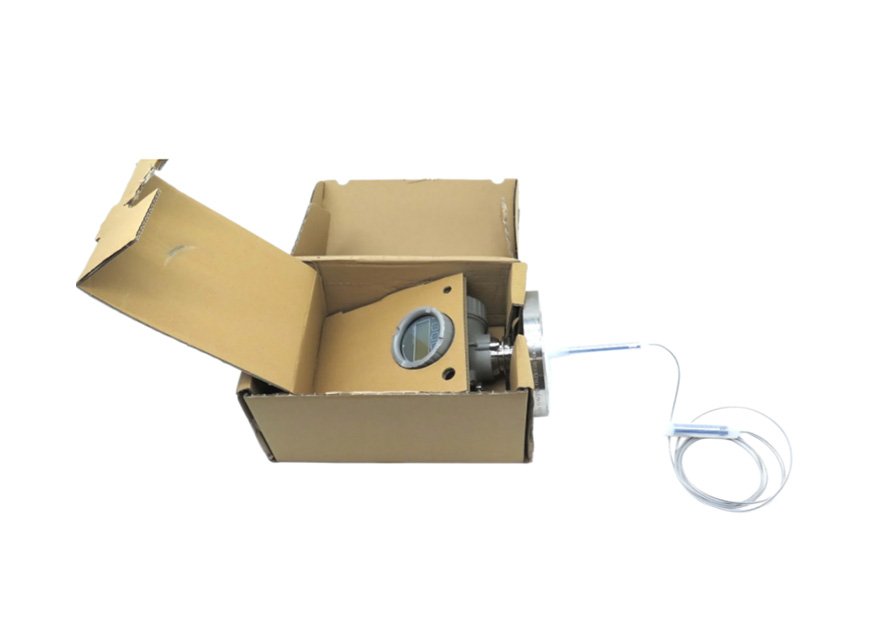

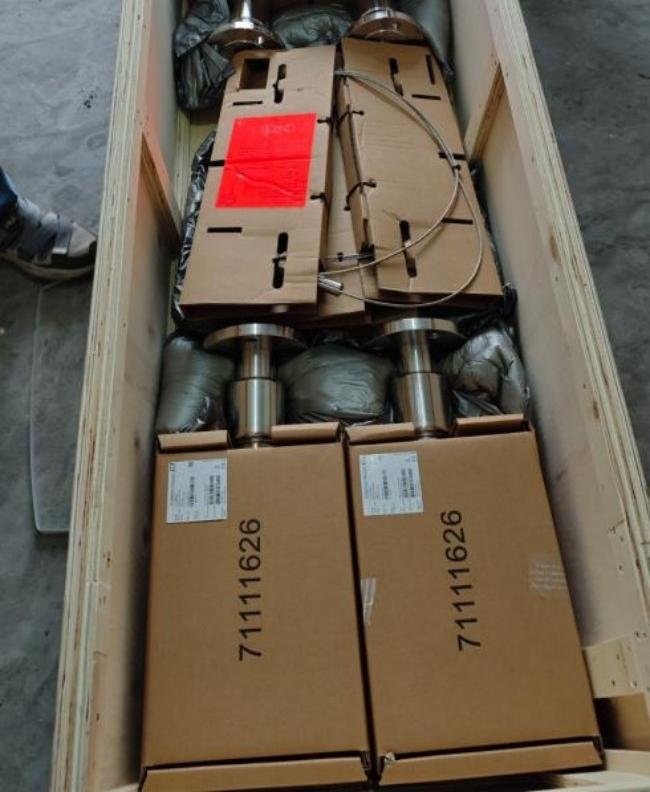

Packaging & Shipping

Packaging: Original box
