Ultrasonic Level Measurement
Compact transmitters for non-contact level measurement of fluids,
pastes and coarse bulk materials
• Continuous, non-contact level measurement in fluids, pastes, sullages and coarse bulk materials
• System integration via 4 to 20mA
• Maximum measuring range: – 1½" sensor: 5 m (16 ft) in fluids 2 m (6 ft) in bulk materials – 2" sensor: 8 m (26 ft) in fluids 3.5 m (11 ft) in bulk materials
• Quick and simple commissioning via menu-guided onsite operation with four-line plain text display; 7 languages selectable
• Envelope curves on the on-site display for simple diagnosis
• Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate
• Non-contact measurement method minimizes service requirements
• Installation possible from thread G 1½“ or NPT 1½“ upwards
• Integrated temperature sensor for automatic correction of the temperature dependent sound velocity
Parameter | Details |

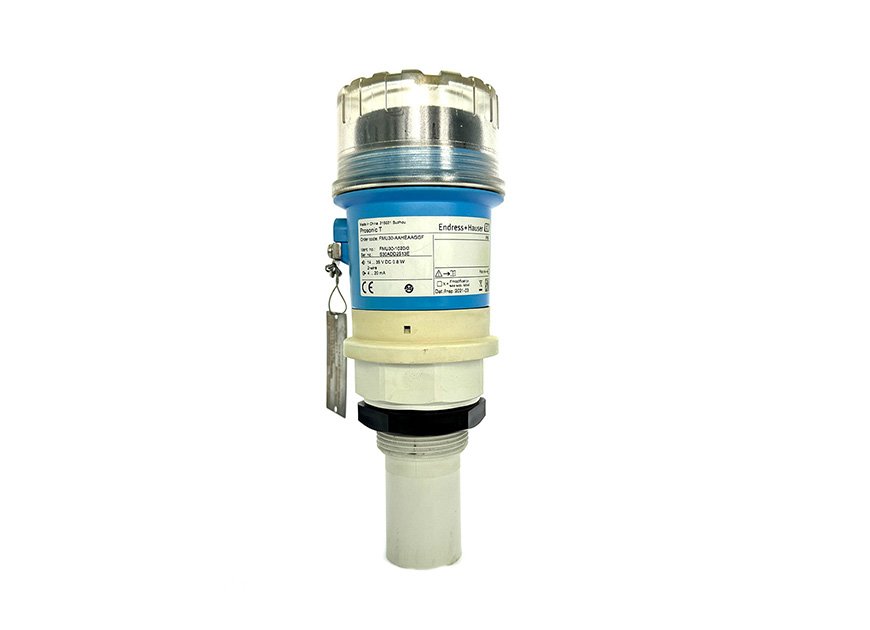

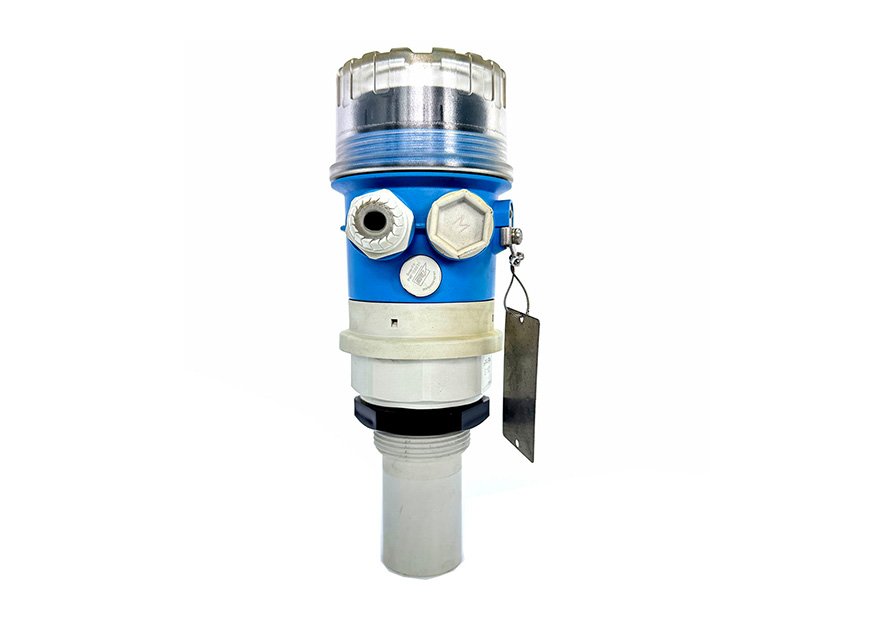

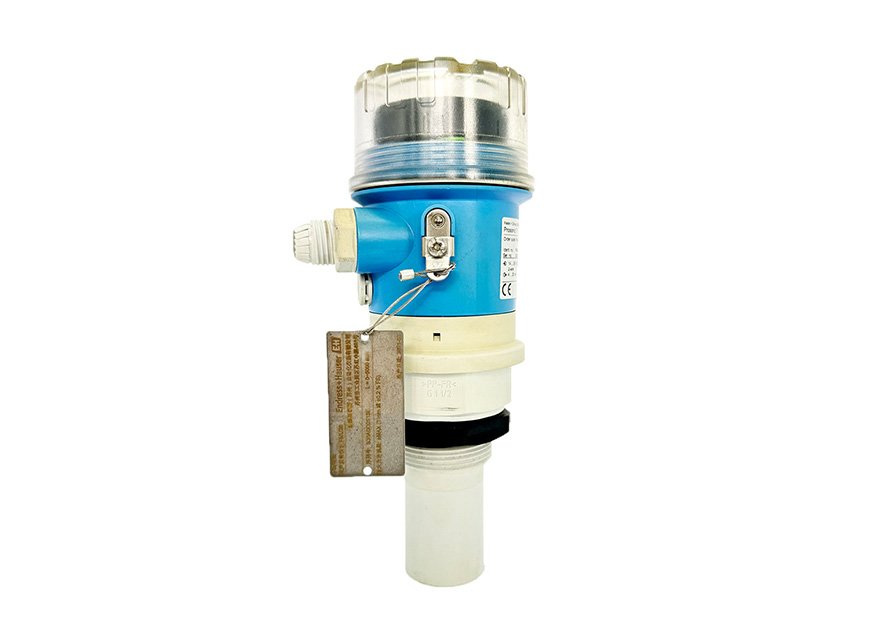

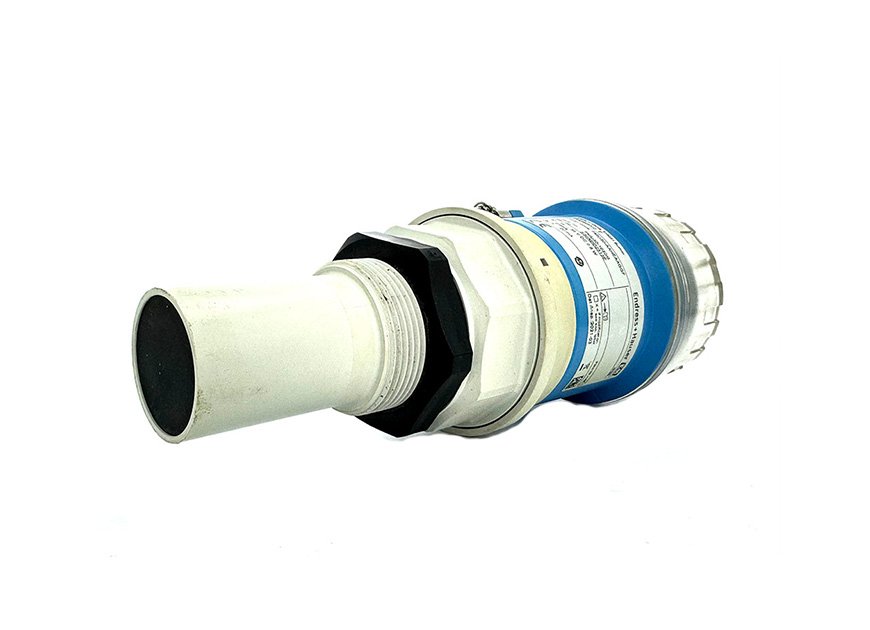

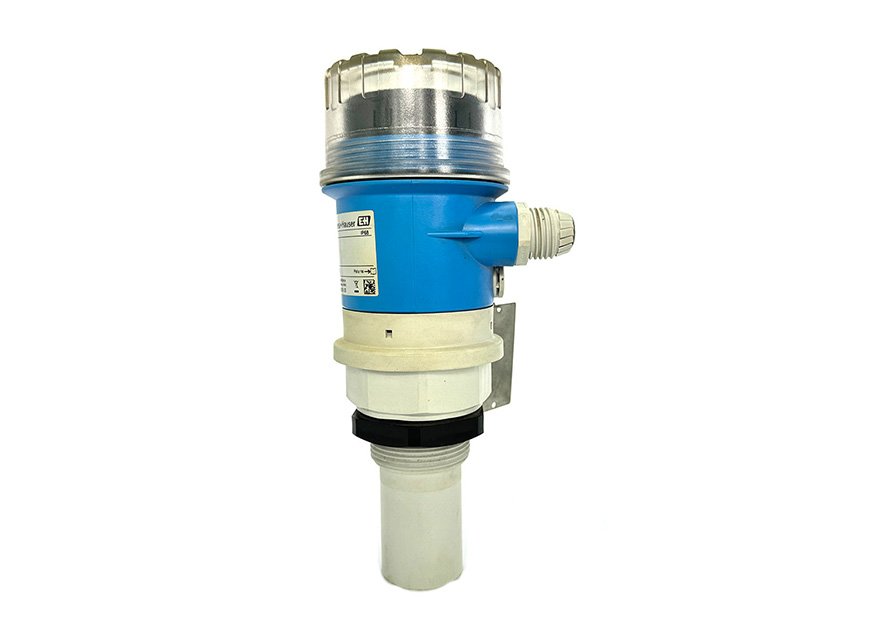

Product Name | Prosonic FMU30 (Ultrasonic Level Meter) |
Measuring Principle | Time-of-flight (ToF) ultrasonic, non-contactEndress+Hauser |
Max Measuring Range | • 1½" sensor: Liquids 5 m (16 ft), Solids 2 m (6.6 ft) • 2" sensor: Liquids 8 m (26 ft), Solids 3.5 m (11 ft) |
Accuracy | ±3 mm or ±0.2% of set span (whichever is greater) |
Resolution | 1 mm |
Blind Zone | 0.25 m (for both 1½" & 2" probes) |
Beam Angle | 11° |
Response Time | ≤ 2 s (depends on parameter settings) |
Process Temperature | -20 … +60 °C (-4 … +140 °F) |
Process Pressure (abs) | 0.7 … 3 bar abs (10 … 44 psi) |
Ambient Temperature | -20 … +60 °C (-4 … +140 °F) |
Storage Temperature | -40 … +80 °C (-40 … +176 °F) |
Process Connection | Thread: G 1½", G 2", NPT 1½", NPT 2" |
Wetted Materials | PP (probe) + EPDM (seal) |
Supply / Wiring | 2 wire (4–20 mA) |
Supply Voltage | 11.4 … 35 V DC |
Output Signal | 4–20 mA HART (2 wire) |
Load Capacity | Max. 600 Ω |

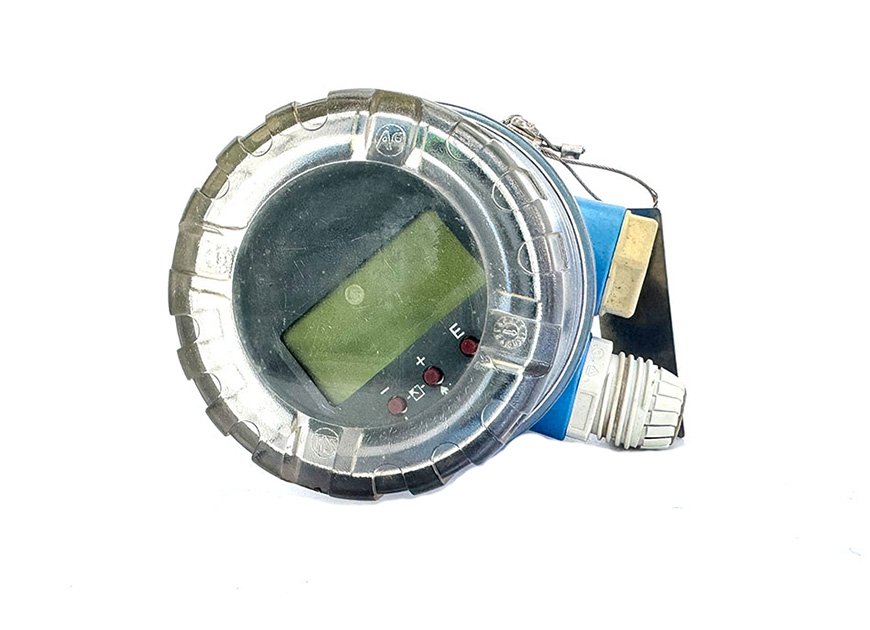

Display | 4 line plain text (7 languages), envelope curve displayEndress+Hauser |
Housing | PP (polypropylene) |
Protection Class | IP66 / IP67 |
Features | • Built in temperature sensor (automatic sound velocity compensation)• Linearization (up to 32 points)• Non contact measurement (low maintenance)• On site envelope curve diagnostics |
Applications | Liquids, slurries, solids, wastewater tanks, process water, storage/buffer tanks |
Approvals | ATEX, IECEx (basic hazardous area approvals) |

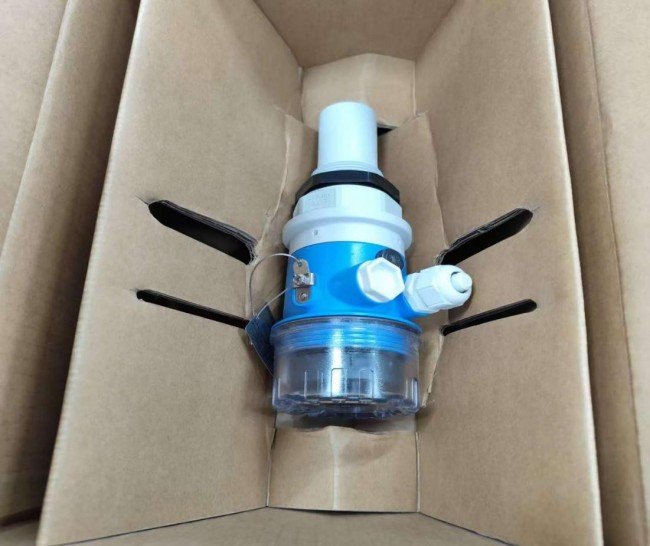

Packaging: Original box
