Micropilot FMR51/FMR54/FMR57

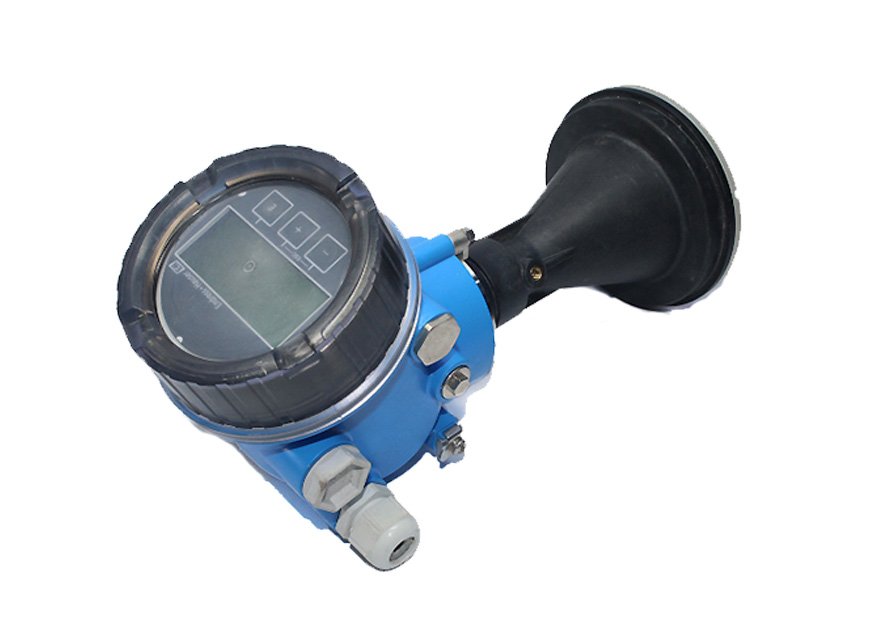

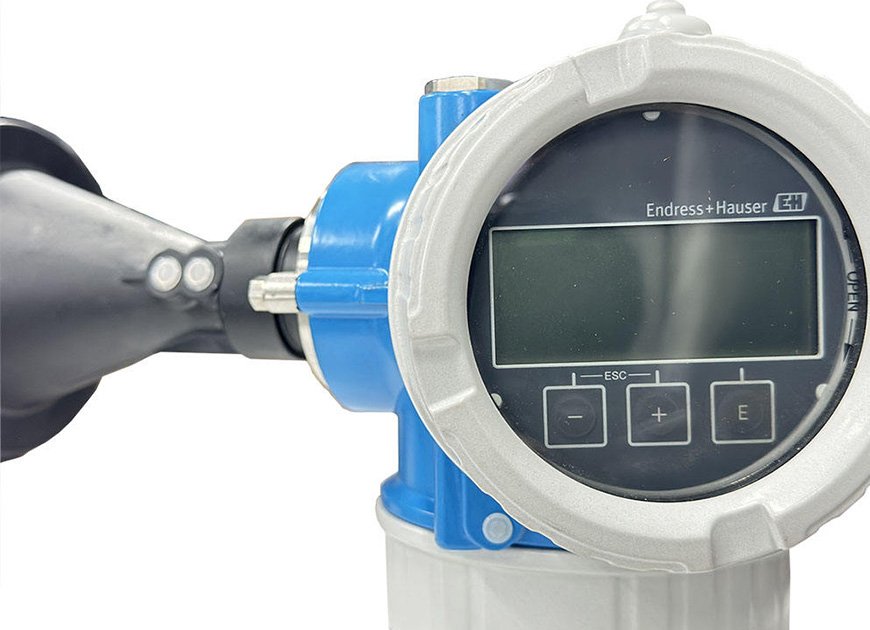

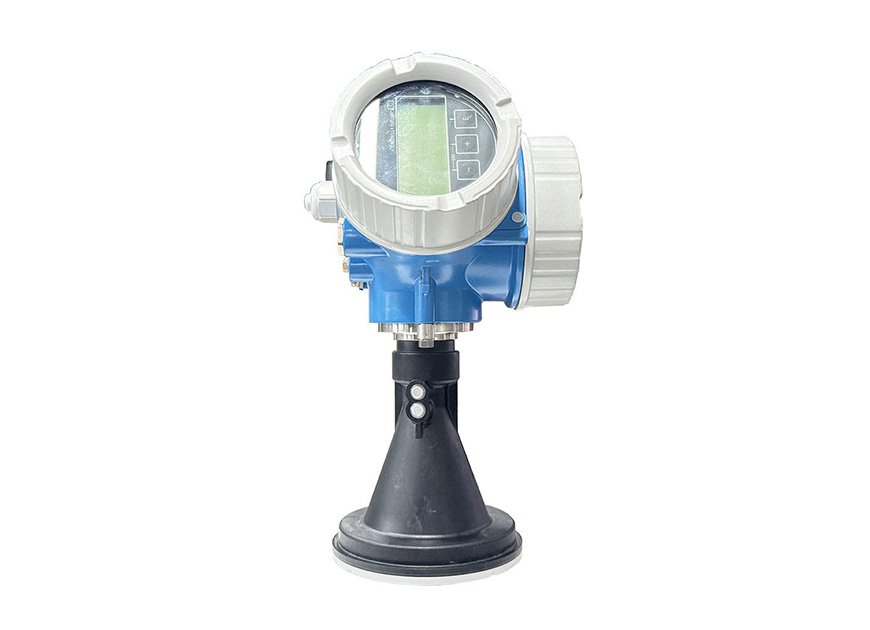

Micropilot FMR51 for level measurement even under extreme process conditions like high temperature and high pressure in the oil & gas and chemical industry. The FMR51 free space radar offers maximum reliability due to an innovative and patented sensor-design. Micropilot is used for continuous, non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors. Remote access via SmartBlue app is available.
l Process connections: Thread, Tri-Clamp or flange
l Temperature: -196 to +450°C (-321 to + 842°F)
l Pressure: -1 to +160bar (-14.5 to +2,320psi)
l Maximum measuring range: 40m (131ft), 70m (230ft) for enhanced dynamics
l Accuracy: ±2mm
l K-band: 26GHz
l International explosion protection certificates, overfill prevention WHG, SIL, marine approvals, 5-point linearity protocol
l Remote access with SmartBlue App via Bluetooth® is available
Micropilot FMR54 is prepared for the use in high temperature and high pressure applications and with the specially designed planar antenna it is particularly suited for stilling well applications. The FMR54 free space radar is used for continuous, non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.
l Process connection: Flange
l Temperature: -196 to +400°C (-76 to +752°F)
l Pressure: -1 to +160bar (-14.5 to +2,320psi)
l Maximum measuring range: 20m (66ft)
l Accuracy: ±6mm
l C-band: 6GHz
l International explosion protection certificates, overfill prevention WHG, SIL, 5-point linearity protocol

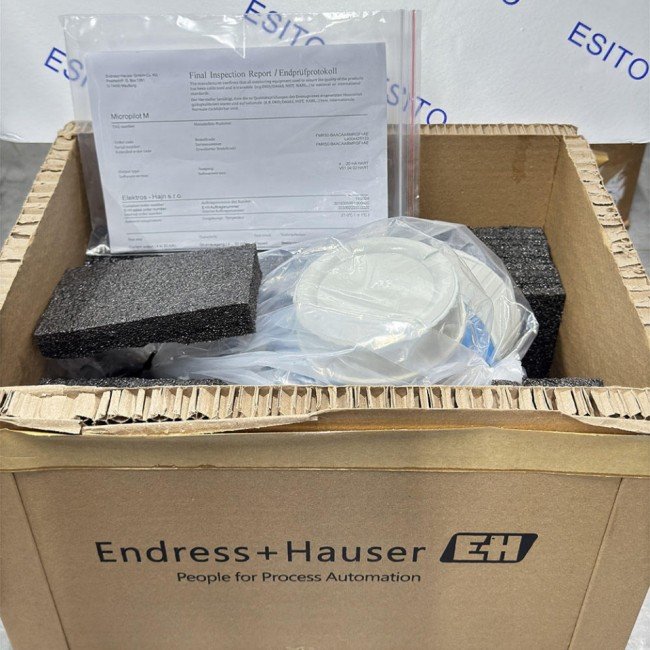

Packaging: Original box
