Micropilot FMR10B/FMR20B/FMR30B
Micropilot FMR10B

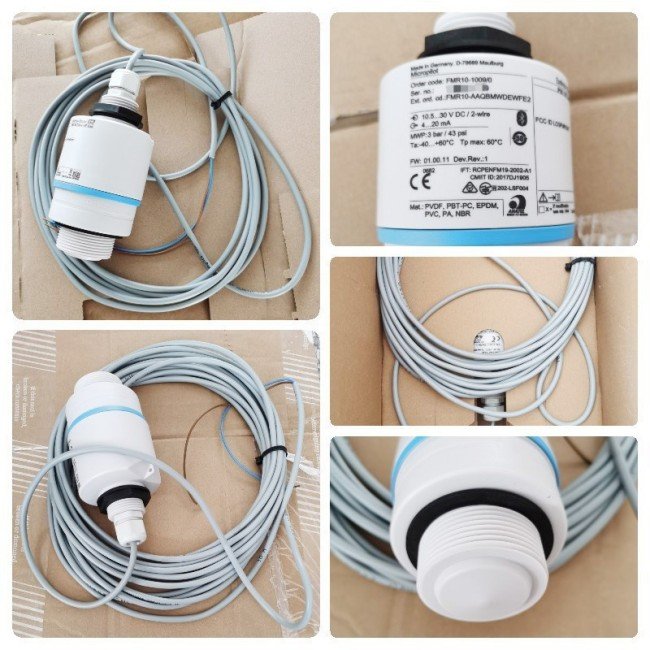

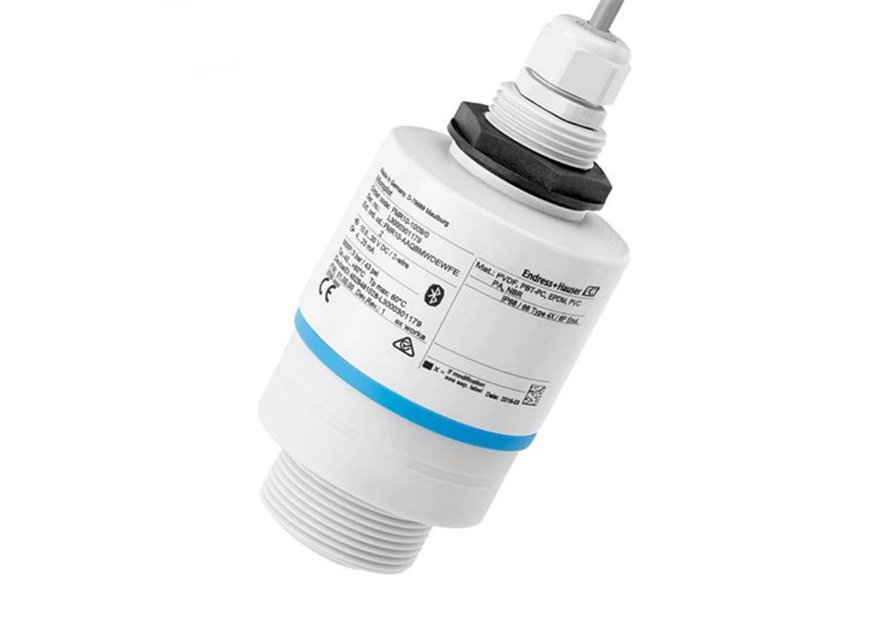

The Micropilot FMR10B supplies continuous non-contact level measurement with 80 GHz technology. It is the perfect match for basic applications in the Water, Wastewater & Waste industry as well as for Mining, Minerals & Metals and utilities across all industries. Guiding wizards guarantee simplicity in installation and commissioning. It is also ideal for limited space applications thanks to its compact design.
l Open basins
l River monitoring
l Storage tanks
l Silos
l Stockpiles

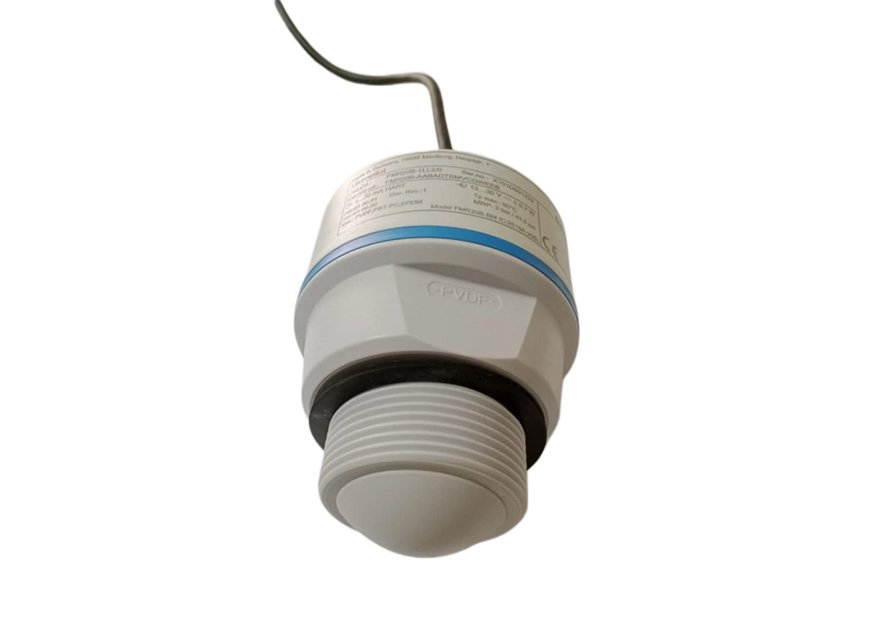

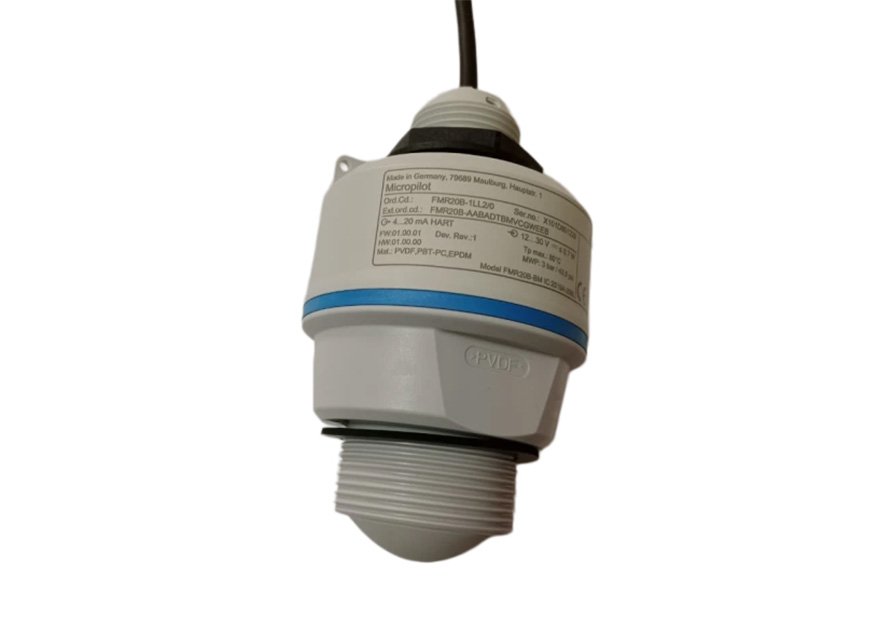

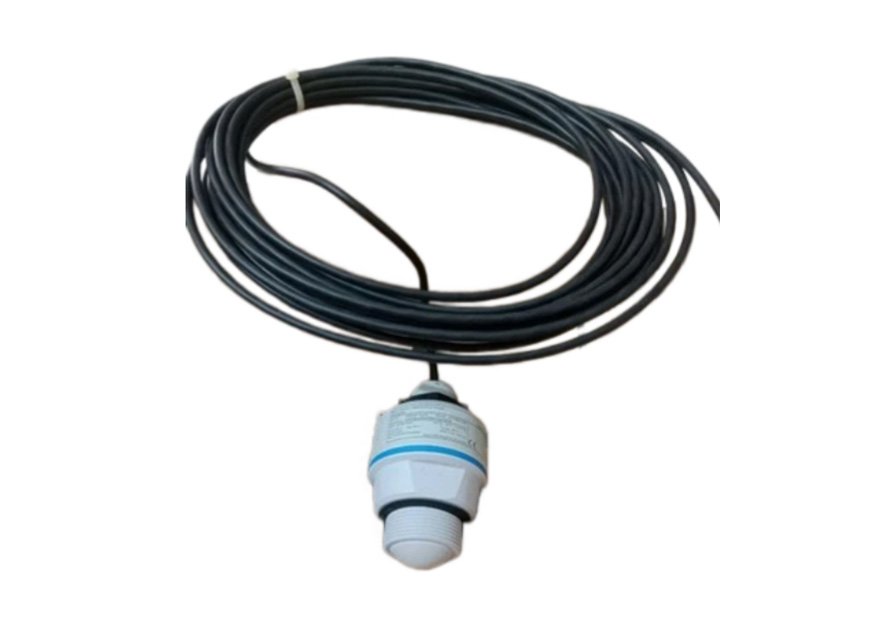

The Micropilot FMR20B offers continuous non-contact level measurement with 80 GHz technology. Guiding wizards enable easy handling for installation, commissioning and operation. Efficiency through reduced downtime can be realized with on-demand process verification and device diagnostics, thanks to Heartbeat Technology. The compact design of the device also allows use in narrow installation conditions.
The Micropilot FMR20B is a free space radar device with a measuring range of up to 30m (98ft) for liquid and solid applications in the Water, Wastewater & Waste, Mining, Minerals & Metals and Food & Beverage industries, as well as for utility applications across all industries:
l Open baisins
l River monitoring
l Sewer management
l Pump station / lift station
l Open channel flow
l IBC and storage tanks
l Silos
l Stockpiles
l Pneumatic conveying

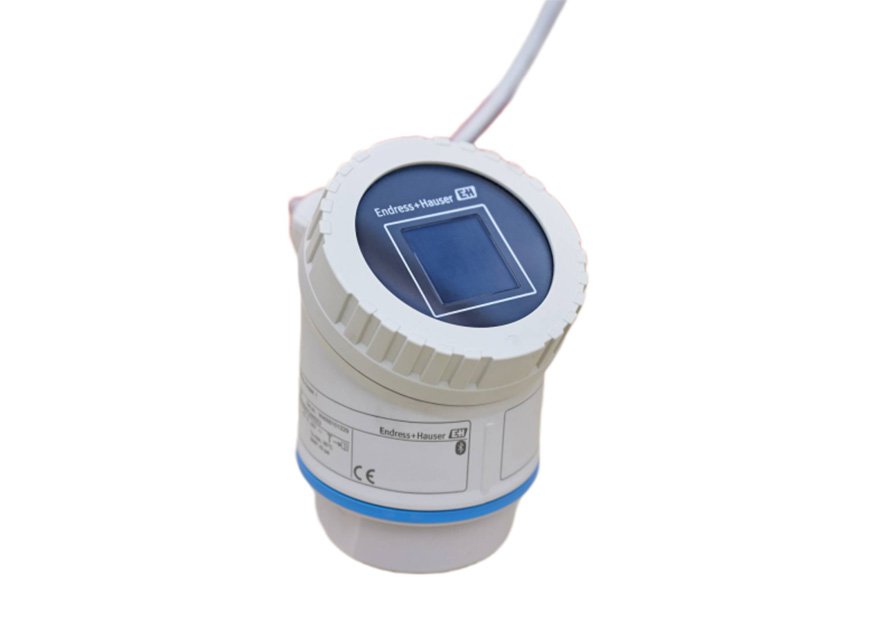

The Micropilot FMR30B is made for continuous non-contact level measurement equipped with 80 GHz-technology. The installation and commissioning of the device is fast and easy due to its simple design and guiding wizards. Remote access via Bluetooth or on-site access via the color touch display ensures easy operation. With on-demand process verification and device diagnostics, thanks to Heartbeat Technology, downtime can be reduced. The compact device is ideal for narrow installation conditions.
The Micropilot FMR30B is a free space radar device with a measuring range of up to 30m (98ft) for level measurement in liquids and solids. It is suitable for utility applications across all industries and the perfect match for applications in Water, Wastewater & Waste as well as for basic applications in Mining, Minerals & Metals and Food & Beverage industry:
l Open basins
l River monitoring
l Sewer management
l Pump station / lift station
l Open channel flow
l IBC and storage tanks
l Silos
l Stockpiles
l Pneumatic conveying
Specification Category | FMR10B | FMR20B | FMR30B |
Product Model | Micropilot FMR10B | Micropilot FMR20B | Micropilot FMR30B |
Measurement Principle | 80 GHz FMCW (Frequency-Modulated Continuous Wave) radar, non-contact | 80 GHz FMCW radar, non-contact | 80 GHz FMCW radar, non-contact |
Application | Liquids & Solids (basic) | Liquids & Solids | Liquids & Solids |
Accuracy | Liquids: ±5 mm (0.2")Solids: ±10 mm (0.39") | ±2 mm (0.08") | Liquids: ±2 mm (0.08")Solids: ±4 mm (0.16") |
Max. Measuring Range | 10 m (32.8 ft) | DN40 (1½"): 20 m (65.6 ft)DN80 (3"): 30 m (98.4 ft) | Up to 30 m (98.4 ft) |
Process Temperature | -40 … +60 °C (-40 … +140 °F) | -40 … +80 °C (-40 … +176 °F) | -40 … +80 °C (-40 … +176 °F) |
Process Pressure | -1 … +3 bar (-14.5 … +43 psi) | -1 … +3 bar (-14.5 … +43 psi) | -1 … +3 bar (-14.5 … +43 psi) |
Power Supply | 12–30 V DC (2-wire loop-powered) | 12–30 V DC (2-wire loop-powered) | 12–30 V DC (2-wire loop-powered) |
Output Signal | 4–20 mA HART (optional) | 4–20 mA HART | 4–20 mA HART |
Communication | Bluetooth® (wireless remote setup via App) | Bluetooth® + HART | Bluetooth® + HART + Color touch display |
Wetted Parts | PVDF, PBT/PC | PVDF, PBT/PC | PVDF, PBT/PC |
Process Connection | Threaded (DN40 / 1½" MNPT) | Threaded / Flanged (DN40/DN80) | Threaded / Flanged (DN40/DN80) |
Ingress Protection | IP68 | IP68 | IP67 |
Key Features | Compact, basic, low-cost | Heartbeat Technology (self-diagnostics), compact | Color touch display, Heartbeat Technology, advanced diagnostics |
Typical Applications | Water, wastewater, basic utilities | Water, wastewater, utilities, tanks, open basins | Tanks, reactors, solids (grains, pellets), open channels |
Packaging: Original box
