Level measurement in liquids
• Continuous, non-contact level measurement of liquids, pastes and sludges
• Process connections: Thread or mounting bracket
• Maximum measuring range: 50 m (164 ft)
• Temperature: –40 to +200 °C (–40 to +392 °F)
• Pressure: –1 to +20 bar (–14.5 to +290 psi)
• Accuracy: ±1 mm (±0.04 in)
• PVDF, PTFE Drip-off or PEEK antenna for small process connections
• Reliable measurement thanks to very good signal focusing, even with small process connections
• Easy, guided commissioning with intuitive user interface
• Bluetooth®wireless technology for commissioning, operation and maintenance
• SIL2 as per IEC 61508, SIL3 for homogeneous redundancy
• Easy guided proof testing for SIL and WHG
Parameter | Details |

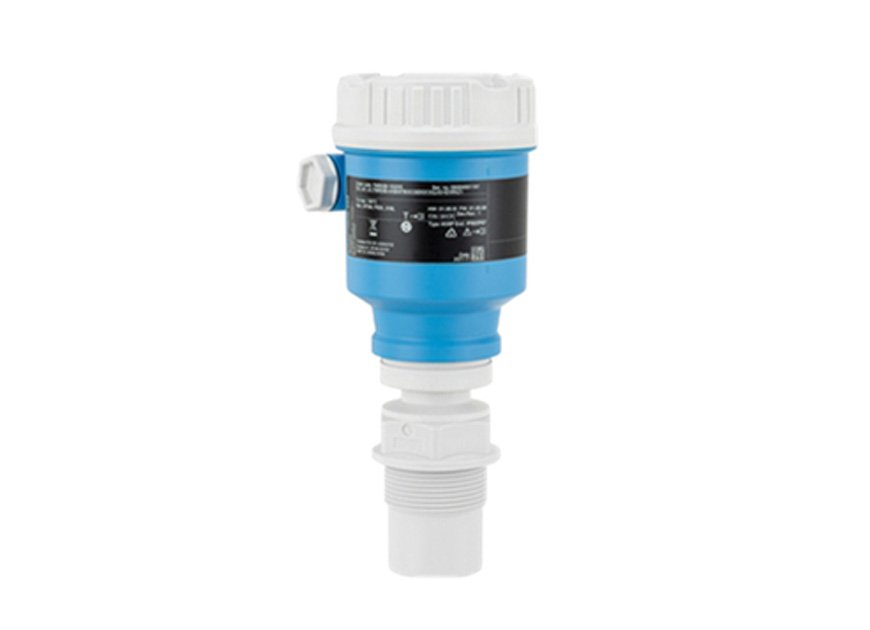

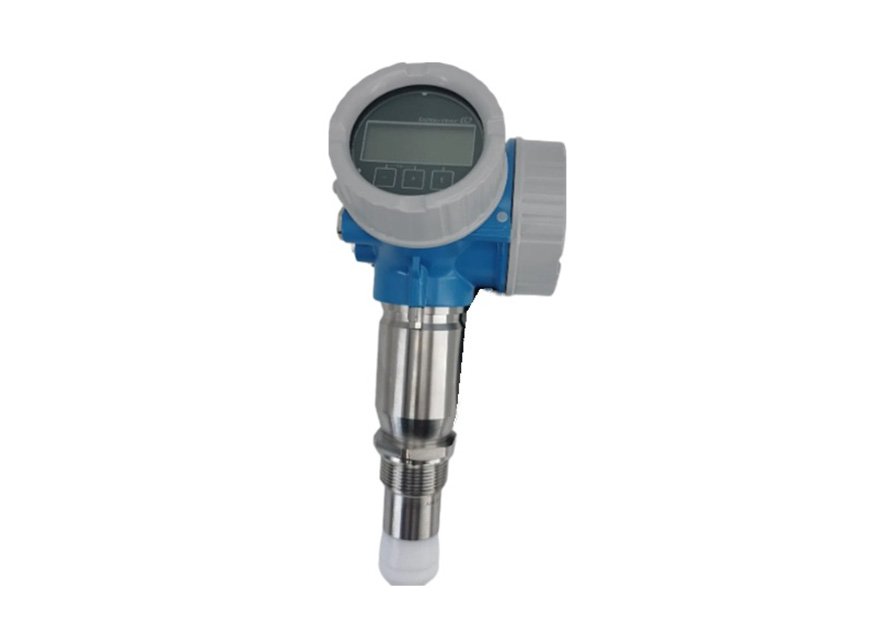

Product Model | Micropilot FMR60B |
Measuring Principle | Non-contact 80 GHz (W-band) free-space radar |
Application | Continuous level measurement of liquids, pastes, slurries |
Max. Measuring Range | • PEEK 20 mm: 10 m (32.8 ft) • PEEK 40 mm: 22 m (72 ft) • PVDF 40 mm: 40 m (131 ft) • PTFE 50 mm: 50 m (164 ft) |
Accuracy | ±1 mm (±0.04 in) |
Process Temperature | -40 … +200 °C (-40 … +392 °F) |
Process Pressure | Vacuum (-1 bar) … +20 bar (290 psi) |
Operating Frequency | 80 GHz (W-band) |
Antenna Options | • Encapsulated, PVDF, 40 mm • Drip-off, PTFE, 50 mm • Integrated, PEEK, 20 mm • Integrated, PEEK, 40 mm |
Wetted Materials | PVDF, PTFE, PEEK |
Process Connections | Thread, flange, mounting bracket |
Output Signals | • 2-wire 4–20 mA HART • PROFIBUS PA • PROFINET (Ethernet-APL) |
Power Supply | 9 … 32 VDC (standard) |
Ambient Temperature | -40 … +85 °C (-40 … +185 °F) |
Housing | Single/dual compartment; aluminum, 316L stainless steel |
Ingress Protection | IP66 / IP68 |

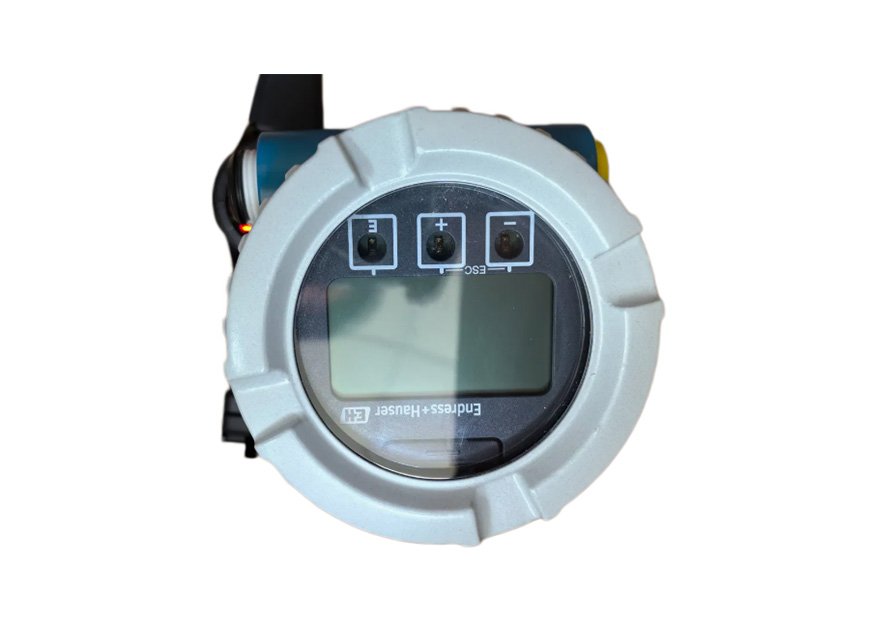

Local Display | Backlit LCD with touch buttons |
Communication | HART, PROFIBUS PA, PROFINET, Bluetooth |
Special Features | Heartbeat Technology, HistoROM data management, Bluetooth commissioning, SIL 2 capable |
Approvals | ATEX, IECEx, CSA, SIL 2, WHG |

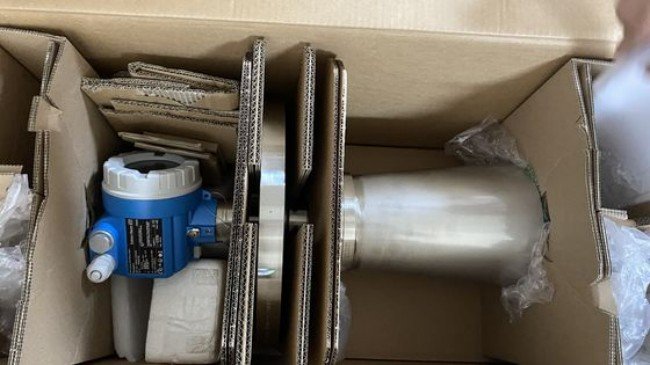

Packaging: Original box
![]()
