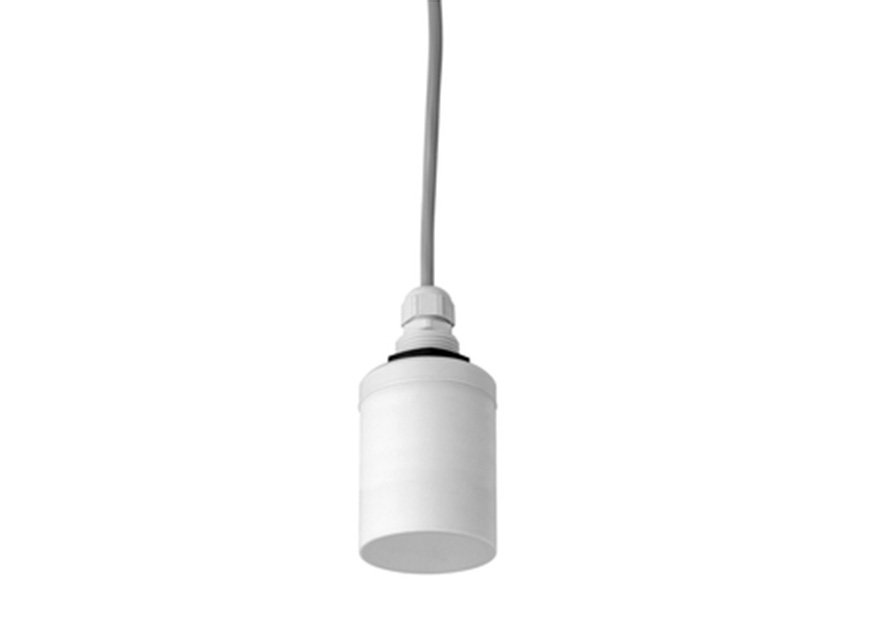

Ultrasonic sensors for level and flow measurement for connection to FMU9x
• Continuous, non-contact level measurement of fluids and bulk material in silos, on belts, stockpiles and in crushers
• Flow measurement in open channels and at weirs
• Maximum measuring range
– FDU90: 3 m (9.8 ft) in fluids 1.2 m (3.9 ft) in bulk materials
– FDU91/FDU91F: 10 m (33 ft) in fluids 5 m (16 ft) in bulk materials
– FDU92: 20 m (66 ft) in fluids 10 m (33 ft) in bulk materials

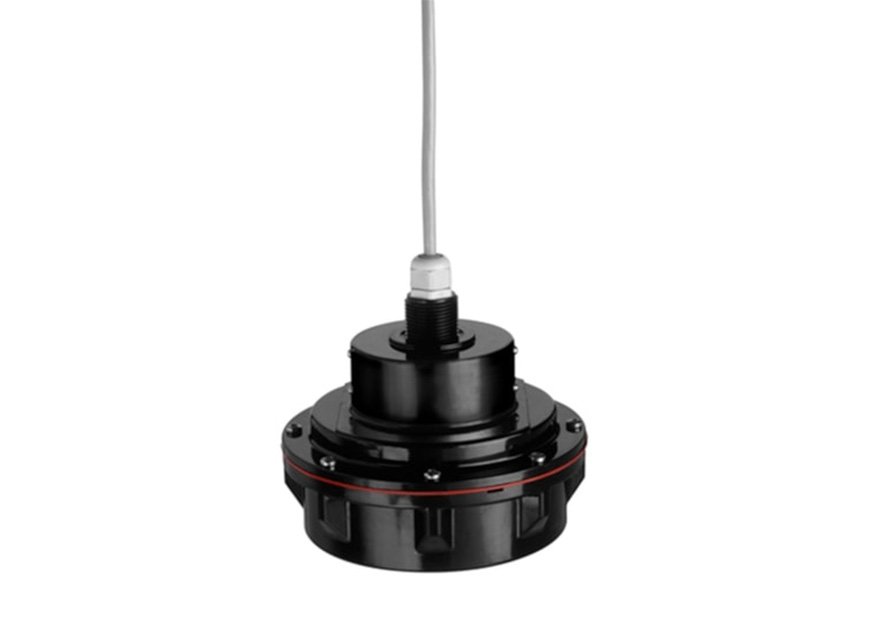

– FDU93: 25 m (82 ft) in fluids 15 m (49 ft) in bulk materials
– FDU95: 45 m (148 ft) in bulk materials
• International explosion protection certificates
• Integrated temperature sensor for Time-of-Flight correction.
Accurate measurements are possible, even if temperature changes are present
• Hermetically welded PVDF sensors FDU91/92 for highest chemical resistance
• Suited for rough ambient conditions thanks to separate installation from the transmitter (up to 300 m (984 ft))
• Reduced build-up formation because of the self-cleaning effect
• Weather resistant and flood-proof (IP68)
• Dust-Ex and Gas-Ex certificates available

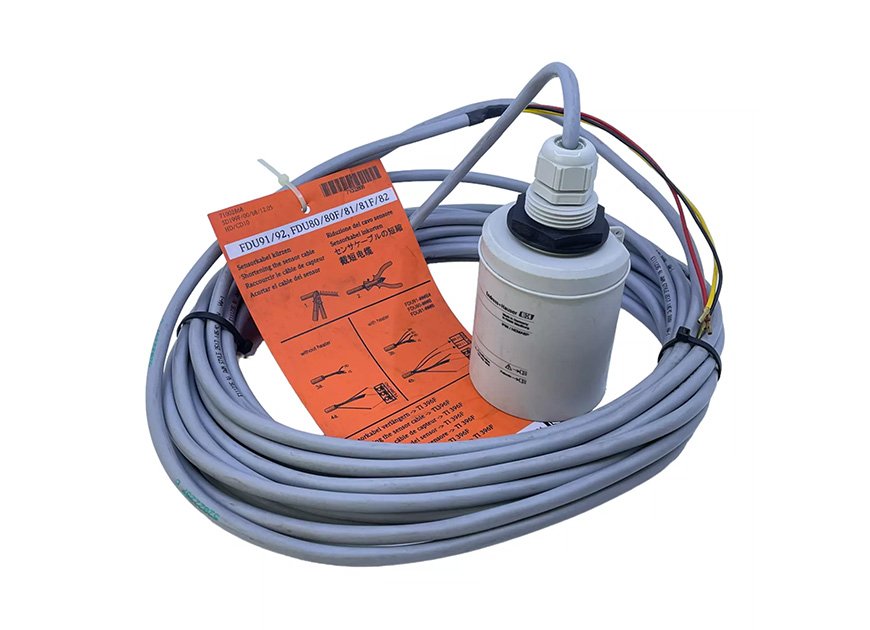

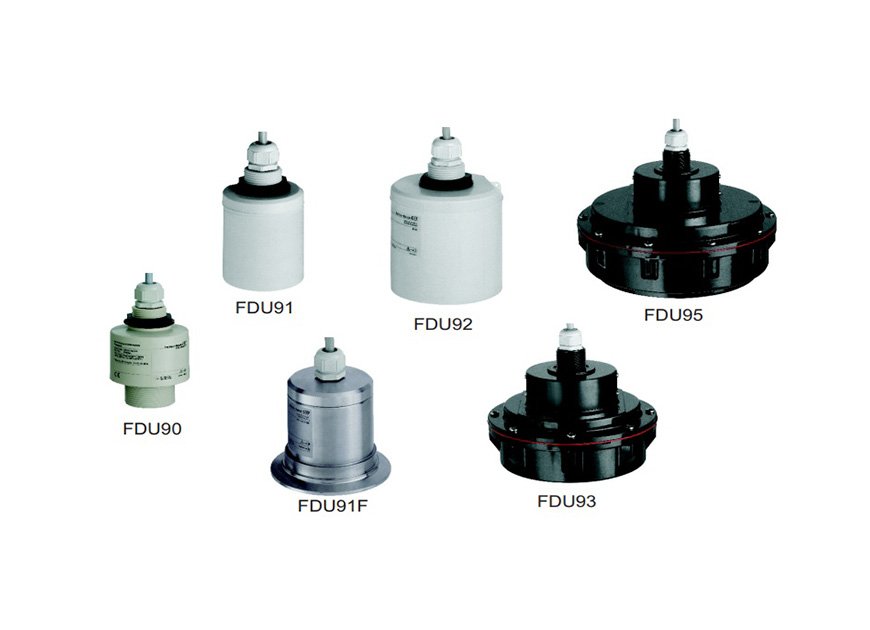

Specification | FDU90 | FDU91 | FDU91F | FDU92 | FDU93 | FDU95 |
Measuring principle | Time-of-Flight (ToF) ultrasonic, non-contactE | Time-of-Flight (ToF) ultrasonic, non-contact | Time-of-Flight (ToF) ultrasonic, non-contact | Time-of-Flight (ToF) ultrasonic, non-contact | Time-of-Flight (ToF) ultrasonic, non-contact | Time-of-Flight (ToF) ultrasonic, non-contact |
Max measuring range | Liquids: 3 m (9.8 ft)Solids: 1.2 m (3.9 ft) | Liquids: 10 m (33 ft)Solids: 5 m (16 ft) | Liquids: 10 m (33 ft) Solids: 5 m (16 ft) | Liquids: 20 m (66 ft) Solids: 10 m (33 ft) | Liquids: 25 m (82 ft) Solids: 15 m (49 ft) | Solids only: 45 m (148 ft) |
Accuracy | ±2 mm + 0.17% of distance | ±2 mm + 0.17% of distance | ±2 mm + 0.17% of distance | ±2 mm + 0.17% of distance | ±2 mm + 0.17% of distance | ±5 mm + 0.17% of distance |
Blind zone | 0.07 m (0.23 ft) | 0.15 m (0.49 ft) | 0.15 m (0.49 ft) | 0.25 m (0.82 ft) | 0.30 m (0.98 ft) | 0.40 m (1.31 ft) |
Beam angle | 10° | 10° | 10° | 8° | 8° | 6° |
Process temp | -40 … +80 °C(-40 … 176 °F) | -40 … +80 °C(-40 … 176 °F) | -40 … +105 °C(-40 … 221 °F)CIP: 135 °C (30 min) | -40 … +95 °C(-40 … 203 °F) | -40 … +95 °C(-40 … 203 °F) | -40 … +80 °C(-40 … 176 °F) |
Process pressure (abs) | 0.7 … 4 bar abs(10 … 58 psi) | 0.7 … 4 bar abs(10 … 58 psi) | 0.7 … 4 bar abs(10 … 58 psi) | 0.7 … 4 bar abs(10 … 58 psi) | 0.7 … 4 bar abs(10 … 58 psi) | 0.7 … 4 bar abs(10 … 58 psi) |
Wetted materials | PVDF (fully welded) | PVDF (fully welded) | 316L stainless steel (hygienic) | PVDF (fully welded) | PVDF (fully welded) | PVDF (fully welded) |
Process connection | Thread G 1½", NPT 1½" | Thread G 2", NPT 2" | Thread, Tri-Clamp (hygienic) | Thread G 2", NPT 2", Flange | Thread G 2", NPT 2", Flange | Thread G 3", NPT 3", Flange |
Protection class | IP68 / NEMA 6P | IP68 / NEMA 6P | IP68 / NEMA 6P | IP68 / NEMA 6P | IP68 / NEMA 6P | IP68 / NEMA 6P |
Temp compensation | Built-in sensor | Built-in sensor | Built-in sensor | Built-in sensor | Built-in sensor | Built-in sensor |
Hazardous area | ATEX, IECEx (Gas/Dust) | ATEX, IECEx (Gas/Dust) | ATEX, IECEx (Gas/Dust) | ATEX, IECEx (Gas/Dust) | ATEX, IECEx (Gas/Dust) | ATEX, IECEx (Gas/Dust) |
Main application | Short-range liquids, slurries | Liquids, solids, open channels | Hygienic food & pharma | Long-range liquids, bulk solids | Longer-range liquids, solids | Long-range bulk solids only |
Compatible transmitter | FMU90 / FMU95 | FMU90 / FMU95 | FMU90 / FMU95 | FMU90 / FMU95 | FMU90 / FMU95 | FMU90 / FMU95 |

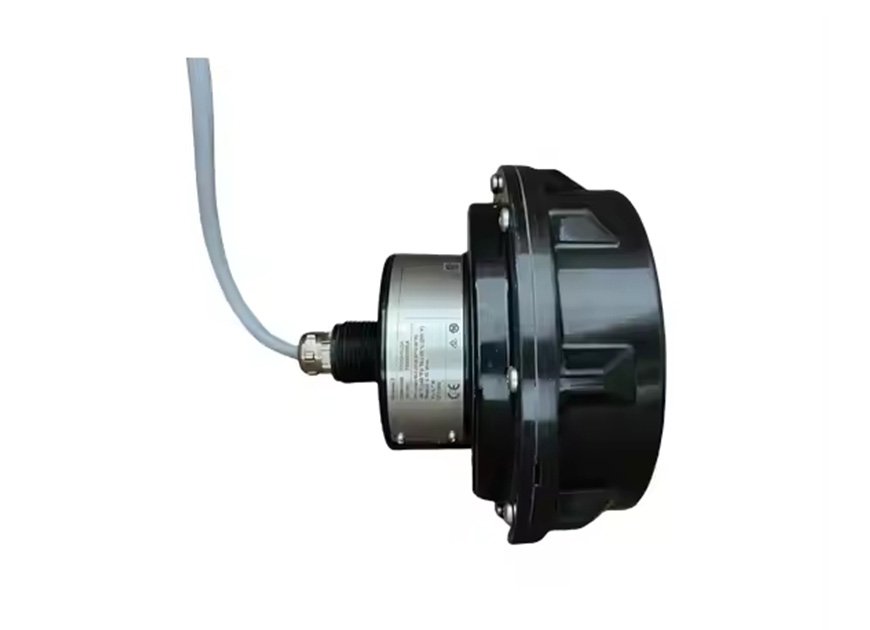

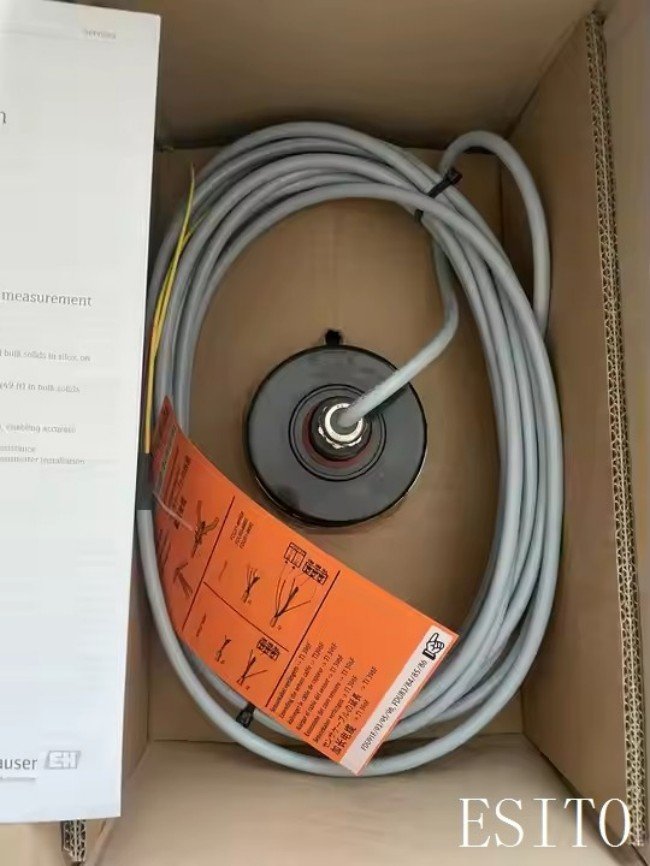

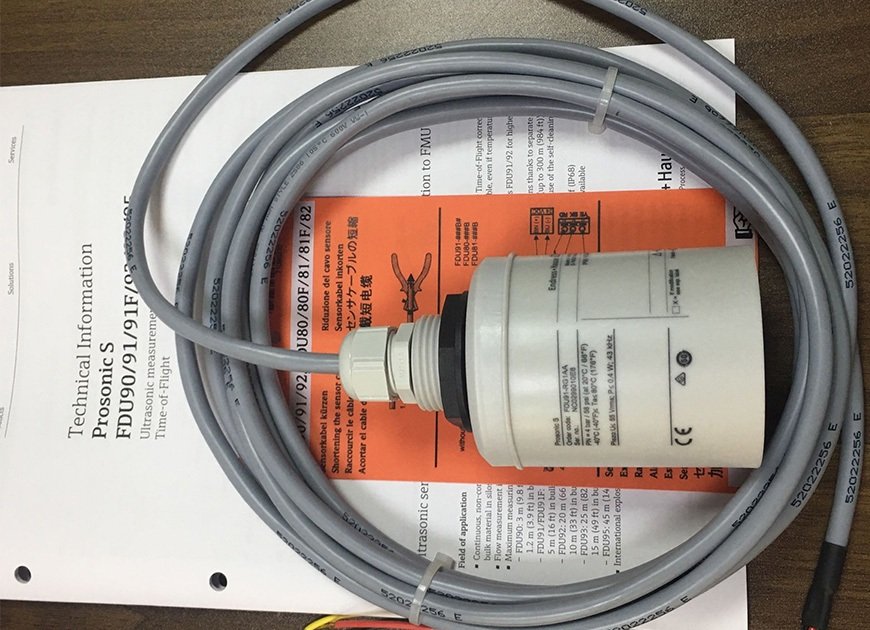

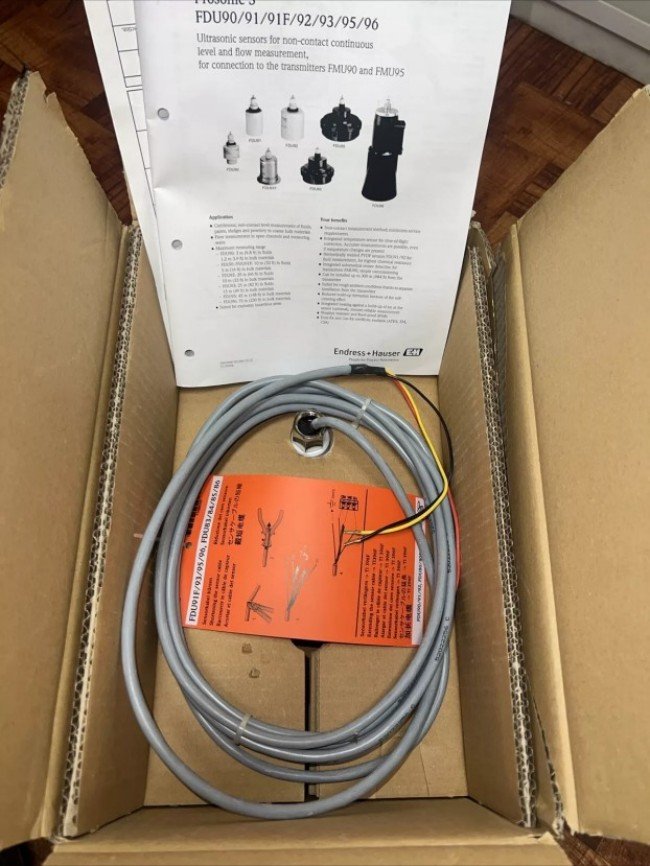

Packaging: Original box
