FMR63B/FMR66B/FMR67B

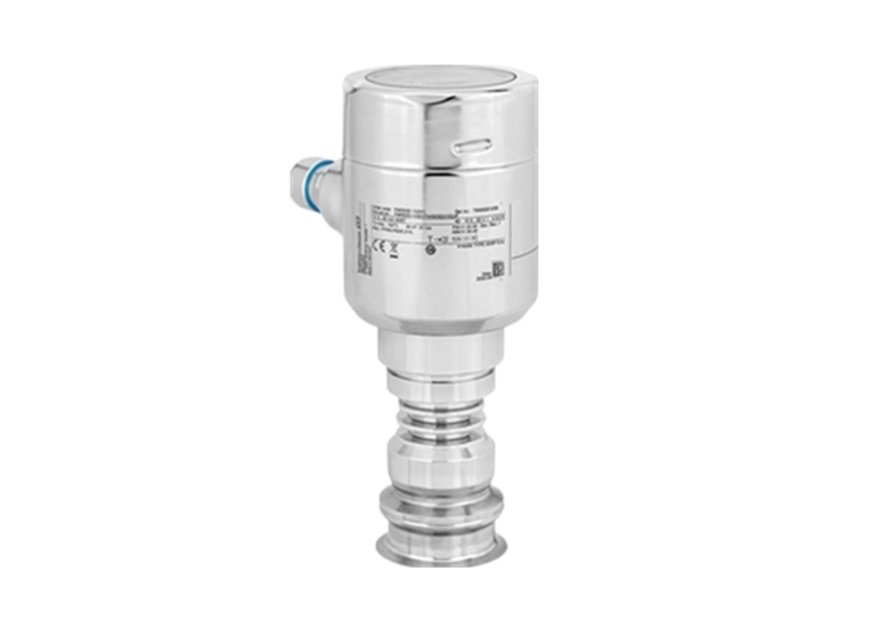

Micropilot FMR63B is part of the new generation of 80 GHz radar sensors. Thanks to its complete hygienic design it is suitable for continuous non-contact level measurement in hygienic applications. Wizards guide users through commissioning, proof tests and verification of the devices and thus guarantee a simple operation. Heartbeat Technology offers verification and monitoring functions to identify anomalies or checking the measurement accuracy.
The Micropilot FMR63B is for free space applications up to 80m and offers high beam focusing for vessels with many internal fittings.
Process connections: M24 adapters and hygienic process connections
Temperature: –40 to +200 °C (-40 to 392° F)
Pressure: –1 to +25 bar (-14.5 to +362.6 psi)
Maximum measuring range: 80 m (164 ft)
Accuracy: ±1 mm (0.04 in)
W-band: 80 GHz
EHEDG, 3-A, ASME BPE, International explosion protection certificates, 5- or 10-point linearity protocol

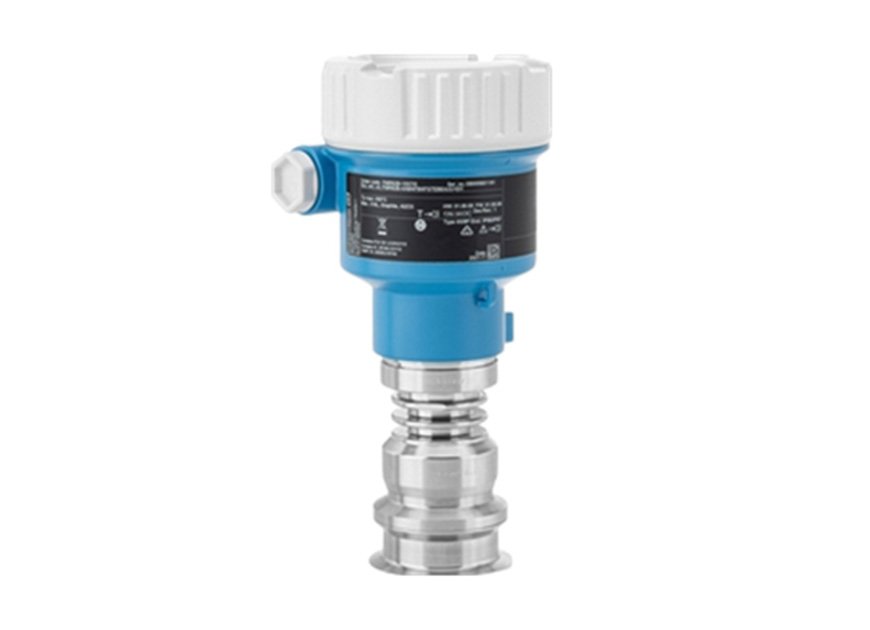

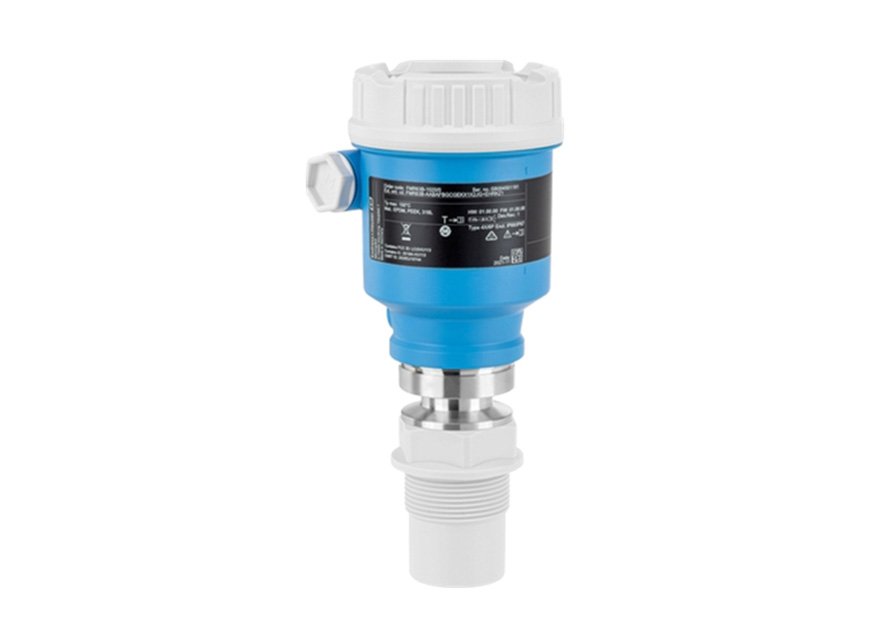

The Micropilot FMR66B belongs to the new generation of 80 GHz radar sensors. It is suitable for continuous, non-contact level measurement in simple solid applications. Wizards guide through commissioning, retesting and verification of the instrument and guarantee easy handling. The small beam angle is perfect for measurements in narrow silos. Heartbeat Technology detects unwanted anomalies, such as buildup, for increased productivity.
The Micropilot FMR66B is for free-field applications up to 50 m and provides high beam focus for vessels with many internal internals.
Process connections: Thread or mounting bracket
Temperature: -40 to +200 °C (-40 to 392° F)
Pressure: -1 to +16 bar (-14.5 to +266 psi)
Maximum measuring range: 50 m (164 ft)
Accuracy: ±3 mm (0.12 in)
W-Band: 80 GHz
International explosion protection certificates, SIL, ship approvals, 5- or 10-point factory calibration certificate

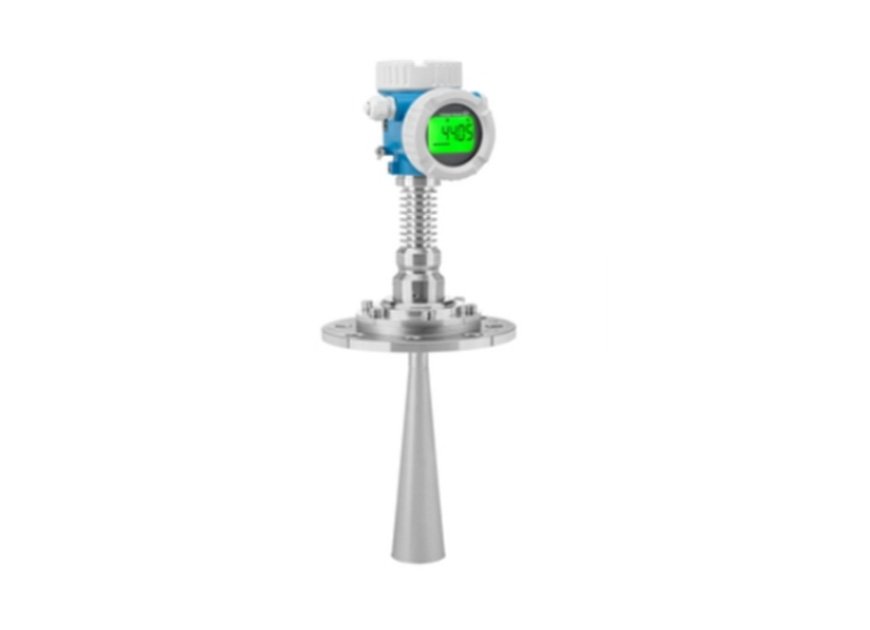

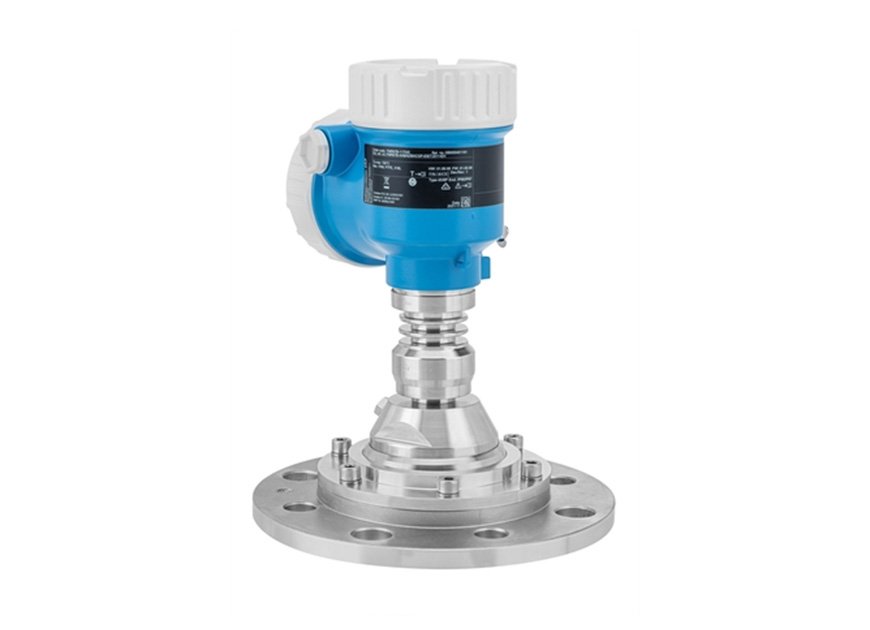

Micropilot FMR67B is part of the new generation of 80 GHz radar sensors. It is suitable for continuous non-contact level measurement in demanding solid applications – even with extreme process temperatures. Wizards guide users through commissioning, proof tests and verification of the devices and thus guarantee a simple operation. The narrow beam angle is suitable for measurements in narrow silos. Heartbeat Technology identifies anomalies for increased safety and productivity.
The Micropilot FMR67B is suitable for free space applications up to 125m and offers high beam focusing for vessels with many internal fittings.
Process connections: Flanges
Temperature: –40 to +450 °C (-40 to +842° F)
Pressure: –1 to +160 bar (-14.5 to +2320.6 psi)
Maximum measuring range: 125 m (1410 ft)
Accuracy: ±3 mm (0.12 in)
W-Band: 80 GHz
International explosion protection certificates, SIL, 5- or 10-point factory calibration certificate
Item | FMR63B | FMR66B | FMR67B |
Product Type | 80 GHz radar level transmitter for hygienic applications | 80 GHz radar level transmitter for bulk solids | 80 GHz radar level transmitter for harsh bulk solids |
Measuring principle | 80 GHz FMCW radar, non-contact | 80 GHz FMCW radar, non-contact | 80 GHz FMCW radar, non-contact |
Application | Hygienic / sanitary liquids, food, beverage, pharma | Powders, granules, standard bulk solids | Harsh bulk solids, high temperature, high pressure |
Measuring range | Up to 80 m | Up to 50 m | Up to 125 m |
Accuracy | ±1 mm | ±3 mm | ±3 mm |
Process temperature | -40 … +200 °C | -40 … +130 °C | -40 … +450 °C |
Process pressure | Vacuum … +25 bar | Vacuum … +16 bar | Vacuum … +160 bar |
Antenna types | Flush PTFE, PEEK | Encapsulated PVDF/PFA, drip-off | Horn, ceramic, graphite, PTFE drip-off |
Process connection | Hygienic: Tri-Clamp, DIN11851, Varivent | Thread G 1½", NPT | Flange (EN, ASME), with air purge |
Wetted parts | PEEK, PTFE | PVDF, PTFE | 316L, ceramic, graphite, PTFE |
Output signals | 4–20 mA HART, PROFIBUS PA, PROFINET | 4–20 mA HART, PROFIBUS PA, PROFINET | 4–20 mA HART, PROFIBUS PA, PROFINET |
Communication | HART, Bluetooth® | HART, Bluetooth® | HART, Bluetooth® |
Power supply | 9 … 32 VDC | 9 … 32 VDC | 9 … 32 VDC |
Ambient temperature | -40 … +85 °C | -40 … +85 °C | -40 … +85 °C |
Enclosure | Aluminum / 316L stainless steel | Aluminum / 316L stainless steel | Aluminum / 316L stainless steel |
Protection | IP66 / IP68 | IP66 / IP68 | IP66 / IP68 |
Certifications | ATEX, IECEx, CSA, SIL2, EHEDG, 3-A | ATEX, IECEx, CSA, SIL2 | ATEX, IECEx, CSA, SIL2/SIL3 |

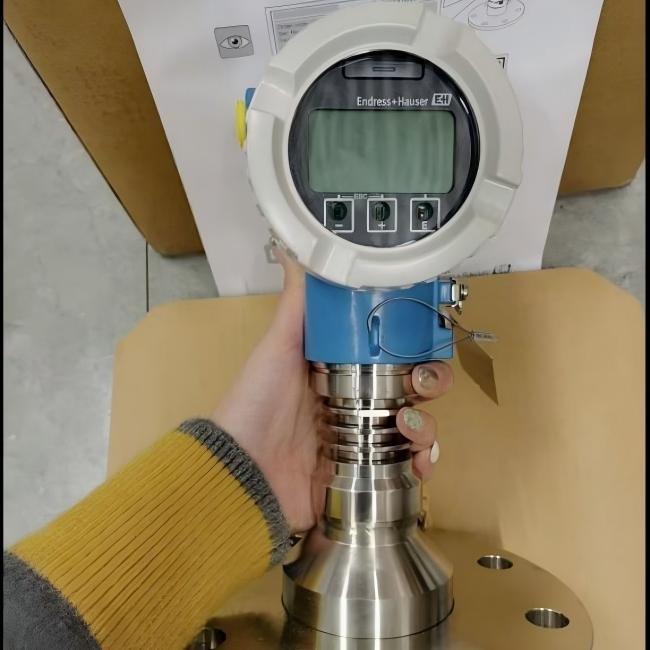

Packaging: Original box
