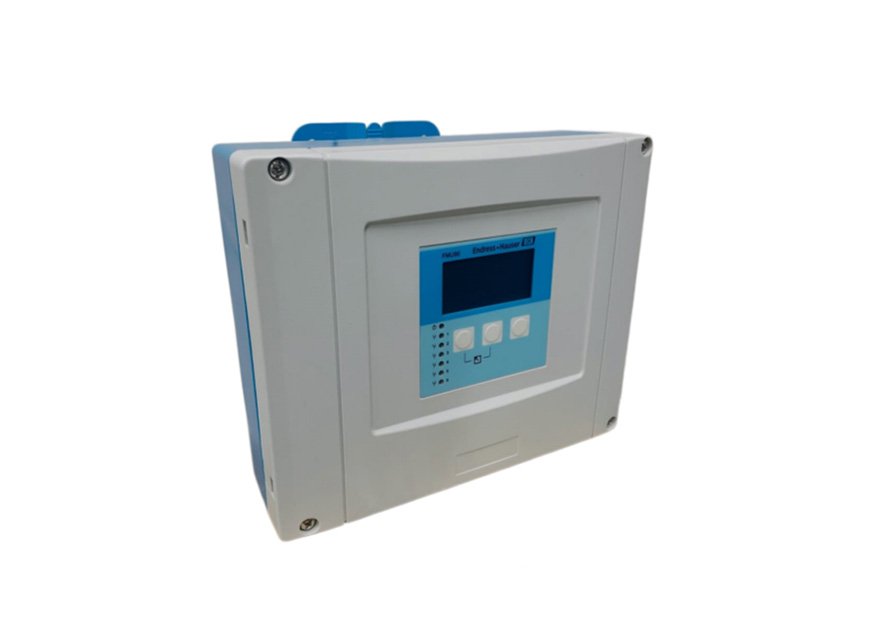

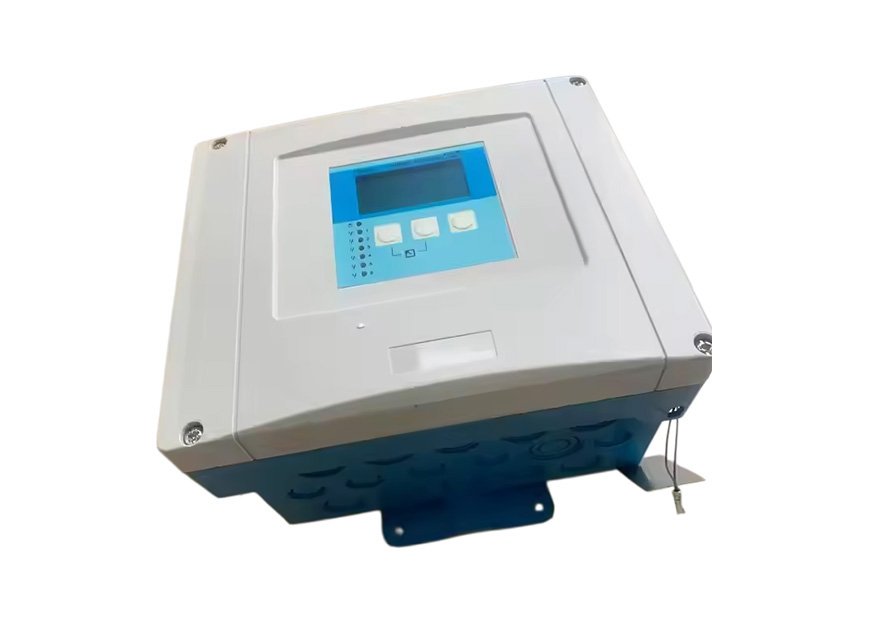

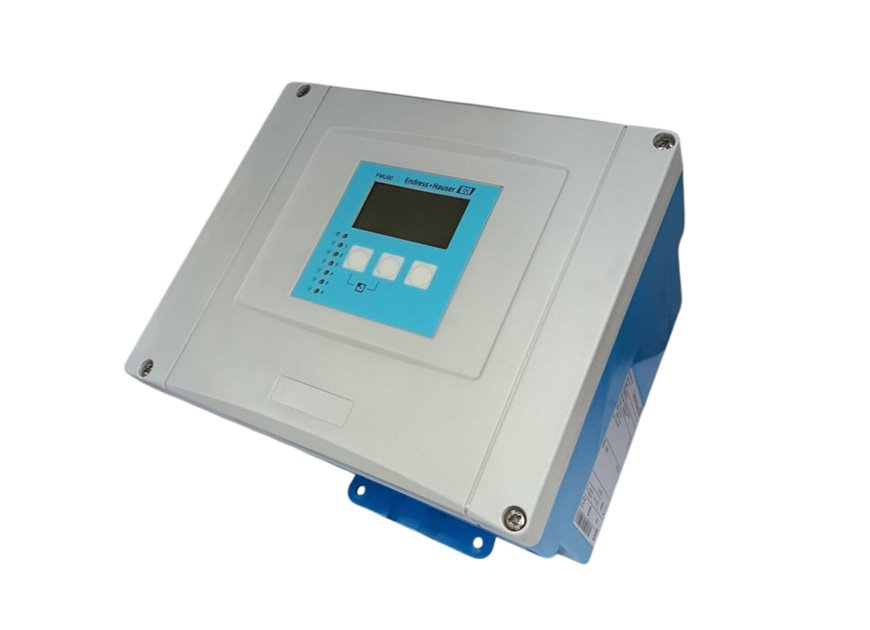

Ultrasonic measurement Time-of-Flight Prosonic FMU90

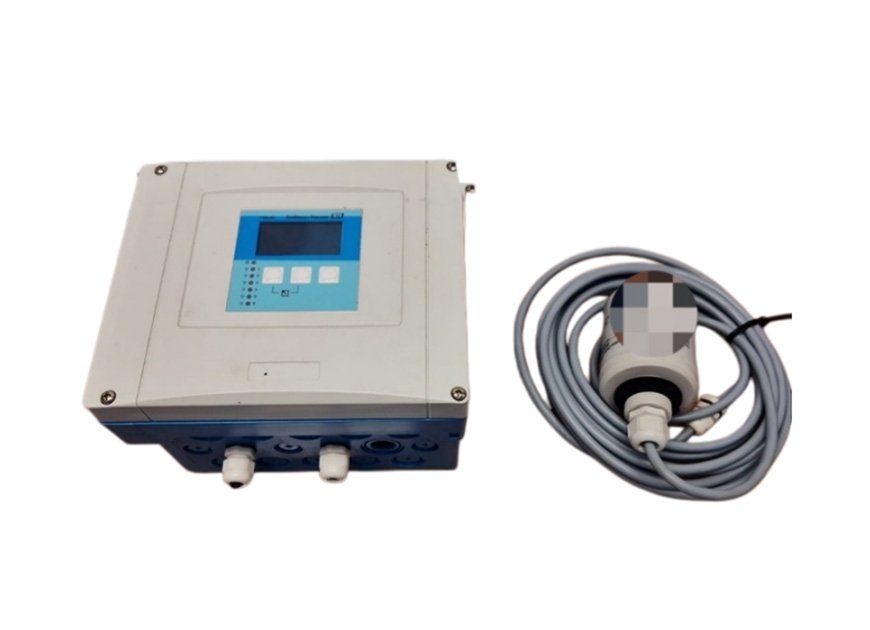

Transmitter in housing for field or top hat rail mounting for up to 2 sensors FDU90/91/92/93/95
Level measurement of fluids and bulk materials with 1 or 2 sensors for measuring of
up to 45 m (148 ft) and level limit detection. Pump control, rake control and as option:
additional pump control function.
• Calculations: average, difference, sum
• Application flow: Flow measurement in open channels and weirs with 1 or 2 sensors
• Flow measurement with back water or sludge detection
• Up to 3 totalizers and 3 counters
• Counting or time pulse output for control of external units
• Transmitter available with field housing or top hat rail housing for control cabinet instrumentation
• Simple, menu-guided operation with 6-line plain text display, 15 languages selectable
• Envelope curves on the display for simple diagnosis
• Easy operation, diagnosis and measuring point documentation with the supplied "FieldCare" operating program
• Time-of-flight correction via integrated or external temperature sensors
• Linearisation (up to 32 points, freely configurable) for the most common flumes and weirs pre-programmed and selectable
• Online calculation of the flume-/weir-flows via integrated flow curves
• Field housing aluminium with ATEX II 3D certificate
Prosonic S FMU95
Transmitter for up to 10 ultrasonic level sensors
FDU90/91/91F/92/93/95
• Continuous, non-contact level measurement of liquids, pastes, sludge and
powdered to coarse-grained bulk materials with up to 5 or 10 ultrasonic sensors.
• Measuring range up to 45 m (148 ft)
• Calculation of average values or totals
• Simple, menu-guided operation with 6-line plain text display, choice of 15 languages
• Envelope curves on the display for straightforward onsite diagnostics
• Easy operation, diagnostics and measuring point documentation with the free "FieldCare" operating program
• Temperature-dependent time-of-flight correction with integrated or external temperature sensors
• Linearization function (up to 32 points, user-configurable)
• System integration via PROFIBUS DP with up to 20 measured values
• Optional aluminum field housing with ATEX II 3D approval
Parameter | FMU90 | FMU95 |
Product Type | 1 or 2-channel ultrasonic transmitter | 5 or 10-channel ultrasonic transmitter |
Measuring Principle | Time-of-Flight (ToF) ultrasonic, non-contact | Time-of-Flight (ToF) ultrasonic, non-contact |
Compatible Sensors | FDU90, FDU91, FDU91F, FDU92, FDU93, FDU95 | FDU90, FDU91, FDU91F, FDU92, FDU93, FDU95 |
Max Measuring Range | Up to 45 m (148 ft) (depends on sensor) | Up to 45 m (148 ft) (depends on sensor) |
Accuracy | ±2 mm + 0.17% of measured distance | ±2 mm + 0.17% of measured distance |
Number of Channels | 1 or 2 channels | 5 or 10 channels |
Measurement Functions | Level, volume, flow (open channels), average, difference, sum | Level, volume, flow, average, sum, multi-point monitoring |
Display | 6-line plain text LCD, 15 languages, envelope curve | 6-line plain text LCD, 15 languages, envelope curve |
Ambient Temperature | -40 … +60 °C (-40 … +140 °F) | -40 … +60 °C (-40 … +140 °F) |
Supply Voltage | • AC: 90 … 253 VAC, 50/60 Hz• DC: 10.5 … 32 VDC | • AC: 90 … 253 VAC, 50/60 Hz• DC: 10.5 … 32 VDC |
Power Consumption | AC: max. 23 VA; DC: max. 14 W (typ. 8 W) | AC: max. 23 VA; DC: max. 14 W (typ. 8 W) |
Output Signals | • 4–20 mA HART (2-wire)• Relays (up to 6)• PROFIBUS DP (optional) | • 4–20 mA HART• Relays• PROFIBUS DP (standard) |
Relay Outputs | Max 6 relays (alarm, pulse, control) | Max 10 relays (multi-point alarm & control) |
Housing | Field/rail mount, PP/Aluminum, IP66 / IP67 | Field/rail mount, PP/Aluminum, IP66 / IP67 |
Protection Class | IP66 / IP67 | IP66 / IP67 |
Totalizers / Counters | Up to 3 totalizers, 3 counters | Up to 3 totalizers, 3 counters |
Software | FieldCare (remote operation, diagnostics, documentation) | FieldCare (remote operation, diagnostics, documentation) |
Temperature Compensation | Integrated/external sensor (automatic ToF correction) | Integrated/external sensor (automatic ToF correction) |
Linearization | 32-point, freely configurable | 32-point, freely configurable |
Hazardous Area | ATEX, IECEx (Gas & Dust) | ATEX, IECEx (Gas & Dust) |
Mounting | Wall/pole mount or DIN rail | Wall/pole mount or DIN rail |
Main Applications | Small/medium tanks, open channels, pump control | Large silos, multi-tank farms, bulk solids, complex systems |

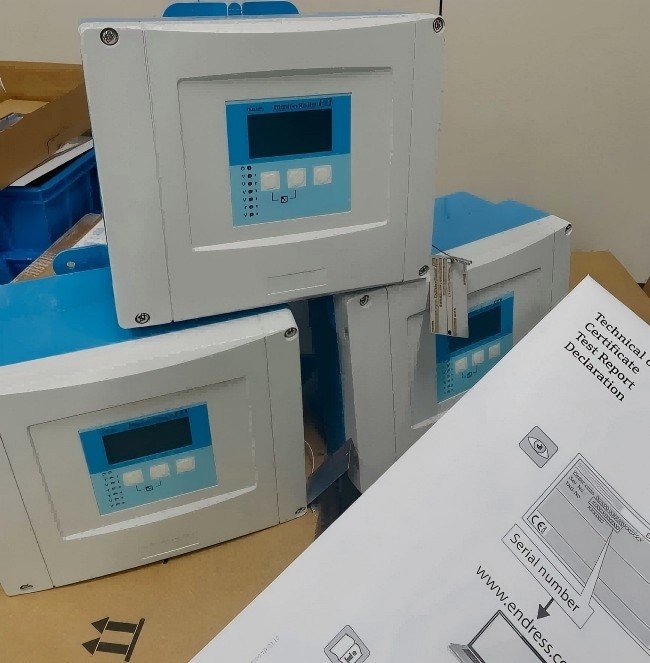

Packaging: Original box
