Point level switch with buildup compensation
No calibration necessary
The Minicap is designed for point level detection in light bulk solids with a grain size
up to max. 30 mm (1.18 in) and a dielectric constant e> ³1.6
e.g. grain products, flour, milk powder, animal feed, cement, chalk or gypsum.

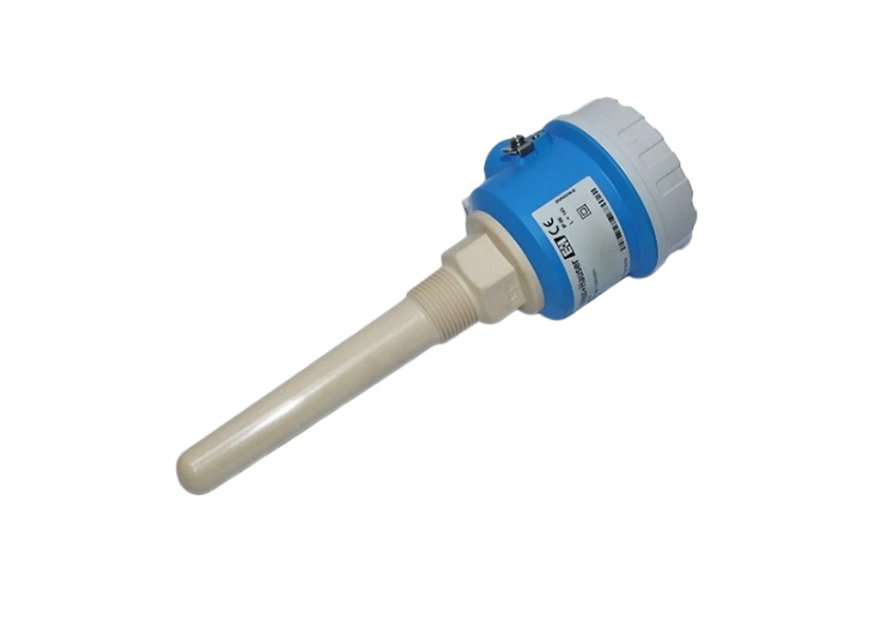

• Minicap FTC260: with rod probe for bulk solids and liquids

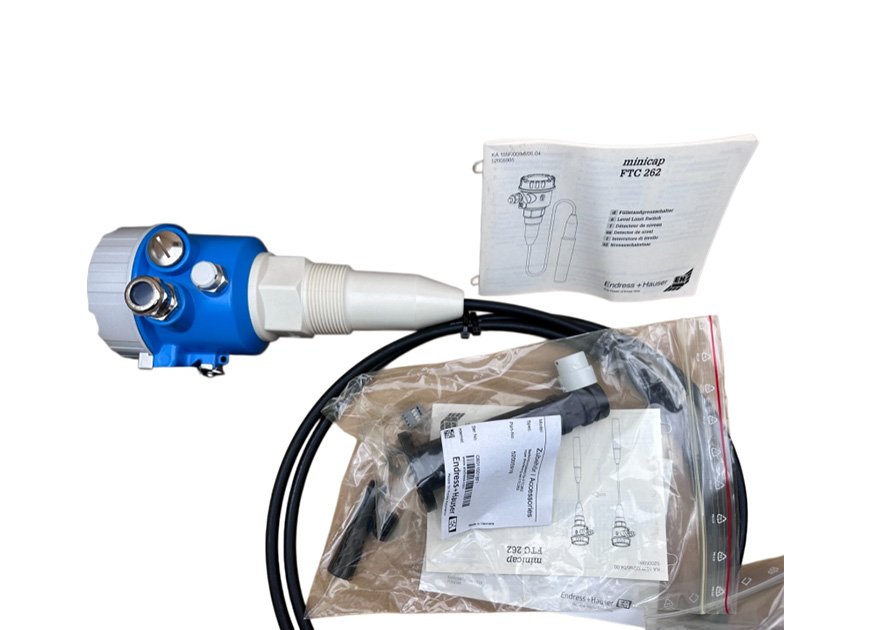

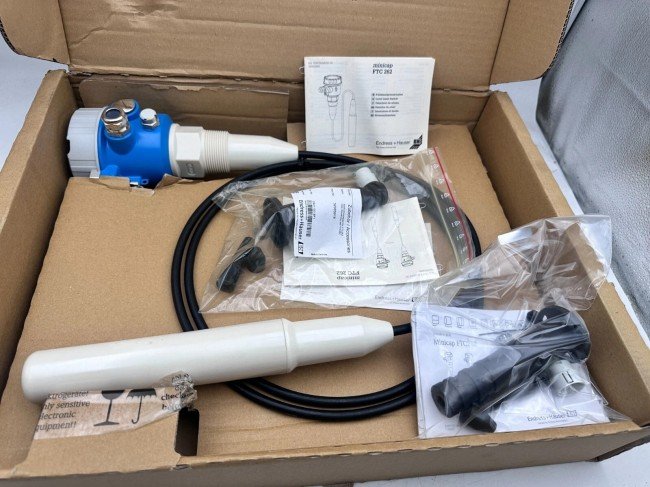

• Minicap FTC262: with rope probe up to 6 m (20 ft); for bulk solids
• Relay output (potential-free change-over contact / SPDT) with AC or DC power
• PNP output with three-wire DC power
• Complete unit consisting of the probe and electronic insert:
– simple mounting
– no calibration on start-up
• Active build-up compensation
– accurate switch point
– high operational safety
• Mechanically rugged
– no wearing parts
– long operating life
– no maintenance
• The rope probe of the Minicap FTC262 can be shortened
– optimum matching to the measuring point
– less stocks required
Specification | FTC260 | FTC262 |
Product Type | Capacitive point level switch (rod probe) | Capacitive point level switch (rope probe) |
Measuring Principle | Capacitance (dielectric change), active build-up compensation | Capacitance (dielectric change), active build-up compensation |
Application | Liquids & light bulk solids (max. 30 mm grain size, εᵣ ≥ 1.6) | Light bulk solids (max. 30 mm grain size, εᵣ ≥ 1.6) |
Probe Design | Rigid rod (PPS/316L) | Flexible rope with weight |
Probe Length | 140 … 600 mm (5.5 … 23.6 in) | 1.5, 2.5, 6.0 m (4.9, 8.2, 19.7 ft) (trimmable) |
Process Temperature | -40 … +130 °C (-40 … +266 °F) | -40 … +80 °C (-40 … +176 °F) |
Process Pressure | -1 … +25 bar (-14.5 … +362 psi) | -1 … +6 bar (-14.5 … +87 psi) |
Wetted Materials | Probe: PPS, 316L SS | Rope: PPS, steel |
Process Connection | Thread: G ½", NPT ½" | Thread: G ½", NPT ½" |
Housing | Aluminum / 316L SS | Aluminum / 316L SS |
Protection Class | IP66 / IP67 / NEMA 4X | IP66 / IP67 / NEMA 4X |
Ambient Temp (Ta) | -40 … +60 °C (-40 … +140 °F) | -40 … +60 °C (-40 … +140 °F) |
Supply Voltage | • 18 … 32 VDC• 90 … 253 VAC, 50/60 Hz | • 18 … 32 VDC• 90 … 253 VAC, 50/60 Hz |
Output Signals | • 1x SPDT relay (potential-free)• PNP (3-wire DC) | • 1x SPDT relay (potential-free)• PNP (3-wire DC) |
Calibration | No calibration required (plug & play) | No calibration required (plug & play) |
Build-up Compensation | Active (automatic) | Active (automatic) |
Hazardous Area | ATEX, IECEx (Gas & Dust) | ATEX, IECEx (Dust) |
Key Features | • Rigid rod • High pressure/temp • Liquids + solids | • Flexible rope (up to 6m) • Trimmable on-site • Silo top mounting |
Typical Uses | Small tanks, bins, hoppers | High silos, bunkers, long-range solids |

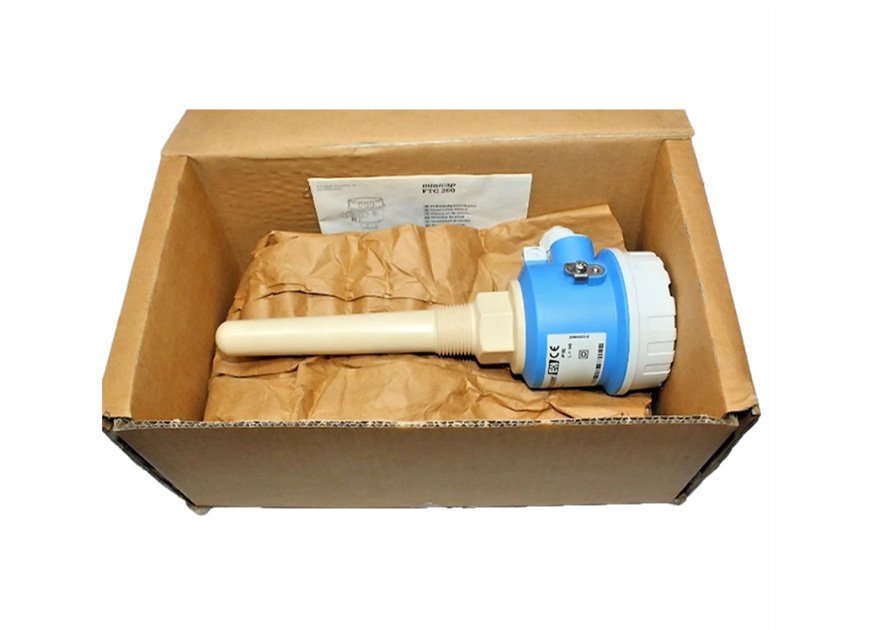

Packaging: Original box
