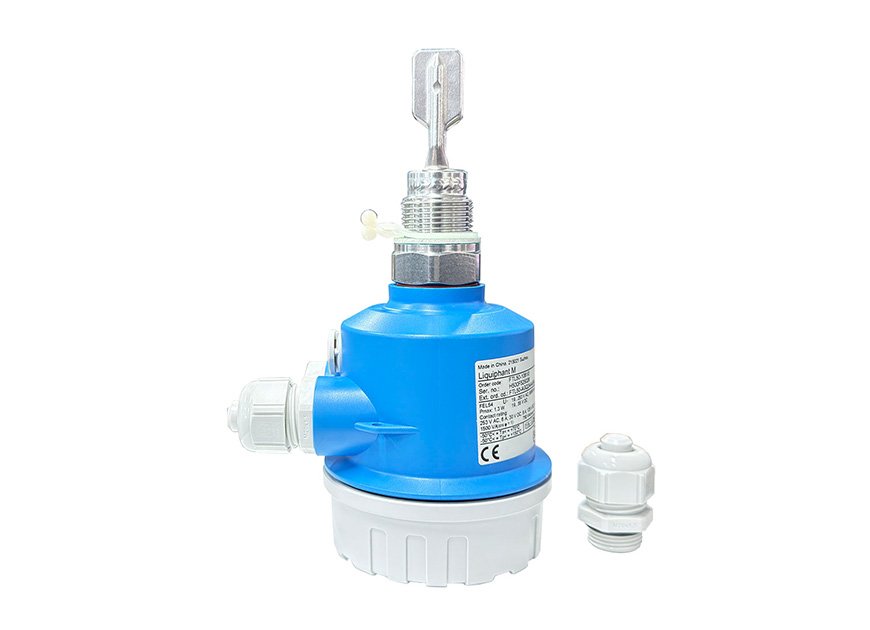

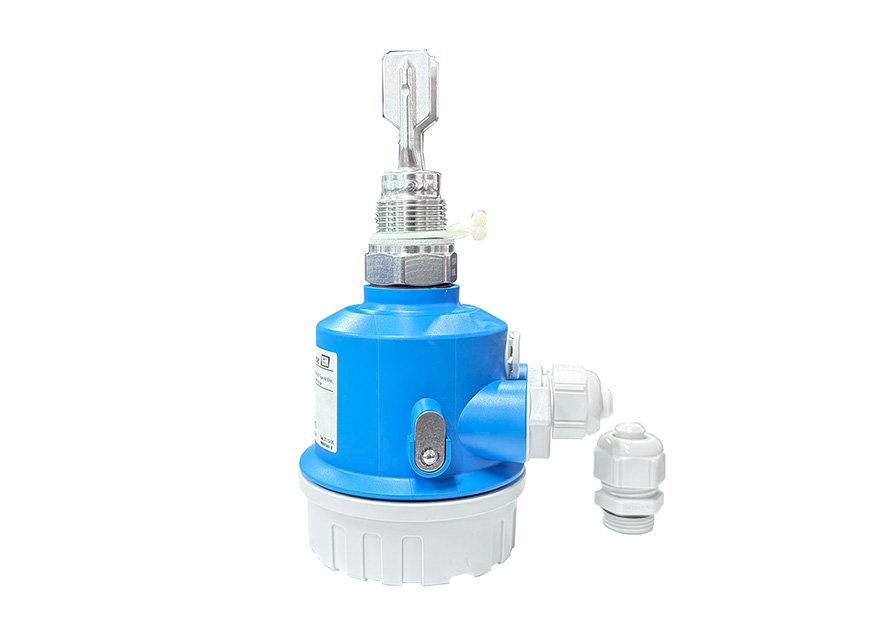

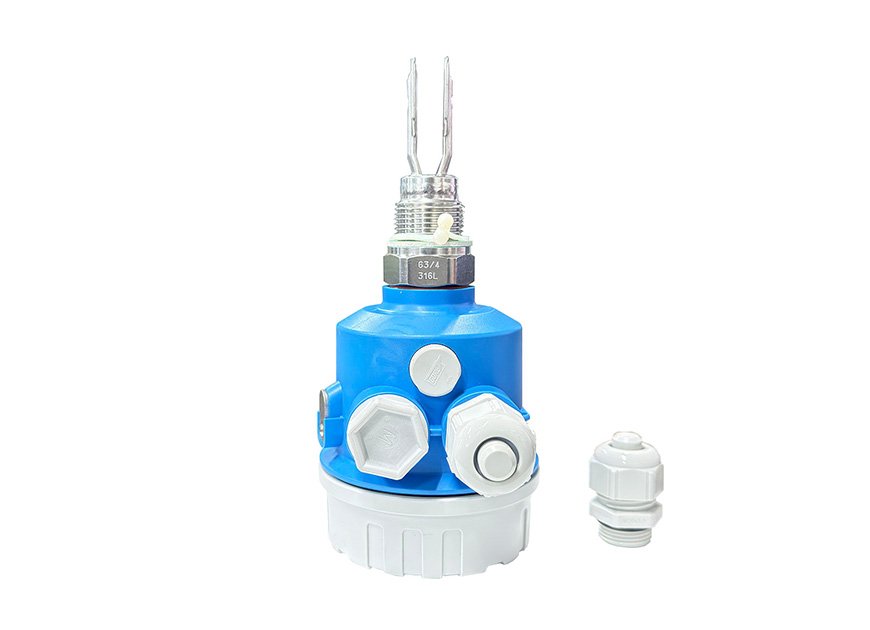

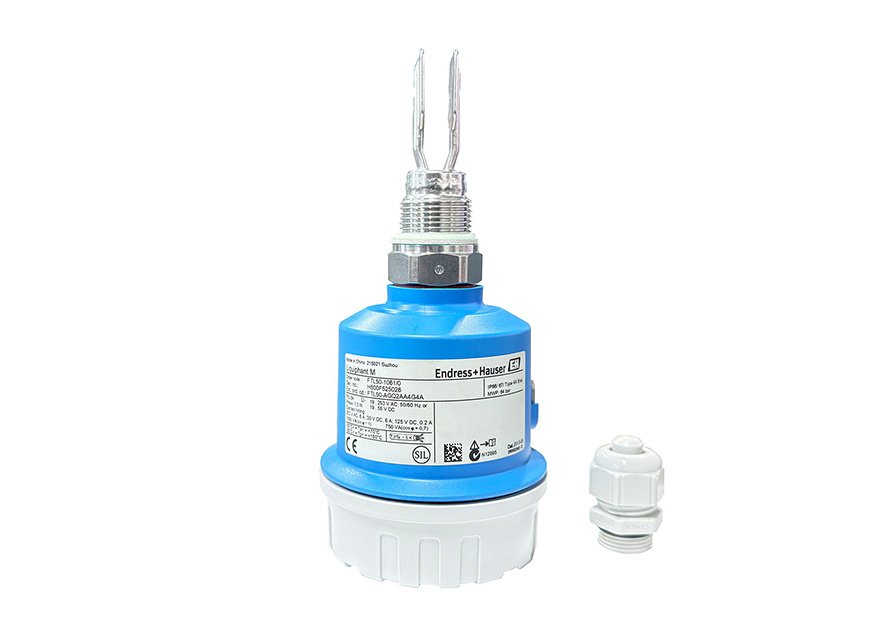

Liquiphant FTL50 is a point level switch for use in hazardous areas with all international certificates. Useable in all industries. FTL50 offers functional safety SIL2/SIL3. With the second line of defense the highest degree of safety and availability of the device can be guaranteed. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.
Point level switch for all liquids.
l Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)
l Temperature: -50 to +150°C (-58 to +302°F)
l Pressure: -1 to +64bar (-14.5 to +928psi)
l Sensor material: 316L, Alloy
l International explosion protection certificates, overfill protection WHG, SIL, marine approvals
Parameter | FTL50 | FTL50H |
Product Type | Vibronic (tuning fork) point level switch for liquids | Hygienic vibronic (tuning fork) point level switch for liquids |
Measuring Principle | Vibrating tuning fork (resonance frequency change) | Vibrating tuning fork (resonance frequency change) |
Application | General industrial liquids, chemicals, oil & gas; compact for pipes & tight spaces | Food, beverage, pharmaceutical, life sciences; hygienic & clean-in-place (CIP/SIP) |
Process Temperature | -50 … +150 °C (-58 … +302 °F) | -50 … +150 °C (-58 … +302 °F) |
Process Pressure | Vacuum … 100 bar (1450 psi) | Vacuum … 64 bar (928 psi) |
Min. Medium Density | ≥ 0.5 g/cm³ (0.4 g/cm³ optional) | ≥ 0.5 g/cm³ (0.4 g/cm³ optional) |
Max. Viscosity | Up to 10,000 mm²/s (cSt) | Up to 10,000 mm²/s (cSt) |
Tuning Fork Length | Compact: 50.5 mm | Compact: 50.5 mm (electropolished) |
Process Connections | Thread (G ¾", NPT ¾", G 1", NPT 1"), Flange (DN25–DN100, ASME 1"–4") | Hygienic: Tri-Clamp, SMS, Varivent, DIN11851, Aseptic; also thread/flange |
Wetted Materials | 316L, Alloy C4 (2.4610), Alloy C22 (2.4602) optional | Electropolished 316L (FDA compliant), PTFE |
Output Signal | NAMUR (requires Nivotester FTL320/325/370/375) | NAMUR (requires Nivotester FTL320/325/370/375) |
Power Supply | Via external switching unit (Nivotester) | Via external switching unit (Nivotester) |
Current Consumption | 10–13 mA | 10–13 mA |
Housing Material | Aluminum, stainless steel, polyester | Electropolished 316L stainless steel (welded) |
Protection Class | IP66 / IP67 (polyester/steel/aluminum)IP66 / IP68 (Ex d aluminum) | IP66 / IP67 |
Ambient Temperature | -40 … +80 °C (-40 … +176 °F) | -40 … +80 °C (-40 … +176 °F) |
Certifications | ATEX, IECEx, CSA, SIL2, WHG, marine | ATEX, IECEx, CSA, SIL2/SIL3, 3-A, EHEDG, ASME BPE, FDA, WHG |
Key Features | No moving parts, immune to flow/turbulence/bubbles/foam/vibration | Electropolished, easy clean, full hygienic certification, CIP/SIP suitable |

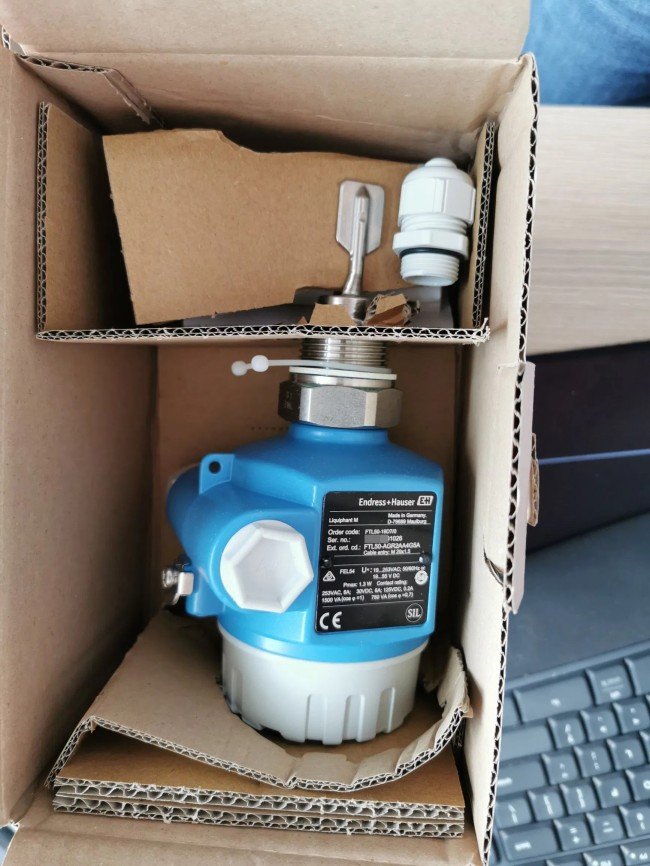

Packaging: Original box
