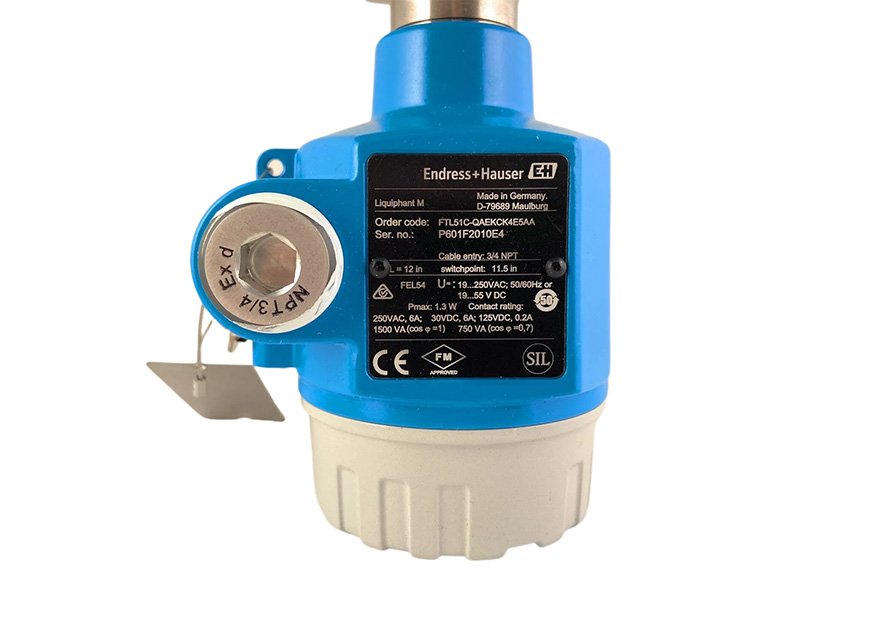

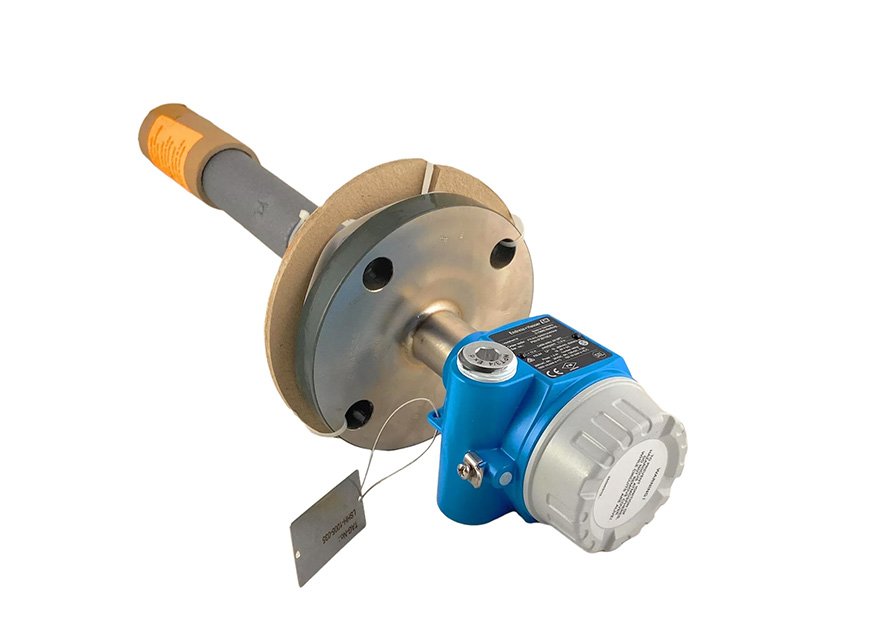

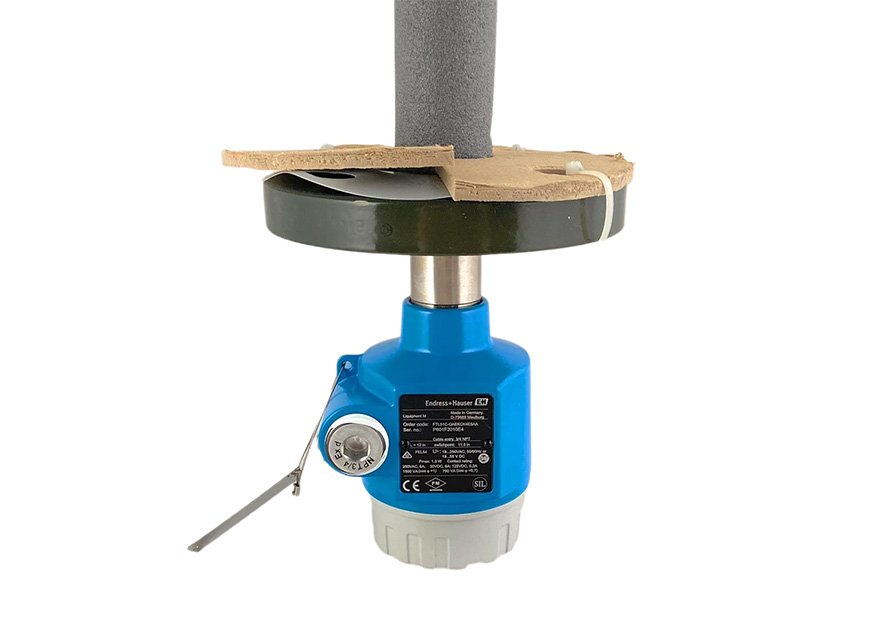

Liquiphant FTL51 FTL50H FTL51C FTL51B
Liquiphant FTL51 is a point level switch with extension tube for use in hazardous areas with all international certificates. Useable in all industries. FTL51 offers functional safety SIL2/SIL3. With the second line of defense highest degree of safety and availability of the device can be guaranteed. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.
Point level switch with extension tube for all liquids.
l Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)
l Temperature: -50 to +150°C (-58 to +302°F)
l Pressure: -1 to +100bar (-14.5 to +1,450psi)
l Sensor material: 316L, Alloy
l International explosion protection certificates, overfill protection WHG, SIL
Parameter | FTL51 | FTL51H | FTL51B | FTL51C |
Product Type | Vibronic (tuning fork) point level switch with extension tube | Hygienic vibronic point level switch with extension tube | Basic compact vibronic point level switch | Corrosion-resistant coated vibronic point level switch |
Measuring Principle | Vibrating tuning fork (resonance frequency shift) | Vibrating tuning fork (resonance frequency shift) | Vibrating tuning fork (resonance frequency shift) | Vibrating tuning fork (resonance frequency shift) |
Application | General industry, chemicals, oil & gas; high temp/pressure; extension up to 6m | Food, beverage, pharma, biotech; CIP/SIP capable | Standard industrial liquids, dry-run protection, overflow detection | Highly corrosive liquids, aggressive media, chemical processes |
Max. Extension Tube | Standard: 3 m (9.8 ft); Optional: 6 m (19.7 ft) | Standard: 3 m (9.8 ft); Optional: 6 m (19.7 ft) | Compact (no extension tube) | Standard: 3 m (9.8 ft); Optional: 6 m (19.7 ft) |
Process Temperature | -50 … +150 °C (-58 … +302 °F) | -50 … +150 °C (-58 … +302 °F) | -50 … +150 °C (-58 … +302 °F) | -50 … +150 °C (-58 … +302 °F) |
Process Pressure | Vacuum … 100 bar (1450 psi) | Vacuum … 64 bar (928 psi) | Vacuum … 100 bar (1450 psi) | Vacuum … 40 bar (580 psi) |
Min. Medium Density | ≥ 0.5 g/cm³ (0.4 g/cm³ optional) | ≥ 0.5 g/cm³ (0.4 g/cm³ optional) | ≥ 0.7 g/cm³ (0.5 g/cm³ adjustable) | ≥ 0.5 g/cm³ (0.4 g/cm³ optional) |
Max. Medium Viscosity | Up to 10,000 mm²/s (cSt) | Up to 10,000 mm²/s (cSt) | Up to 10,000 mm²/s (cSt) | Up to 10,000 mm²/s (cSt) |
Process Connections | Thread (G/NPT), Flange (DN/ASME) | Hygienic: Tri-Clamp, SMS, DIN11851 | Thread (G ¾", NPT ¾") | Thread, Flange (coated) |
Wetted Materials | 316L, Alloy C4/C22 | Electropolished 316L (FDA) | 316L | 316L with corrosion-resistant coating (ECTFE/PFA) |

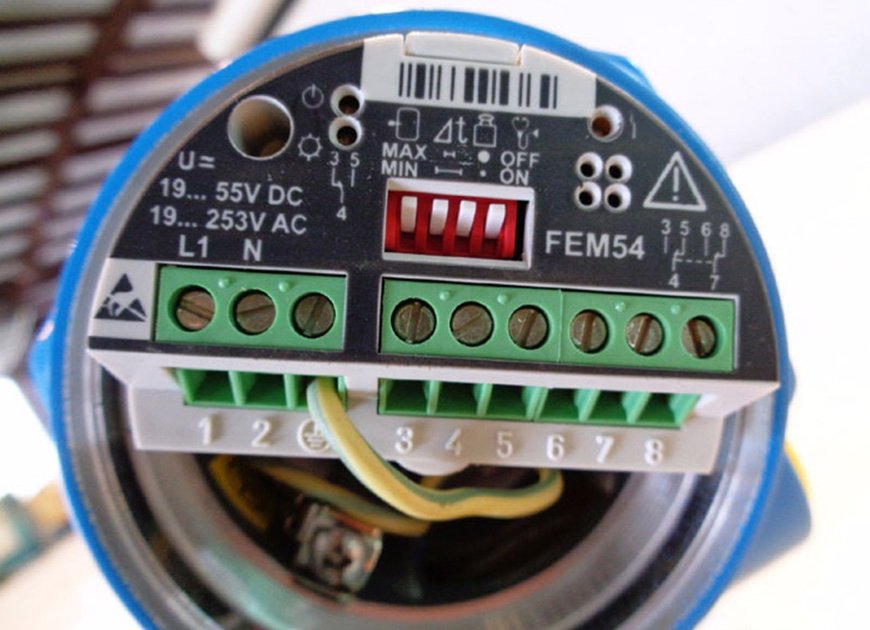

Output Signals | NAMUR, Relay, PNP, 2-wire AC/DC | NAMUR, Relay, PNP | SPDT Relay, 24 VDC / 110/230 VAC | NAMUR, Relay, PNP |
Communication | Bluetooth® (SmartBlue), HART | Bluetooth® (SmartBlue), HART | Basic (no comms) | Bluetooth® (SmartBlue), HART |
Housing Material | Aluminum, Stainless steel | Electropolished 316L | Aluminum / PBT | Aluminum (coated) |
Protection Class | IP66 / IP67 / IP68 (Ex d) | IP66 / IP67 | IP67 | IP66 / IP67 |
Ambient Temperature | -60 … +70 °C (-76 … +158 °F) | -40 … +80 °C (-40 … +176 °F) | -40 … +80 °C (-40 … +176 °F) | -60 … +70 °C (-76 … +158 °F) |
Safety Integrity | SIL 2 / SIL 3 (IEC 61508) | SIL 2 / SIL 3 (IEC 61508) | SIL 2 | SIL 2 / SIL 3 (IEC 61508) |
Key Certifications | ATEX, IECEx, CSA, WHG | ATEX, IECEx, 3-A, EHEDG, FDA | ATEX, IECEx, CSA | ATEX, IECEx, CSA, WHG |
Key Features | Extension tube, immune to foam/bubbles | Hygienic, electropolished, CIP/SIP | Compact, low-cost, easy installation | Coated for extreme corrosion resistance |

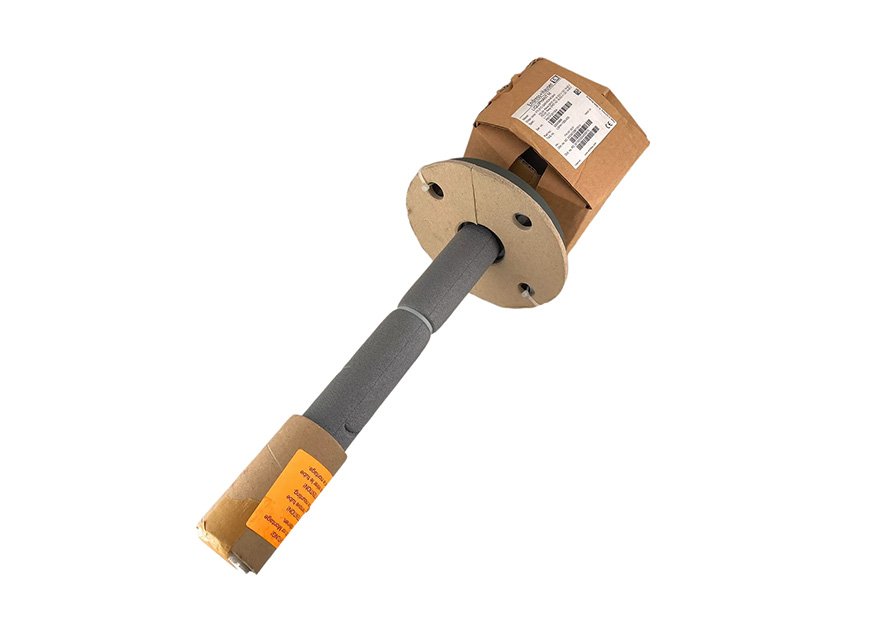

Packaging: Original box
