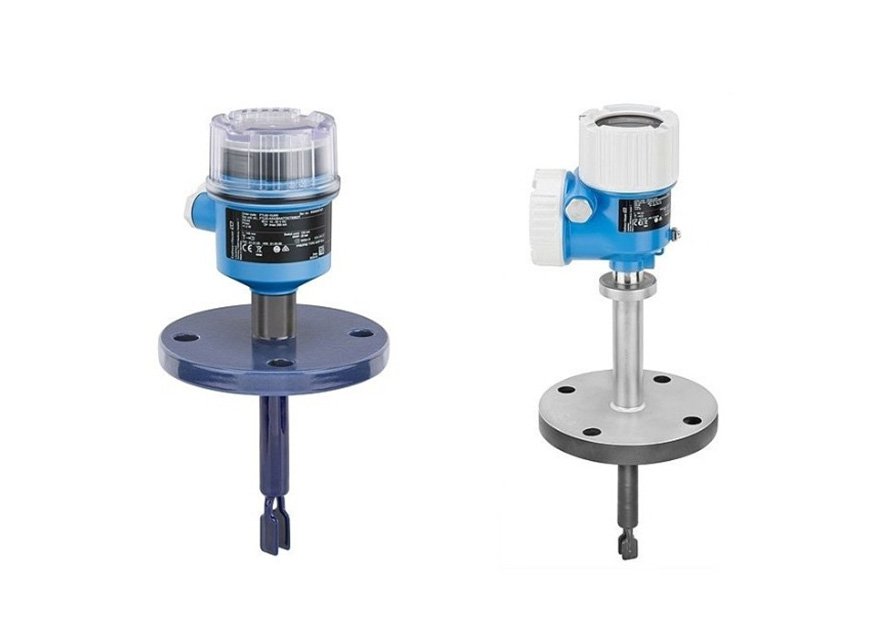

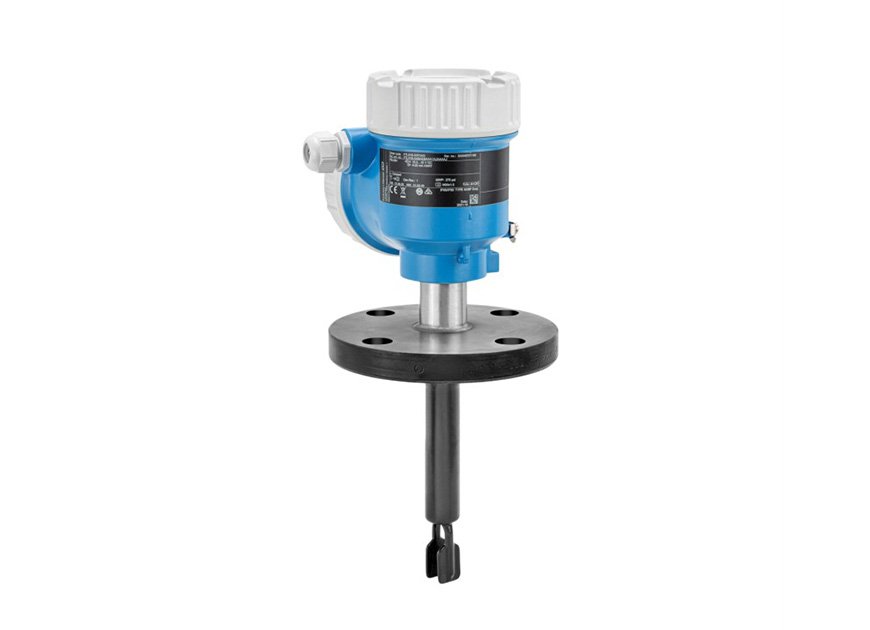

FTL62 - the specialist for aggressive media

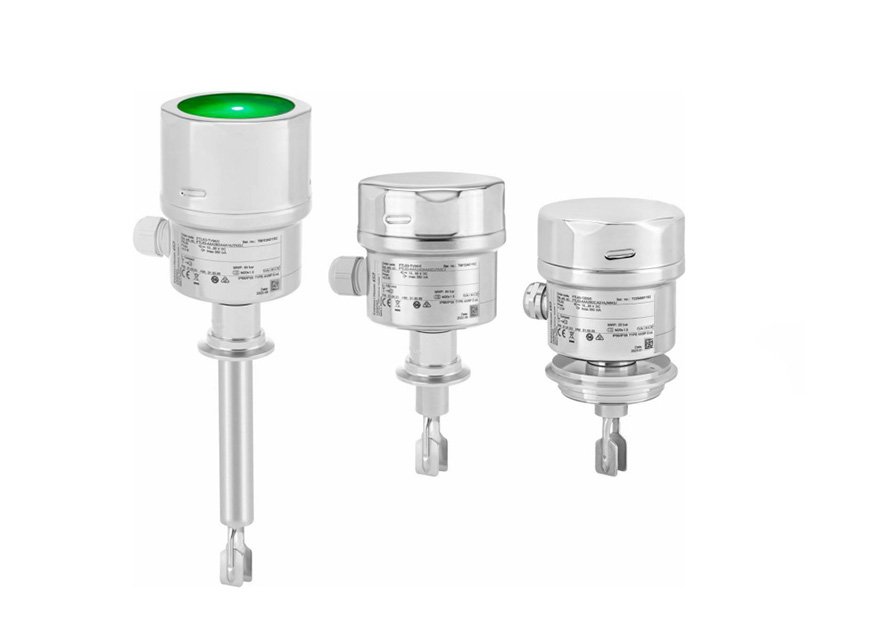

FTL63 – hygienic point level switch for liquids

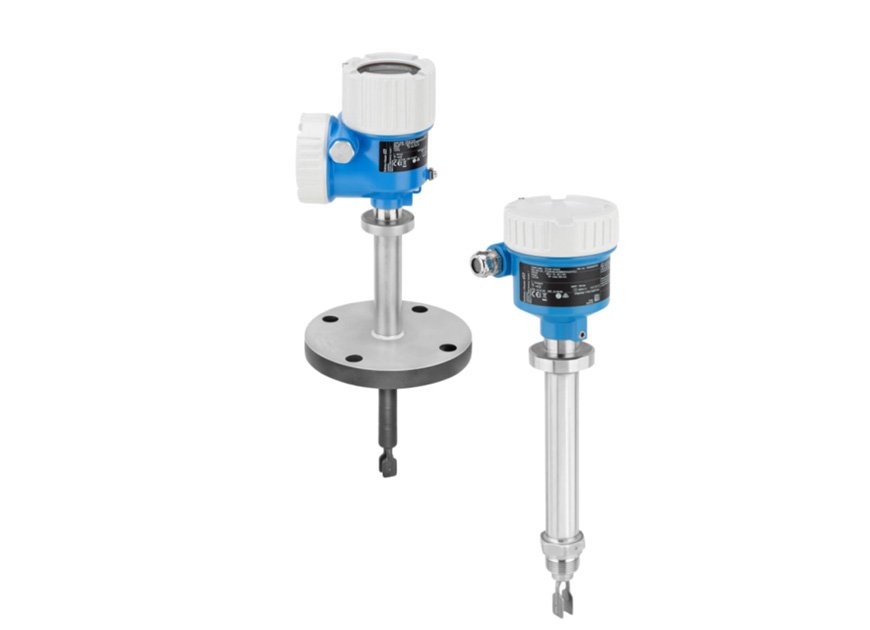

FTL64 - reliable detection at high temperatures
Application
• Level switch for all liquids, for minimum or maximum detection in vessels, e.g. process tanks, storage tanks, and piping, even in hazardous areas
• Different coatings, plastics or enamel, offer a high degree of corrosion protection for applications in aggressive media
• Process temperature range: –50 to +150 °C (–58 to +302 °F)
• Pressures up to 40 bar (580 psi)
• Viscosities up to 10000 mPa⋅s
• Ideal substitute for float switches; reliable function is not affected by flow, turbulence, air bubbles, foam, vibration, solids content or buildup
Your benefits
• Approved for safety systems with functional safety requirements up to SIL 2/SIL 3 in accordance with IEC 61508 (in combination with HART)
• Functional safety: monitoring of the oscillation frequency of the vibrating fork
• Heartbeat Technology - verification and monitoring function on demand without interrupting the process
• With Bluetooth® wireless technology
Application
• Level switch for all liquids, for minimum or maximum detection in vessels, e.g. process tanks, storage tanks, and piping, even in hazardous areas
• Different coatings, plastics or enamel, offer a high degree of corrosion protection for applications in aggressive media
• Process temperature range: –50 to +150 °C (–58 to +302 °F)
• Pressures up to 40 bar (580 psi)
• Viscosities up to 10000 mPa⋅s
• Ideal substitute for float switches; reliable function is not affected by flow, turbulence, air bubbles, foam, vibration, solids content or buildup
Your benefits
• Approved for safety systems with functional safety requirements up to SIL 2/SIL 3 in accordance with IEC 61508 (in combination with HART)
• Functional safety: monitoring of the oscillation frequency of the vibrating fork
• Heartbeat Technology - verification and monitoring function on demand without interrupting the process
• With Bluetooth® wireless technology
• Level switch for all liquids, for minimum or maximum detection in vessels e.g. process tanks, storage tanks, and piping, even in hazardous areas
• Particularly suitable for high-temperature applications with up to 280 °C (536 °F)
• Vibrating fork and process connection with highly corrosion-resistant Alloy C22 (2.4602) material and PFA-coated (conductive) version available for very aggressive media
• Process temperature range: –60 to +280 °C (–76 to +536 °F)
• Pressures up to 100 bar (1450 psi)
• Viscosities up to 10000 mPa⋅s
• Ideal substitute for float switches; reliable function is not affected by flow, turbulence, air bubbles, foam, vibration, solids content or buildup
Benefits
• Approved for safety systems with functional safety requirements up to SIL2/SIL3 in accordance with IEC 61508
• Maximum safety thanks to welded gas-tight feedthrough, even if sensor is damaged
• Functional safety: monitoring of the vibration frequency of the tuning fork
• Heartbeat Technology via the free iOS/Android SmartBlue app
• With Bluetooth® wireless technology
Parameter | FTL62 | FTL63 | FTL64 |
Product Type | Vibronic level switch with corrosionresistant coating | Hygienic vibronic level switch | Hightemperature / highpressure vibronic level switch |
Measuring Principle | Vibrating tuning fork | Vibrating tuning fork | Vibrating tuning fork |
Application | Aggressive / corrosive liquids, chemical industry | Food, beverage, pharma; hygienic (CIP/SIP) | Extreme process conditions, high temperature & pressure |
Max. extension tube | Up to 3 m (coated) | Up to 3 m | Up to 3 m |
Process temperature | -50 … +150 °C | -50 … +150 °C | -50 … +400 °C |
Process pressure | Vacuum … 40 bar | Vacuum … 64 bar | Vacuum … 160 bar |
Min. medium density | ≥ 0.5 g/cm³ | ≥ 0.5 g/cm³ | ≥ 0.5 g/cm³ |
Max. medium viscosity | Up to 10,000 mm²/s | Up to 10,000 mm²/s | Up to 10,000 mm²/s |
Process connection | Flanged | Hygienic (Tri-Clamp, SMS, DIN11851) | Thread, flange |
Wetted parts | 316L with ECTFE / PFA / enamel coating | Electropolished 316L (FDA) | 316L, Alloy C276 |
Output signals | NAMUR, relay, PNP | NAMUR, relay, PNP | NAMUR, relay, PNP |
Communication | Bluetooth® (SmartBlue), HART | Bluetooth® (SmartBlue), HART | Bluetooth® (SmartBlue), HART |
Housing | Aluminum / stainless steel | Electropolished 316L | Aluminum / stainless steel |
Protection class | IP66 / IP67 | IP66 / IP67 | IP66 / IP67 |
Ambient temperature | -60 … +70 °C | -40 … +80 °C | -60 … +70 °C |
Safety integrity | SIL 2 / SIL 3 (IEC 61508) | SIL 2 / SIL 3 (IEC 61508) | SIL 2 / SIL 3 (IEC 61508) |
Certifications | ATEX, IECEx, CSA, WHG | ATEX, IECEx, 3A, EHEDG, FDA, ASME BPE | ATEX, IECEx, CSA, WHG |
Key features | Corrosionresistant coating | Hygienic, CIP/SIP, easy clean | High temp & high pressure resistant |
