Soliphant T FTM20, FTM21
Vibronic
Robust point level switch for bulk solids,
also for dust incendive hazard areas
Soliphant T is a robust point level switch for silos with fine-grained or coarse-grained, non-fluidised bulk solids.
The various designs means the device has a wide range of applications. Certificates are also available for use in dust incendive hazard areas.

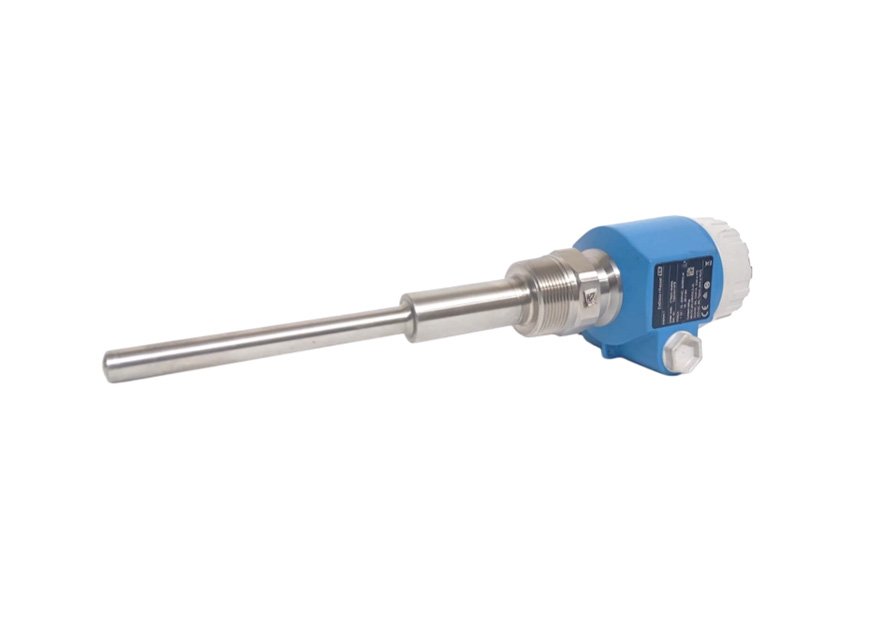

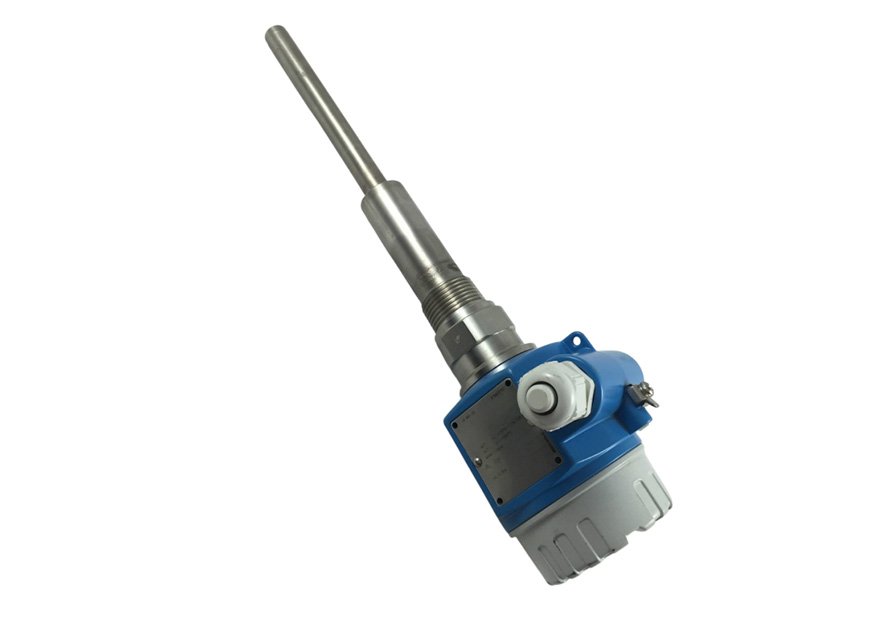

FTM20 compact design 250 mm (10 in) as vibrating rod for installation in any direction

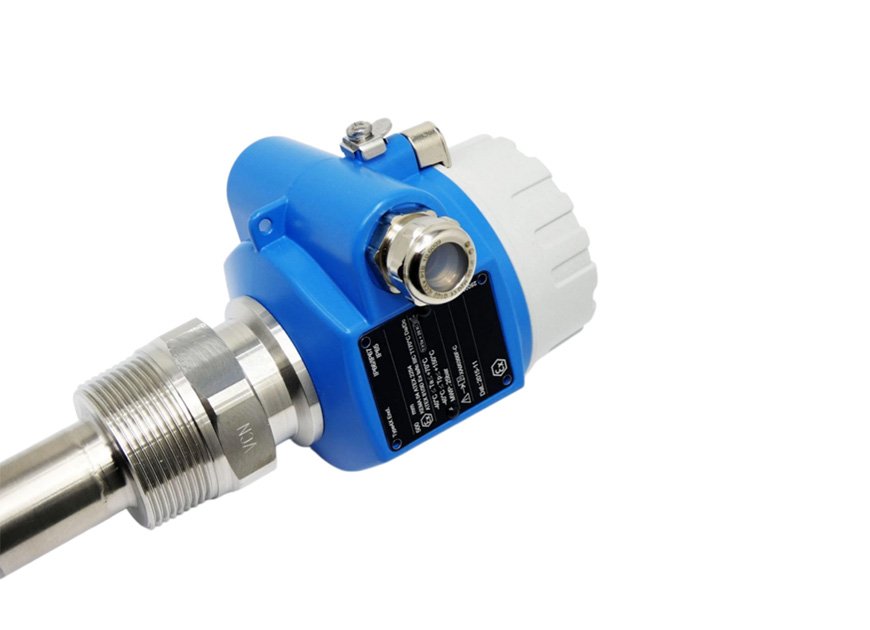

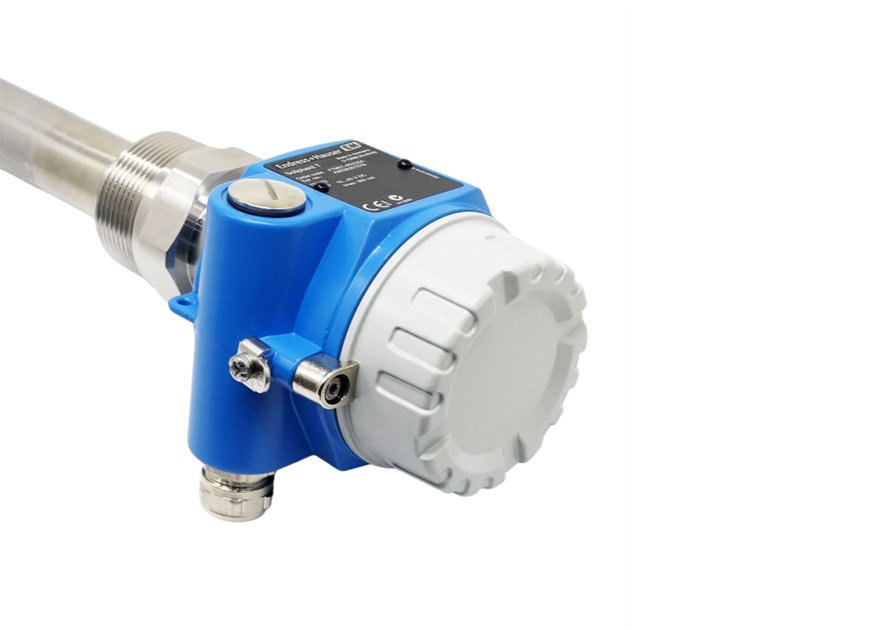

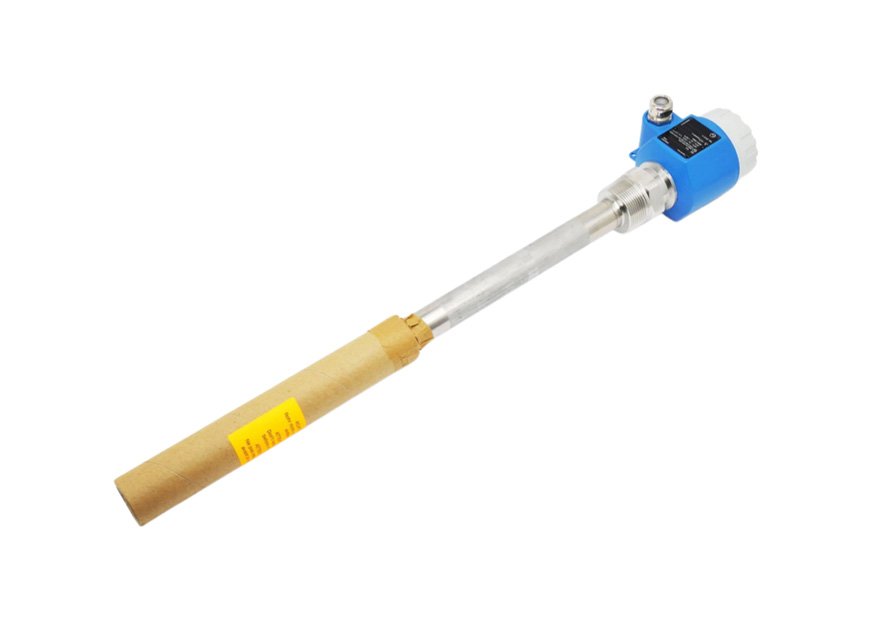

FTM21 vibrating rod with extension pipe 500 mm, 1000 mm, 1500 mm (20 in, 40 in, 60 in) for installation in any direction
Typical applications: cereals, coffee beans, sugar, animal feed, rice, detergents, dye powder, chalk, gypsum, cement, sand, plastic granules
• No calibration: easy commissioning (plug and play)
• Insensitive to build-up: maintenance-free operation
• No mechanically moving parts: no wear, long operating life
• Sensor material 316L: hardly any abrasion even with building materials

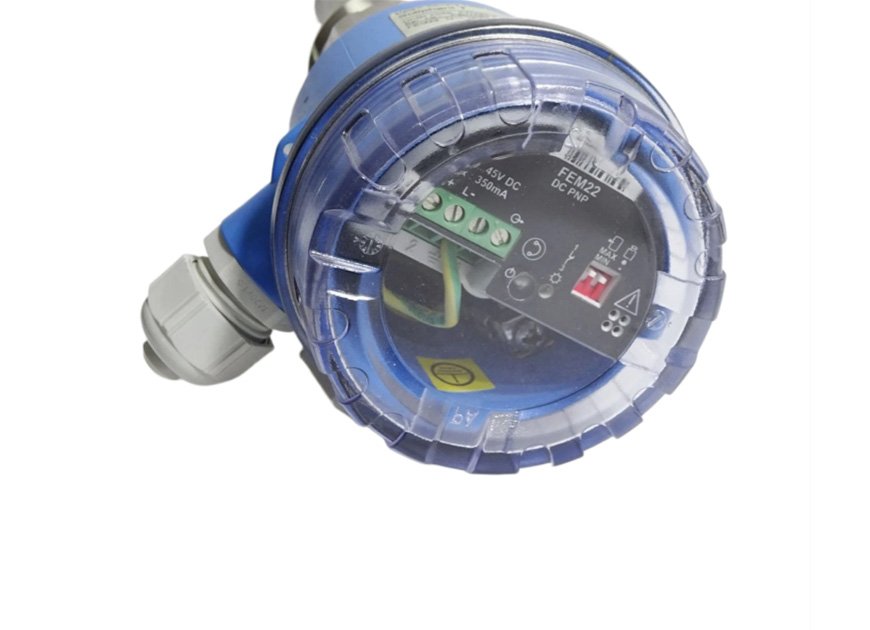

• F16 plastic housing with cover with sight glass: switch status visible from outside
• F18 aluminium housing also available
• Insensitive to external vibration and flow noises
• Also available with explosion protection ATEX II 1/3 D, FM or CSA approval
Parameter | FTM20 | FTM21 |
Product Type | Compact vibronic (vibrating rod) point level switch for bulk solids | Vibronic point level switch with extension tube for bulk solids |
Measuring Principle | Vibrating rod (amplitude damping detection) | Vibrating rod (amplitude damping detection) |
Application | Fine/coarse-grained, non-fluidized bulk solids; silos, confined spaces | Fine/coarse-grained, non-fluidized bulk solids; deep silos, large bins |
Typical Media | Grains, cement, sand, sugar, plastic granules, powders | Grains, cement, sand, sugar, plastic granules, powders |
Sensor Length | 250 mm (10 in) (compact, fixed) | 500 mm / 1000 mm / 1500 mm (20/40/60 in) extension tubes |
Process Temperature | -40 … +150 °C (-40 … +302 °F) | -40 … +150 °C (-40 … +302 °F) |
Process Pressure | Vacuum … 40 bar (Vacuum … 580 psi) | Vacuum … 25 bar (Vacuum … 360 psi) |
Min. Medium Density | ≥ 200 g/L (bulk density) | ≥ 200 g/L (bulk density) |
Max. Grain Size | Up to 25 mm | Up to 25 mm |
Process Connection | Thread: R1, R1 ½, NPT 1, NPT 1 ½ | Thread: R1, R1 ½, NPT 1, NPT 1 ½ |
Wetted Parts | 316L stainless steel | 316L stainless steel |
Output Signals | • FEM22: 3-wire PNP (10…45 VDC)• FEM24: Relay DPDT (19…253 VAC / 10…55 VDC) | • FEM22: 3-wire PNP (10…45 VDC)• FEM24: Relay DPDT (19…253 VAC / 10…55 VDC) |
Supply Voltage | • PNP: 10…45 VDC• Relay: 19…253 VAC / 10…55 VDC | • PNP: 10…45 VDC• Relay: 19…253 VAC / 10…55 VDC |
Housing Material | • F16: Polyester (with sight glass)• F18: Aluminum (optional) | • F16: Polyester (with sight glass)• F18: Aluminum (optional) |
Protection Class | IP66 / IP67 / NEMA 4X | IP66 / IP67 / NEMA 4X |
Ambient Temperature | -40 … +80 °C | -40 … +80 °C |
Certifications | ATEX, IECEx, FM, CSA, dust explosion (II 1/3 D) | ATEX, IECEx, FM, CSA, dust explosion (II 1/3 D) |
Key Features | Compact, no calibration, anti-build-up, self-monitoring, test magnet | Long extension, install in any orientation, dust explosion proof |

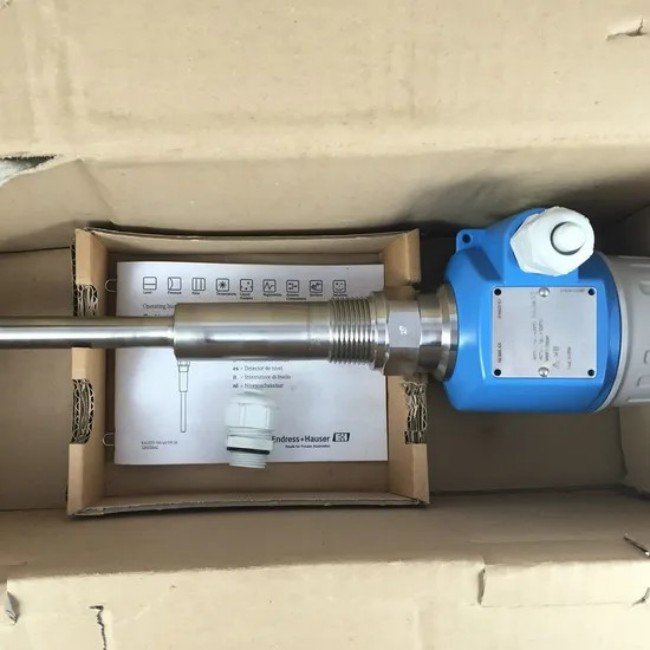

Packaging: Original box
