Soliphant M Vibronic FTM50, FTM51, FTM52
Universal point level switch for fine-grained bulk solid
Soliphant M is a robust point level switch for silos with fine-grained or dusty bulk solids
even with a low bulk weight.
The various designs mean the device has a wide range of applications.
Many certificates are available for use in dust or gas incendive hazard areas.

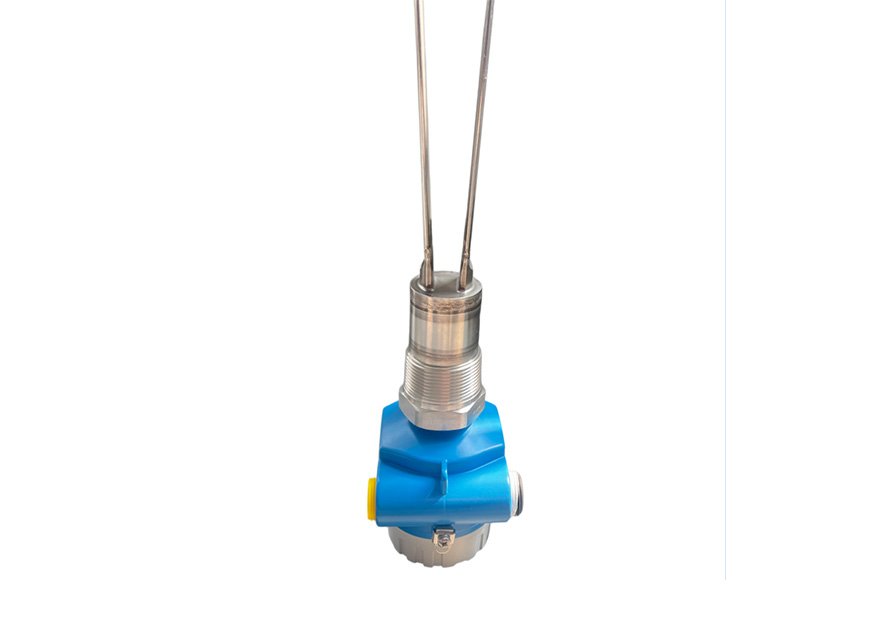

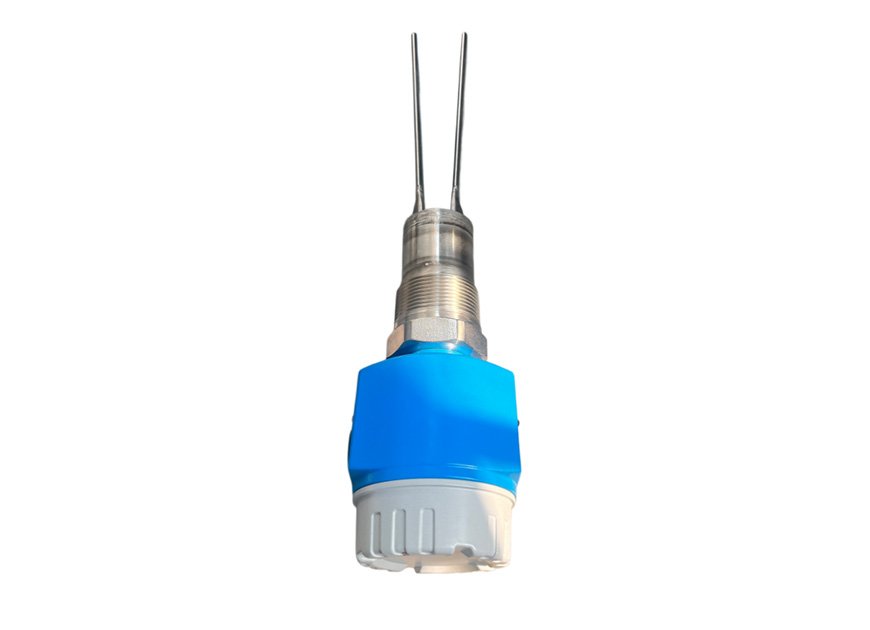

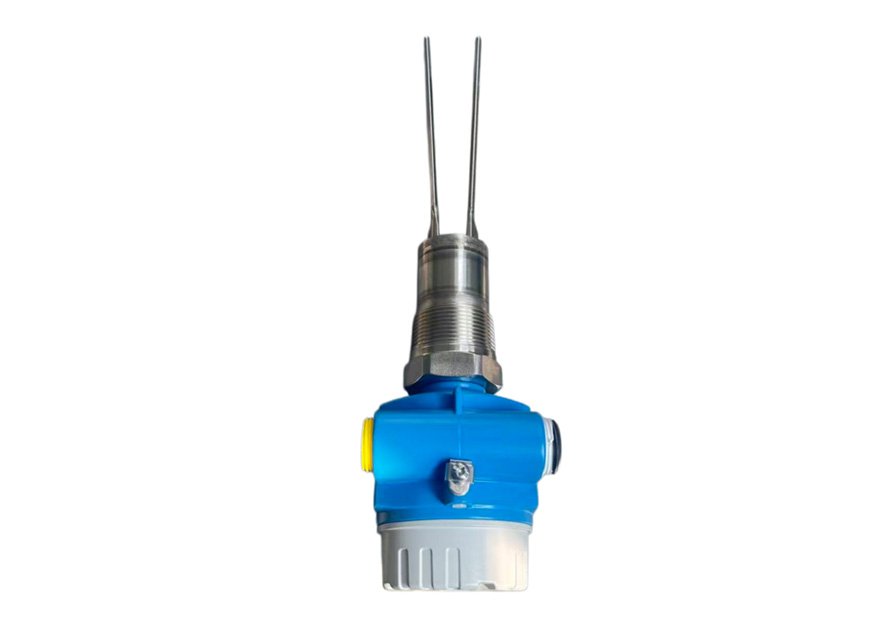

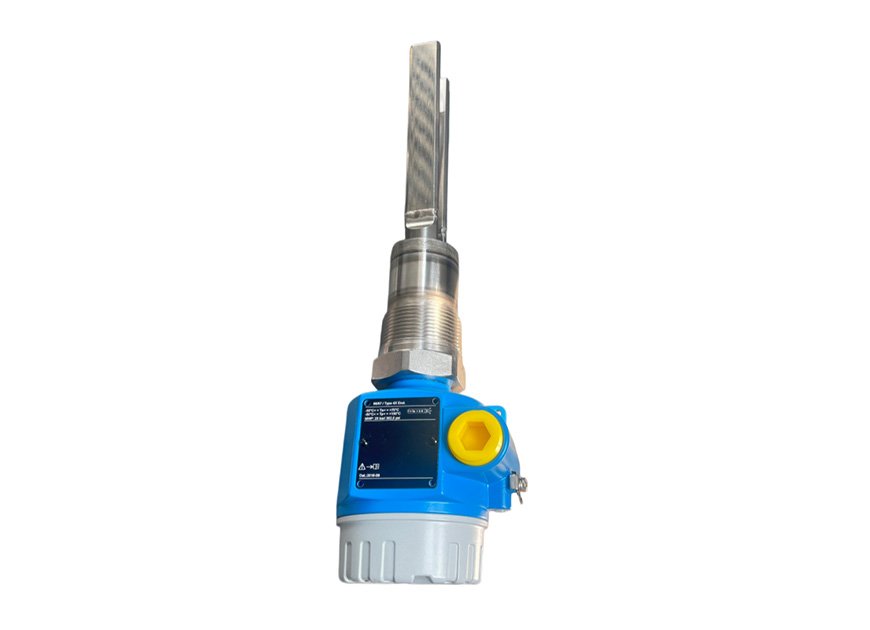

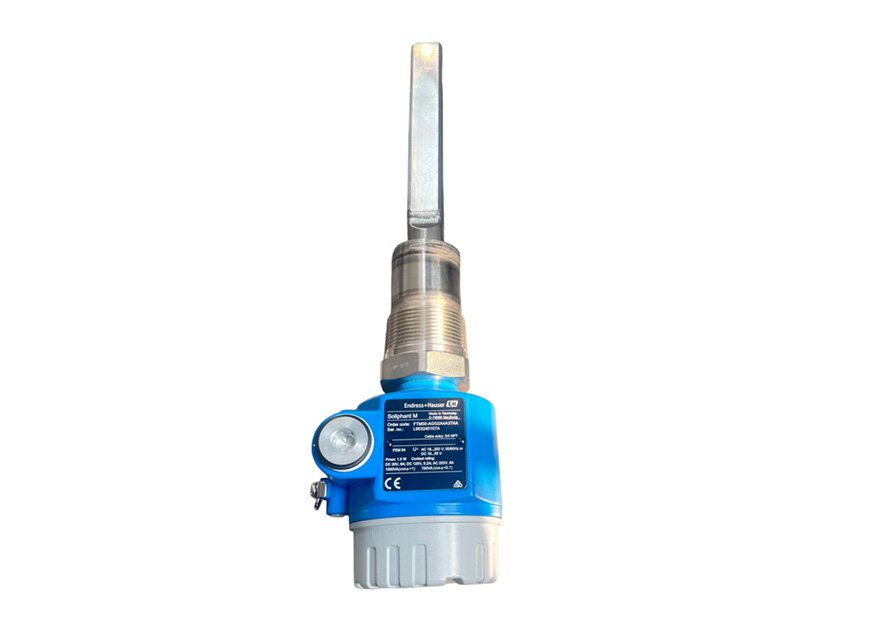

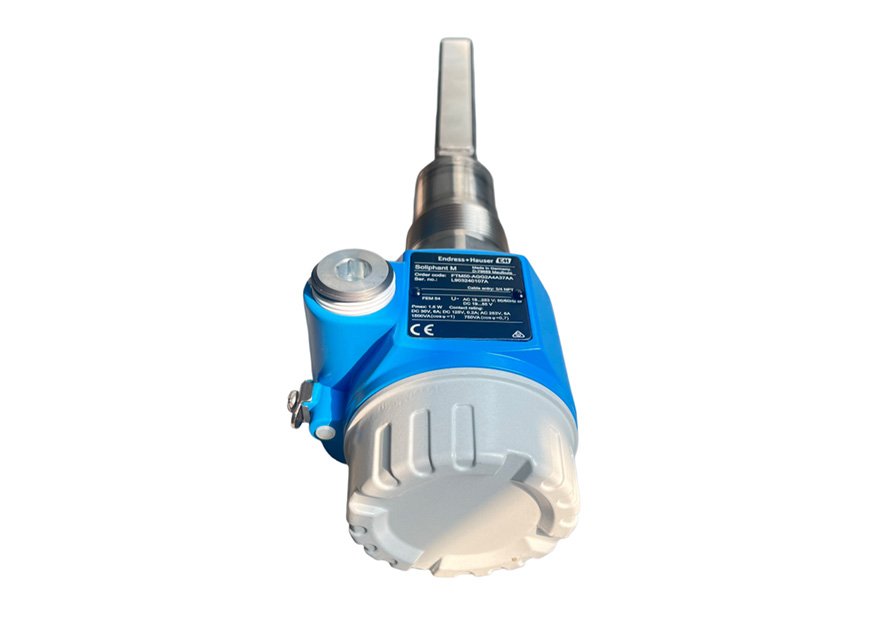

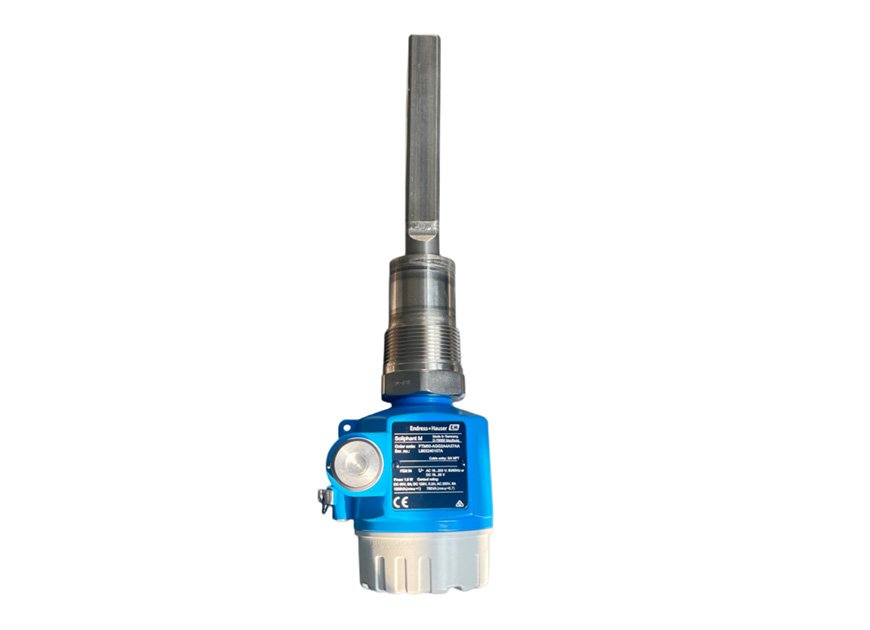

FTM50:
Compact design for installation in any position. A wide range of applications thanks to various variations e.g.
• Polished short fork with stainless steel housing (F15) and Tri-Clamp
• Coated standard fork with aluminum housing (F17) and flange
• Standard fork with 280 °C (536 °F) rating and aluminum housing (F13)
FTM51:
With extension pipe up to 4 m (13 ft) for installation in any position
FTM52:
With rope up to 20 m (66 ft) for installation from above
Typical applications:
Cereals, flour, cocoa, sugar, animal feed, detergents, dye powder, chalk, gypsum, cement, plastic granules, fly ash
• Market leader in the area of level detection of bulk solids
• Functional safety up to SIL 2 as per IEC 61508
• No mechanically moving parts: no wear, long operating life
• Insensitive to external vibrations and build-up
• Various electronic inserts: e.g. NAMUR, relay, thyristor and PFM-signal outputs for optimum alignment with the plant control system
• Configurable density setting (bulk weight setting) and switching delay
• Process temperature up to 280 °C (536 °F)
• Choice of coated or polished sensor
• Diagnostic function: warning in the event of impending device failure due to buildup or abrasion
Parameter | FTM50 | FTM51 | FTM52 |
Product Type | Compact vibronic (tuning fork) point level switch | Vibronic switch with extension pipe | Vibronic switch with flexible rope |
Measuring Principle | Vibrating tuning fork (amplitude damping) | Vibrating tuning fork (amplitude damping) | Vibrating tuning fork (amplitude damping) |
Application | Fine-grained/dusty bulk solids, silos, any mounting position | Fine-grained bulk solids, deep silos (top-mounted) | Fine-grained bulk solids, very deep silos/bins (top-mounted only) |
Probe Length | Standard fork: 155 mm (6.1 in)Short fork: 145 mm (5.7 in) | 300 … 4000 mm (11.8 … 157 in) (rigid pipe) | 750 … 20000 mm (29.5 … 787 in) (flexible rope) |
Process Temperature | -50 … +280 °C (-58 … +536 °F) | -50 … +280 °C (-58 … +536 °F) | -50 … +80 °C (-58 … +176 °F) |
Process Pressure | Vacuum … 25 bar (Vacuum … 362 psi) | Vacuum … 25 bar (Vacuum … 362 psi) | Vacuum … 2 bar (Vacuum … 29 psi) |
Min. Medium Density | Standard: 10 g/LShort fork: 50 g/L | 10 g/L | 30 g/L |
Max. Grain Size | ≤ 10 mm | ≤ 10 mm | ≤ 10 mm |
Process Connection | Thread (G/NPT), Flange, Tri-Clamp | Thread (G/NPT 1½", 2") | Thread (G/NPT 1½", 2") |
Wetted Parts | 316L SS (electropolished, PTFE/ETFE coated) | 316L SS | 316L SS rope |
Output Signals | • FEM51: 2-wire AC• FEM52: 3-wire PNP• FEM54: Relay DPDT• FEM55: 8/16mAer | • FEM51: 2-wire AC• FEM52: 3-wire PNP• FEM54: Relay DPDT• FEM55: 8/16mA | • FEM51: 2-wire AC• FEM52: 3-wire PNP• FEM54: Relay DPDT |
Supply Voltage | • AC: 19 … 253 VAC• DC: 10 … 55 VDC | • AC: 19 … 253 VAC• DC: 10 … 55 VDC | • AC: 19 … 253 VAC• DC: 10 … 55 VDC |
Housing | F15 (SS), F16 (plastic), F17 (Alu), F13/T13 (Alu, Ex d) | F15, F16, F17, F13/T13 | F16, F17, F13/T13 |
Protection Class | IP66 / IP67 / NEMA 4X(F13/T13: IP68 / NEMA 6P) | IP66 / IP67 / NEMA 4X(F13/T13: IP68 / NEMA 6P) | IP66 / IP67 / NEMA 4X |
Ambient Temp | -50 … +70 °C (-58 … +158 °F) | -50 … +70 °C (-58 … +158 °F) | -50 … +70 °C (-58 … +158 °F) |
Certifications | ATEX, IECEx, FM, CSA, SIL 2, NEPSI | ATEX, IECEx, FM, CSA, SIL 2, NEPSI | ATEX, IECEx, FM, CSA, SIL 2, NEPSI |
Key Features | Compact, high temp (280°C), any mounting | Rigid extension, up to 4m, high temp | Flexible rope, up to 20m, low pressure only |

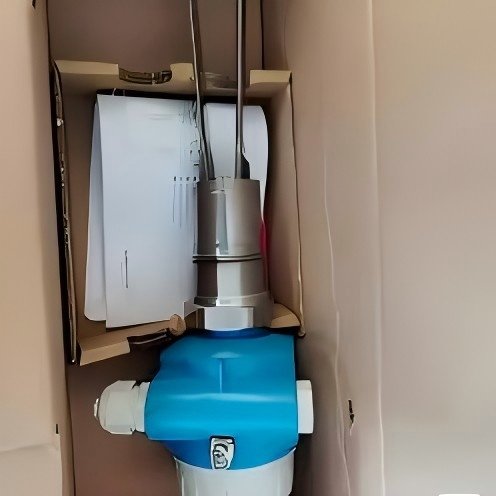

Packaging: Original box
