Continuous level measurement for liquids
The device is independent of the dielectric constant (DC) as of a liquid conductivity of 100 µS/cm and allows measurement of various liquids without the need for recalibration.
• Process connections: Flanges and threads
• Process pressure: Vacuum to +100 bar (+1450 psi)
• Measuring range: 0.1 to 4.0 m (0.3 to 13 ft)
• Temperature: –80 to +200 °C (–112 to +392 °F)
• International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, marine approvals
• Use also in safety systems requiring functional safety to SIL2 in accordance with IEC 61508
• Reliable and universal application thanks to a wide range of certificates and approvals
• No calibration necessary (factory preconfiguration). No calibration necessary for media with a conductivity of 100 µS/cm and higher
• Material in contact with the process made of corrosion-resistant material, FDAlisted materials
• Menu-guided local configuration via plain text display (optional)
• Two-stage overvoltage protection
Parameter | Details |

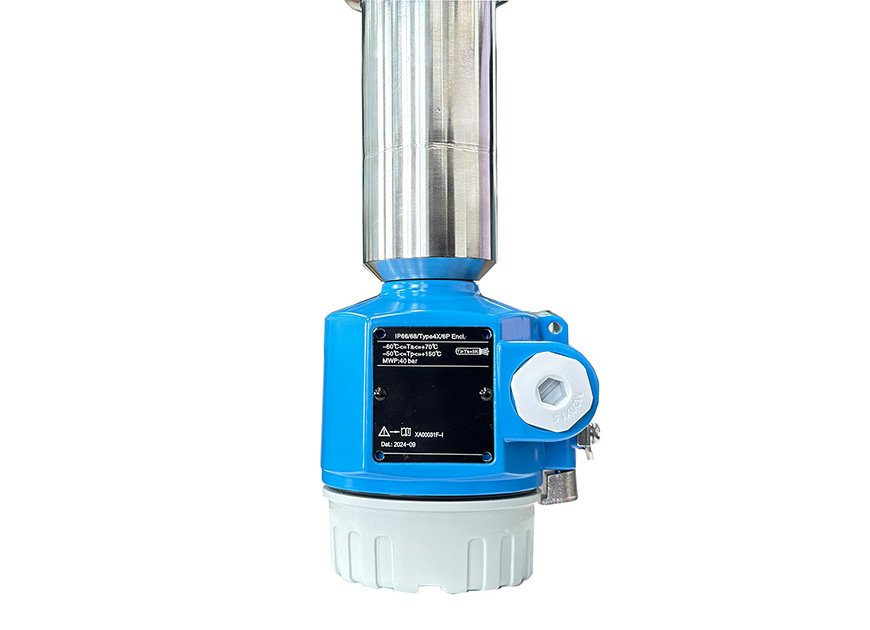

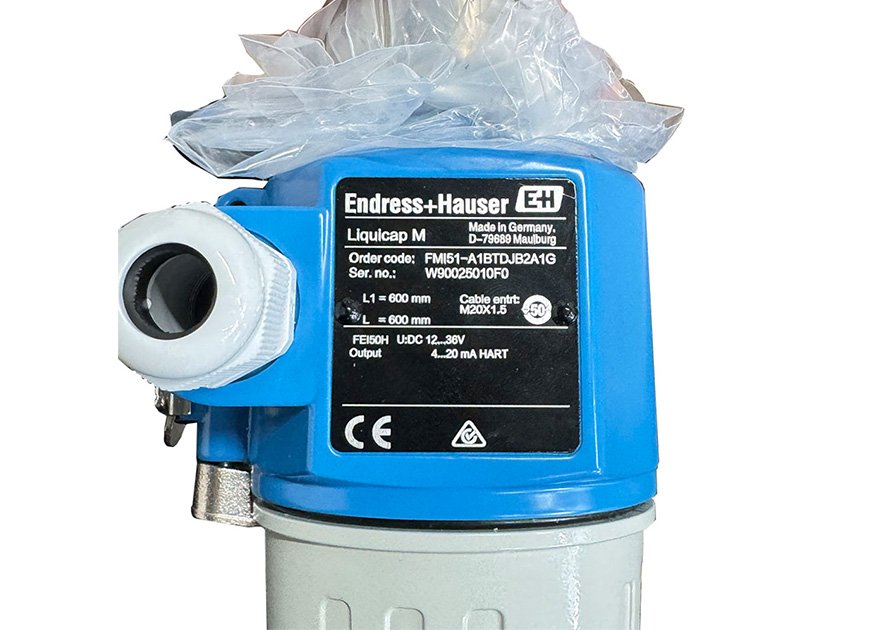

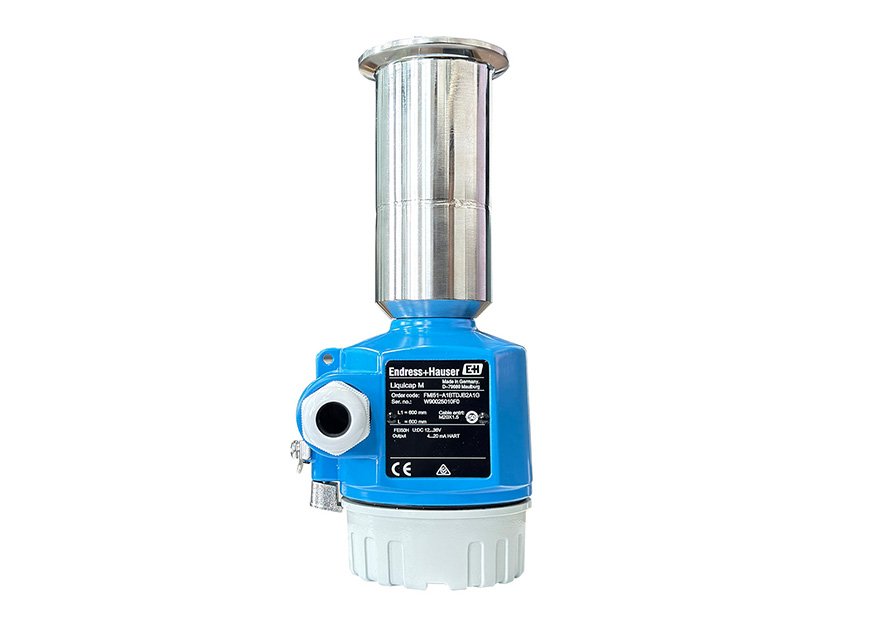

Product Name | Liquicap FMI51 |
Measuring Principle | Capacitance / RF admittance (fully insulated rod probe) |
Application | Continuous level & interface measurement for liquids; ideal for buildup-prone media, high viscosity, high temperature/pressure |

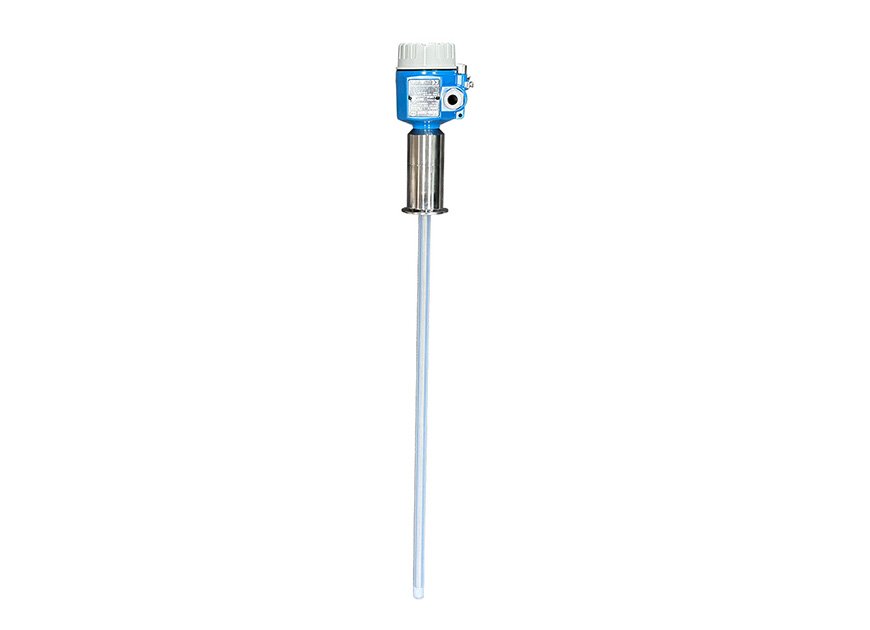

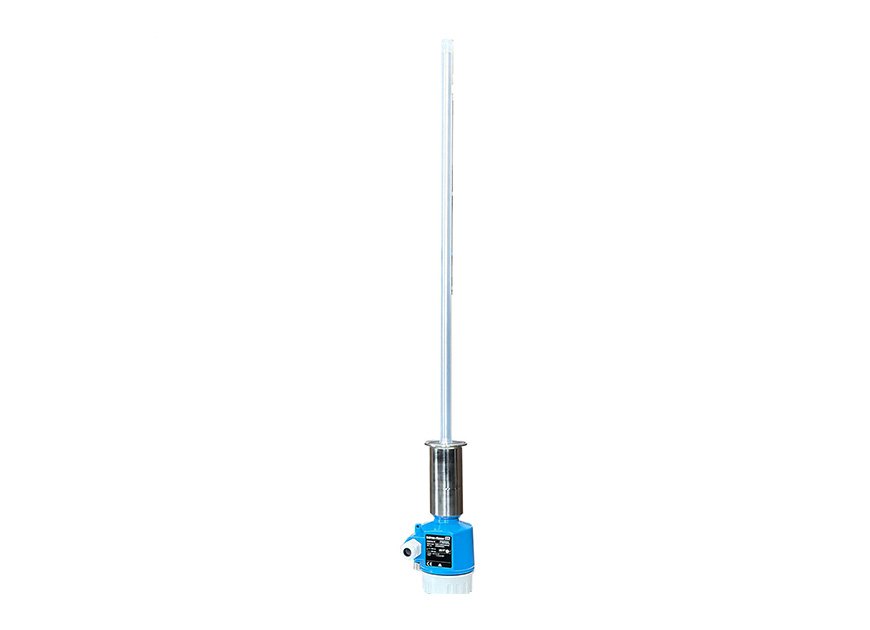

Probe Type | Fully insulated rigid rod (PTFE/PFA insulated) |
Measuring Range | 0.1 … 4.0 m (0.3 … 13 ft) |
Accuracy / Repeatability | ±0.1% of span |
Process Temperature | -80 … +200 °C (-112 … +392 °F) |
Process Pressure | Vacuum … 100 bar (Vacuum … 1450 psi) |
Medium Conductivity | ≥ 100 µS/cm (dielectric constant independent) |
Process Connection | Thread (G/NPT 1½", 2"), Flange, Tri-Clamp (hygienic) |
Wetted Materials | Probe: 316L SS + PTFE / PFA insulation Seal: Viton, EPDM |
Electronics | FEM51 (2-wire AC / 2-wire DC options) |
Supply Voltage | • AC: 19 … 253 VAC• DC: 11.4 … 35 VDC |
Output Signal | 4–20 mA HART (2-wire) |
Power Consumption | < 1.0 W |
Load (DC) | Max. 600 Ω |
Response Time | ≤ 0.5 s |
Housing | Aluminum (standard), 316L SS (option) |
Protection Class | IP66 / IP67 / NEMA 4X |
Ambient Temperature | -40 … +80 °C (-40 … +176 °F) |
Certifications & Approvals | ATEX, IECEx, FM, CSA, SIL 2 (IEC 61508), WHG, 3A, EHEDG, FDA, Marine |
Key Features | • Insensitive to product buildup• No recalibration (≥100 µS/cm)• Insensitive to dielectric constant• High temp/pressure rated |
Packaging: Original box
