Point level transmitter
Capacitance Point level switch for liquids

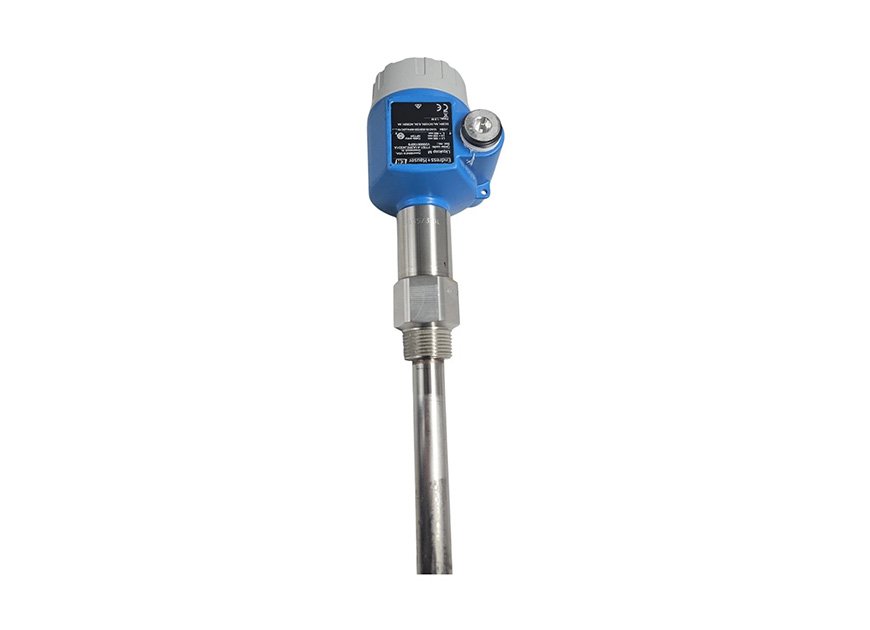

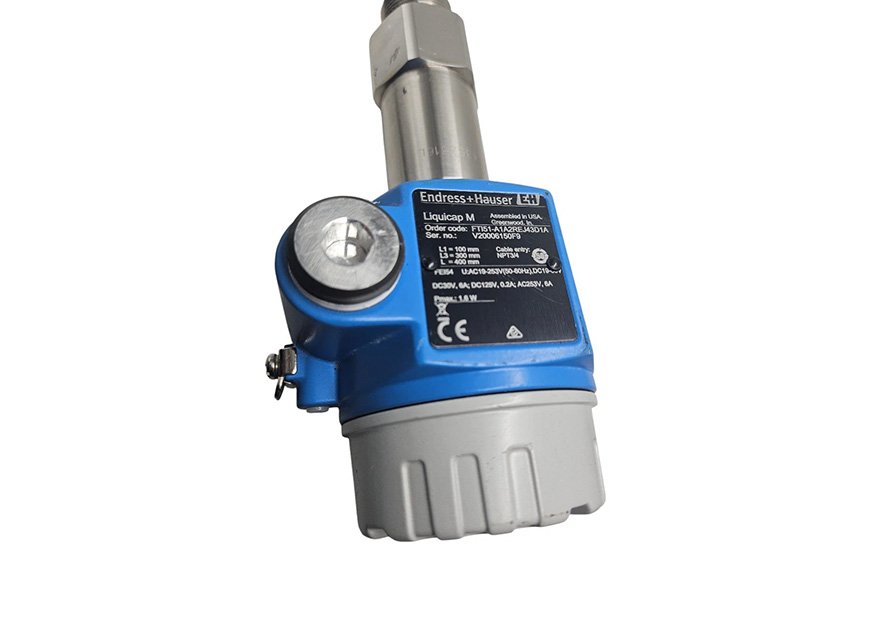

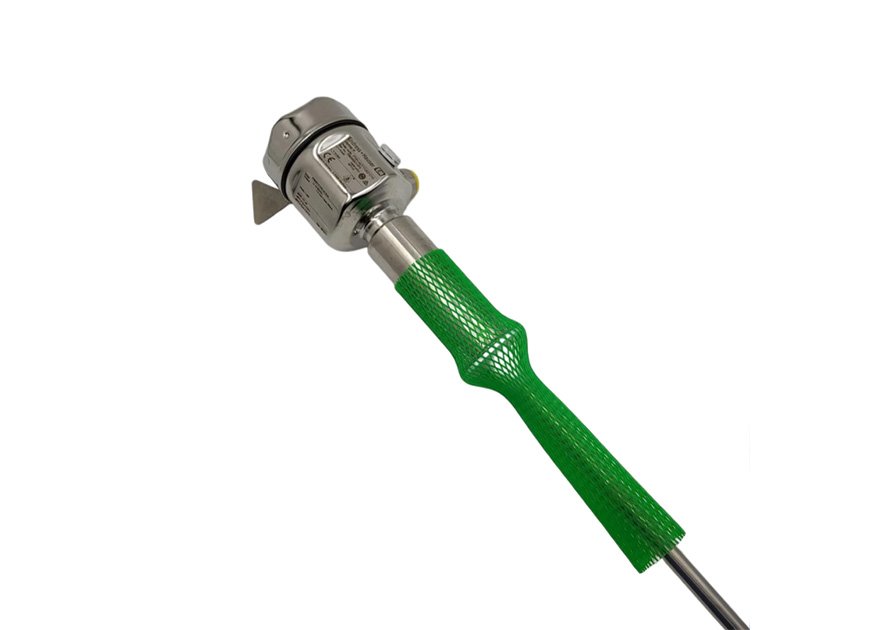

The Liquicap M FTI5x is used for point level detection.
It is preferably used for the following measuring tasks:
• Detection of liquids and pastes that are highly viscous and tend to form buildup
• Interface detection of different liquids (e.g. oil on water)
• Two-point control (e.g. pump control) with just one process connection
• Foam detection of conductive liquids
Thanks to its robust and tried-and-tested construction, the probe can be used both in vacuums and in overpressure up to 100 bar. The materials used allow operating temperatures from –80 °C to +200 °C.
• Active buildup compensation for high-viscosity media
• Easy and fast commissioning at the press of a button
• Universal application thanks to wide range of certificates and approvals
• Corrosion-resistant, FDA-listed materials in contact with the process
• Two-stage overvoltage protection against discharge from the container
• Short reaction times
• No need for recalibration after replacing electronics
• Use in safety systems with specific requirements in terms of functional safety to SIL2/SIL3
• Automatic monitoring of electronics
Parameter | FTI51 | FTI52 |
Product Type | Capacitive rod probe point level switch | Capacitive rope (cable) probe point level switch |
Measuring Principle | Capacitance / RF admittance (with buildup compensation) | Capacitance / RF admittance (with buildup compensation) |
Application | High-viscosity liquids, buildup-prone media, interface (oil/water), foam detection | High-viscosity liquids, buildup-prone media, interface, foam, long-range deep tanks |

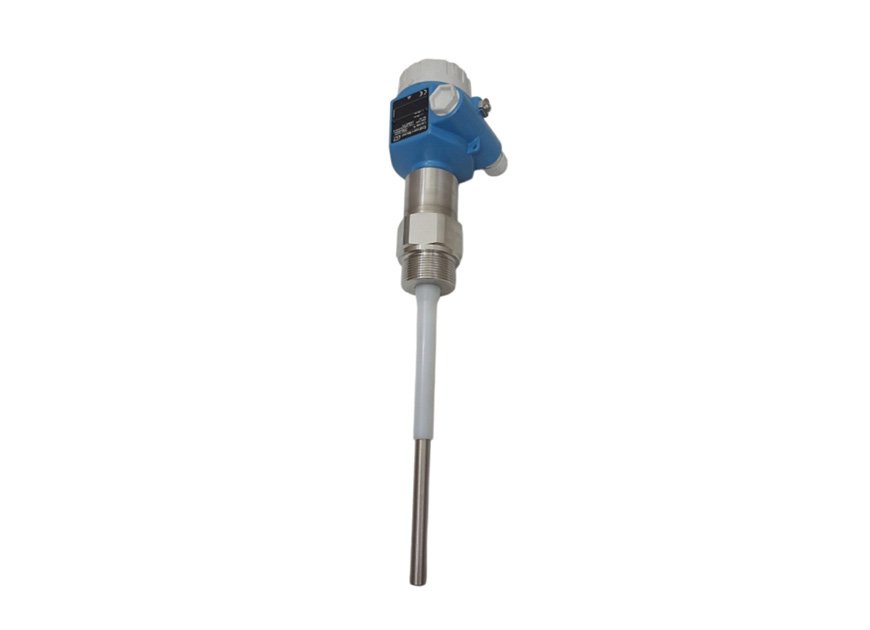

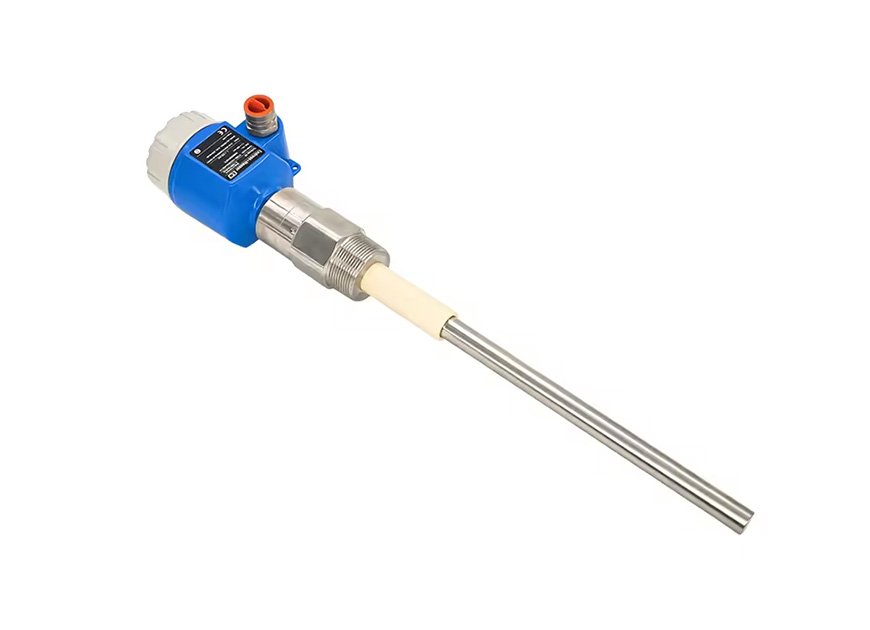

Probe Type | Fully insulated rigid rod | Fully insulated flexible rope (cable) |
Probe Length | 0.25 … 4.0 m (9.8 in … 13.1 ft) | 1.0 … 12.0 m (3.3 ft … 39.4 ft) |
Process Temperature | -80 … +200 °C (-112 … +392 °F) | -80 … +200 °C (-112 … +392 °F) |
Process Pressure | Vacuum … 100 bar (Vacuum … 1450 psi) | Vacuum … 100 bar (Vacuum … 1450 psi) |
Min. Medium Conductivity | ≥ 50 µS/cm (conductive)≥ 1.5 (dielectric, non conductive) | ≥ 50 µS/cm (conductive)≥ 1.5 (dielectric, non conductive) |

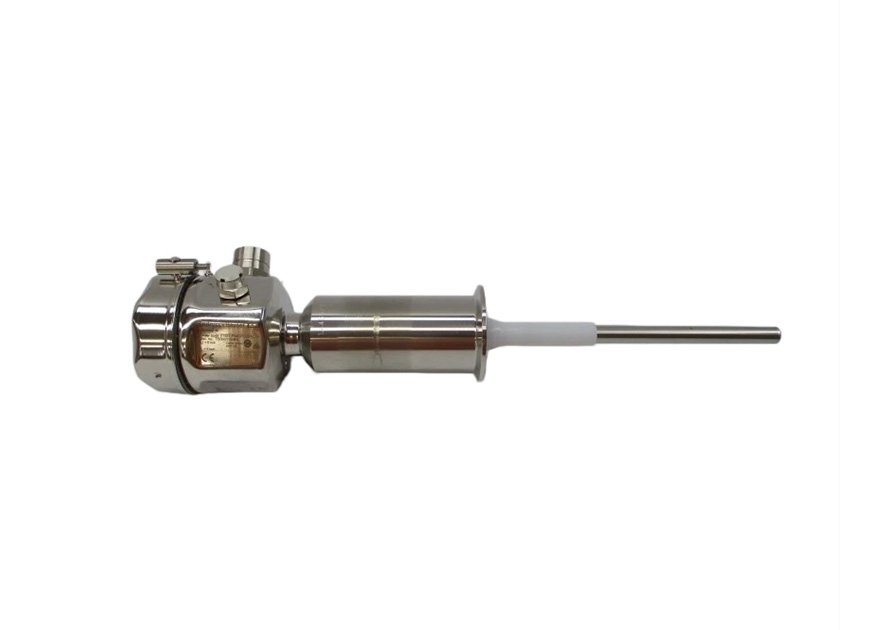

Process Connection | Thread (G/NPT 1½", 2"), Flange, Tri-Clamp (hygienic) | Thread (G/NPT 1½", 2"), Flange |
Wetted Parts | Probe: 316L SS + PTFE/PFA Seal: Viton, EPDM | Probe: 316L SS + PTFE/PFA Seal: Viton, EPDM |

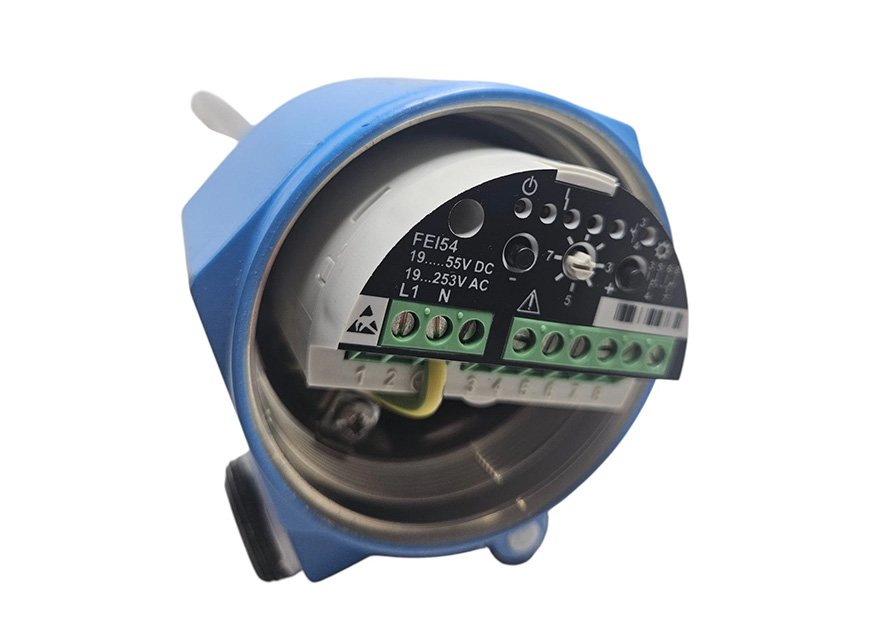

Electronics (FEI52) | • 3 wire DC (PNP) • Supply: 10 … 55 VDC • Load: max. 350 mA • Short circuit / overload protected | • 3 wire DC (PNP) • Supply: 10 … 55 VDC • Load: max. 350 mA • Short circuit / overload protected |
Output Signal | PNP switching contact (NO/NC configurable) | PNP switching contact (NO/NC configurable) |
Response Time | ≤ 0.5 s | ≤ 0.5 s |

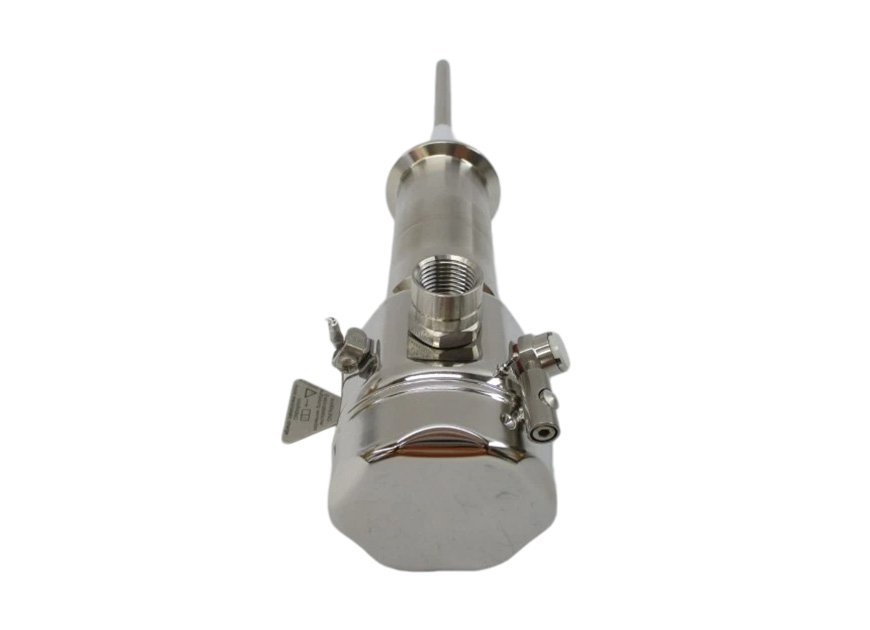

Housing | Aluminum (standard), 316L SS (option) | Aluminum (standard), 316L SS (option) |
Protection Class | IP66 / IP67 / NEMA 4X | IP66 / IP67 / NEMA 4X |
Ambient Temperature | -40 … +80 °C (-40 … +176 °F) | -40 … +80 °C (-40 … +176 °F) |
Certifications | ATEX, IECEx, FM, CSA, SIL 2 / SIL 3, WHG, 3A, EHEDG, FDA | ATEX, IECEx, FM, CSA, SIL 2 / SIL 3, WHG, 3A, EHEDG, FDA |
Key Features | Rigid rod, high pressure/temp, buildup compensation | Flexible rope, up to 12m, deep tanks, same high pressure/temp |
Packaging: Original box
