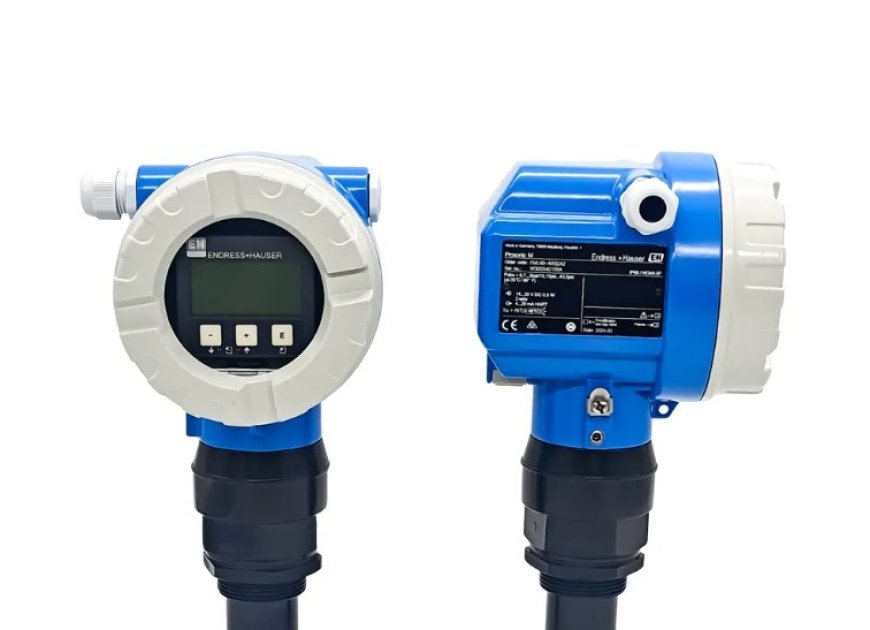

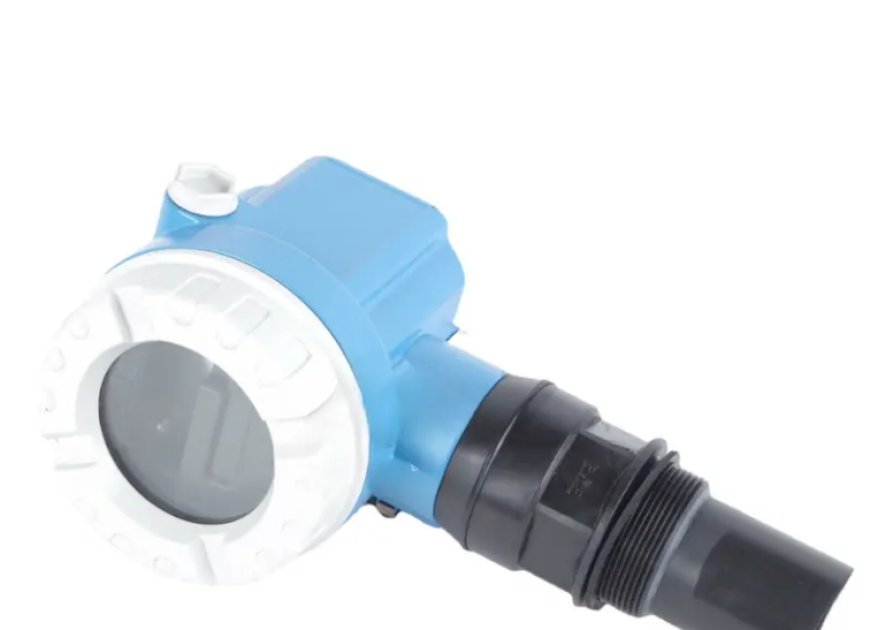

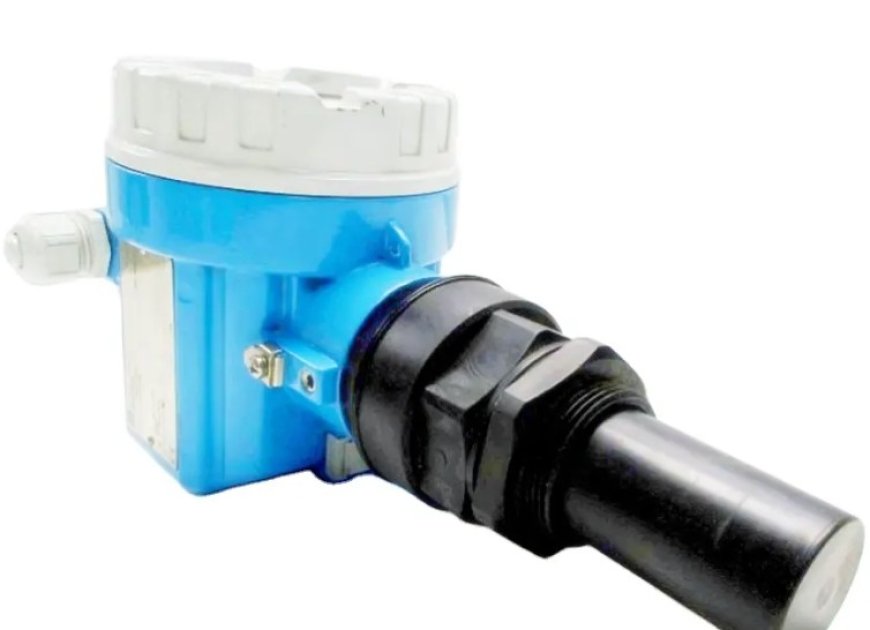

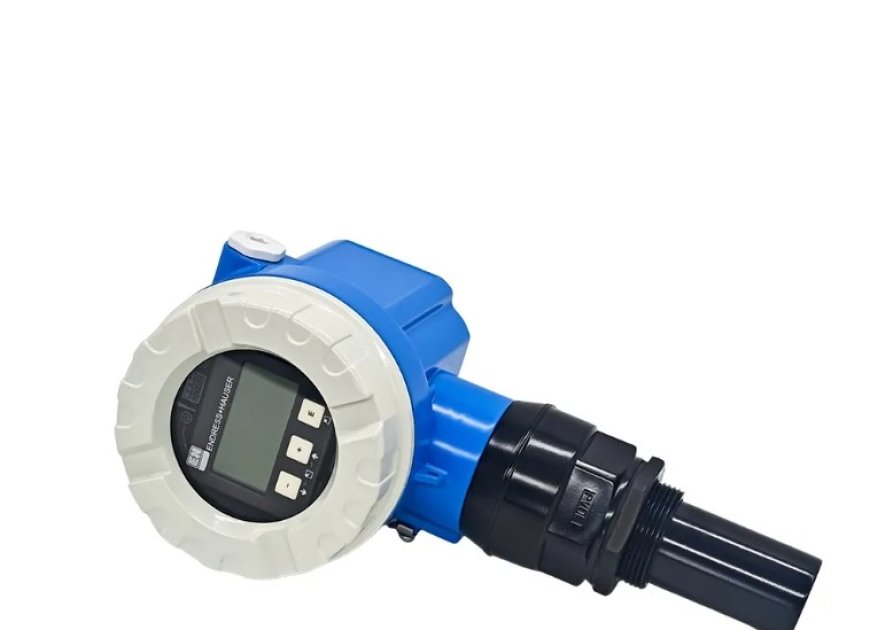

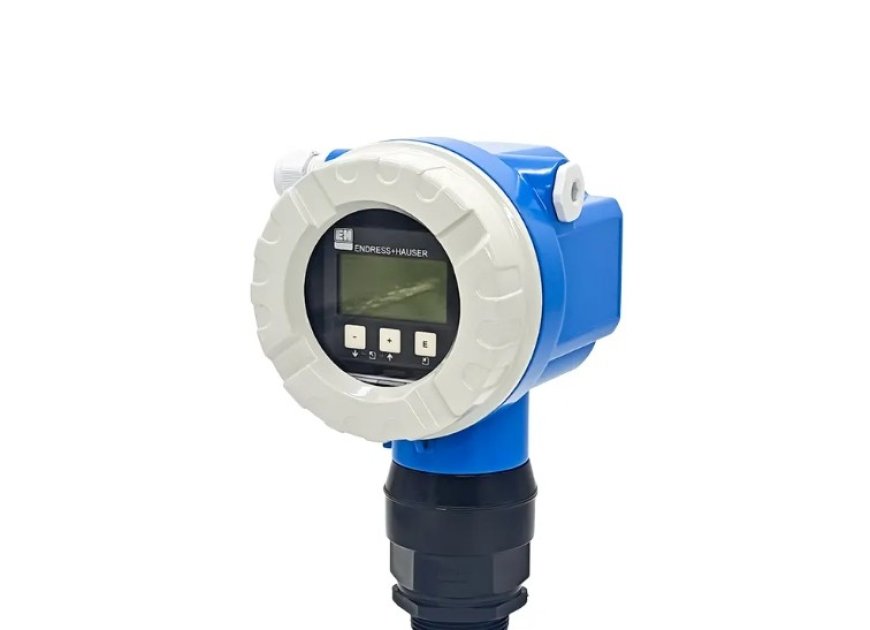

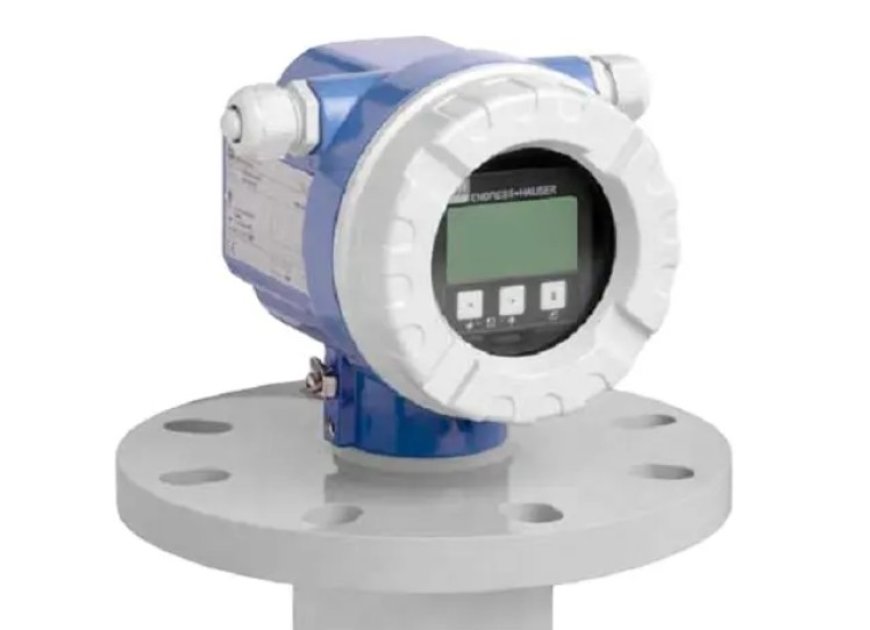

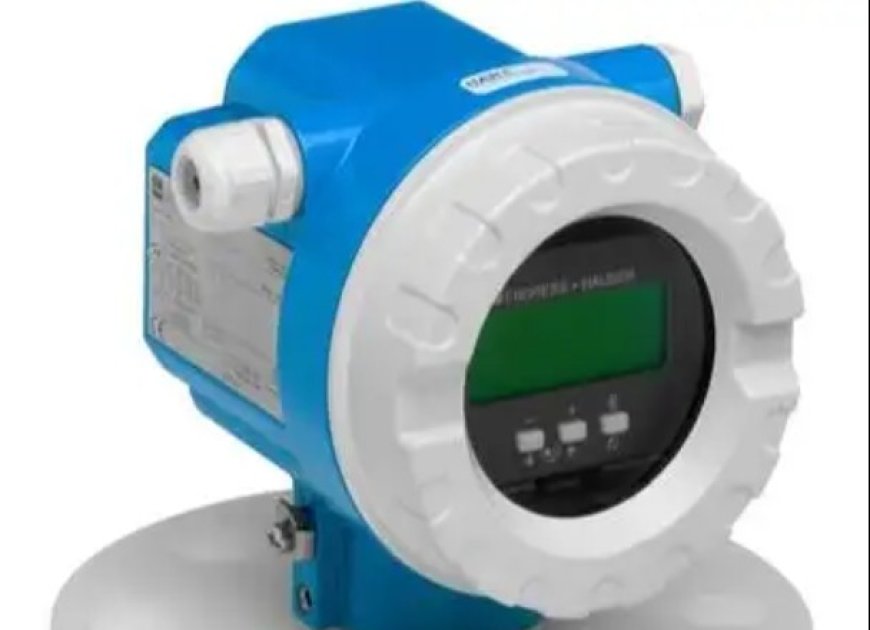

Ultrasonic Level Measurement
Compact transmitters for non-contact level measurement of fluids,
pastes and coarse bulk materials
• Continuous, non-contact level measurement in fluids, pastes, sullages and coarse bulk materials
• System integration via 4 to 20mA
• Maximum measuring range: – 1½" sensor: 5 m (16 ft) in fluids 2 m (6 ft) in bulk materials – 2" sensor: 8 m (26 ft) in fluids 3.5 m (11 ft) in bulk materials
• Quick and simple commissioning via menu-guided onsite operation with four-line plain text display; 7 languages selectable
• Envelope curves on the on-site display for simple diagnosis
• Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate
• Non-contact measurement method minimizes service requirements
• Installation possible from thread G 1½“ or NPT 1½“ upwards
• Integrated temperature sensor for automatic correction of the temperature dependent sound velocity
Specification | FMU40 | FMU41 | FMU42 | FMU43 | FMU44 |
Measuring principle | Time-of-flight ultrasonic (non-contact) | Time-of-flight ultrasonic (non-contact) | Time-of-flight ultrasonic (non-contact) | Time-of-flight ultrasonic (non-contact) | Time-of-flight ultrasonic (non-contact) |
Max measuring range | Liquids: 5 m (16 ft)Bulk solids: 2 m (6.6 ft) | Liquids: 8 m (26 ft)Bulk solids: 3.5 m (11 ft) | Liquids: 10 m (33 ft)Bulk solids: 5 m (16 ft) | Liquids: 15 m (49 ft)Bulk solids: 7 m (23 ft) | Liquids: 20 m (66 ft)Bulk solids: 10 m (33 ft) |
Accuracy | ±2 mm or ±0.2% of span | ±2 mm or ±0.2% of span | ±2 mm or ±0.2% of span | ±4 mm or ±0.2% of span | ±4 mm or ±0.2% of span |
Process temperature | -40 °C … +80 °C(-40 °F … 176 °F) | -40 °C … +80 °C(-40 °F … 176 °F) | -40 °C … +80 °C(-40 °F … 176 °F) | -40 °C … +80 °C(-40 °F … 176 °F) | -40 °C … +80 °C(-40 °F … 176 °F) |
Process pressure (abs) | 0.7 … 3 bar abs(10 … 44 psi) | 0.7 … 3 bar abs(10 … 44 psi) | 0.7 … 3 bar abs(10 … 44 psi) | 0.7 … 2.5 bar abs(10 … 36 psi) | 0.7 … 2.5 bar abs(10 … 36 psi) |
Main wetted parts | PVDF | PVDF | PVDF | PVDF | PVDF |
Supply / wiring | 2 wire (4–20 mA) / 4 wire | 2 wire / 4 wire | 2 wire / 4 wire | 2 wire / 4 wire | 2 wire / 4 wire |
Communication | HART (standard), PROFIBUS PA, FOUNDATION Fieldbus | HART (standard), PROFIBUS PA, FOUNDATION Fieldbus | HART (standard), PROFIBUS PA, FOUNDATION Fieldbus | HART (standard), PROFIBUS PA, FOUNDATION Fieldbus | HART (standard), PROFIBUS PA, FOUNDATION Fieldbus |
Process connection | Thread / Flange | Thread / Flange | Thread / Flange | Thread / Flange | Thread / Flange |
Hazardous area | ATEX, IECEx (Gas Ex / Dust Ex) | ATEX, IECEx (Gas Ex / Dust Ex) | ATEX, IECEx (Gas Ex / Dust Ex) | ATEX, IECEx (Gas Ex / Dust Ex) | ATEX, IECEx (Gas Ex / Dust Ex) |
Display | 4 line plain text (7 languages) | 4 line plain text (7 languages) | 4 line plain text (7 languages) | 4 line plain text (7 languages) | 4 line plain text (7 languages) |
Features | Envelope curve, linearization (32 points), temp compensation | Envelope curve, linearization (32 points), temp compensation | Envelope curve, linearization (32 points), temp compensation | Envelope curve, linearization (32 points), temp compensation | Envelope curve, linearization (32 points), temp compensation |
Applications | Liquids, slurries, solids, open channels | Liquids, slurries, solids, open channels | Liquids, slurries, solids, open channels | Liquids, slurries, solids, open channels | Liquids, slurries, solids, open channels |

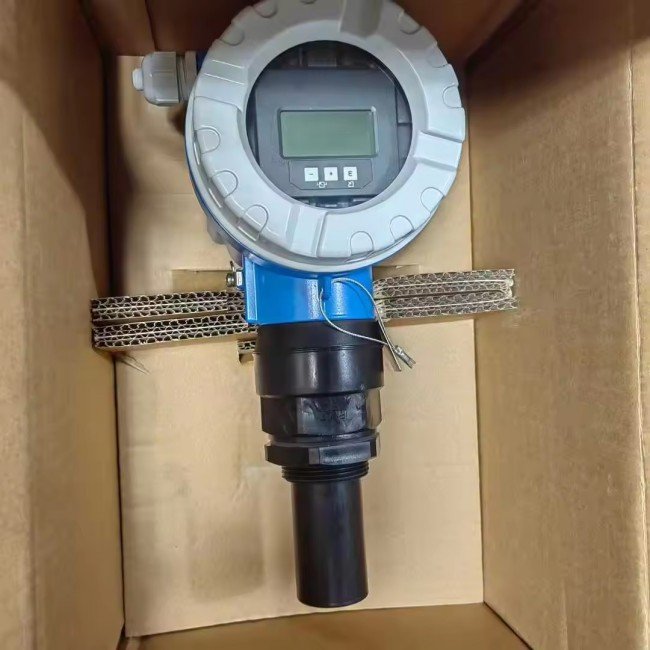

Packaging: Original box
