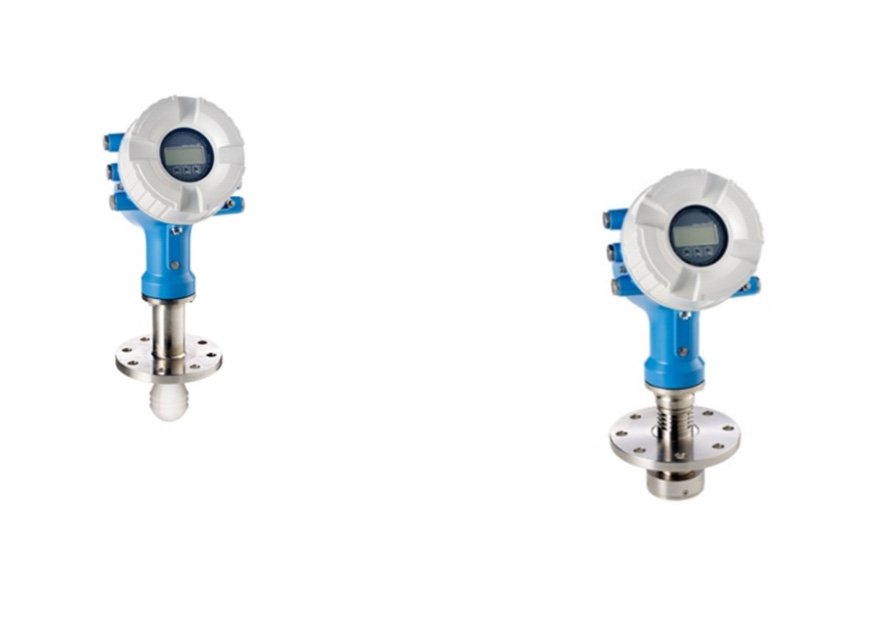

Micropilot NMR81 is used for custody transfer and inventory control applications with NMi- and PTB-approvals and meets the requirements according to OIML R85 and API 3.1B. NMR81 is particularly suited for free space applications up to 70m. The drip-off lens antenna with 80 GHz transmitting frequency produces a sharply focused beam angle of 3° and avoids obstacles even close to tank wall.
80GHz drip-off lens antenna suited for free space applications up to 70m offers high beam focusing for applications with nozzle situated close to tank wall.
Process connections: Flanges
Temperature: -40 to +170°C (-40 to +338°F)
Pressure: Vacuum to +16bar (Vacuum to +232psi)
Maximum measuring range: 70m (230ft)
Accuracy: ±0.5mm (±0.02")
Transmitting frequency: 80GHz
International explosion protection and custody transfer certificates, overfill prevention WHG, SIL

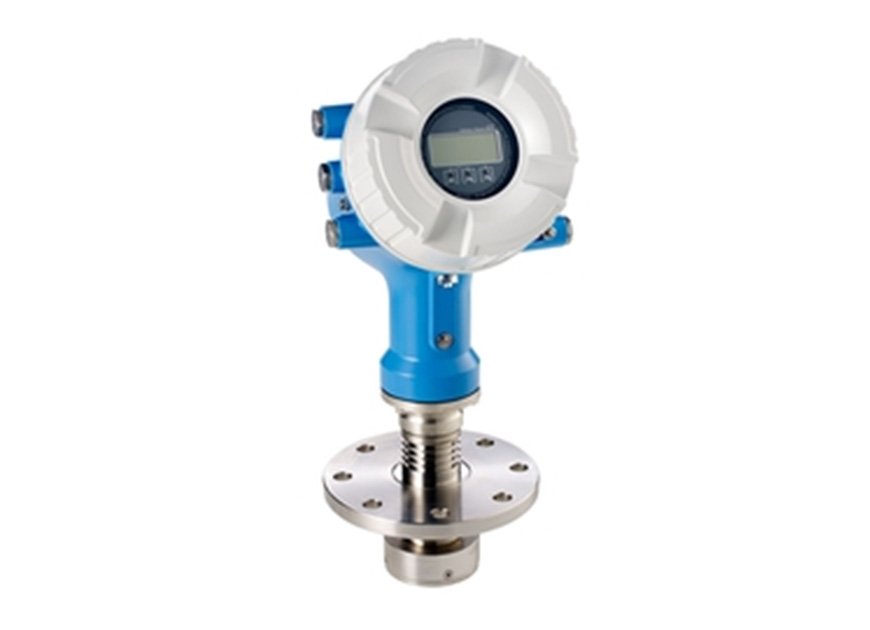

Micropilot NMR84 is used for custody transfer and inventory control applications with NMi- and PTB-approvals. It meets the relevant requirements according to OIML R85 and API 3.1B. The NMR84 free space radar with drip-off planar antenna is specifically suited for stilling well applications. The superior drip-off antenna design with proven track record eliminates problems caused by condensation.
Process connections: Flanges
Temperature: -40 to +150°C (-40 to +302°F)
Pressure: Vacuum to +25bar (Vacuum to +362psi)
Maximum measuring range: 40m (131ft)
Accuracy: ±0.5mm (±0.02")
Transmitting frequency: 6GHz
International explosion protection and custody transfer certificates, overfill prevention WHG, SIL
Specification Category | Micropilot NMR81 | Micropilot NMR84 |
Product Model | Micropilot NMR81 | Micropilot NMR84 |
Measurement Principle | 80 GHz FMCW (Frequency-Modulated Continuous Wave) radar, non-contact | 6 GHz FMCW radar, non-contact |
Antenna Type | Drop antenna (lens antenna), 3° narrow beam angle | Planar drip-off antenna, specifically designed for stilling wells |
Main Application | Free-space liquid level measurement, custody transfer, inventory control | Liquid level measurement in stilling wells / inner pipes, custody transfer |
Accuracy | ±0.5 mm (for ranges ≤30 m) | ±0.5 mm |
Max Measuring Range | 70 m (230 ft) | 40 m (131 ft) |
Process Temperature | -40 … +200 °C (-40 … 392 °F) | -40 … +150 °C (-40 … 302 °F) |
Process Pressure | Vacuum … +16 bar abs (Vacuum … +232 psi) | Vacuum … +25 bar abs (Vacuum … +362 psi) |
Dielectric Constant (εr) | ≥ 1.9 | ≥ 1.5 |
Process Connection | Flanged: DN50 (2"), DN80 (3"), DN100 (4") | Flanged: DN100 (4"), DN150 (6"), DN200 (8"), DN250 (10"), DN300 (12") |
Wetted Parts | 316L stainless steel, PTFE | 316L stainless steel, PTFE |
Process Sealing | FFKM (-20…+200 °C), FKM GLT (-40…+200 °C) | HNBR (-30…+150 °C) |
Power Supply | 10 … 30 V DC (2-wire loop-powered) | 10 … 30 V DC (2-wire loop-powered) |
Output Signals | • 4…20 mA HART (analog + digital) • Modbus RS485• Switch output | • 4…20 mA HART (analog + digital) • Modbus RS485• Switch output |
Communication | HART 5/7, Modbus RS485 | HART 5/7, Modbus RS485 |
Display | Local LCD with backlight | Local LCD with backlight |
Ingress Protection | IP66 / IP68 | IP66 / IP68 |
Ambient Temperature | -25 … +55 °C (-13 … 131 °F) | -25 … +55 °C (-13 … 131 °F) |
Safety Certification | SIL 2 (single), SIL 3 (homogeneous redundancy) | SIL 2 (single), SIL 3 (homogeneous redundancy) |
Custody Transfer Approval | NMi, PTB, OIML R85, API 3.1B | NMi, PTB, OIML R85, API 3.1B |
Housing Material | Stainless steel (1.4404 / 316L) | Stainless steel (1.4404 / 316L) |
Vibration Resistance | 20 … 2000 Hz, 4.5 g (DIN EN 60068-2-64) | 20 … 2000 Hz, 4.5 g |
EMC | IEC 61326 Class B, NAMUR NE21 | IEC 61326 Class B, NAMUR NE21 |
Packaging: Original box
