Flowmeter optimized for requirements of high-pressure mating pipes
• Preferred measuring principle for wet/saturated/ superheated steam, gases & liquids (also cryogenic)
• The specialist for applications with high process pressure Device properties
• Saturated steam mass flow up to PN 250 (Class 1500) Full compliance with NACE (MR0175/MR0103)
• Flexible positioning of pressure cell
• Display module with data transfer function
• Robust dual-compartment housing
• Plant safety: worldwide approvals (SIL, Haz. Area)
• Better process control – integrated temperature and pressure measurement for steam and gases Increased mechanical integrity for flow measurement – special sensor design
• Same accuracy down to Re 10000 – most linear Vortex meter body
• Long-term stability – robust drift-free capacitive sensor
• Convenient device wiring – separate connection compartment, various output options including Ethernet
• Safe operation – no need to open the device due to display with touch control, background lighting
• Integrated verification – Heartbeat Technology
Specification | Details |

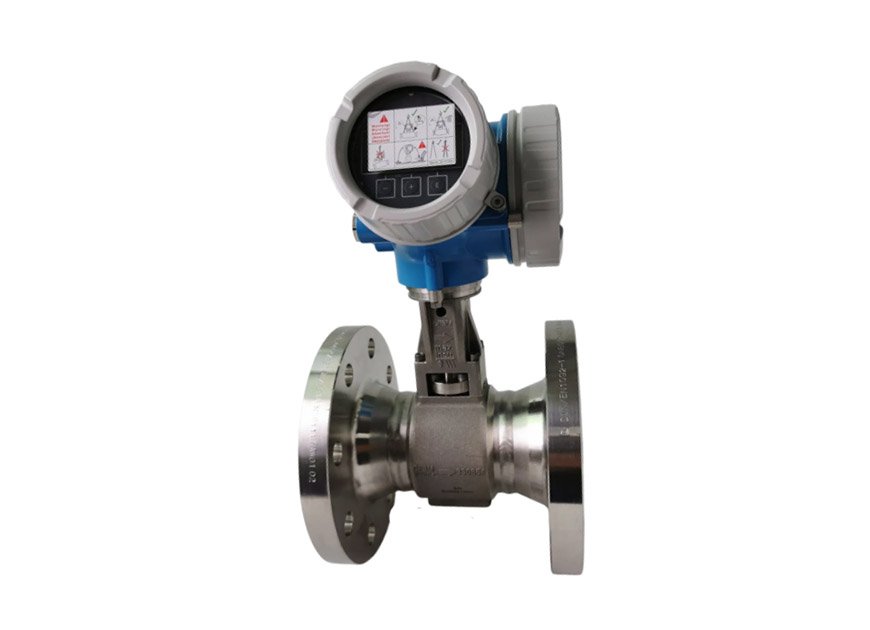

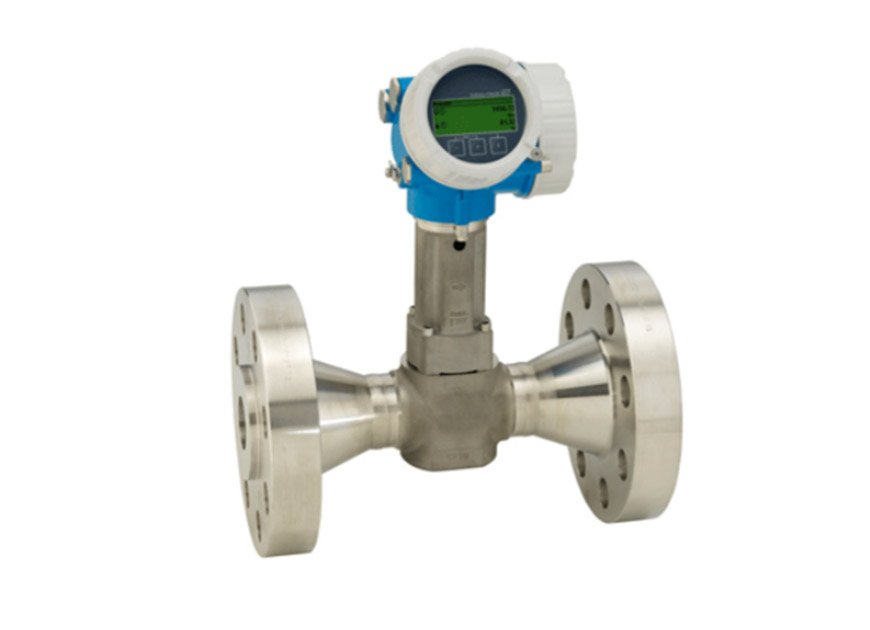

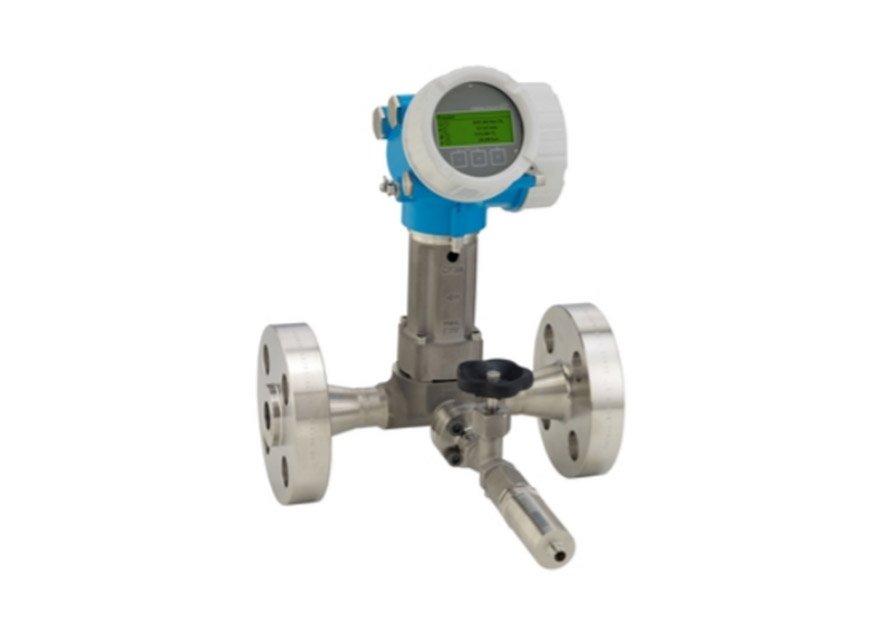

Product Model | Proline Prowirl O200 (7O2C) Vortex Flowmeter (High-pressure version) |
Measurement Principle | Von Kármán vortex street principle, with integrated temperature sensor (optional pressure sensor) |
Measured Media | Liquids, gases, saturated steam, superheated steam, wet steam, cryogenic media |
Nominal Diameter (DN) | DN 25 ... DN 150 (1" ... 6") |
Accuracy (Volume Flow) | • Liquids: ±0.75% of measured value• Steam / Gas: ±1.00% of measured value |
Accuracy (Mass Flow) | • Liquids: ±0.85% • Saturated steam (temp compensated): ±1.7% • Saturated steam (temp/pressure compensated): ±1.5% • Superheated steam/gas (temp/pressure compensated): ±1.5% |
Flow Range | • Liquids: 0.2 ... 1895 m³/h • Steam / Gas: 1.5 ... 25285 m³/h |
Turndown Ratio | Up to 100:1 (depending on medium & process) |
Medium Temperature | • Standard: –40 °C ... +260 °C • PN 63~160 / Class 600: –200 °C ... +400 °C • PN 250 / Class 900~1500: –50 °C ... +400 °C |
Max Process Pressure | PN 250 / Class 1500 / 40K (High-pressure design) |
Wetted Materials | • Measuring tube: 1.4408 (CF3M), 1.4571 (316Ti) • DSC Sensor: UNS N07718 (Alloy 718), Grade 5 Titanium • Process connection: 1.4404 (F316/F316L) |

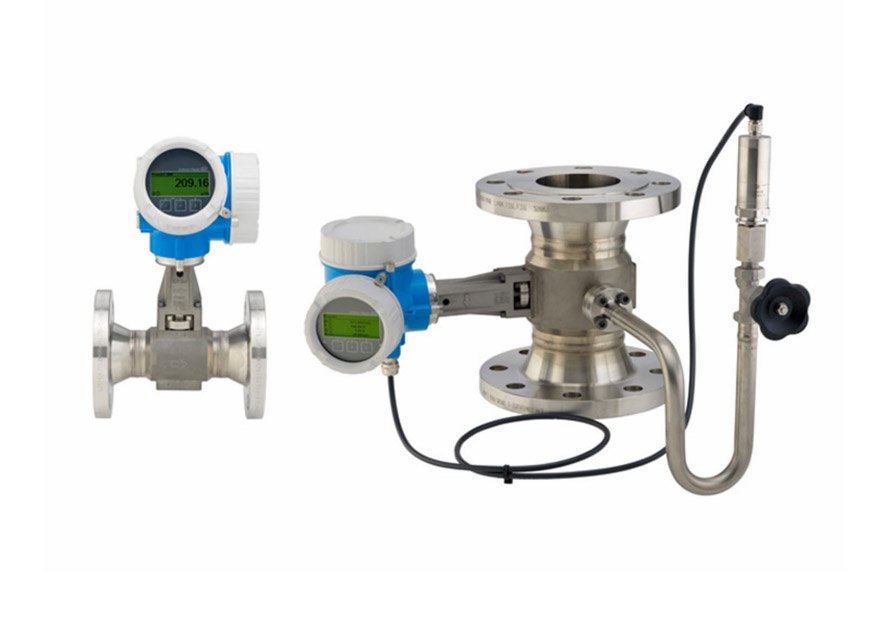

Mounting | Integral (C), Remote (R) |
Power Supply | 12 ... 35 VDC (4–20 mA HART)9 ... 32 VDC (PROFIBUS PA) |
Analog Output | 4 ... 20 mA DC, galvanically isolated, HART 7 compatible |
Digital Communication | HART 7, PROFIBUS PA (optional) |
Discrete I/O | Pulse / frequency output, status output, binary input |
Display | Backlit LCD with touch keys, multi-line, no need to open housing |
Ambient Temperature | –40 °C ... +65 °C |
Enclosure Rating | IP67, IP68 (optional) |
Special Features | • High-pressure rated (up to PN250 / Class1500) • Integrated temperature measurement (optional pressure) • Heartbeat™ self-diagnosis & verification • Wet steam detection & alarm • Vibration & water hammer resistant • SIL 2 / SIL 3 certified (IEC 61508) • NACE MR0175/MR0103 compliant |
Hazardous Area | ATEX, IECEx, FM, CSA, cCSAus |
Key Applications | High-pressure steam systems, gas pipelines, boiler circuits, energy metering, critical high-pressure processes |

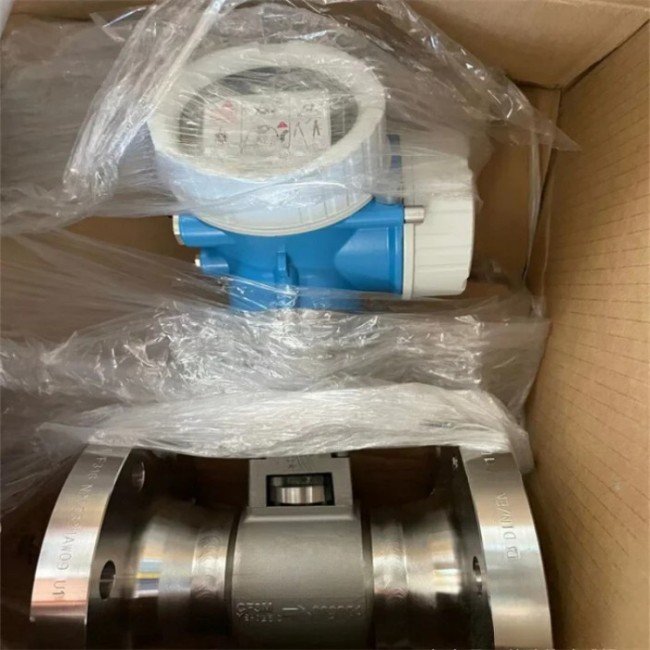

Packaging: Original box
