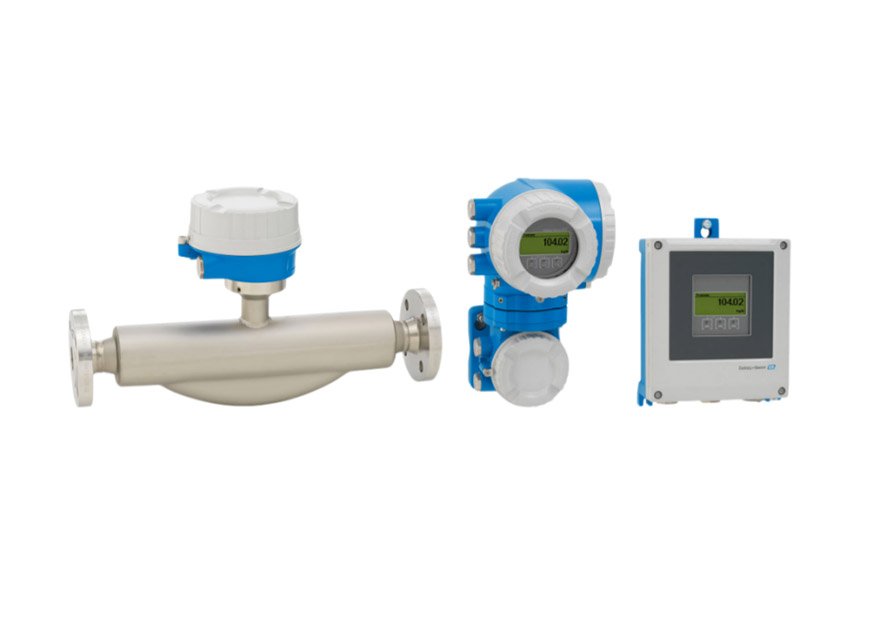

Flowmeter with premium accuracy and robustness, as remote version with up to 4 I/Os
Application
• Measuring principle operates independently of physical medium properties such as viscosity or density
• Highest measurement performance for liquids and gases under varying, demanding process conditions
Device properties
• Mass flow: measurement error ±0.05 % (PremiumCal)
• Medium temperature: –196 to +350 °C (–320 to +662 °F)
• Nominal diameter: DN 8 to 250 (³⁄₈ to 10")
• Remote version with up to 4 I/Os
• Backlit display with touch control and WLAN access
• Standard cable between sensor and transmitter
Your benefits
• Highest process safety – immune to fluctuating and harsh environments
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality
• Integrated verification – Heartbeat Technology

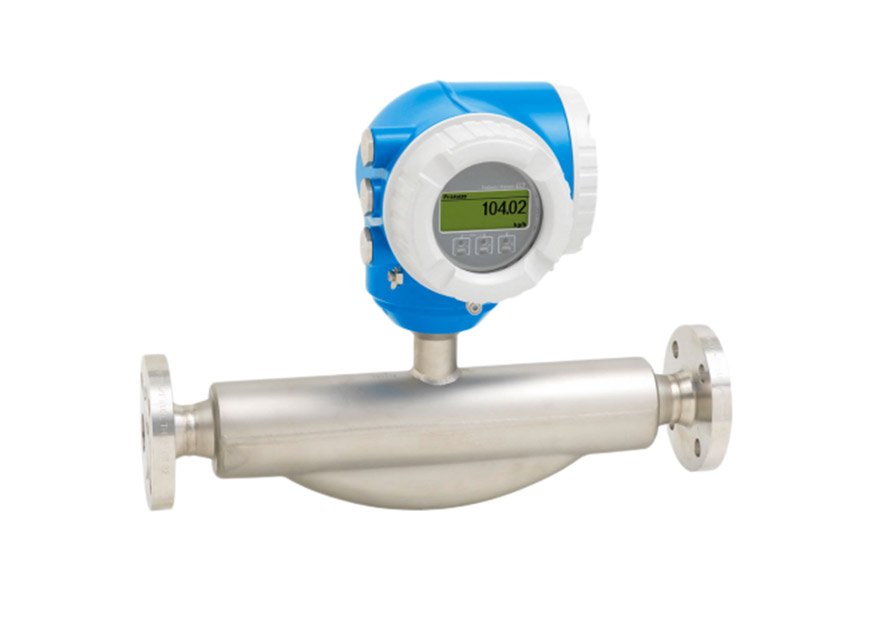

Flowmeter with premium accuracy, robustness and a compact, easily accessible transmitter
Application
• Measuring principle operates independently of physical medium properties such as viscosity or density
• Highest measurement performance for liquids and gases under varying, demanding process conditions
Device properties
• Mass flow: measurement error ±0.05 % (PremiumCal)
• Medium temperature: –196 to +350 °C (–320 to +662 °F)
• Nominal diameter: DN 8 to 250 (³⁄₈ to 10")
• Compact dual‐compartment housing with up to 3 I/Os
• Backlit display with touch control and WLAN access
• Remote display available
Your benefits
• Highest process safety – immune to fluctuating and harsh environments
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Full access to process and diagnostic information –numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality
• Integrated verification – Heartbeat Technology

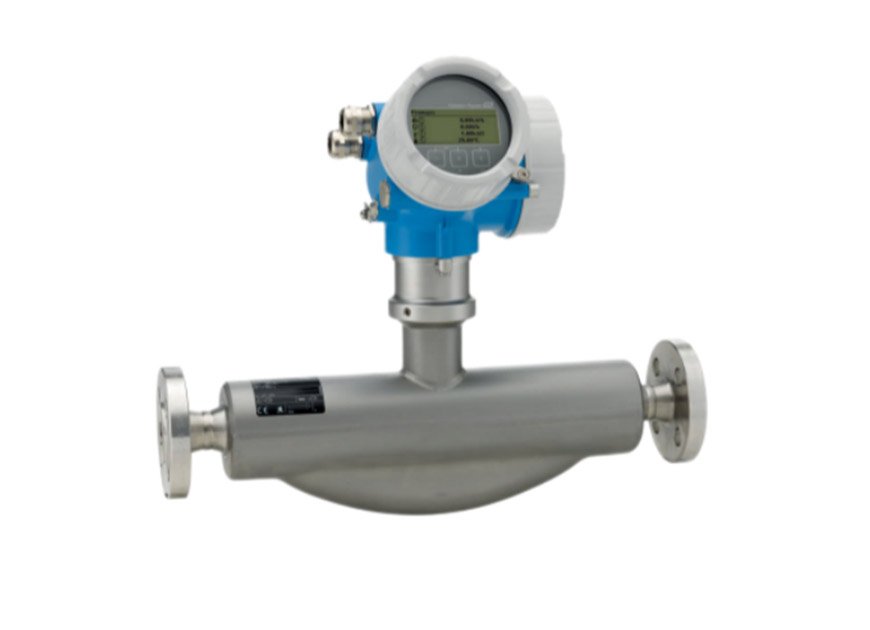

Robust flowmeter with genuine loop-powered technology
Application
• Measuring principle operates independently of physical medium properties such as viscosity or density
• Highest measurement performance for liquids and gases in a wide range of applications
Device properties
• Mass flow: measurement error ±0.1 %
• Medium temperature: 205 °C (401 °F)
• Nominal diameter: DN 8 to 80 (³⁄₈ to 3")
• Loop-powered technology
• Robust dual‐compartment housing
• Plant safety: worldwide approvals (SIL, Haz. area)
Your benefits
• Highest process safety – immune to fluctuating and harsh environments
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Convenient device wiring – separate connection compartment
• Safe operation – no need to open the device due to display with touch control, background lighting
• Integrated verification – Heartbeat Technology

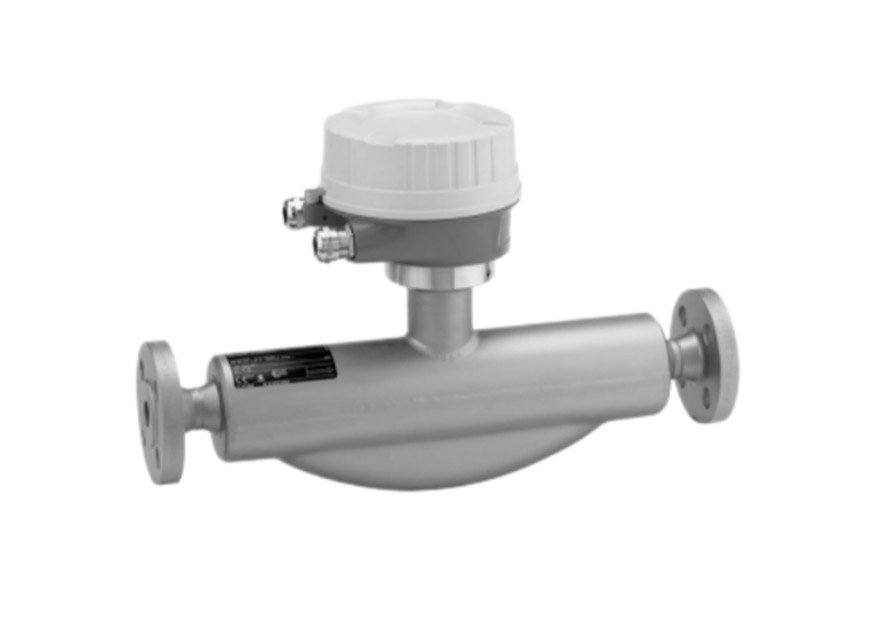

The flowmeter with premium accuracy, robustness and an ultra-compact transmitter
Application
Measuring principle operates independently of physical
medium properties such as viscosity or density
Device properties
• Mass flow: measurement error ±0.05 % (PremiumCal)
• Nominal pressure of sensor housing up to 40 bar (580 psi)
• Nominal diameter: DN 8 to 250 (³⁄₈ to 10")
• Robust, ultra-compact transmitter housing
• Highest degree of protection: IP69
• Local display available
Your benefits
• Highest process safety – immune to fluctuating and harsh environments
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Space‐saving transmitter – full functionality on smallest footprint
• Time‐saving local operation without additional software and hardware – integrated web server
• Integrated verification – Heartbeat Technology
Specification | 8F1B (Promass F 100) | 8F2B (Promass F 200) | 8F3B (Promass F 300) | 8F5B (Promass F 500) |
Product Series | Proline Promass F 100 | Proline Promass F 200 | Proline Promass F 300 | Proline Promass F 500 |
Measuring Principle | Coriolis effect, twin bent tube design | Coriolis effect, twin bent tube design | Coriolis effect, twin bent tube design | Coriolis effect, twin bent tube design |
Measured Variables | Mass flow, volume flow, density, temperature | Mass flow, volume flow, density, temperature | Mass flow, volume flow, density, temperature | Mass flow, volume flow, density, temperature |
Nominal Diameter (DN) | DN 2 ~ DN 25 (1/12" ~ 1") | DN 15 ~ DN 50 (½" ~ 2") | DN 2 ~ DN 50 (1/12" ~ 2") | DN 2 ~ DN 80 (1/12" ~ 3") |
Applicable Media | Liquids, gases, low-viscosity fluids; general-purpose | Liquids, gases; intrinsically safe Ex zone compatible | Liquids, gases, low to medium viscosity & slightly aggressive fluids | Liquids, gases, viscous, high-purity & corrosive media |
Mass Flow Accuracy (Liquid) | ±0.15 % o.r. | ±0.15 % o.r. | ±0.10 % o.r. | ±0.05 % o.r. (PremiumCal optional) |
Mass Flow Accuracy (Gas) | ±0.75 % o.r. | ±0.75 % o.r. | ±0.50 % o.r. | ±0.35 % o.r. |
Density Accuracy | ±0.001 g/cm³ | ±0.001 g/cm³ | ±0.0005 g/cm³ | ±0.0002 g/cm³ |
Process Temperature Range | −50 °C … +150 °C | −50 °C … +150 °C | −50 °C … +150 °C | −50 °C … +200 °C |
Maximum Process Pressure | PN 40 / Class 300 | PN 40 / Class 300 | PN 100 / Class 600 | PN 100 / Class 600 |
Wetted Materials | Standard: 1.4435 (316L stainless steel); Optional: Alloy C22, Tantalum | Standard: 1.4435 (316L); Optional: Alloy C22 | Standard: 1.4435 (316L); Optional: Alloy C22, Tantalum | Standard: 1.4435 (316L); High-alloy material options available |
Process Connection | Thread, hygienic clamp (Tri-Clamp), compact flange | Hygienic clamp, DIN 11851, SMS, compact flange | Thread, hygienic clamp, flange, DIN 11851, SMS | Standard flange, high-pressure flange, hygienic clamp, remote sensor |
Transmitter Design | Ultra-compact integral transmitter | Compact integral two-chamber transmitter | Compact integral dual-compartment transmitter | Modular integral / remote mount transmitter |
Power Supply | 100~230 VAC / 18~30 VDC | Loop-powered (4-20 mA passive) only | 100~230 VAC / 18~30 VDC | 100~230 VAC / 18~30 VDC |
Output & Communication | 4-20 mA HART, Pulse / Frequency, Modbus RTU | 4-20 mA HART (passive), Pulse / Frequency | 4-20 mA HART, Pulse, Modbus RTU, PROFIBUS PA, FF | HART 7, PROFINET, EtherNet/IP, FOUNDATION Fieldbus (FF), Digital I/O |
Enclosure Rating | IP66 / IP67 / NEMA 4X | IP66 / IP67 / NEMA 4X | IP66 / IP67 / NEMA 4X | IP67 / IP69K / NEMA 4X |
Ambient Temperature Range | −20 °C … +60 °C | −20 °C … +60 °C | −40 °C … +60 °C | −40 °C … +60 °C |
Global Approvals & Certifications | CE, ATEX, IECEx | CE, ATEX, IECEx, SIL 2 | CE, ATEX, IECEx, FM, CSA, SIL 2/3 | CE, ATEX, IECEx, FM, CSA, SIL 2/3, PED, USP Class VI |
Key Core Features | Micro-flow compatible, compact footprint, easy installation, Heartbeat Technology | Intrinsically safe, loop-powered, no external power required, Ex zone compatible | Multi-signal output, remote display compatible, robust general-purpose performance | High-precision custody transfer grade, remote installation flexibility, full diagnostic functions |
Typical Applications | Micro-dosing, laboratory analysis, small-scale skids, auxiliary pipelines | Intrinsically safe Ex zones, loop-powered general pipelines | General industry, chemical, food & beverage, dairy, brewery, utility | High-precision batching, custody transfer, critical process control, high-purity applications |
Packaging: Original box
