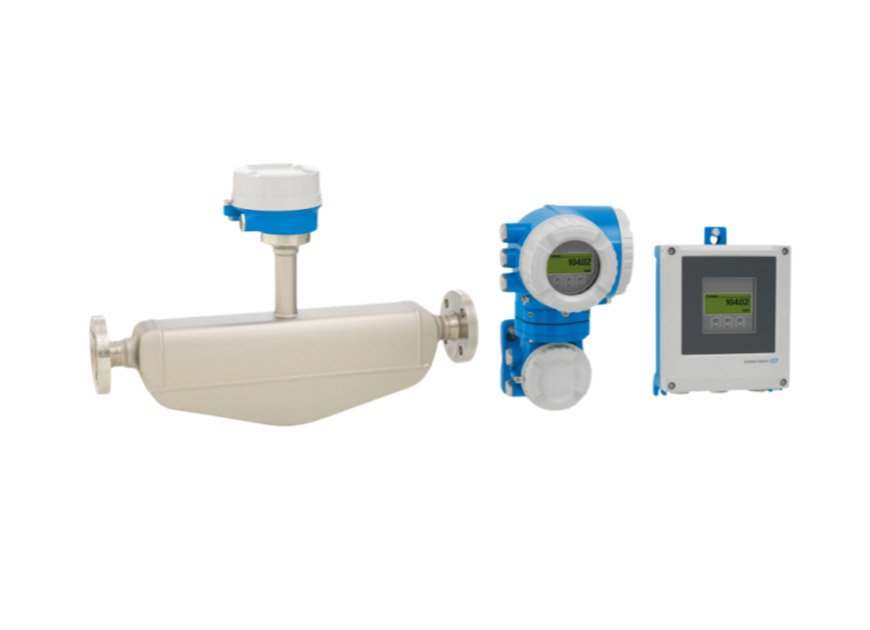

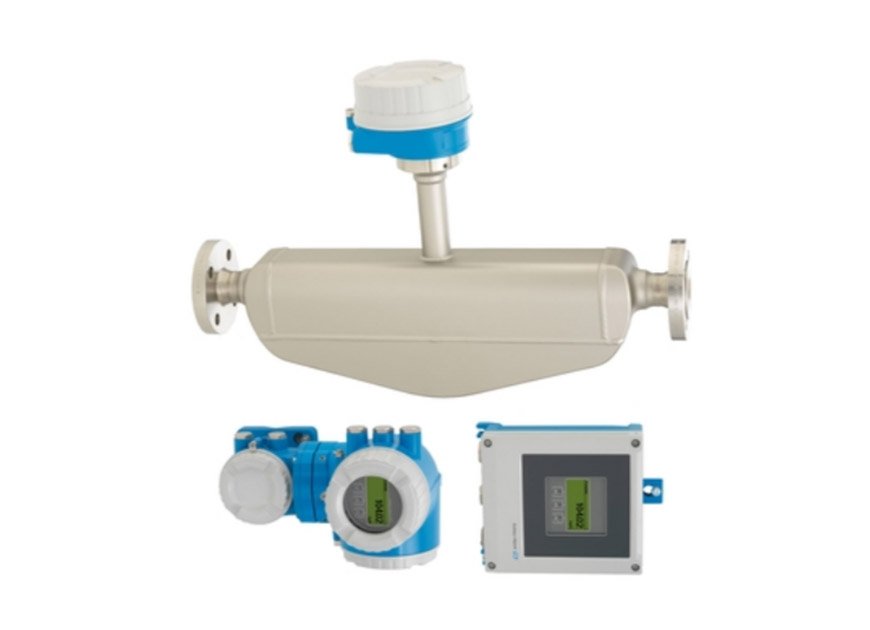

Chemically resistant single-tube flowmeter, as remote version with up to 4 I/Os
Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Measuring highly accurately liquids and gases in applications requiring highest corrosion resistance Device properties
• Measuring tube made of Tantalum, Zirconium
• Nominal diameter: DN 8 to 50 (³⁄₈ to 2")
• Medium temperature up to +205 °C (+401 °F)
• Remote version with up to 4 I/Os
• Backlit display with touch control and WLAN access
• Standard cable between sensor and transmitter
Your benefits
• Maximum safety for chemically aggressive fluids – corrosion-resistant wetted parts
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality
• Integrated verification – Heartbeat Technology

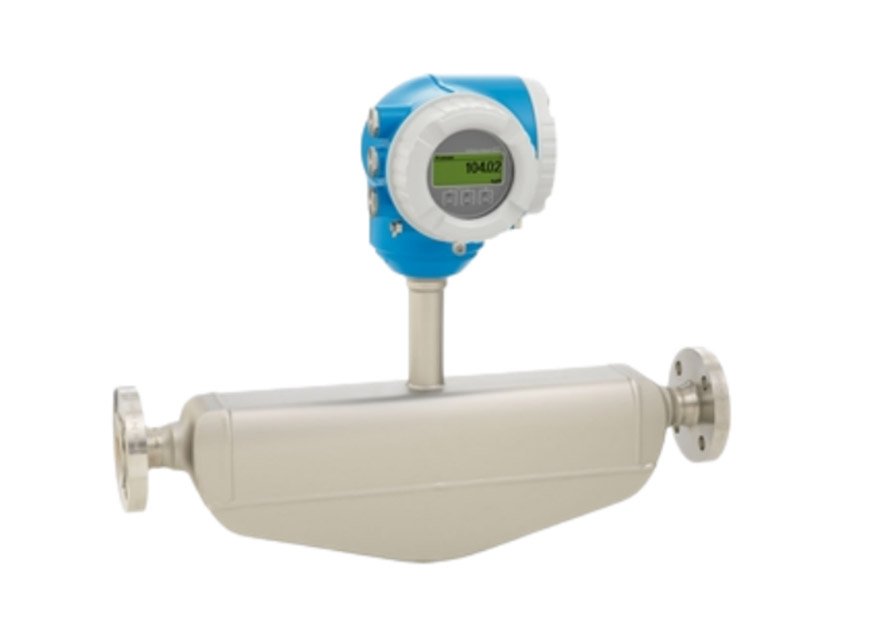

Chemically resistant single-tube flowmeter with a compact, easily accessible transmitter
Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Measuring highly accurately liquids and gases in applications requiring highest corrosion resistance Device properties
• Measuring tube made of Tantalum, Zirconium
• Nominal diameter: DN 8 to 50 (³⁄₈ to 2")
• Medium temperature up to +205 °C (+401 °F)
• Compact dual-compartment housing with up to 3 I/Os
• Backlit display with touch control and WLAN access
• Remote display available
Your benefits
• Maximum safety for chemically aggressive fluids – corrosion-resistant wetted parts
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality
• Integrated verification – Heartbeat Technology
Specification | 8H3B (Promass H 300) | 8H5B (Promass H 500) |
Model Series | Proline Promass H 300 | Proline Promass H 500 |
Measuring Principle | Coriolis effect, single straight tube | Coriolis effect, single straight tube |
Measured Variables | Mass flow, volume flow, density, temperature | Mass flow, volume flow, density, temperature |
Nominal Diameter (DN) | DN 8 ... DN 50 (3/8" ... 2") | DN 8 ... DN 50 (3/8" ... 2") |
Accuracy (Liquid) | Mass: ±0.10% o.r.Volume: ±0.10% o.r.Density: ±0.0005 g/cm³ | Mass: ±0.10% o.r.Volume: ±0.10% o.r.Density: ±0.0005 g/cm³ |
Accuracy (Gas) | ±0.50% o.r. (Tantalum only) | ±0.50% o.r. (Tantalum only) |
Process Temp. Range | Tantalum: -50 ... +150 °CZirconium: -50 ... +205 °C | Tantalum: -50 ... +150 °CZirconium: -50 ... +205 °C |
Max. Process Pressure | PN 40 / Class 300 / 20K | PN 40 / Class 300 / 20K |
Wetted Materials | Measuring tube: Tantalum (R60702), Zirconium | Measuring tube: Tantalum (R60702), Zirconium |
Process Connections | Flanged (EN, ASME, JIS) | Flanged (EN, ASME, JIS) |
Transmitter Design | Compact (integral mount) | Remote mount (flexible installation) |
Power Supply | 16 ... 62 VDC / 85 ... 260 VAC | 16 ... 62 VDC / 85 ... 260 VAC |
Output & Communication | 4–20 mA HART, Pulse, Modbus RTUOptional: PROFIBUS PA, FF | 4–20 mA HART, Pulse, Modbus RTUOptional: PROFINET, EtherNet/IP, FF |
Enclosure Rating | IP66 / IP67 / NEMA 4X | IP66 / IP67 / NEMA 4X |
Ambient Temperature | -20 ... +60 °C | -20 ... +60 °C |
Approvals | ATEX, IECEx, FM, CSA, SIL2, CE | ATEX, IECEx, FM, CSA, SIL2, CE |
Key Features | Corrosion-resistant, compact, Heartbeat Technology | Maximum corrosion resistance, remote mount, high safety |
Typical Applications | Chemicals, aggressive fluids, standard processes | Highly corrosive media, chemical, pharmaceutical |

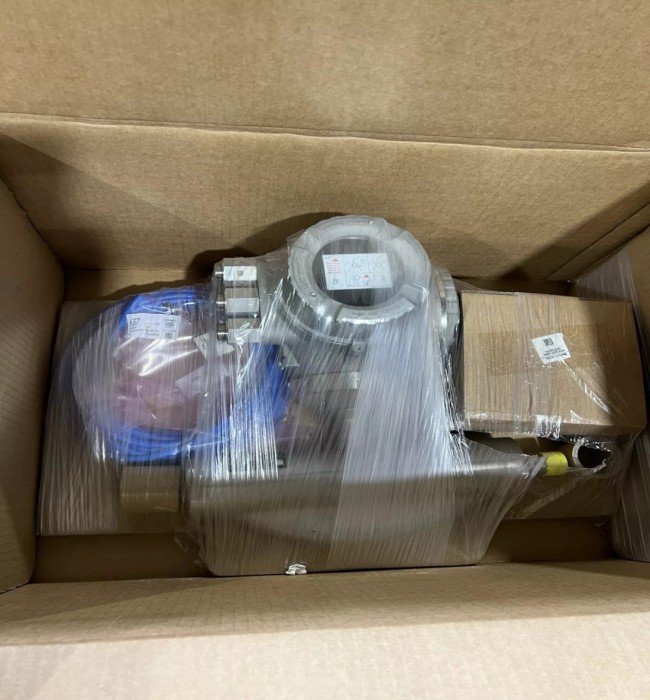

Packaging: Original box

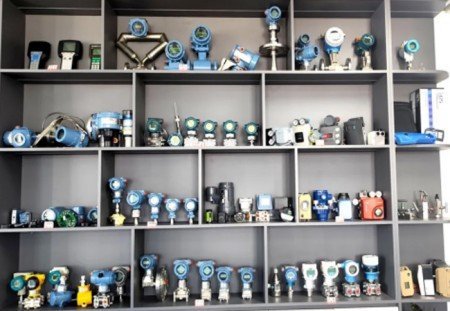

Esito (weifang) Automation Equipment Co., Ltd. specializes in industrial automation instrument development, production and sales, technical services, and supporting equipment supply of specialized companies. The main products are flow meters, level meters, temperature meters, pressure meters, electrical meters, thermal intelligent meters, programmable controllers (PLC), DCS distributed control systems, and eight series of more than 1,000 specifications. Its products and technologies are widely used in electric power, metallurgy, petrochemicals, environmental protection, plastics, food, printing, tobacco, textile, dyeing, and other fields.
