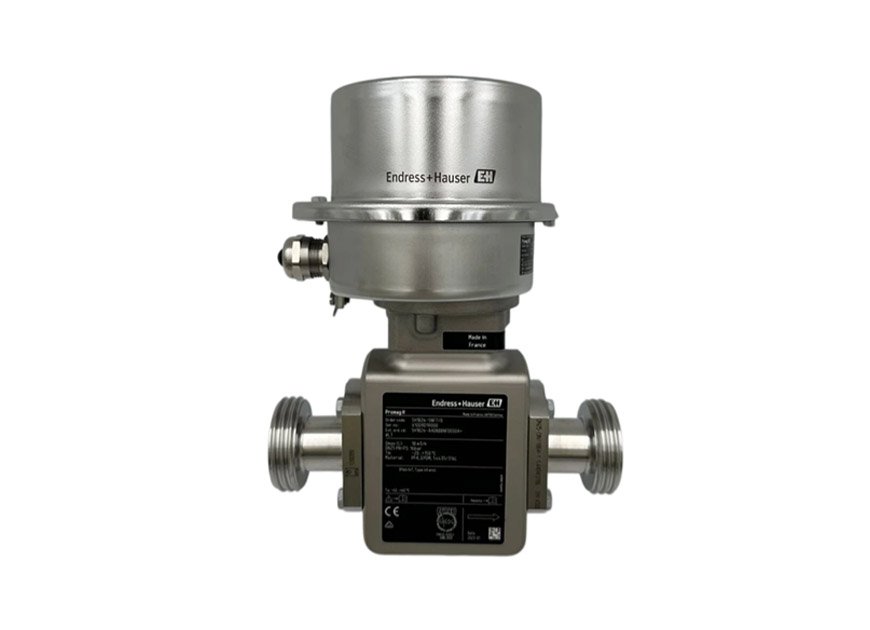

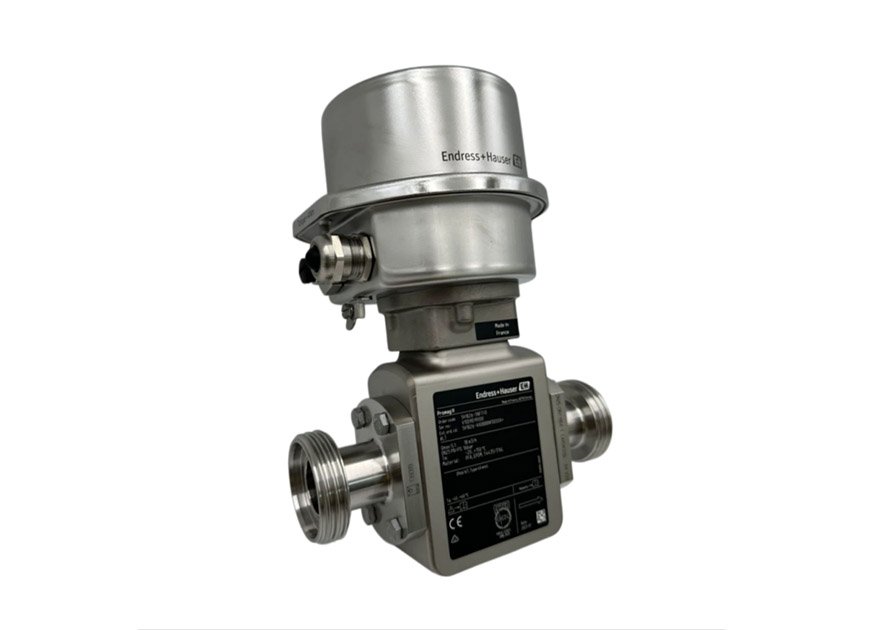

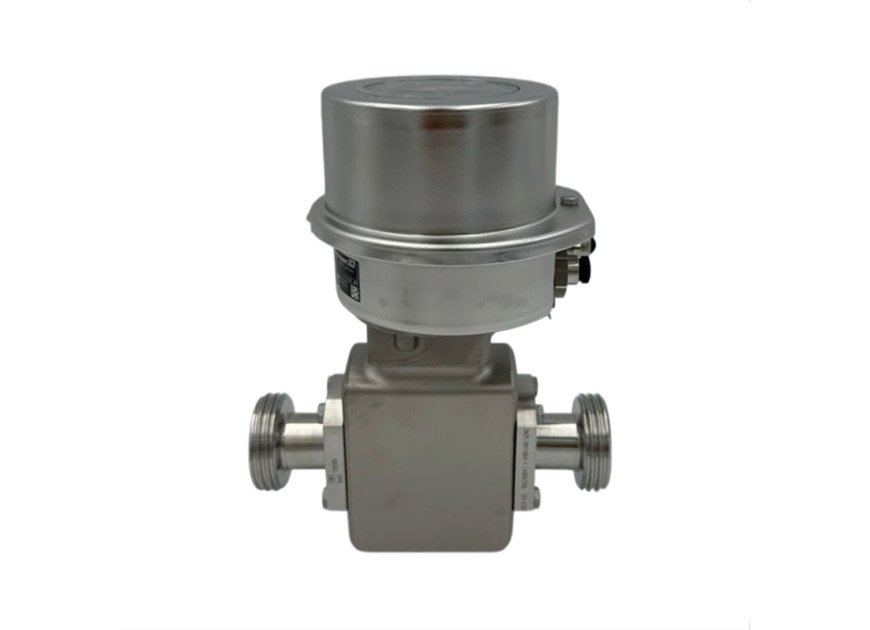

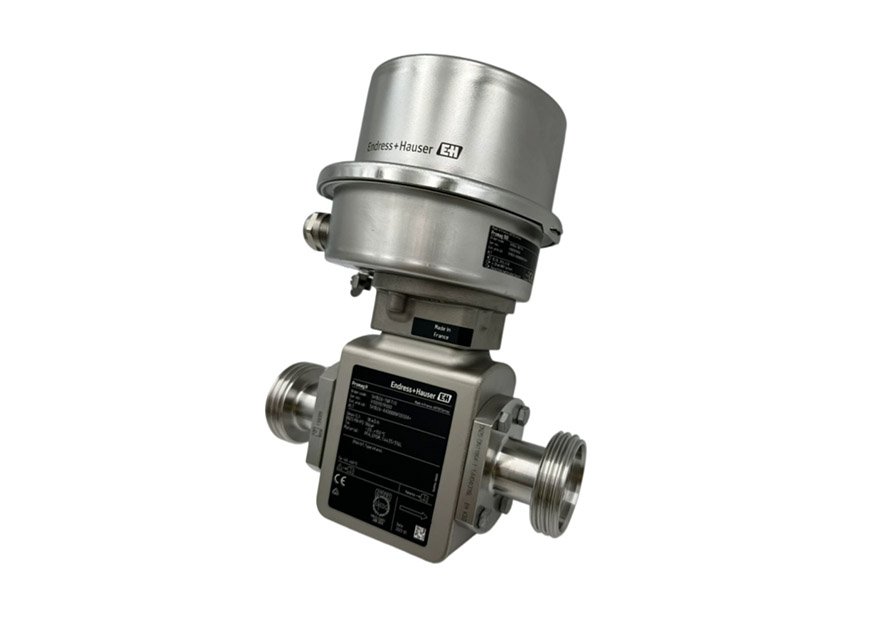

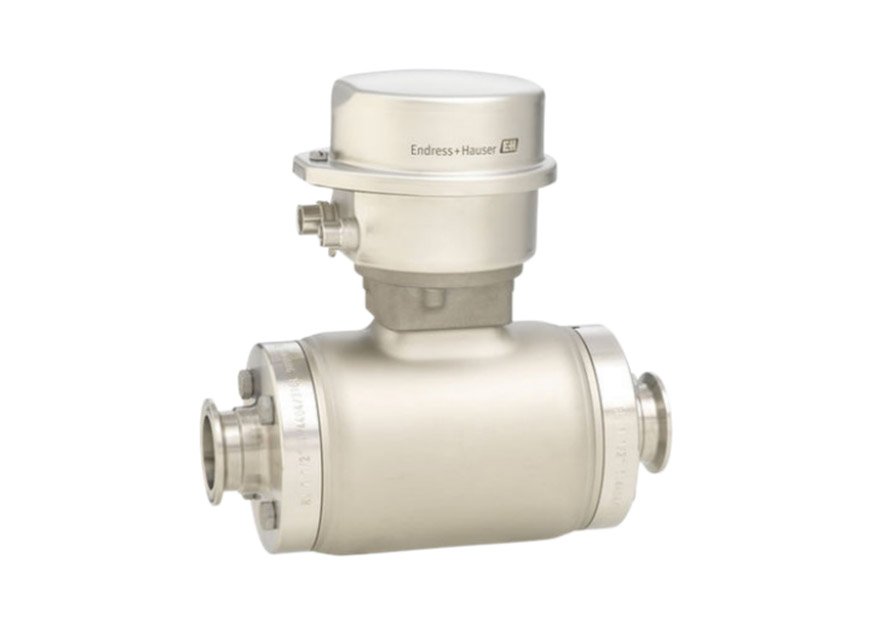

Proline Promag H 100 Electromagnetic flowmeter
The flowmeter for smallest flow rates with an ultra-compact transmitter
The flowmeter for smallest flow rates with an ultra-compact transmitter
Application
• The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
• For applications with sanitary requirements Device properties
• Integrated temperature measurement
• Sensor housing made of stainless steel (3-A, EHEDG)
• Wetted materials CIP-/SIP-cleanable
• Robust, ultra-compact transmitter housing
• Highest degree of protection: IP69K
• Local display available
Your benefits
• Flexible installation concept – numerous hygienic process connections • Maintenance-free – no moving parts
• Space‐saving transmitter – full functionality on smallest footprint • Time‐saving local operation without additional software and hardware – integrated web server
• Integrated verification – Heartbeat Technology

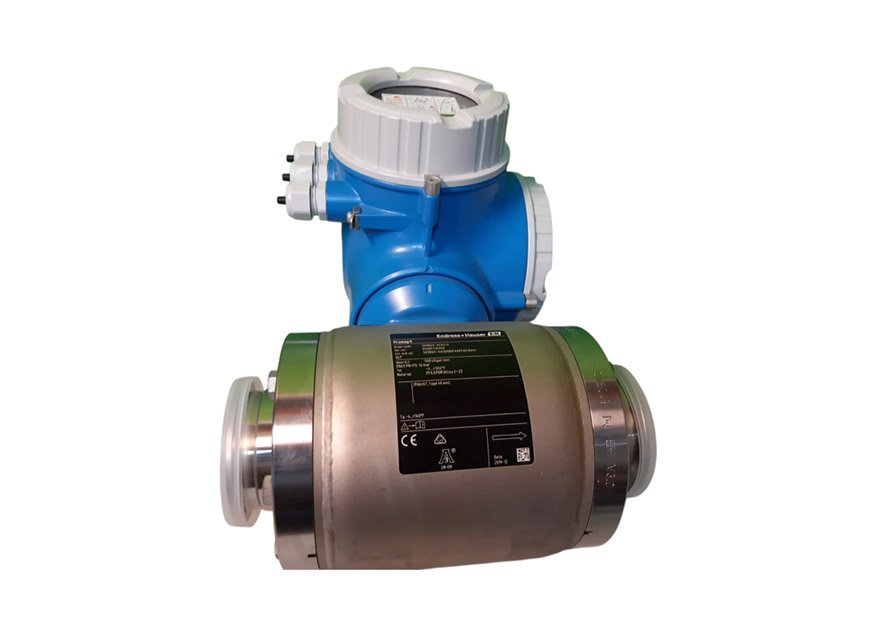

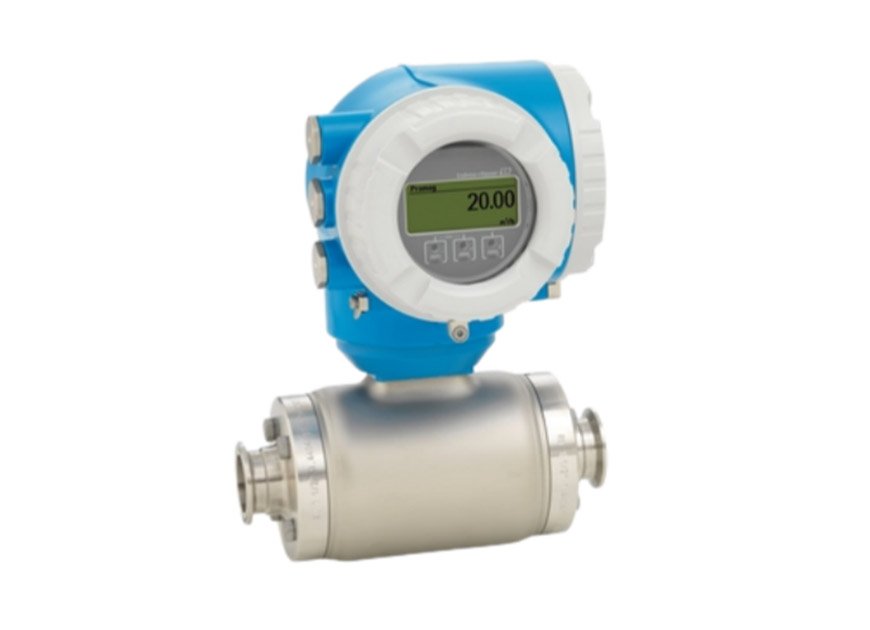

The measuring device for smallest flow rates with genuine two-wire technology
Application
• The measuring principle is virtually independent of pressure, density, temperature and viscosity
• For the smallest flow quantities and demanding hygienic applications
Device properties
• Liner made of PFA
• Sensor housing made of stainless steel (3A, EHEDG)
• Wetted materials CIP, SIP cleanable
• Loop-powered technology
• Robust two-chamber housing
• Plant safety: worldwide approvals (SIL, Haz. area)
Your benefits
• Flexible installation concept – numerous hygienic process connections
• Energy-saving flow measurement – no pressure loss due to cross-section constriction
• Maintenance-free – no moving parts
• Convenient device wiring – separate connection compartment
• Safe operation – no need to open the device due to display with touch control, background lighting
• Integrated verification – Heartbeat Technology™

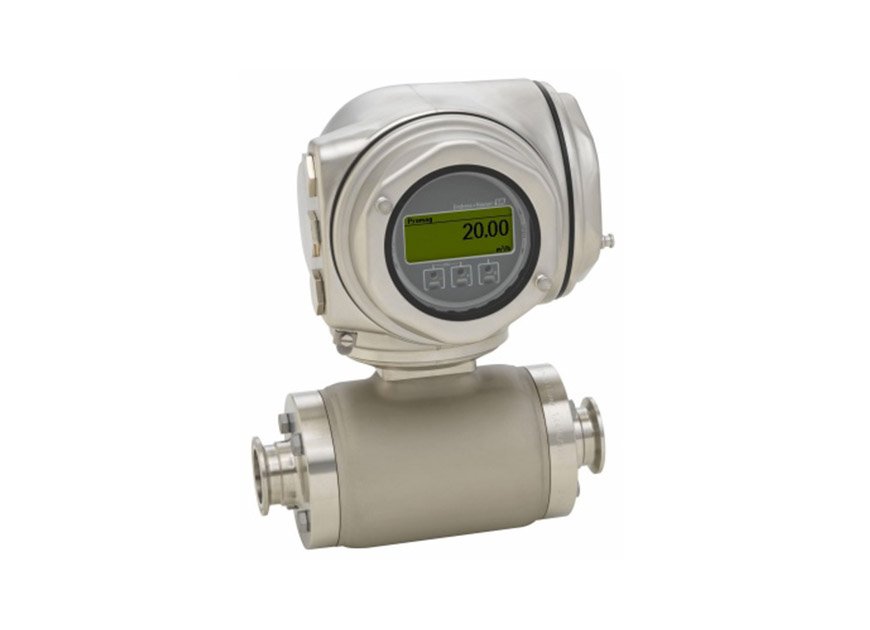

Specialist for hygienic applications with a compact, easily accessible transmitter
Applications
• The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
• For applications with hygienic requirements
Device properties
• Liner made of PFA
• Hygienic version as per 3-A, EHEDG
• Wetted materials CIP/SIP cleanable
• Compact dual‐compartment hygienic housing with IP69 and with up to 3 I/Os
• Backlit display with touch control and WLAN access
• Remote display available
Your benefits
• Flexible installation – hygienic measurement with 0 x DN inlet run and numerous process connections
• Energy-saving flow measurement – no pressure loss due to cross section constriction
• Maintenance-free – no moving parts
• Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – user-configurable I/O functionality
• Built-in verification – Heartbeat Technology

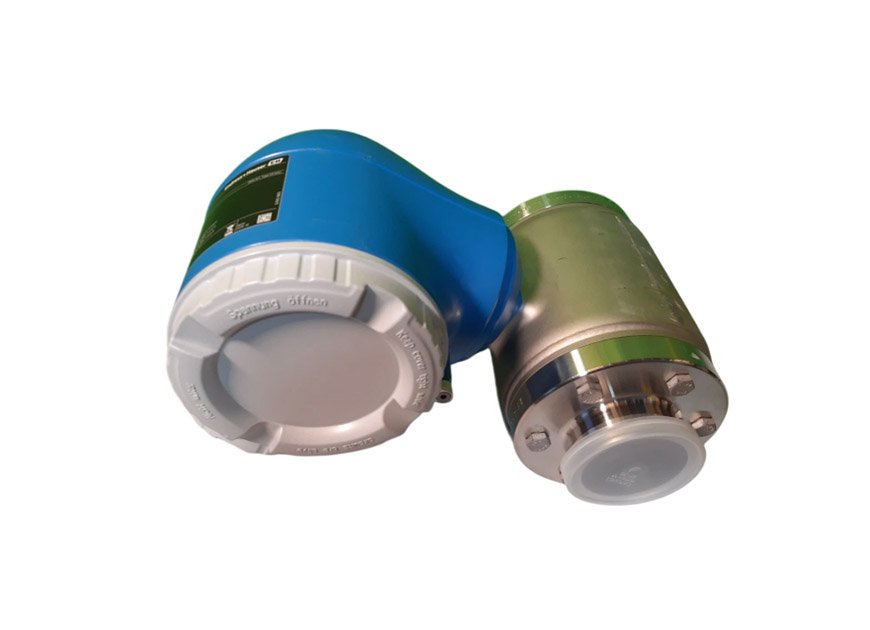

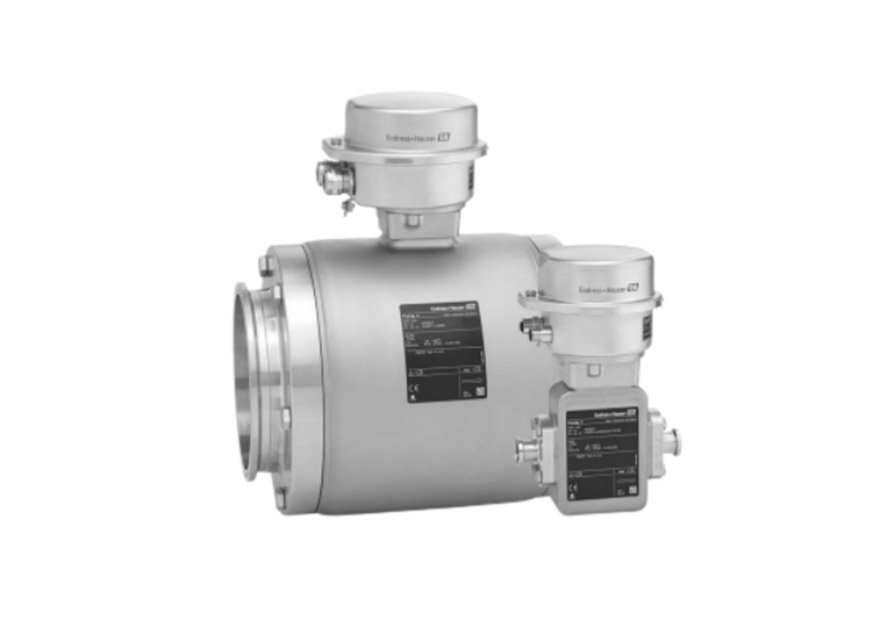

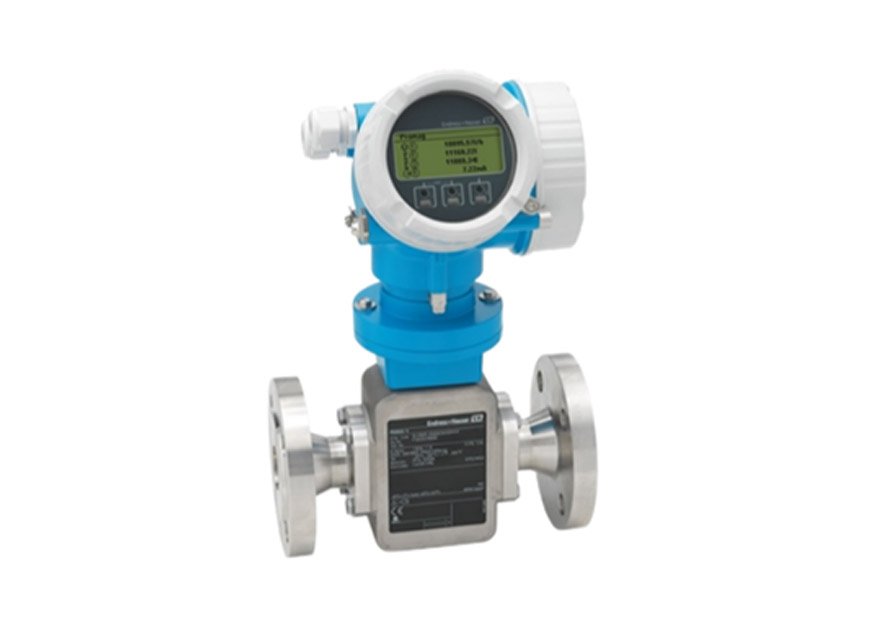

Specialist for hygienic applications, as remote version with up to 4 I/Os
Applications
• The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
• For applications with hygienic requirements
Device properties
• Liner made of PFA
• Hygienic version as per 3-A, EHEDG
• Wetted materials CIP/SIP cleanable
• Remote version with up to 4 I/Os
• Backlit display with touch control and WLAN access
• Standard cable between sensor and transmitter
Your benefits
• Multivariable measurement for flow, temperature and conductivity
• Flexible installation – hygienic measurement with 0 x DN inlet run and numerous process connections
• Energy-saving flow measurement – no pressure loss due to cross section constriction
• Maintenance-free – no moving parts
• Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – user-configurable I/O functionality
• Built-in verification – Heartbeat Technology

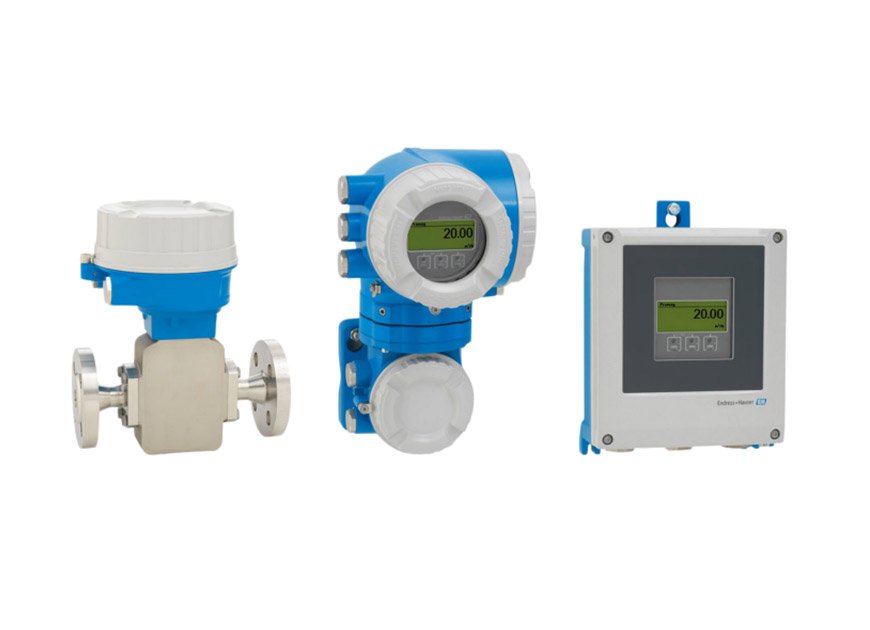

Specification | 5H1B (Promag H100, Ultra-compact) | 5H2B (Promag H200, Loop-powered) | 5H3B (Promag H300, Compact multi-IO) | 5H5B (Promag H500, High-end modular/remote) |
Product Series | Proline Promag H 100 | Proline Promag H 200 | Proline Promag H 300 | Proline Promag H 500 |
Measurement Principle | Electromagnetic induction (Faraday’s Law) | Electromagnetic induction (Faraday’s Law) | Electromagnetic induction (Faraday’s Law) | Electromagnetic induction (Faraday’s Law) |
Nominal Diameter (DN) | DN 2 ~ DN 150 (1/12" ~ 6") | DN 15 ~ DN 100 (½" ~ 4") | DN 2 ~ DN 150 (1/12" ~ 6") | DN 2 ~ DN 150 (1/12" ~ 6") |
Min. Conductivity | ≥ 5 μS/cm | ≥ 5 μS/cm | ≥ 5 μS/cm | ≥ 5 μS/cm |
Flow Velocity Range | 0.01 ~ 10 m/s | 0.01 ~ 10 m/s | 0.01 ~ 10 m/s | 0.01 ~ 10 m/s |
Accuracy (Standard) | ±0.5% o.r. ± 1 mm/s | ±0.5% o.r. ± 1 mm/s | ±0.5% o.r. ± 1 mm/s | ±0.2% o.r. ± 2 mm/s (standard) |
Accuracy (Optional) | ±0.2% o.r. ± 2 mm/s | ±0.2% o.r. ± 2 mm/s | ±0.2% o.r. ± 2 mm/s | ±0.1% o.r. ± 1 mm/s |
Process Temperature | PFA liner: -20 ~ +150 °C | PFA liner: -20 ~ +150 °C | PFA liner: -20 ~ +150 °C | PFA liner: -20 ~ +150 °C |
Max Process Pressure | PN 40, Class 150, 20K | PN 40, Class 150, 20K | PN 40, Class 150, 20K | PN 40, Class 150, 20K |
Liner Material | PFA (CIP/SIP cleanable) | PFA (CIP/SIP cleanable) | PFA (CIP/SIP cleanable) | PFA (CIP/SIP cleanable) |
Electrode Material | 316L (1.4435), Alloy C22, Tantalum, Platinum | 316L, Alloy C22, Tantalum, Platinum | 316L, Alloy C22, Tantalum, Platinum | 316L, Alloy C22, Tantalum, Platinum |
Process Connection | Hygienic clamp (Tri-Clamp), DIN 11851, SMS, RJT, thread | Hygienic clamp, DIN 11851, SMS | Hygienic clamp, DIN 11851, SMS, flange | Hygienic clamp, DIN 11851, SMS, remote sensor |
Housing Material | Stainless steel 1.4404 (316L) | Stainless steel 1.4404 (316L) | Stainless steel 1.4404 (316L) | Stainless steel 1.4404 (316L) |
Power Supply | 100~230 VAC / 18~30 VDC | Loop-powered (4-20 mA passive) only | 100~230 VAC / 18~30 VDC | 100~230 VAC / 18~30 VDC |
Output & Communication | 4-20 mA HART, Pulse, Modbus RTU | 4-20 mA HART (passive), Pulse | 4-20 mA HART, Pulse, Modbus, Profibus DP/PA, FF, PROFINET | Full: HART, Profibus, FF, PROFINET, Ethernet/IP, OPC UA |
Enclosure Rating | IP66 / IP67 / IP69K | IP66 / IP67 / IP69K | IP66 / IP67 / IP69K | IP66 / IP67 / IP69K |
Ambient Temperature | -20 ~ +60 °C | -20 ~ +60 °C | -40 ~ +60 °C | -40 ~ +60 °C |
Key Approvals | FDA, 3-A, EHEDG, CE, ATEX | FDA, 3-A, EHEDG, CE, ATEX, SIL2 | FDA, 3-A, EHEDG, CE, ATEX, SIL2/3 | FDA, 3-A, EHEDG, CE, ATEX, SIL2/3, NEPSI |
Typical Applications | Skid-mounted, compact hygienic skids | Intrinsically safe, Ex zones, loop-powered | Multi-signal, remote display, CIP/SIP | High-accuracy, remote sensor, complex network |
Packaging: Original box
