The flowmeter with outstanding abrasion resistance and integrated solids content diagnostics
• The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
• Ideal for the most demanding applications with high solids content and high abrasion Device properties
• Intensified coil system • Large range of liners
• Solids content up to 80% by weight
• 4-line backlit display with touch control
• Two switch outputs
• HART, PROFIBUS PA/DP, FOUNDATION Fieldbus
• Superb signal stability due to unique signal processing
• Maximum safety – industry-optimized measuring electrodes and linings • Energy-saving flow measurement – no pressure loss due to cross-section constriction
• Maintenance-free – no moving parts
• Highest performance – with integrated solids measurement for demanding fluids
• Highest safety – integrated electrode cleaning
• Automatic recovery of data for servicing
Specification | Details |

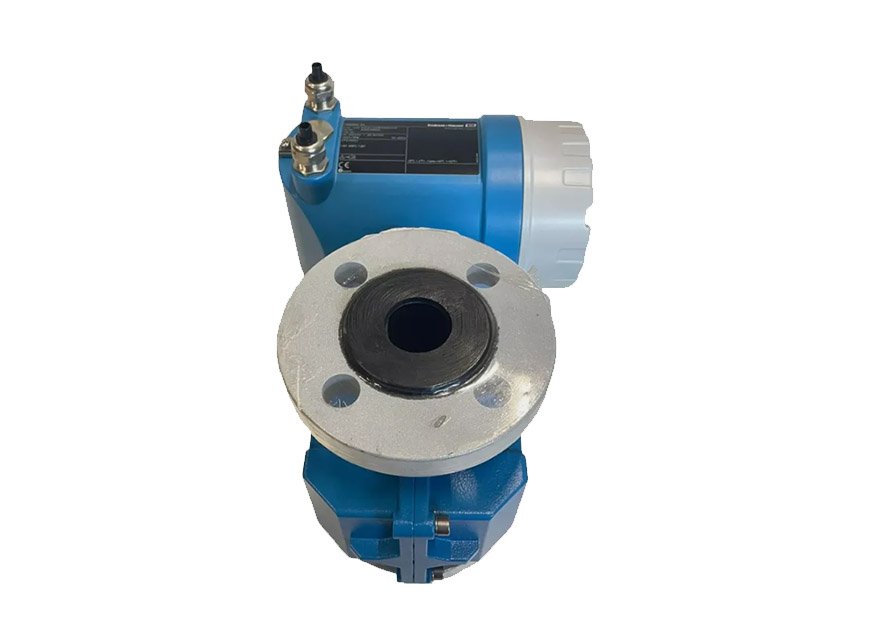

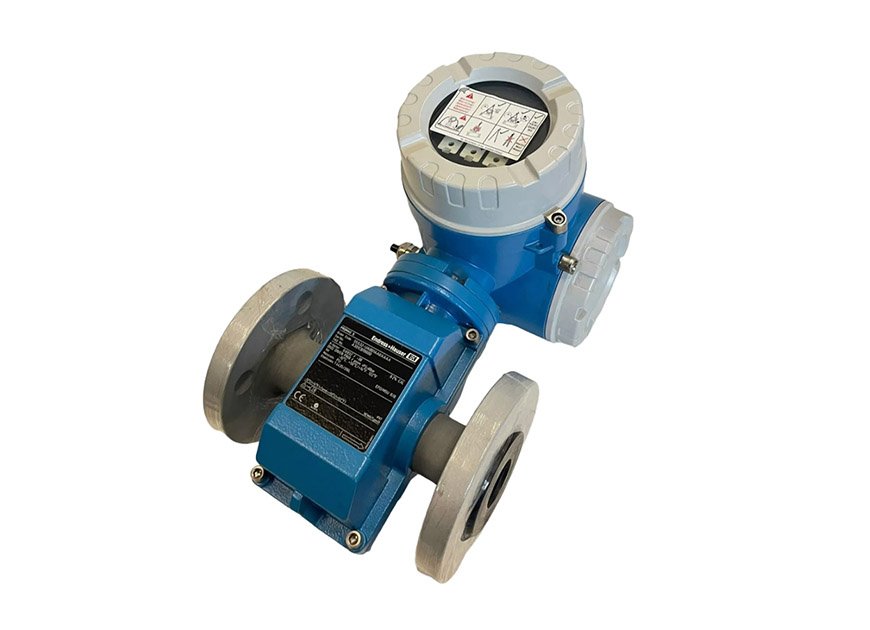

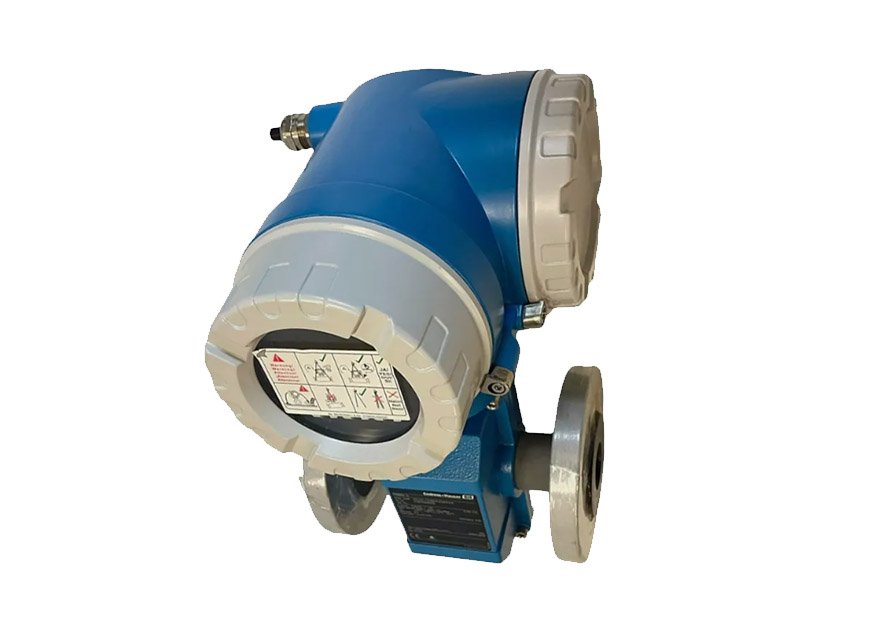

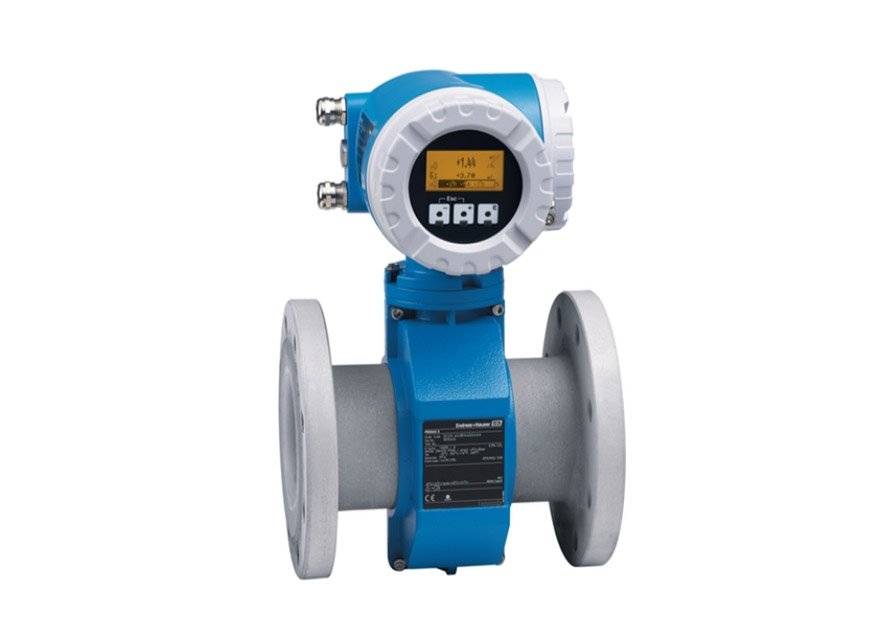

Product Model | Proline Promag 55S (5W5) |
Measurement Principle | Electromagnetic induction (Faraday's law) |
Measured Media | Inhomogeneous, abrasive, corrosive fluids; liquids with solids content up to 80% by weight |
Nominal Diameter (DN) | DN 15 … DN 600 (1/2" … 24") |
Flow Accuracy | Standard: ±0.5% o.r. ± 1 mm/s (0.04 in/s)Option: ±0.2% o.r. ± 2 mm/s (0.08 in/s) |
Flow Range | 0.06 dm³/min … 600 m³/h (0.015 gal/min … 2650 gal/min) |
Process Temperature | -20 … +180 °C (-4 … +356 °F) (multiple ranges available) |
Max Process Pressure | PN 40 / Class 300 / JIS 20K |
Wetted Materials | Liners: Polyurethane, Hard rubber, PFA, PTFE, Natural rubberElectrodes: 1.4435 (304L), Alloy C-22, Tantalum, Platinum, Duplex 1.4465, Tungsten carbide, Titanium |
Mounting Type | Flanged, wafer (optional) |
Power Supply | 100 … 240 VAC / 20 … 55 VDC |
Outputs & Communication | 4–20 mA HART 7PROFIBUS PA/DP (optional)FOUNDATION Fieldbus (optional)Pulse/frequency output, status outputs |
Display | 4-line backlit LCD, optical touch keys |
Ambient Temperature | -20 … +60 °C (-4 … +140 °F) |
Enclosure Rating | IP67 (standard), IP68 (optional remote sensor) |
Approvals | ATEX, IECEx, FM, CSA, SIL 2 |
Key Features | Abrasion-resistant designIntegrated solids content diagnosticsBi-directional measurementNo pressure dropMaintenance-free (no moving parts) |
Applications | Slurries, mining, pulp & paper, wastewater, abrasive chemicals |

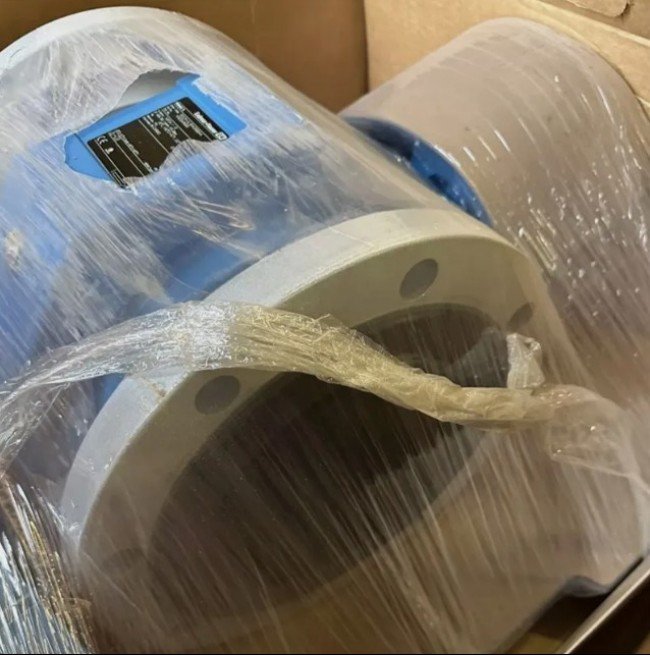

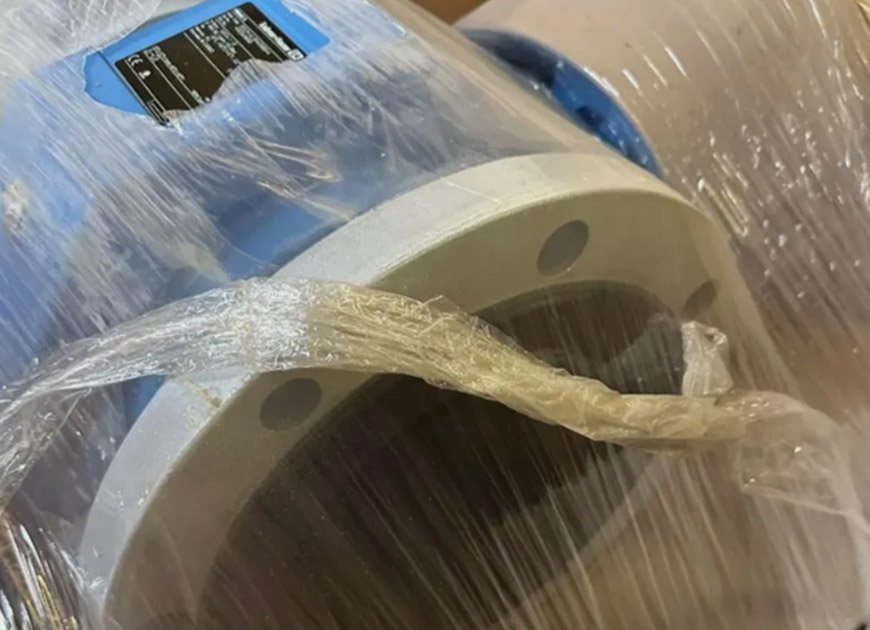

Packaging: Original box
