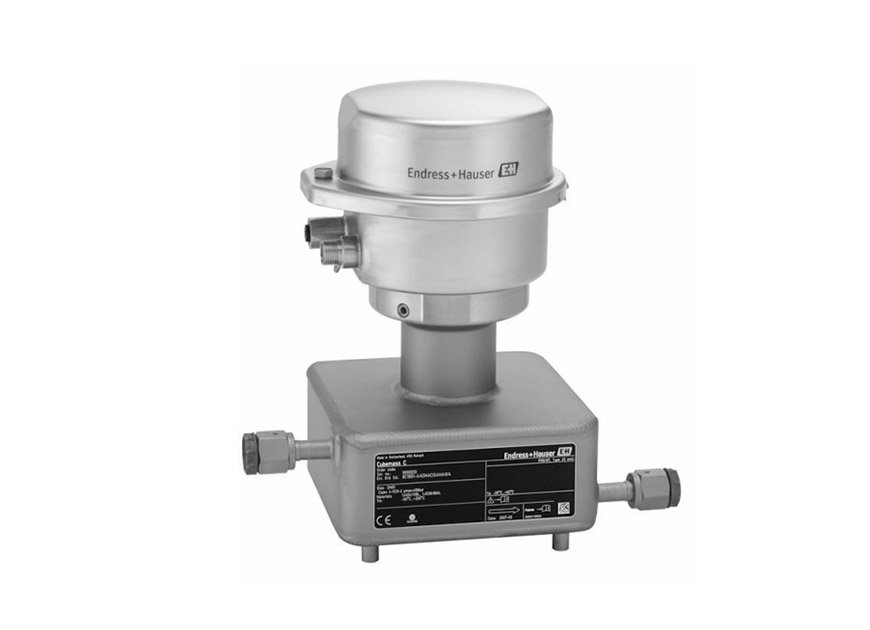

Proline Cubemass C 100 Coriolis flowmeter
Ultra compact for smallest quantities and an ultra-compact transmitter
Ultra compact for smallest quantities and an ultra-compact transmitter
Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Accurate measurement of smallest quantities of liquids and gases; ideal for skid integration
Device properties
• Nominal diameter: DN 1 to 6 (¹⁄₂₄ to ¹⁄₄")
• Process pressure up to 400 bar (5800 psi)
• Medium temperature up to +205 °C (+401 °F)
• Robust, ultra-compact transmitter housing
• Pre-configured plug connector
Your benefits
• Spce‐saving installation – compact single-tube design
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Suitable for skids – lightweight sensor
• Space‐saving transmitter – full functionality on smallest footprint
• Time‐saving local operation without additional software and hardware – integrated web server
• Integrated verification – Heartbeat Technology

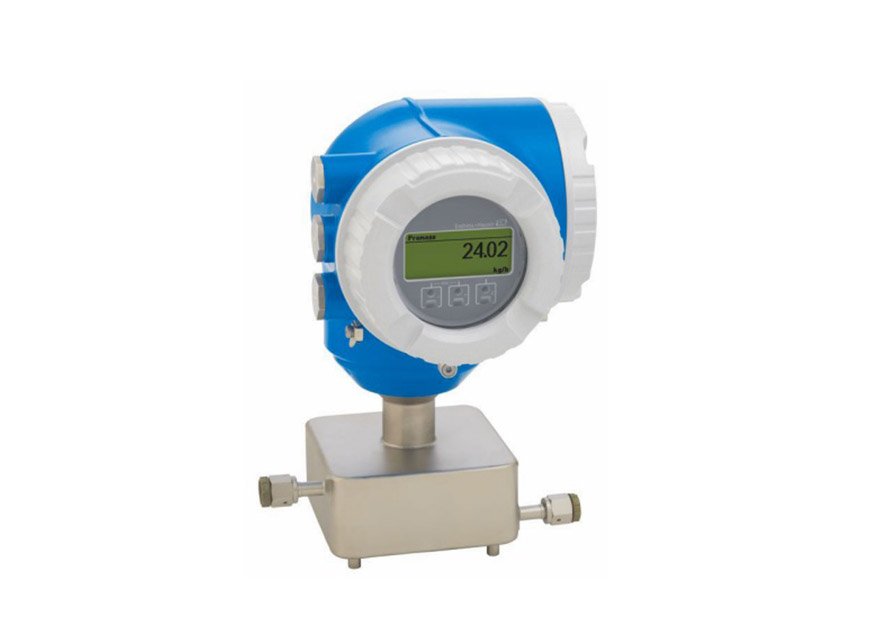

Compact sensor for smallest quantities with a compact, easily accessible transmitter
Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Measuring accurately smallest quantities of liquids and gases
Device properties
• Nominal diameter: DN 1 to 6 (¹⁄₂₄ to ¹⁄₄")
• Process pressure up to 400 bar (5800 psi)
• Medium temperature up to +205 °C (+401 °F)
• Compact dual-compartment housing with up to 3 I/Os
• Backlit display with touch control and WLAN access
• Remote display available
Your benefits
• Space‐saving installation – compact single-tube design
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Suitable for skids – lightweight sensor
• Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality
• Integrated verification – Heartbeat Technology

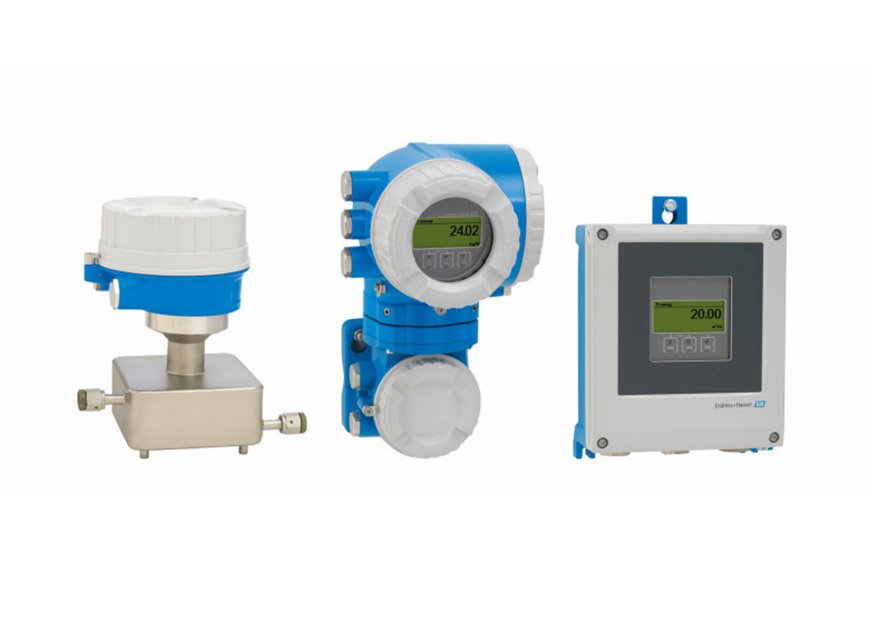

Compact sensor for smallest quantities, with a transmitter remote version with up to 4 I/Os
Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Measuring accurately smallest quantities of liquids and gases
Device properties
• Nominal diameter: DN 1 to 6 (¹⁄₂₄ to ¹⁄₄")
• Process pressure up to 400 bar (5800 psi)
• Medium temperature up to +205 °C (+401 °F)
• Remote version with up to 4 I/Os
• Backlit display with touch control and WLAN access
• Standard cable between sensor and transmitter
Your benefits
• Space‐saving installation – compact single-tube design
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Suitable for skids – lightweight sensor
• Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality
• Integrated verification – Heartbeat Technology
Specification | 8C1B (C100, Miniature) | 8C3B (C300, Compact) | 8C5B (C500, Mid-size) |
Product Series | Proline Cubemass C100 | Proline Cubemass C300 | Proline Cubemass C500 |
Measurement Principle | Coriolis effect (multivariable: mass flow, volume flow, density, temperature) | Coriolis effect (multivariable: mass flow, volume flow, density, temperature) | Coriolis effect (multivariable: mass flow, volume flow, density, temperature) |
Nominal Diameter (DN) | DN 1 ~ DN 6 (1/24" ~ 1/4") | DN 2 ~ DN 15 (1/12" ~ 1/2") | DN 10 ~ DN 40 (3/8" ~ 1.5") |
Flow Range | 0 ~ 1,000 kg/h (0 ~ 37 lb/min) | 0 ~ 2,000 kg/h (0 ~ 74 lb/min) | 0 ~ 16,000 kg/h (0 ~ 588 lb/min) |
Accuracy (Mass Flow) | Liquid: ±0.10% o.r.; Gas: ±0.50% o.r. | Liquid: ±0.10% o.r.; Gas: ±0.50% o.r. | Liquid: ±0.15% o.r. (standard); ±0.10% o.r. (option); Gas: ±0.35% o.r. |
Accuracy (Density) | ±0.0005 g/cm³ | ±0.0005 g/cm³ | ±0.0005 g/cm³ |
Process Temperature | -50 ~ +205 °C (-58 ~ +401 °F) | -50 ~ +205 °C (-58 ~ +401 °F) | Standard: -50 ~ +200 °C (-58 ~ +392 °F); High-temp: -50 ~ +350 °C (-58 ~ +662 °F) |
Max Process Pressure | PN 40 / Class 300 / 10K / 400 bar (5,800 psi) | PN 40 / Class 300 / 10K / 400 bar (5,800 psi) | PN 100 / Class 600 / 63K (up to 1,000 psi standard; high-pressure options available) |
Measuring Tube Material | 1.4539 (904L); Optional: 1.4404 (316L), Alloy C22 | 1.4539 (904L); Optional: 1.4404 (316L), Alloy C22 | 1.4539 (904L); Optional: 1.4404 (316L), Alloy C22 |
Process Connection | Threaded / Tri-Clamp | Threaded / Tri-Clamp / Flanged | Flanged (ANSI #150/#300, DIN PN10/PN16, JIS 10K) |
Housing Material | Sensor: 1.4301 (304); Transmitter: AlSi10Mg (coated) | Sensor: 1.4301 (304); Transmitter: AlSi10Mg (coated) | Sensor: 1.4301 (304); Transmitter: Powder-coated aluminum / 1.4404 (316L) |
Power Supply | 16 ~ 62 VDC; 85 ~ 260 VAC (45~65 Hz) | 16 ~ 62 VDC; 85 ~ 260 VAC (45~65 Hz) | 16 ~ 62 VDC; 85 ~ 260 VAC (45~65 Hz) |
Output & Communication | 4-20 mA HART, Pulse, Modbus RTU; Optional: EtherNet/IP, PROFIBUS PA | 4-20 mA HART, Pulse, Modbus RTU; Optional: EtherNet/IP, PROFIBUS PA | 4-20 mA HART, Pulse, Modbus RTU; Optional: EtherNet/IP, PROFIBUS PA |
Enclosure Rating | IP66 / IP67 / Type 4X | IP66 / IP67 / Type 4X | IP67 / Type 4X |
Ambient Temperature | -40 ~ +60 °C (-40 ~ +140 °F) | -40 ~ +60 °C (-40 ~ +140 °F) | -20 ~ +60 °C (-4 ~ +140 °F) |
Key Approvals | ATEX, IECEx, FM, CSA, SIL2, CE | ATEX, IECEx, FM, CSA, SIL2, CE | ATEX, IECEx, FM, CSA, SIL2, CE, NAMUR, FDA, 3-A |
Typical Applications | Micro-flow measurement, test rigs, micro-dosing systems | Small-batch processing, skid-mounted systems, laboratory analysis | General industry, chemical processing, oil & gas, food & beverage |

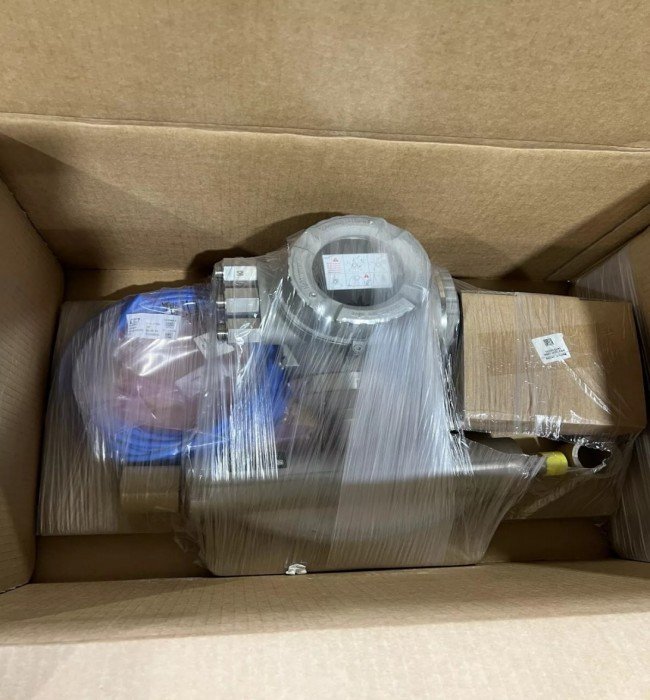

Packaging: Original box
