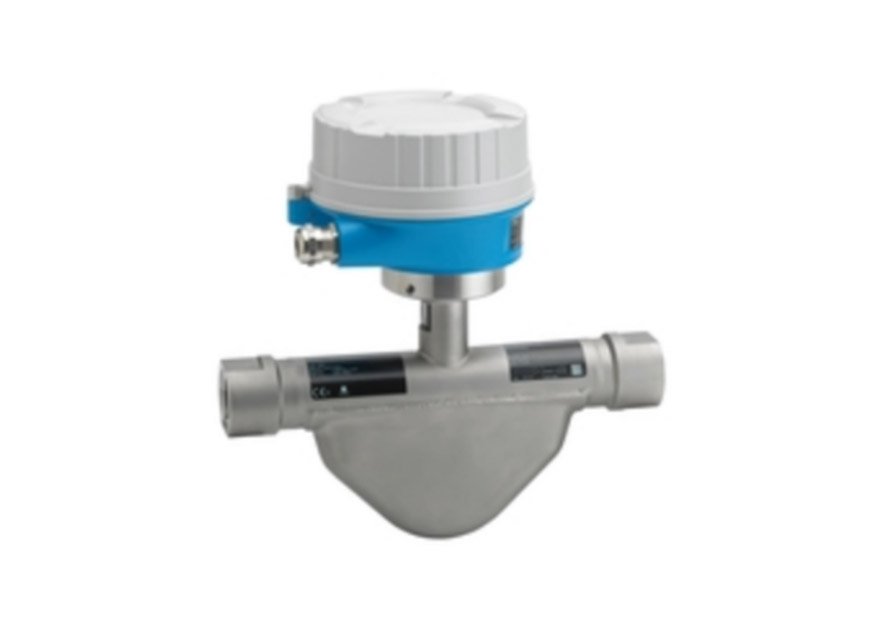

CNGmass Coriolis flowmeter
The refueling application flowmeter with seamless system integration
The refueling application flowmeter with seamless system integration
Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Accurate measurement of compressed natural gas (CNG) in high pressure refueling applications
Device properties
• Flow rates up to 150 kg/min (330 lb/min)
• Process pressure up to 350 bar (5080 psi)
• Rupture disc available
• Robust, compact transmitter housing
• Modbus RS485
• Designed to meet application needs
Your benefits
• Excellent operational safety – reliable under extreme process conditions
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Space‐saving transmitter – full functionality on smallest footprint • Fast commissioning – pre-configured devices
• Automatic recovery of data for servicing
The flowmeter for refueling applications with simple system integration
Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Accurate measurement of cryogenic gases in refueling applications
Device properties
• Flow rates up to 18 000 kg/h (660 lb/min)
• Medium temperature up to –196 °C (–321 °F)
• Nominal diameter: DN 8 to 25 (³⁄₈ to 1")
• Robust, compact transmitter housing
• Modbus RS485
• Designed to meet application needs
Your benefits
• Excellent operational safety – reliable under extreme ambient conditions
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
• Space-saving transmitter – full functionality on smallest footprint
• Fast commissioning – preconfigured devices
• Automatic recovery of data for servicing
The refueling application flowmeter with seamless system integration
Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Accurate measurement of liquefied petroleum gas in refueling and distribution applications
Device properties
• Flow rates up to 180000 kg/h (6600 lb/min)
• Volume flow calculation as per API Table 53
• Robust, compact transmitter housing
• Modbus RS485 • Designed to meet application needs
Your benefits
• Excellent operational safety – reliable under extreme ambient conditions
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
•Space‐saving installation – no in/outlet run needs
• Space‐saving transmitter – full functionality on smallest footprint • Fast commissioning – pre-configured devices
• Automatic recovery of data for servicing
Specification | D8E8 (LPGmass, LPG/Liquefied Gas) | D8LB (LNGmass, LNG Cryogenic) | D8CB (CNGmass, CNG High-pressure) |
Product Series | Promass LPGmass D8E8 | Promass LNGmass D8LB | Promass CNGmass D8CB |
Measurement Principle | Coriolis effect (multivariable: mass flow, density, temperature) | Coriolis effect (multivariable: mass flow, density, temperature) | Coriolis effect (multivariable: mass flow, density, temperature) |
Nominal Diameter (DN) | DN 8 ~ DN 25 (3/8" ~ 1") | DN 8 ~ DN 25 (3/8" ~ 1") | DN 8 ~ DN 25 (3/8" ~ 1") |
Flow Range | 0 ~ 18,000 kg/h (0 ~ 660 lb/min) | 0 ~ 18,000 kg/h (0 ~ 660 lb/min) | 0 ~ 9,000 kg/h (0 ~ 330 lb/min) |
Accuracy (Mass Flow) | ±0.15% o.r. (liquid LPG) | ±0.15% o.r. (liquid LNG) | ±0.5% o.r. (batch) |
Process Temperature | -50 ~ +125 °C (-58 ~ +257 °F) | -196 ~ +125 °C (-320 ~ +257 °F) | -50 ~ +125 °C (-58 ~ +257 °F) |
Max Process Pressure | PN 40 / Class 300 (40 bar) | PN 40 / Class 300 (40 bar) | 350 bar (5,080 psi) |
Measuring Tube Material | 1.4539 (904L) | 1.4539 (904L) | 1.4435 (316L) |
Process Connection | Flanged / Tri-Clamp / High-pressure fittings | Flanged / Cryogenic fittings | High-pressure CNG dispenser fittings |
Housing Material | Stainless steel 1.4404 (316L) | Stainless steel 1.4404 (316L) | Stainless steel 1.4404 (316L) |
Power Supply | 18 ~ 30 VDC | 18 ~ 30 VDC | 18 ~ 30 VDC |
Output & Communication | 4-20 mA HART, Pulse, Modbus RTU | 4-20 mA HART, Pulse, Modbus RTU | 4-20 mA HART, Pulse, Modbus RTU |
Enclosure Rating | IP66 / IP67 | IP66 / IP67 | IP66 / IP67 |
Ambient Temperature | -40 ~ +60 °C (-40 ~ +140 °F) | -40 ~ +60 °C (-40 ~ +140 °F) | -40 ~ +60 °C (-40 ~ +140 °F) |
Key Approvals | OIML, CE, ATEX, SIL2 | OIML, CE, ATEX, SIL2 | OIML, CE, ATEX, SIL2 |
Typical Applications | LPG dispensers, tank truck unloading | LNG refueling stations, cryogenic liquid dispensing | CNG refueling stations, high-pressure gas dispensers |

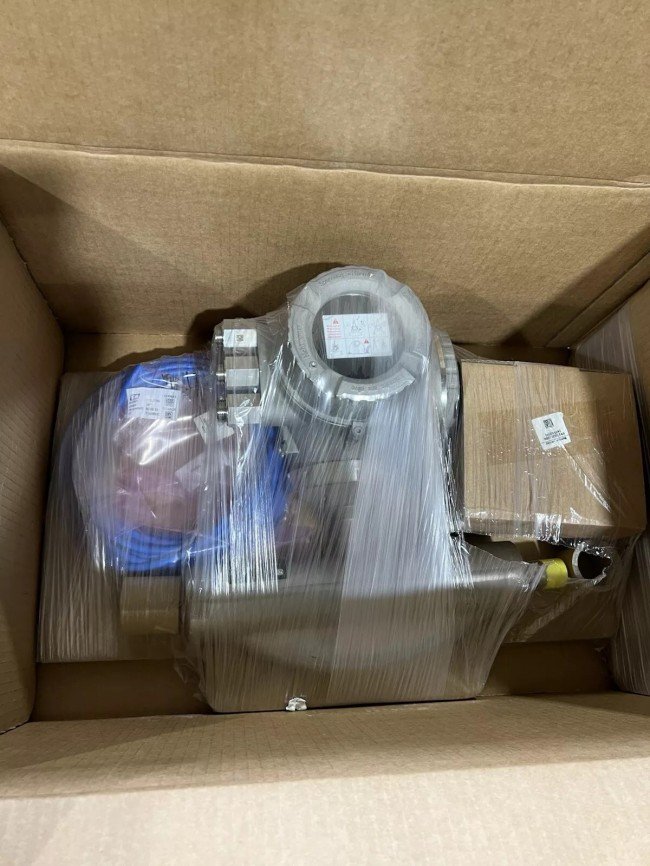

Packaging: Original box
