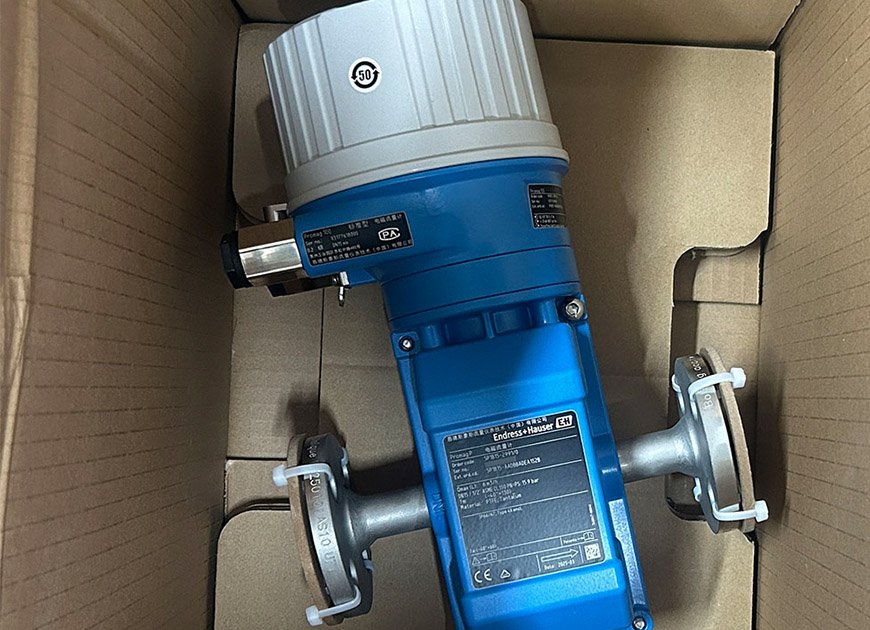

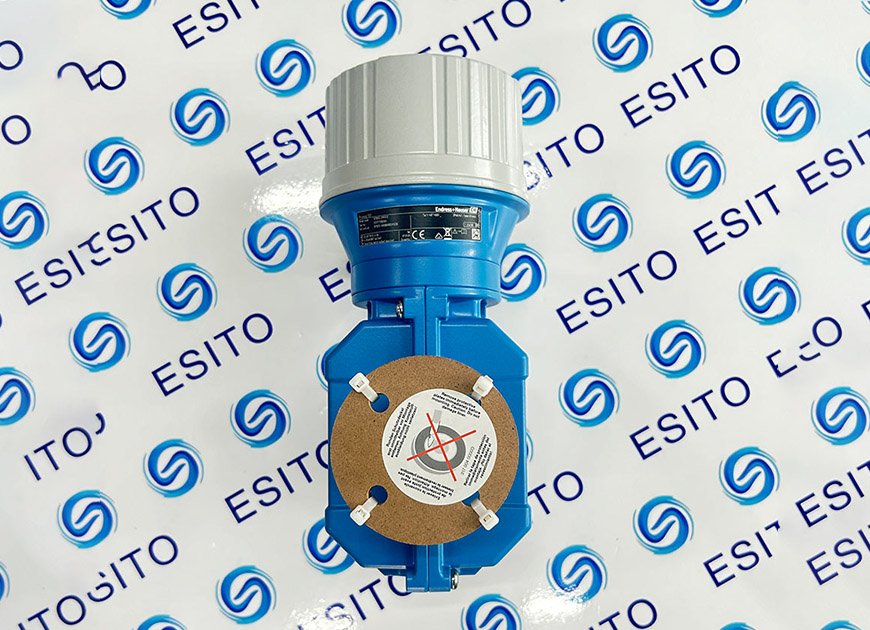

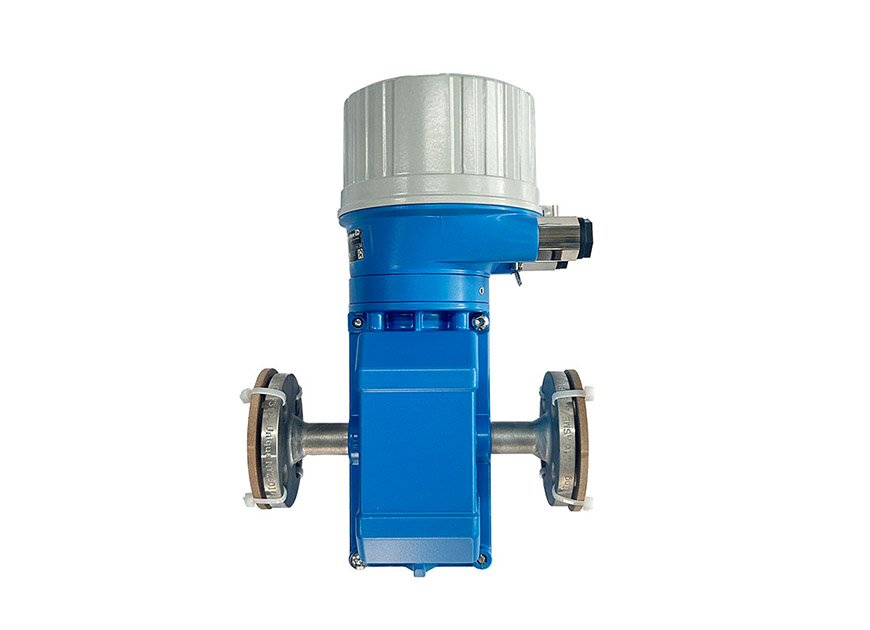

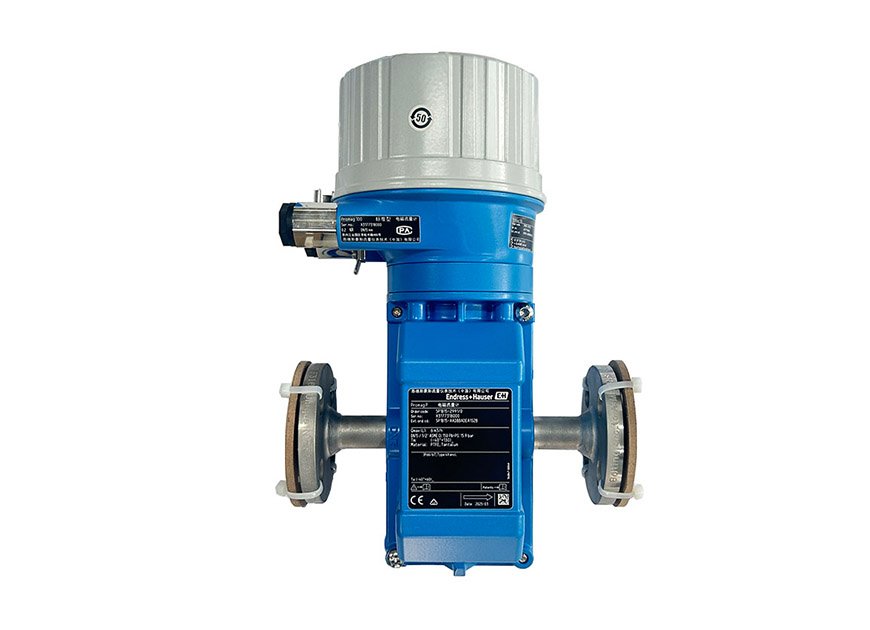

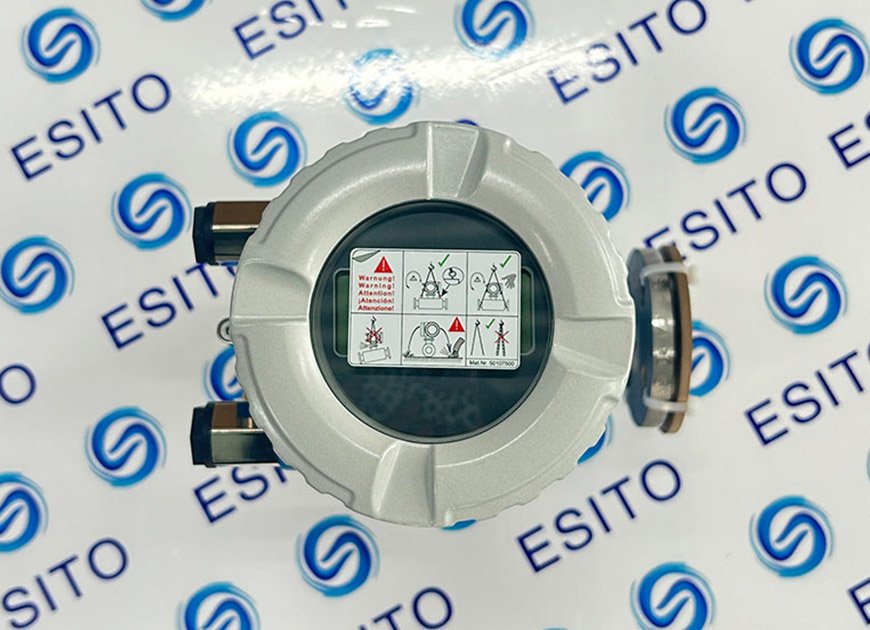

Proline Promag P 100 Electromagnetic flowmeter
The flowmeter for highest medium temperatures with an ultra-compact transmitter
The flowmeter for highest medium temperatures with an ultra-compact transmitter
Application
• The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
• Dedicated to chemical and process applications with corrosive liquids
Device properties
• Nominal diameter: max. DN 600 (24")
• All common Ex approvals
• Liner made of PTFE or PFA
• Robust, ultra-compact transmitter housing
• Local display available
Your benefits
• Versatile range of applications – wide variety of wetted materials
• Maintenance-free – no moving parts
• Space‐saving transmitter – full functionality on smallest footprint
• Time‐saving local operation without additional software and hardware – integrated web server
• Integrated verification – Heartbeat Technology
The flowmeter for highest medium temperatures with genuine loop-powered technology
Application
• The measuring principle is virtually independent of pressure, density, temperature and viscosity
• Dedicated for chemical and process applications with corrosive liquids and high medium temperatures
Device properties
• Nominal diameter: max. DN 200 (8")
• All common Ex approvals
• Liner made of PTFE or PFA
• Loop-powered technology
• Robust two-chamber housing
• Plant safety: worldwide approvals (SIL, Haz. area)
• Versatile applications – wide variety of wetted materials
• Energy-saving flow measurement – no pressure loss due to cross-section constriction
• Maintenance-free – no moving parts
• Convenient device wiring – separate connection compartment
• Safe operation – no need to open the device due to display with touch control, background lighting
• Integrated verification – Heartbeat Technology™
High-temperature flowmeter for process applications with a compact, easily accessible transmitter
Application
• The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
• Dedicated to chemical and process applications with corrosive liquids
Device properties
• Nominal diameter: max. DN 600 (24")
• All common Ex approvals
• Liner made of PTFE or PFA
• Compact dual-compartment housing with up to 3 I/Os
• Backlit display with touch control and WLAN access
• Remote display available
Your benefits
• Diverse applications – wide variety of wetted materials
• Energy-saving flow measurement – no pressure loss due to cross section constriction
• Maintenance-free – no moving parts
• Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality • Integrated verification – Heartbeat Technology

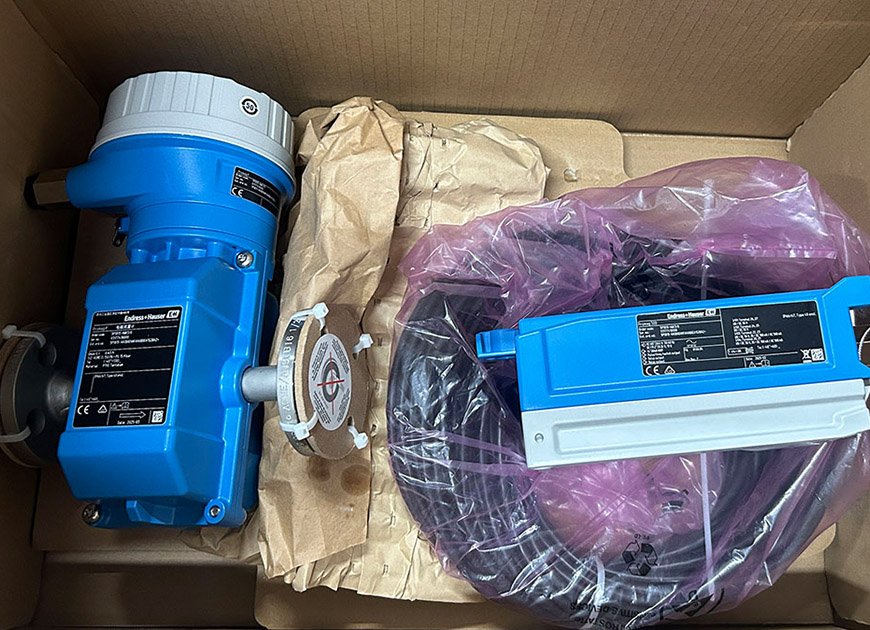

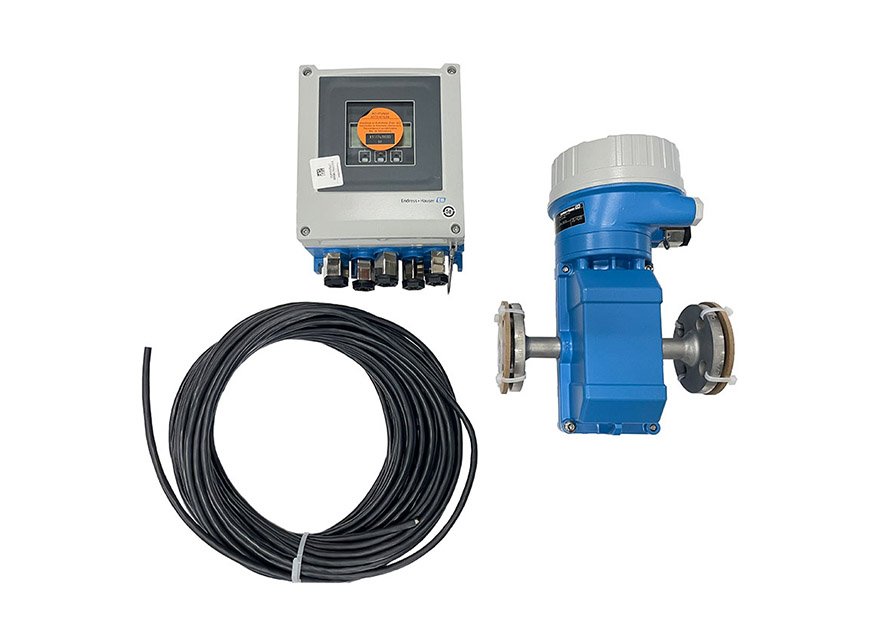

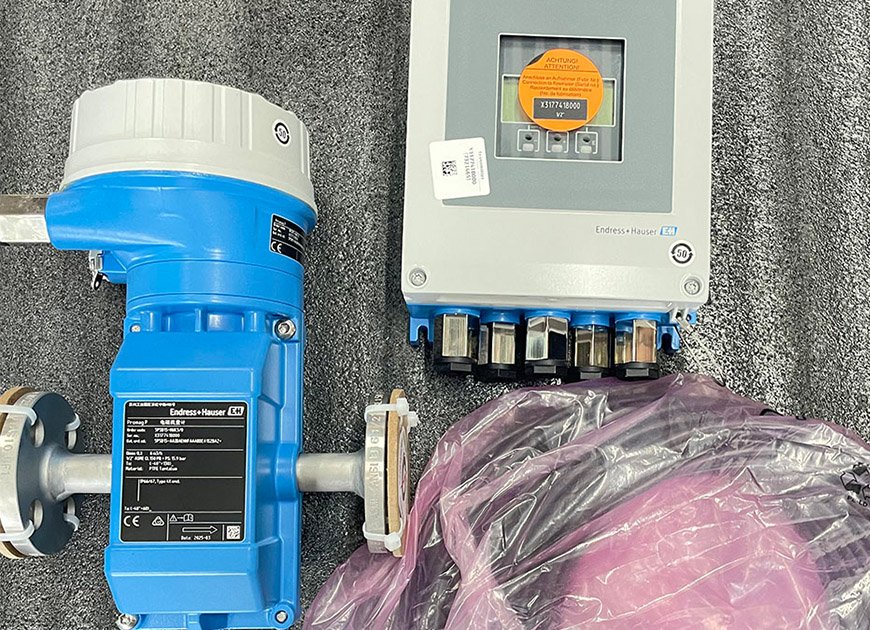

High-temperature flowmeter for process applications as remote version with up to 4 I/Os
Application
• The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
• Dedicated to chemical and process applications with corrosive liquids
Device properties
• Nominal diameter: max. DN 600 (24")
• All common Ex approvals
• Liner made of PTFE or PFA
• Remote version with up to 4 I/Os
• Backlit display with touch control and WLAN access
• Standard cable between sensor and transmitter
Your benefits
• Diverse applications – wide variety of wetted materials
• Energy-saving flow measurement – no pressure loss due to cross section constriction
• Maintenance-free – no moving parts
• Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality • Integrated verification – Heartbeat Technology
Specification | 5P1B (Promag P100, Ultra-compact) | 5P2B (Promag P200, Loop-powered) | 5P3B (Promag P300, Compact multi-IO) | 5P5B (Promag P500, High-end modular) |
Product Series | Proline Promag P 100 | Proline Promag P 200 | Proline Promag P 300 | Proline Promag P 500 |
Measurement Principle | Electromagnetic induction (Faraday’s Law) | Electromagnetic induction (Faraday’s Law) | Electromagnetic induction (Faraday’s Law) | Electromagnetic induction (Faraday’s Law) |
Nominal Diameter (DN) | DN 15 ~ DN 600 (½" ~ 24") | DN 15 ~ DN 200 (½" ~ 8") | DN 15 ~ DN 600 (½" ~ 24") | DN 15 ~ DN 600 (½" ~ 24") |
Min. Conductivity | ≥ 5 μS/cm | ≥ 5 μS/cm | ≥ 5 μS/cm | ≥ 5 μS/cm |
Flow Velocity Range | 0.01 ~ 10 m/s | 0.01 ~ 10 m/s | 0.01 ~ 10 m/s | 0.01 ~ 10 m/s |
Accuracy (Standard) | ±0.5% o.r. ± 1 mm/s | ±0.5% o.r. ± 2 mm/s | ±0.5% o.r. ± 1 mm/s | ±0.2% o.r. ± 2 mm/s (standard) |
Accuracy (Optional) | ±0.2% o.r. ± 2 mm/s | ±0.2% o.r. ± 2 mm/s | ±0.2% o.r. ± 2 mm/s | ±0.1% o.r. ± 1 mm/s |
Process Temperature | PTFE: -40 ~ +130 °CPFA: -20 ~ +150 °C | PTFE: -40 ~ +130 °CPFA: -20 ~ +150 °C | PTFE: -40 ~ +130 °CPFA: -20 ~ +180 °C (high-temp) | PTFE: -40 ~ +130 °CPFA: -20 ~ +180 °C (high-temp) |
Max Process Pressure | PN 40, Class 300, 20K | PN 40, Class 300, 20K | PN 40, Class 300, 20K | PN 40 / PN 100 (high-pressure) |
Liner Material | PTFE, PFA | PTFE, PFA | PTFE, PFA (high-temp) | PTFE, PFA (high-temp) |
Electrode Material | 316L, Alloy C22, Tantalum, Platinum, Titanium | 316L, Alloy C22, Tantalum, Platinum, Titanium | 316L, Alloy C22, Tantalum, Platinum, Titanium | 316L, Alloy C22, Tantalum, Platinum, Titanium |
Process Connection | Flanged (EN, ASME, JIS) | Flanged (EN, ASME, JIS) | Flanged (EN, ASME, JIS) | Flanged (EN, ASME, JIS) |
Housing Material | Coated aluminum (ultra-compact) | Coated aluminum (two-chamber) | Coated aluminum (dual-compartment) | Stainless steel / coated aluminum |
Power Supply | 100~230 VAC / 18~30 VDC | Loop-powered (4-20 mA) only | 100~230 VAC / 18~30 VDC | 100~230 VAC / 18~30 VDC |
Output & Communication | 4-20 mA HART, Pulse, Modbus RTU | 4-20 mA HART (passive), Pulse | 4-20 mA HART, Pulse, Modbus, Profibus DP/PA, FF, PROFINET | Full: HART, Profibus, FF, PROFINET, Ethernet/IP, OPC UA |
Enclosure Rating | IP66 / IP67 | IP66 / IP67 | IP66 / IP67 | IP66 / IP67 / IP69K |
Ambient Temperature | -20 ~ +60 °C | -20 ~ +60 °C | -20 ~ +60 °C | -40 ~ +60 °C |
Key Approvals | CE, ATEX, IECEx, SIL2 | CE, ATEX, IECEx, SIL2 | CE, ATEX, IECEx, SIL2/3 | CE, ATEX, IECEx, SIL2/3, NEPSI |
Typical Applications | Skid-mounted, compact process, corrosive liquids | Intrinsically safe, loop-powered, hazardous areas | Multi-signal, remote display, high-temp process | High-accuracy, complex network, high-pressure |

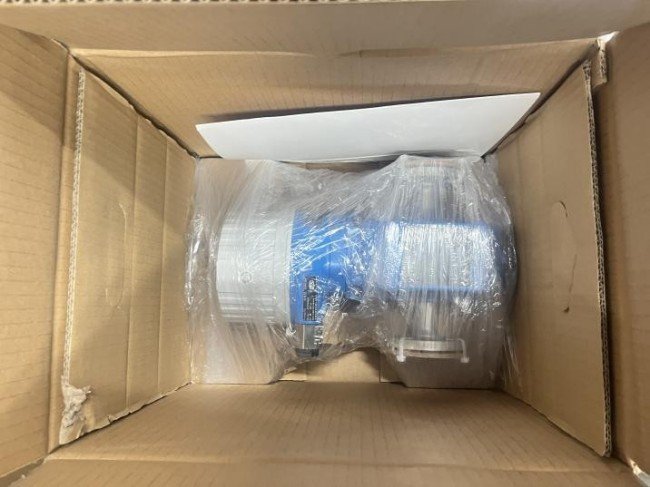

Packaging: Original box
