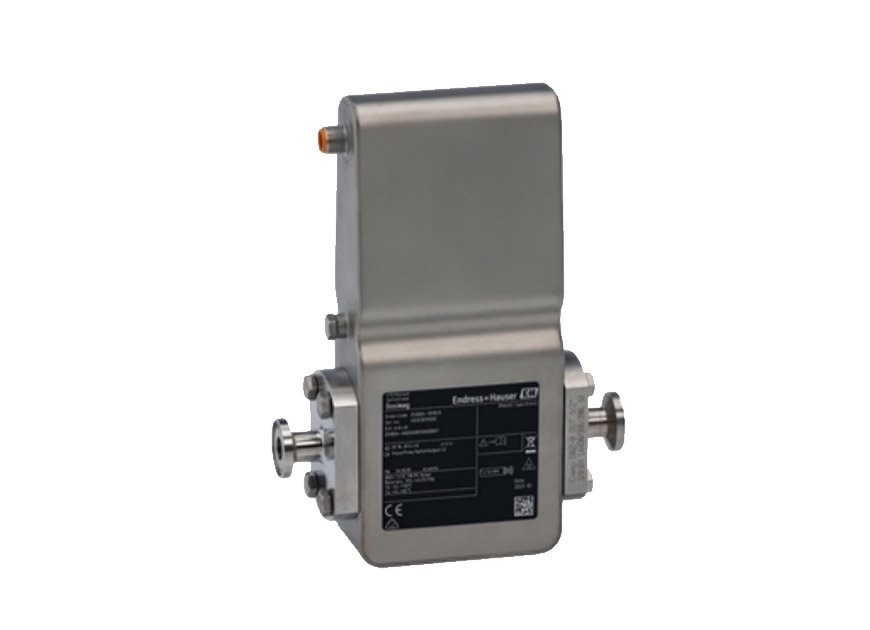

Flowmeter with hygienic design, highest repeatability in compact, fullywelded design
• The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.
• For demanding dosing and filling applications Device properties
• Wetted materials CIP, SIP cleanable
• Hygienic approvals 3-A and EHEDG available
• Fullfilling global Food Contact Materials, EU, US, CN
• Robust, compact and fully-welded design
• Pulse/frequency/switch output, IO-Link, Modbus RS485
• Excellent, easily cleanable flowmeter
• High process safety – high measuring accuracy and repeatability in shortest filling time
• Energy-saving flow measurement – no pressure loss due to cross section constriction
• Maintenance-free – no moving parts
• Versatile and time-saving wiring – plug connector
• Fast commissioning – pre-configured devices
• Automatic recovery of data for servicing
Specification | Details |

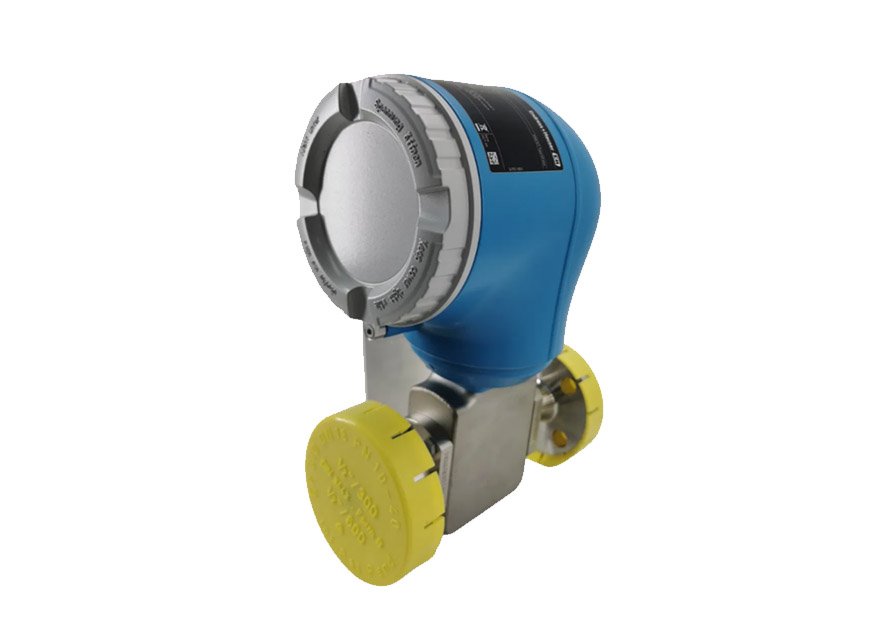

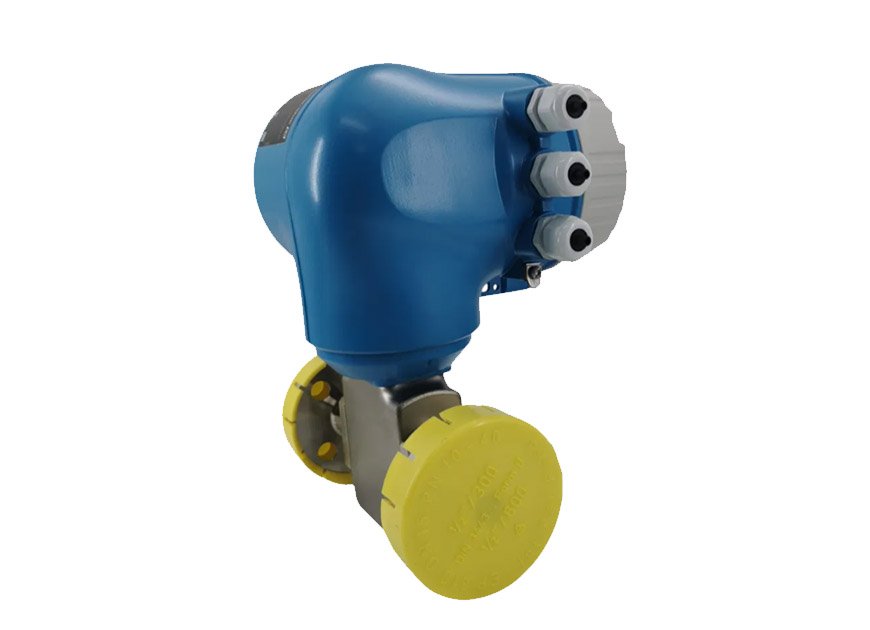

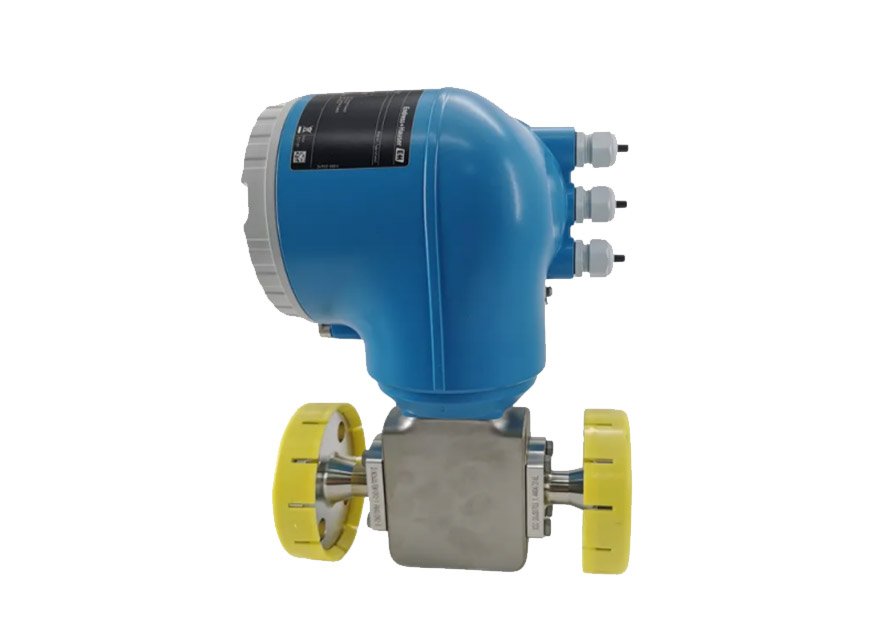

Product Model | Dosimag (D5AB / 5BH) |
Measurement Principle | Electromagnetic induction (Faraday's law) |
Measured Media | Conductive liquids (for filling/batching applications) |
Minimum Conductivity | 5 ... 10,000 µS/cm |
Nominal Diameter (DN) | DN 4 ... DN 25 (¹⁄₈" ... 1") |
Flow Velocity Range | 0.01 ... 10 m/s (0.03 ... 33 ft/s) |
Volume Flow Range | 0.14 ... 1.66 l/s (0.035 ... 0.44 gal/s) |
Accuracy | • High accuracy: ±0.25% o.r. ± 1–4 m/s• Standard: ±0.5% o.r. ± 1 mm/s• Low flow: ±5% o.r. |
Process Temperature | • EPDM/Silicone seals: –20 ... +130 °C• Viton seals: 0 ... +150 °C |
Max Process Pressure | PN 16 |
Wetted Materials | • Liner: PFA• Electrodes: 1.4435 (316L), Alloy C22, Tantalum, Platinum • Measuring tube: 1.4301 (304) stainless steel |
Housing Material | Sensor/transmitter: 1.4308 (304) stainless steel |
Power Supply | 18 ... 30 VDC |
Outputs & Communication | • Pulse/frequency/switch output• Modbus RTU (RS485)• IO-Link (optional)• Batching control (optional) |
Enclosure Rating | IP67, IP69K (hygienic) |
Ambient Temperature | –10 ... +60 °C |
Approvals | FDA, 3 A, EHEDG, MID, NTEP, ATEX, IECEx |
Key Features | • Compact hygienic design• High repeatability for filling• CIP/SIP cleanable• Dynamic drip correction (batching version)• IO-Link for predictive maintenance |
Applications | Filling, bottling, batching; food & beverage, pharmaceutical, cosmetics |

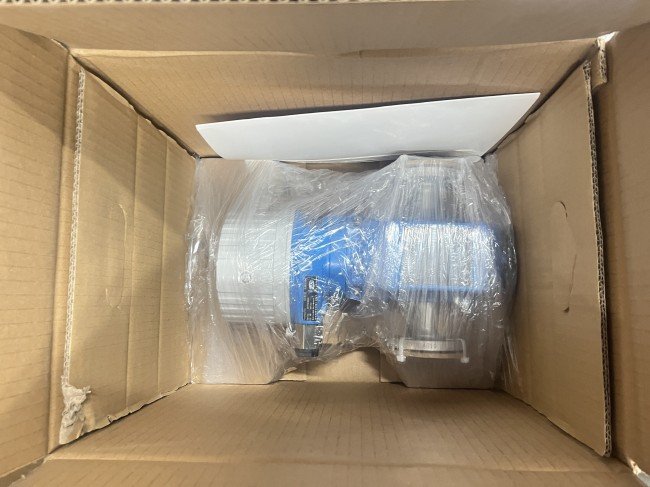

Packaging: Original box
