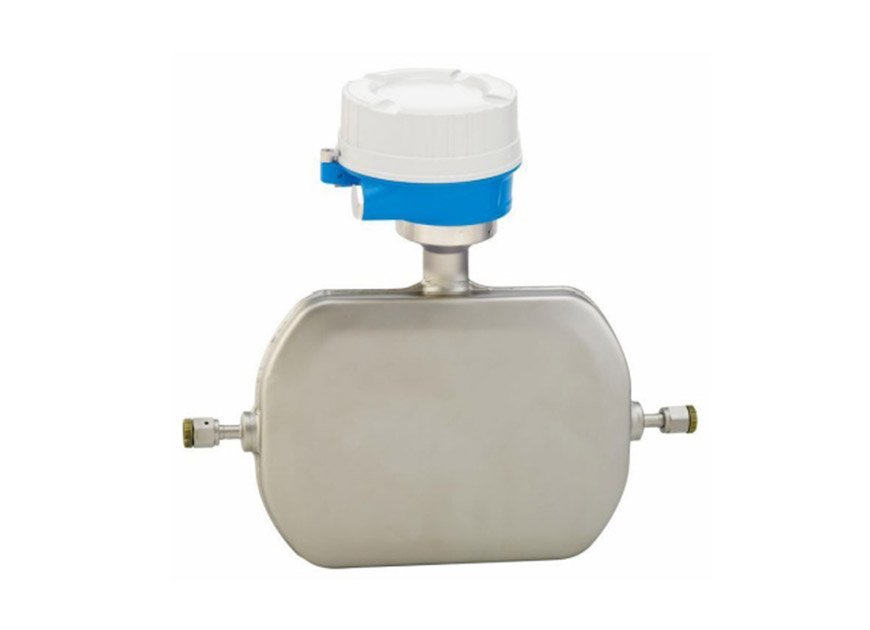

Accurate single-tube flowmeter for lowest flow rates, as remote version with up to 4 I/Os
Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Suitable for applications with smallest flow quantities in allindustries
Device properties
• Nominal diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")
• Process pressure up to 430.9 bar (6250 psi)
• Medium temperature up to +205 °C (+401 °F)
• Remote version with up to 4 I/Os
• Backlit display with touch control and WLAN access
• Standard cable between sensor and transmitter
Your benefits
• Space-saving installation – compact, lightweight sensor
• Highest product quality – self-drainable measuring tube in all line sizes
• Optimum process safety – resistant to corrosive ambient conditions and internal clogging
• Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality
• Integrated verification – Heartbeat Technology

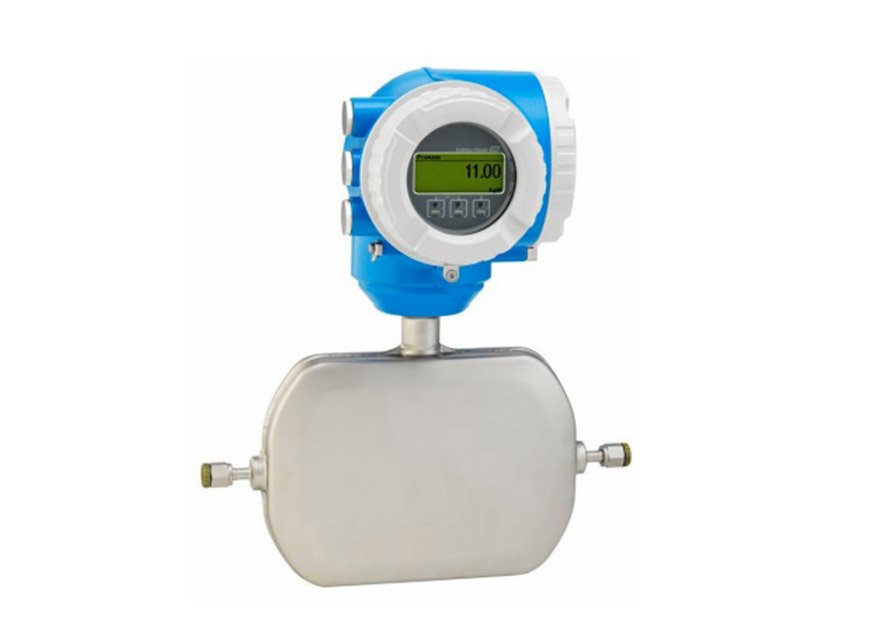

Accurate single-tube flowmeter for lowest flow rates with a compact, easily accessible transmitter
Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Suitable for applications with smallest flow quantities in all industries
Device properties
• Nominal diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")
• Process pressure up to 430.9 bar (6250 psi)
• Medium temperature up to +205 °C (+401 °F)
• Compact dual‐compartment housing with up to 3 I/Os
• Backlit display with touch control and WLAN access
• Remote display available
Your benefits
• Space-saving installation – compact, lightweight sensor
• Highest product quality – self-drainable measuring tube in all line sizes
• Optimum process safety – resistant to corrosive ambient conditions and internal clogging
• Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality
• Integrated verification – Heartbeat Technology

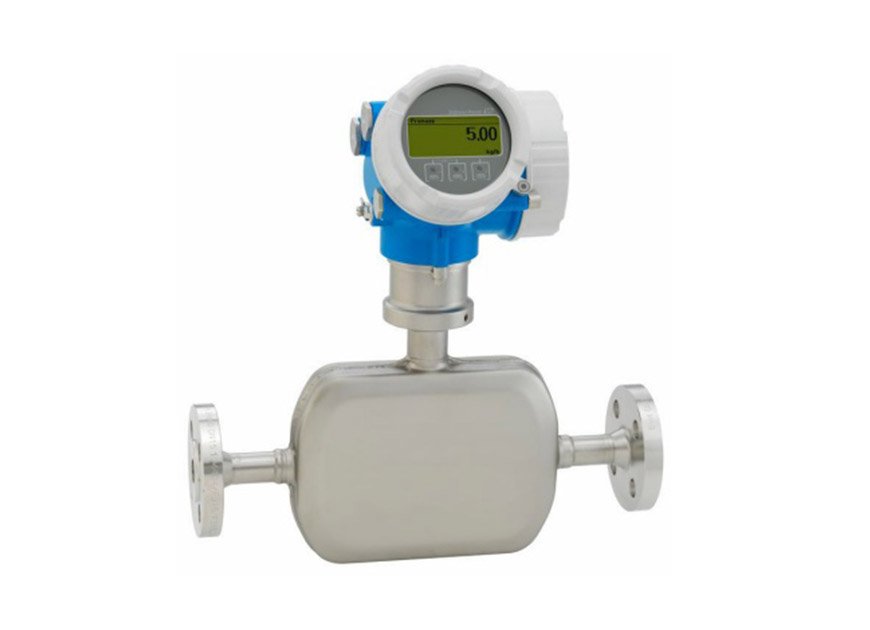

Flowmeter with genuine two-wire technology for accurate measurement of smallest flow quantities
Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Suitable for applications with the smallest flow quantities in the chemical industry
Device properties
• Nominal diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")
• Process pressure up to 430.9 bar (6250 psi)
• Medium temperature up to +205 °C (+401 °F)
• Loop-powered technology
• Robust dual‐compartment housing
• Plant safety: worldwide approvals (SIL, Haz. area)
Your benefits
• Space-saving installation – compact, lightweight sensor
• Highest product quality – self-drainable measuring tube in all line sizes
• Optimum process safety – resistant to corrosive ambient conditions and internal clogging
• Convenient device wiring – separate connection compartment
• Safe operation – no need to open the device due to display with touch control, background lighting
• Integrated verification – Heartbeat Technology

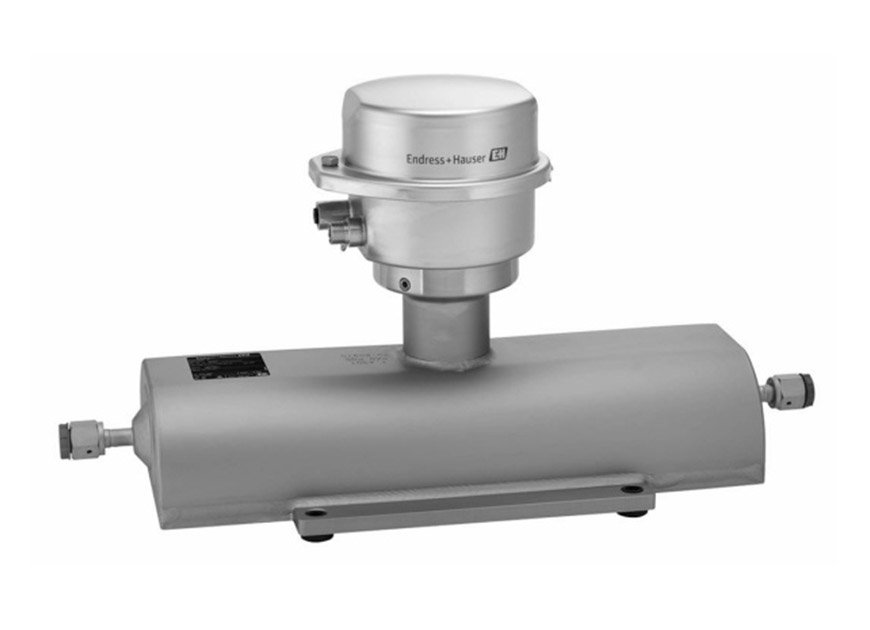

The single-tube measuring instrument for the smallest flow quantities with an ultra-compact transmitter
Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Accurate measurement of smallest quantities of liquids and gases for continuous process control
Device properties
• Nominal diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")
• Process pressure: up to 400 bar (5800 psi)
• Medium temperature up to +205 °C (+401 °F)
• Robust, ultra-compact transmitter housing
• Highest degree of protection: IP69
• Local display available
Your benefits
• Highest process safety – self-drainable measuring tube design
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Space‐saving transmitter – full functionality on smallest footprint
• Time‐saving local operation without additional software and hardware – integrated web server
• Integrated verification – Heartbeat Technology
Specification | 8A1B (Promass A 100) | 8A2B (Promass A 200) | 8A3C (Promass A 300) | 8A5C (Promass A 500) |
Product Series | Proline Promass A 100 | Proline Promass A 200 | Proline Promass A 300 | Proline Promass A 500 |
Measuring Principle | Coriolis effect, single straight crevice-free tube | Coriolis effect, single straight crevice-free tube | Coriolis effect, single straight crevice-free tube | Coriolis effect, single straight crevice-free tube |
Measured Variables | Mass flow, volume flow, density, temperature | Mass flow, volume flow, density, temperature | Mass flow, volume flow, density, temperature | Mass flow, volume flow, density, temperature |
Nominal Diameter (DN) | DN 2 ~ DN 25 (1/12" ~ 1") | DN 15 ~ DN 50 (½" ~ 2") | DN 2 ~ DN 50 (1/12" ~ 2") | DN 2 ~ DN 80 (1/12" ~ 3") |
Suitable Media | Hygienic liquids, gases, high-purity fluids; CIP/SIP compatible | Hygienic liquids, gases; CIP/SIP compatible, intrinsically safe | Hygienic liquids, gases, aggressive fluids; CIP/SIP compatible | Ultra-high purity liquids, gases, sterile media; CIP/SIP compatible, electropolished surface |
Mass Flow Accuracy (Liquid) | ±0.15 % o.r. | ±0.15 % o.r. | ±0.10 % o.r. | ±0.05 % o.r. |
Mass Flow Accuracy (Gas) | ±0.75 % o.r. | ±0.75 % o.r. | ±0.50 % o.r. | ±0.35 % o.r. |
Density Accuracy | ±0.001 g/cm³ | ±0.001 g/cm³ | ±0.0005 g/cm³ | ±0.0002 g/cm³ |
Process Temperature Range | −50 °C … +150 °C (SIP compatible up to 150 °C) | −50 °C … +150 °C (SIP compatible up to 150 °C) | −50 °C … +150 °C (SIP compatible up to 150 °C) | −50 °C … +200 °C (SIP compatible up to 150 °C) |
Max Process Pressure | PN 40 / Class 300 | PN 40 / Class 300 | PN 40 / Class 300 | PN 100 / Class 600 |
Wetted Materials | 1.4435 (316L stainless steel), electropolished (Ra ≤ 0.4 μm); optional Alloy C22, Tantalum | 1.4435 (316L), electropolished; optional Alloy C22 | 1.4435 (316L), electropolished; optional Alloy C22, Tantalum | 1.4435 (316L), electropolished (Ra ≤ 0.2 μm); high-alloy material options |
Process Connection | Hygienic clamp (Tri-Clamp), DIN 11851, SMS, RJT, thread | Hygienic clamp, DIN 11851, SMS, compact flange | Hygienic clamp, DIN 11851, SMS, flange, thread | Hygienic clamp, standard flange, high-pressure hygienic connections, remote sensor |
Transmitter Design | Ultra-compact integral transmitter | Compact integral two-chamber transmitter | Compact integral dual-compartment transmitter | Modular integral / remote mount transmitter |
Power Supply | 100~230 VAC / 18~30 VDC | Loop-powered (4-20 mA passive) only | 100~230 VAC / 18~30 VDC | 100~230 VAC / 18~30 VDC |
Output & Communication | 4-20 mA HART, Pulse / Frequency, Modbus RTU | 4-20 mA HART (passive), Pulse / Frequency | 4-20 mA HART, Pulse, Modbus RTU, PROFIBUS PA, FF | HART 7, PROFINET, EtherNet/IP, FOUNDATION Fieldbus, Digital I/O |
Enclosure Rating | IP66 / IP67 / NEMA 4X | IP66 / IP67 / NEMA 4X | IP66 / IP67 / NEMA 4X | IP67 / IP69K / NEMA 4X |
Ambient Temperature | −20 °C … +60 °C | −20 °C … +60 °C | −40 °C … +60 °C | −40 °C … +60 °C |
Global Approvals | FDA, 3-A, EHEDG, CE, ATEX, IECEx | FDA, 3-A, EHEDG, CE, ATEX, IECEx, SIL 2 | FDA, 3-A, EHEDG, CE, ATEX, IECEx, SIL 2/3 | FDA, 3-A, EHEDG, USP Class VI, CE, ATEX, IECEx, SIL 2/3, PED |
Key Features | Micro-flow compatible, compact footprint, crevice-free design, Heartbeat Technology | Intrinsically safe, loop-powered, no external power required, Ex zone compatible | Multi-signal output, remote display compatible, robust hygienic performance | Ultra-high purity grade, remote installation flexibility, full diagnostic functions, sterile process compatible |
Typical Applications | Micro-dosing, laboratory analysis, small-scale hygienic skids | Intrinsically safe Ex zones, loop-powered hygienic pipelines | Food & beverage, dairy, brewery, standard pharmaceutical processes | Biotechnology, high-purity pharmaceutical, sterile filling, critical hygienic processes |
Packaging & Shipping

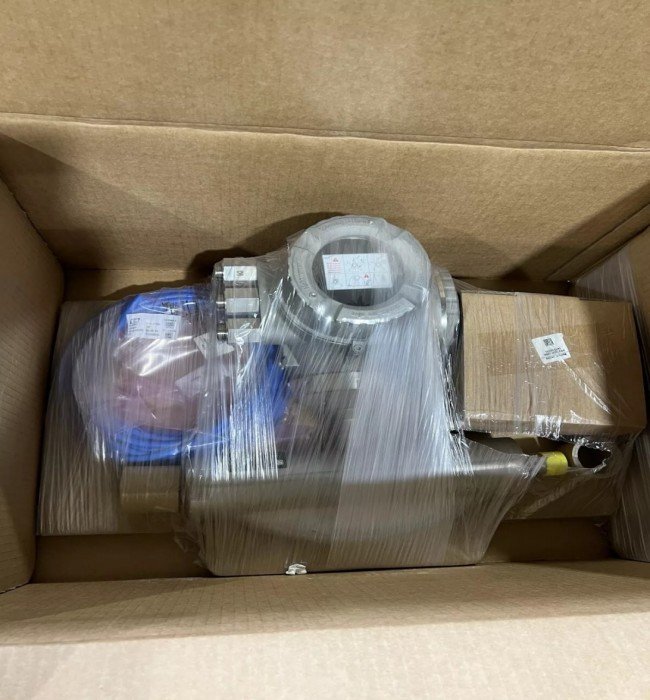

Packaging: Original box
