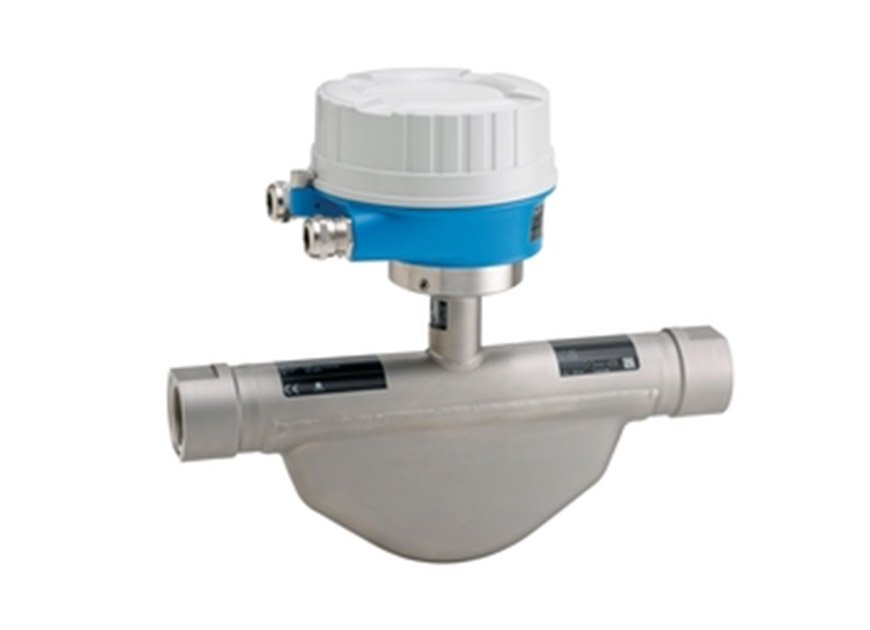

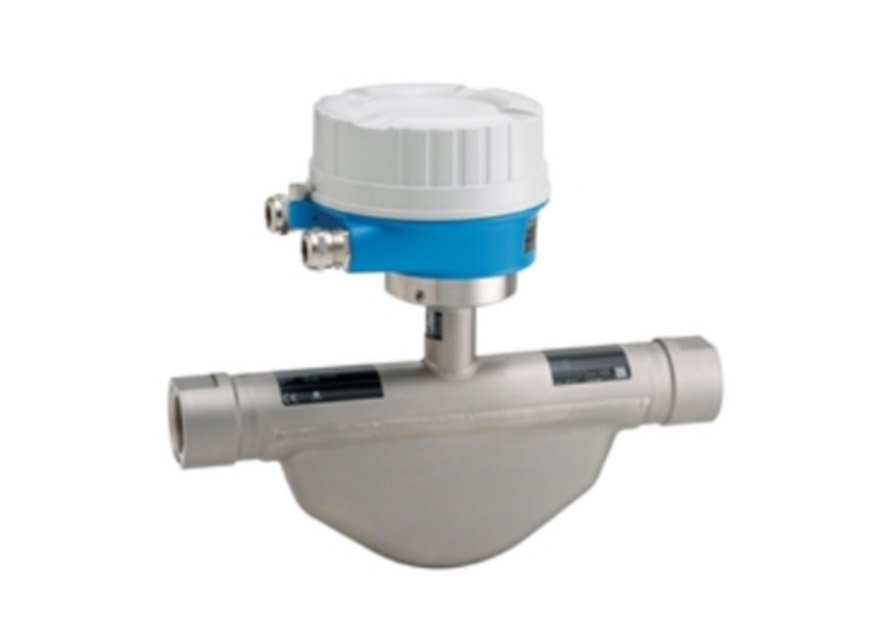

The extremely compact high-pressure sensor with ultra-compact transmitter
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Accurate measurement of liquids and gases in high-pressure applications Device properties
• Internal threads as process connection
• Process pressure up to 350 bar (5080 psi)
• Rupture disc available
• Robust, ultra-compact transmitter housing
• Pre-configured plug connector
• Local display available
• Easy and safe process Integration – threaded connections
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space‐saving installation – no inlet/outlet run needs
• Space‐saving transmitter – full functionality on smallest footprint • Time‐saving local operation without additional software and hardware – integrated web server
• Integrated verification – Heartbeat Technology™
Specification | Technical Data |
Model Designation | Proline Promass G 8G1B |
Measuring Principle | Coriolis force measurement, single straight tube design |
Measured Variables | Mass flow, volume flow, density, temperature |
Nominal Diameter | DN 8 ~ DN 25 |
Measured Media | Liquids, compressed gases, cryogenic fluids |
Mass Flow Accuracy (Liquid) | ±0.15 % o.r. |
Mass Flow Accuracy (Gas) | ±0.75 % o.r. |
Density Accuracy | ±0.001 g/cm³ |
Repeatability | ±0.05 % o.r. |
Process Temperature Range | −50 °C … +150 °C |
Maximum Process Pressure | Up to 350 bar (high-pressure version optional) |
Wetted Materials | Measuring tube: 1.4435 (316L)Process connection: 1.4404 |
Process Connections | Threaded, hygienic clamp, compact flange |
Transmitter Housing | Compact aluminum / stainless steel optional |
Power Supply | 16 … 62 VDC / 85 … 260 VAC (45…65 Hz) |
Analog Output | 4–20 mA HART |
Digital & Pulse Output | Pulse / frequency output, Modbus RTU optional |
Degree of Protection | IP67, NEMA Type 4X |
Ambient Temperature | −20 °C … +60 °C |
Certifications & Approvals | CE, ATEX, IECEx, FM, CSA |
Integrated Functions | Heartbeat Technology, self-diagnostics, bidirectional measurement |
Key Features | Ultra-compact structure, no straight inlet/outlet required, low pressure drop |
Typical Applications | Fine chemical, pharmaceutical, food & beverage, skid system, small flow dosing |
Packaging: Original box
