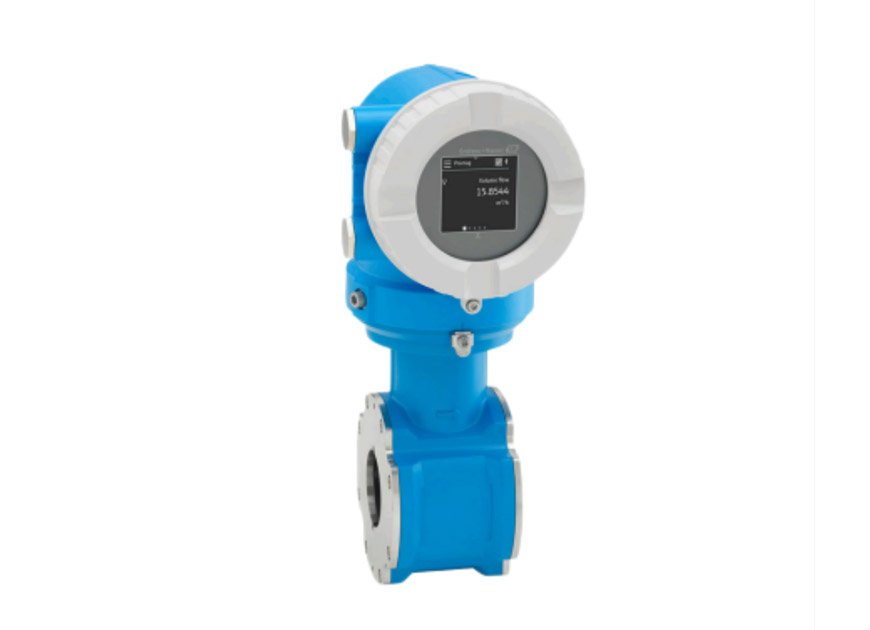

The wafer flowmeter Promag D is designed for all basic water applications where space is at a minimum. With its straightforward hard- and software design, Promag D 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables measurement reliability and compliant verification.
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.
For basic water applications; optimized for limited space and plastic pipe installations
The wafer flowmeter Promag D is designed for all basic water applications where space is at a minimum. With its straightforward hard- and software design, Promag D 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables measurement reliability and compliant verification.
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.
For basic water applications; optimized for limited space and plastic pipe installations
Device properties
Short installation length and low weight
Integrated ground disks made of stainless steel
International drinking water approvals
System integration with HART, Modbus RS485
Flexible operation with app and optional display
Benefits
Easy, fast centering of the sensor – innovative housing construction
Energy-saving flow measurement – no pressure loss due to cross section constriction
Maintenance-free – no moving parts
Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen
Simple, time-saving commissioning – guided parameterization in advance and in the field
Integrated verification – Heartbeat Technology

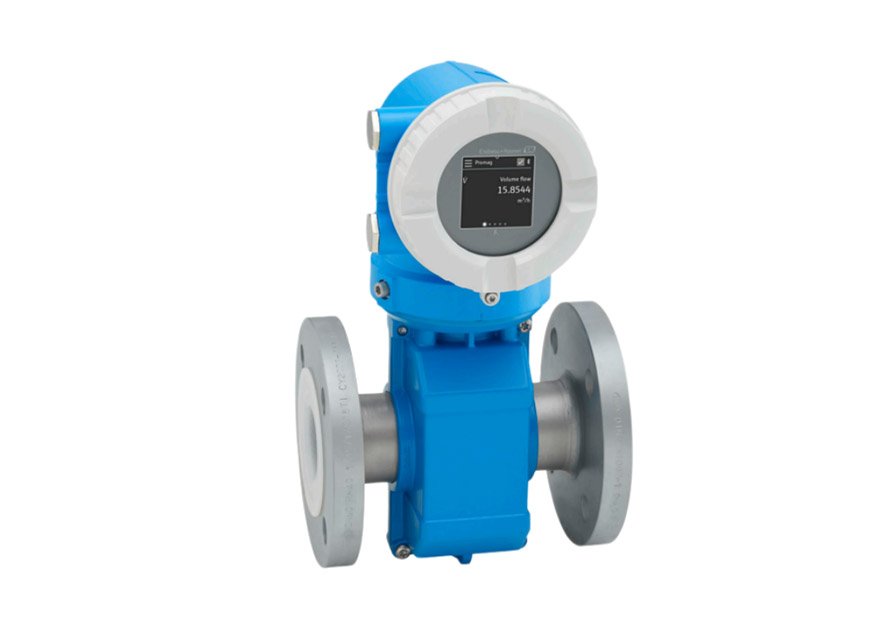

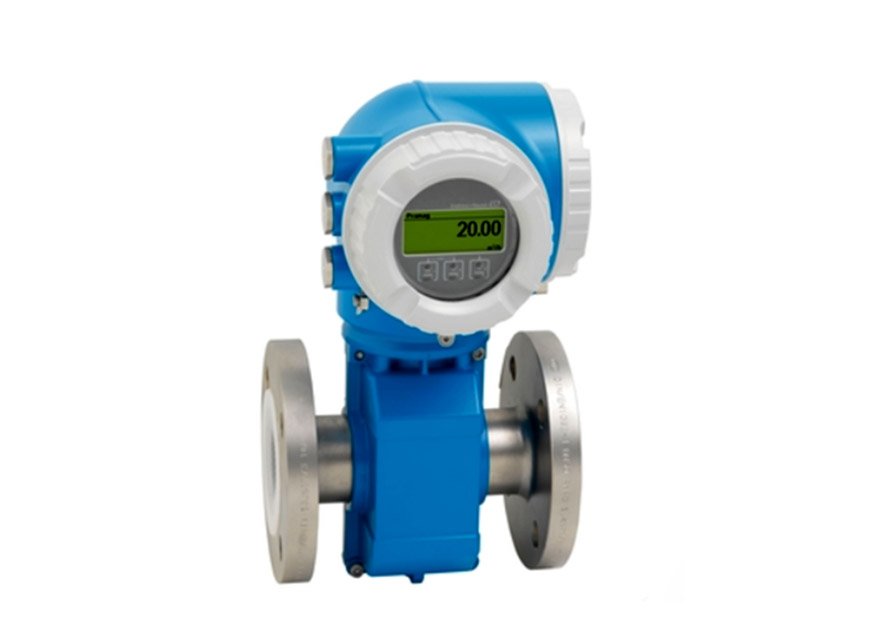

Promag P is dedicated to chemical and process applications with corrosive liquids and high medium temperatures. With its straightforward hard- and software design, Promag P 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables safe processes.
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.
Dedicated to chemical and process applications with corrosive liquids.
Device properties
Nominal diameter: max. DN 600 (24")
All common Ex approvals
Liner made of PTFE or PFA
System integration with HART, Modbus RS485
Flexible operation with app and optional display
Benefits
Diverse applications – wide variety of wetted materials
Energy-saving flow measurement – no pressure loss due to cross section constriction
Maintenance-free – no moving parts
Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen
Simple, time-saving commissioning – guided parameterization in advance and in the field
Integrated verification – Heartbeat Technology

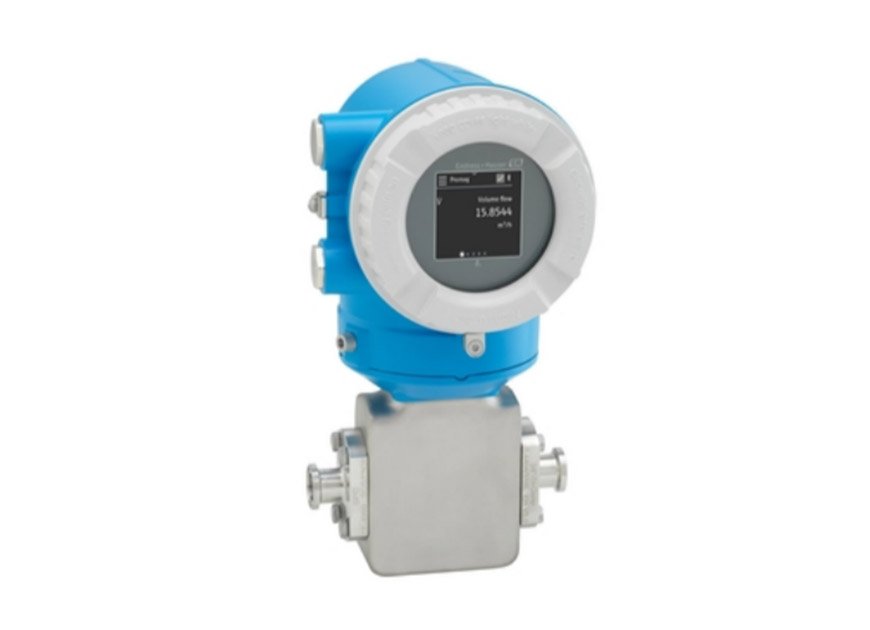

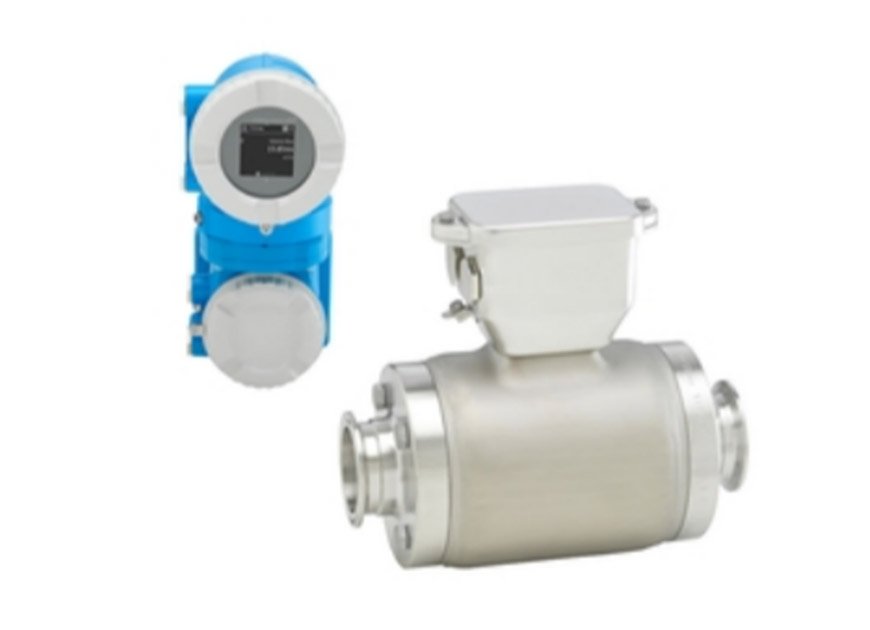

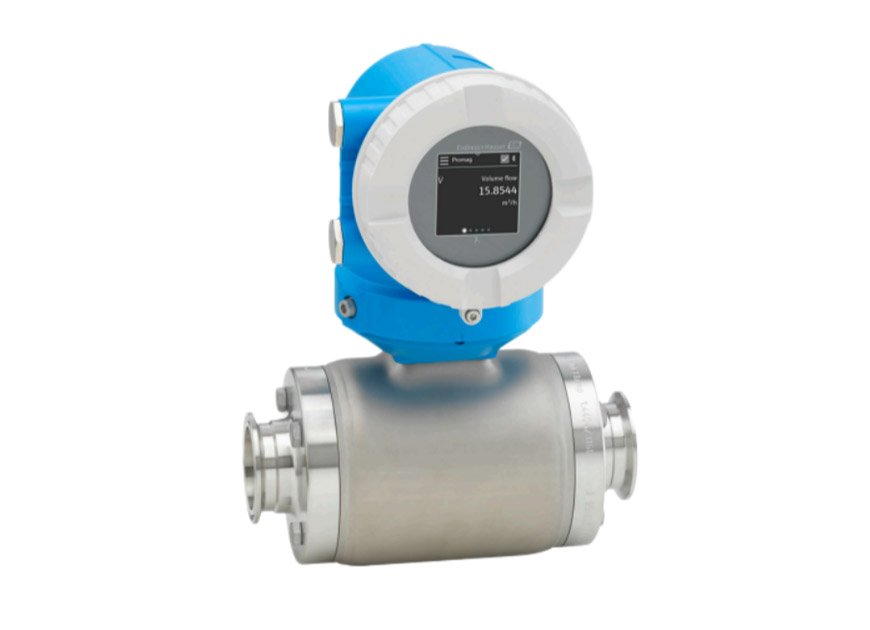

Promag H is the preferred sensor for hygienic applications in the food and beverage and life sciences industries. With its straightforward hard- and software design, Promag H 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables measurement reliability and extension of recalibration cycles.
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.
For applications with sanitary requirements
Device properties
Liner made of PFA
Sensor housing made of stainless steel (3-A, EHEDG)
Wetted materials CIP-/SIP-cleanable
System integration with HART, Modbus RS485, IO-Link
Flexible operation with app and optional display
Benefits
Easy integration into your plant infrastructure with IO-link
Flexible installation concept – numerous hygienic process connections
Energy-saving flow measurement – no pressure loss due to cross section constriction
Maintenance-free – no moving parts
Optimum usability – display with touch screen (HART and Modbus RS485 communication only) or operation with mobile devices and SmartBlue app
Simple, time-saving commissioning – guided parameterization in advance and in the field
Integrated verification – Heartbeat Technology

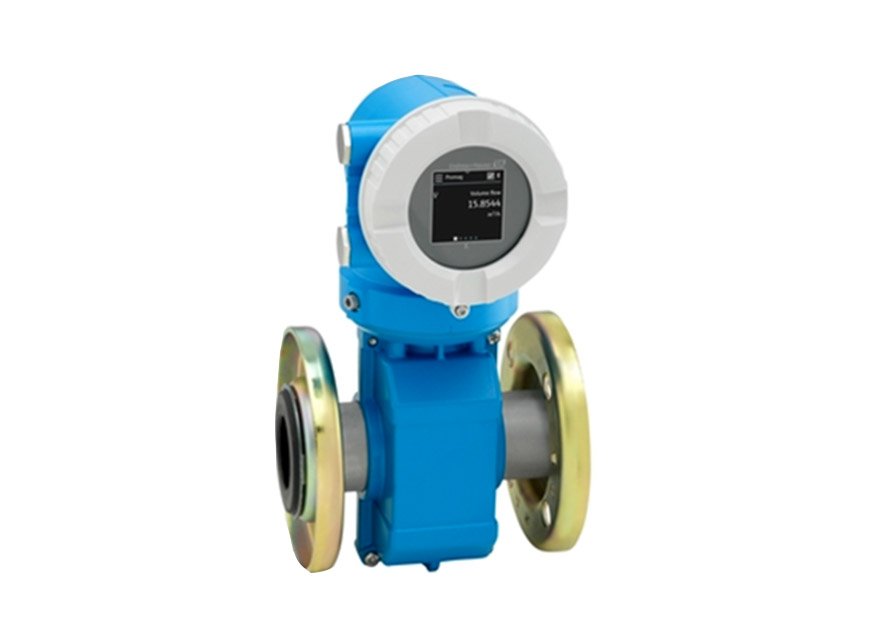

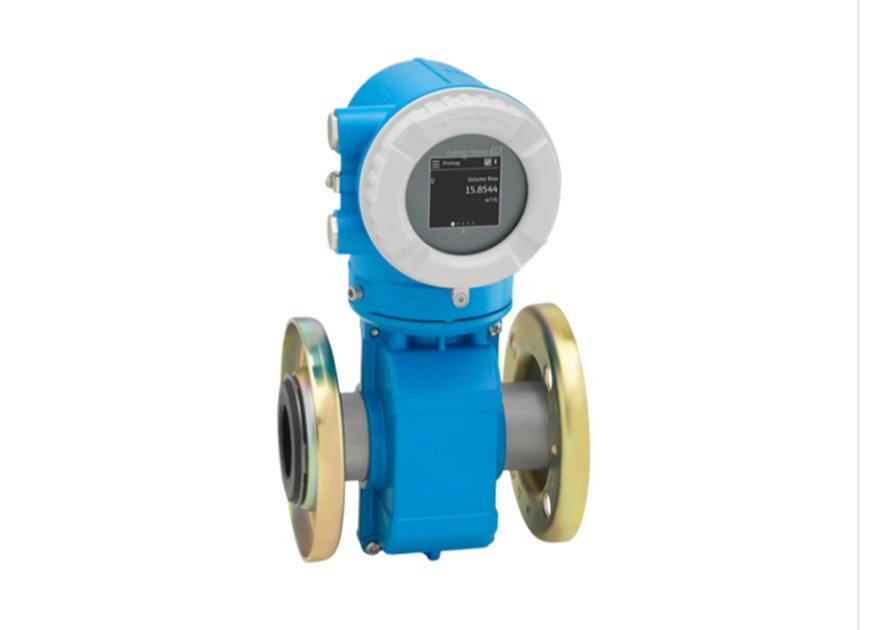

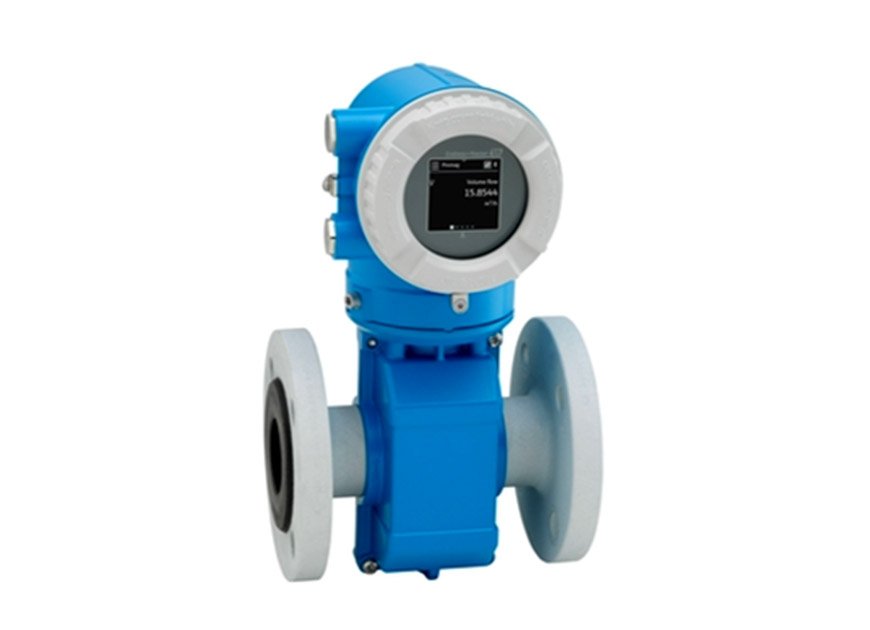

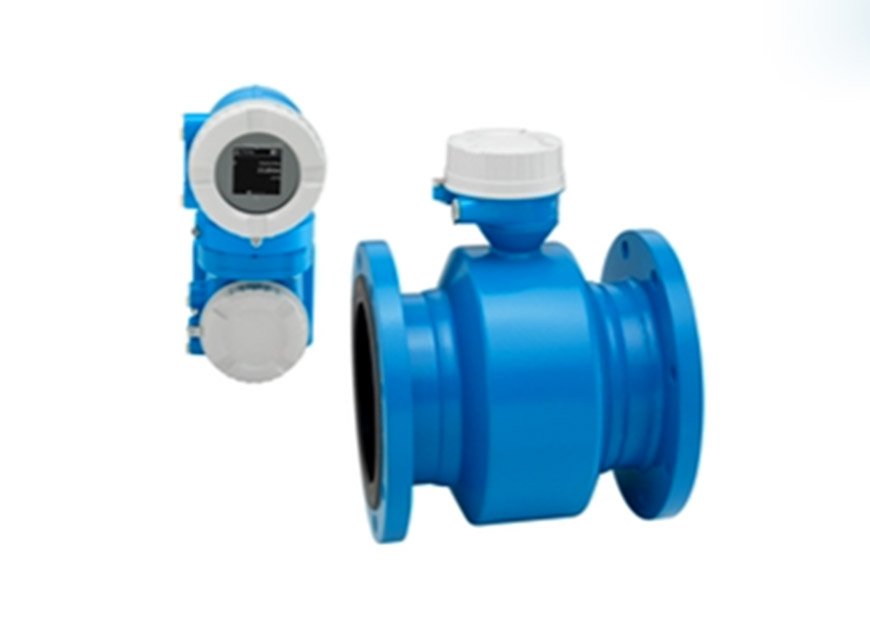

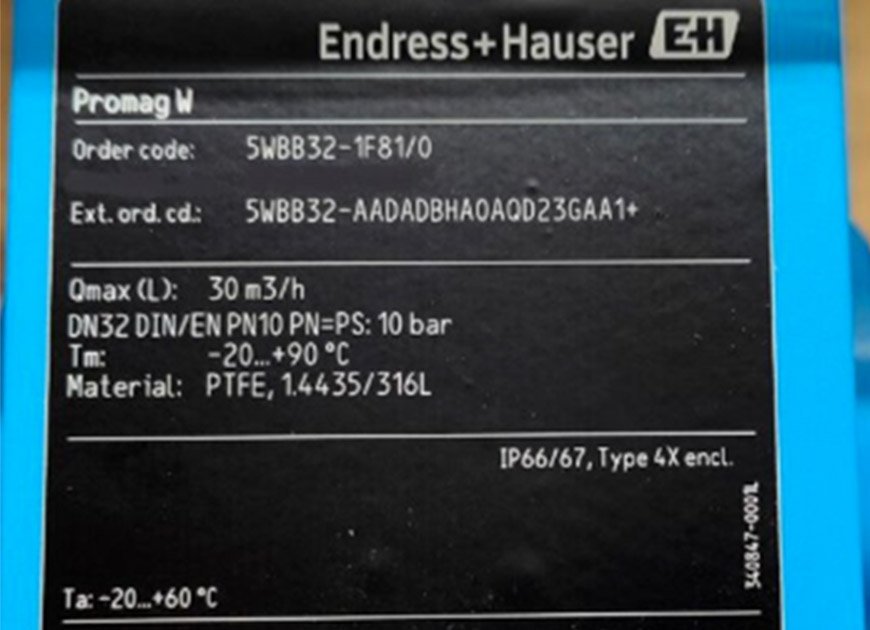

Thanks to its international approvals (e.g. for drinking water), Promag W serves a wide variety of applications. It is available as both compact or remote version. With its straightforward hard- and software design, Promag W 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables measurement reliability and compliant verification.
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.
Suitable for elementary measurement tasks such as raw water intake.
Device properties
International drinking water approvals
Degree of protection IP68 (Type 6P enclosure)
System integration with HART, Modbus RS485
Flexible operation with app and optional display
Reliable measurement at constant accuracy with 0 x DN inlet run without pressure loss
Flexible engineering – sensor with fixed or lap-joint process connections
Application fitness – EN ISO 12944 corrosion protection for underground or underwater installation
Improved plant availability – sensor compliant with industry-specific requirements
Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen
Simple, time-saving commissioning – guided parameterization in advance and in the field
Integrated verification – Heartbeat Technology
Specification | 5DBB (Promag D10, Wafer Basic Water) | 5PBB (Promag P10, Chemical/Process) | 5HBB (Promag H10, Hygienic) | 5WBB (Promag W10, Water/Wastewater) |
Product Series | Proline Promag D 10 | Proline Promag P 10 | Proline Promag H 10 | Proline Promag W 10 |
Measurement Principle | Electromagnetic induction (Faraday’s Law) | Electromagnetic induction (Faraday’s Law) | Electromagnetic induction (Faraday’s Law) | Electromagnetic induction (Faraday’s Law) |
Nominal Diameter (DN) | DN 15 ~ DN 300 (½" ~ 12") | DN 15 ~ DN 600 (½" ~ 24") | DN 15 ~ DN 150 (½" ~ 6") | DN 15 ~ DN 2000 (½" ~ 80") |
Minimum Conductivity | ≥ 5 μS/cm (water) | ≥ 5 μS/cm | ≥ 5 μS/cm | ≥ 5 μS/cm |
Flow Velocity Range | 0.01 ~ 10 m/s | 0.01 ~ 10 m/s | 0.01 ~ 10 m/s | 0.01 ~ 10 m/s |
Accuracy (Standard) | ±0.5% o.r. ± 1 mm/s | ±0.5% o.r. ± 1 mm/sOptional: ±0.2% o.r. ± 2 mm/s | ±0.5% o.r. ± 1 mm/sOptional: ±0.2% o.r. ± 2 mm/s | ±0.5% o.r. ± 1 mm/sOptional: ±0.2% o.r. ± 2 mm/s |
Process Temperature | Polyamide liner: 0 ~ +60 °C | PTFE: -40 ~ +130 °CPFA: -20 ~ +150 °C | PFA liner: -20 ~ +150 °C | Hard rubber: 0 ~ +80 °CPolyurethane: -20 ~ +50 °CPTFE: -20 ~ +90 °C |
Max Process Pressure | PN 16, Class 150, 10K | PN 40, Class 300, 20K | PN 40, Class 150, 20K | PN 40, Class 300, 20K |
Liner Material | Polyamide | PTFE, PFA | PFA | Hard rubber, Polyurethane, PTFE |
Electrode Material | 1.4435 (316L) | 316L, Alloy C22, Tantalum, Platinum, Titanium | 316L, Alloy C22, Tantalum | 316L, Alloy C22 |
Process Connection | Wafer (clamp-on) | Flanged (EN, ASME, JIS) | Hygienic clamp, flange, thread | Flanged, wafer |
Housing Material | Coated aluminum | Coated aluminum / stainless steel | Stainless steel (1.4404) | Coated aluminum / polycarbonate |
Power Supply | 100~230 VAC / 18~30 VDC | 100~230 VAC / 18~30 VDC | 100~230 VAC / 18~30 VDC | 100~230 VAC / 18~30 VDC |
Output & Communication | 4-20 mA HART, Pulse, Modbus RTU | 4-20 mA HART, Pulse, Modbus RTU, IO-Link | 4-20 mA HART, Pulse, Modbus RTU, IO-Link | 4-20 mA HART, Pulse, Modbus RTU |
Enclosure Rating | IP66 / IP67 | IP66 / IP67 | IP66 / IP67, IP69K | IP66 / IP67 |
Ambient Temperature | -20 ~ +60 °C | -20 ~ +60 °C | -20 ~ +60 °C | -40 ~ +60 °C |
Key Approvals | CMC, CE | CE, ATEX, IECEx | FDA, 3-A, EHEDG, CE | Drinking water approvals, CE, ATEX |
Typical Applications | Basic water, HVAC, general industry | Corrosive chemicals, acids, alkalis | Food & beverage, pharma, biotech | Water supply, wastewater, sludge |

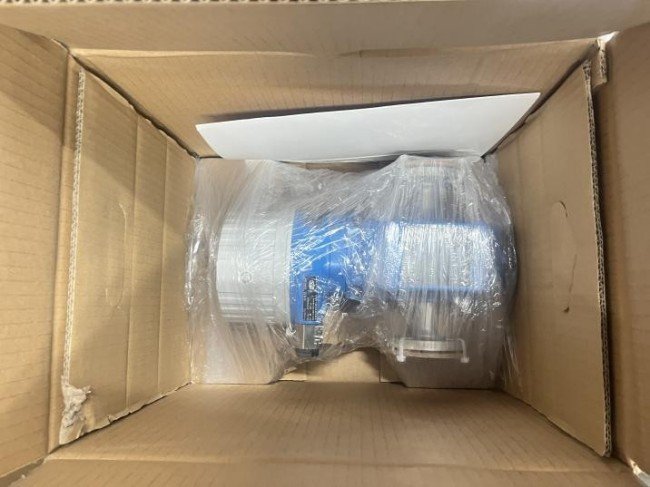

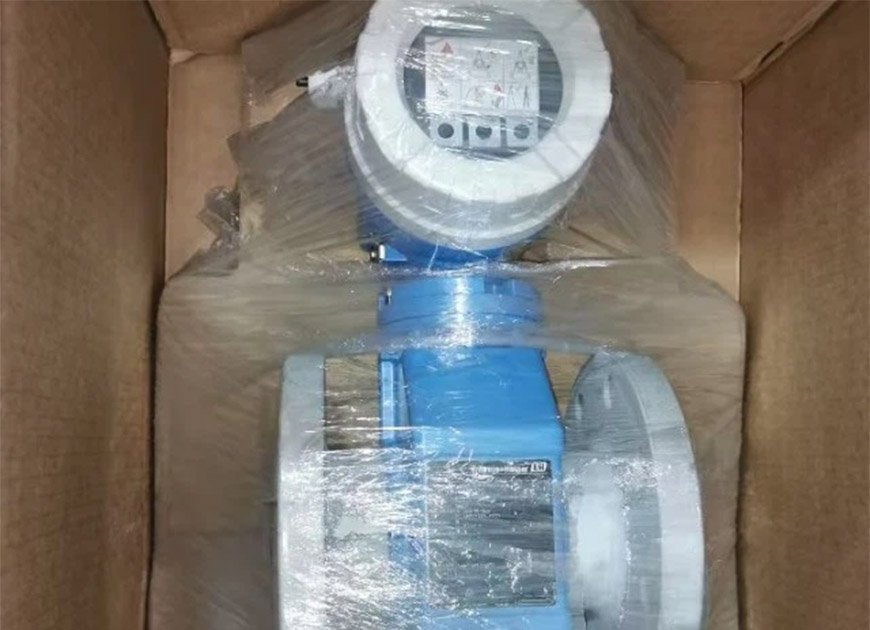

Packaging: Original box
