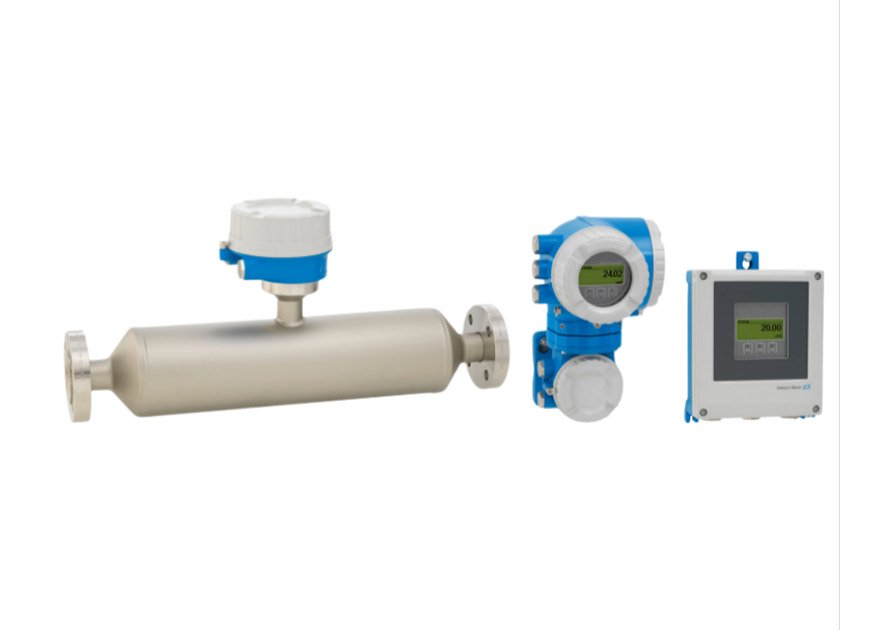

Application
• Measuring principle operates independently of physical fluidproperties such as viscosity or density
• Measuring liquids and gases in applications requiring lowpressure loss and gentle fluid treatment
Device properties
• Straight, easy-to-clean single-tube system
• TMB technology
• Measuring tube made of Titanium
• Remote version with up to 4 I/Os
• Backlit display with touch control and WLAN access
• Standard cable between sensor and transmitter
Your benefits
• Energy-saving – full-bore design enables minimal pressure loss
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality
• Integrated verification – Heartbeat Technology
Combines in-line viscosity and flow measurement with a compact, easily accessible transmitter

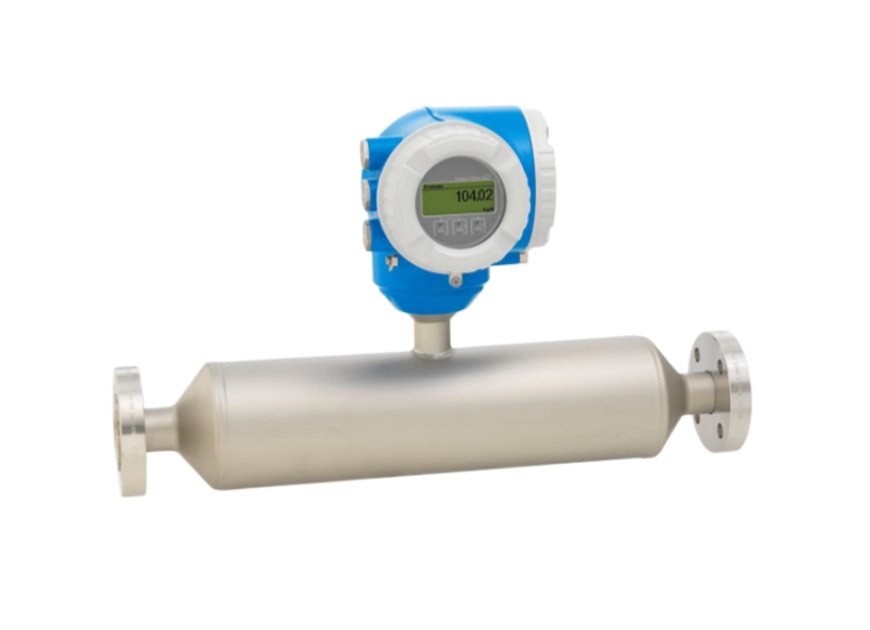

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment
Device properties
• Straight, easy-to-clean single-tube system
• TMB technology
• Measuring tube made of Titanium
• Compact dual-compartment housing with up to 3 I/Os
• Backlit display with touch control and WLAN access
• Remote display available
Your benefits
• Energy-saving – full-bore design enables minimal pressure loss
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality
• Integrated verification – Heartbeat Technology
Combines in-line viscosity and flow measurement with an ultra-compact transmitter

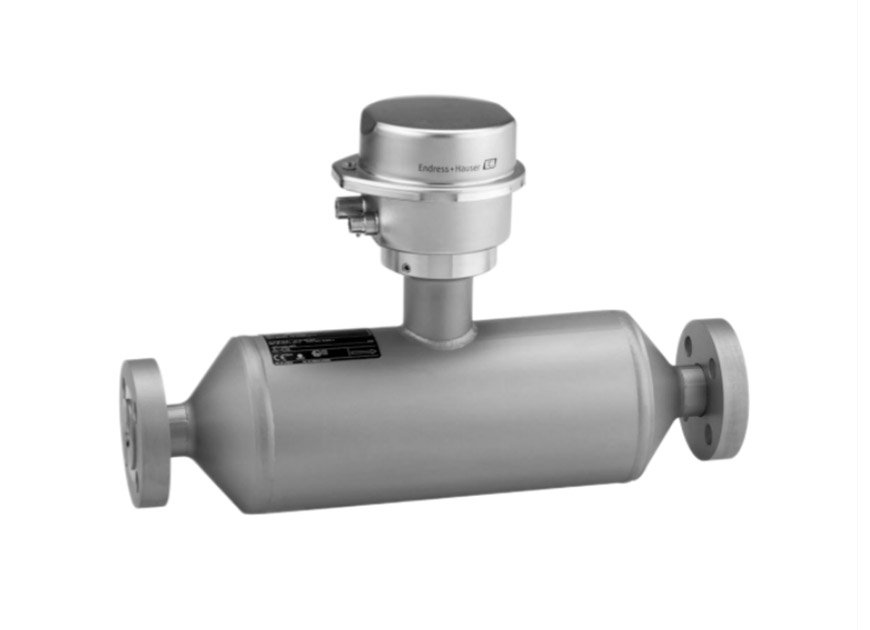

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment
Device properties
• Straight, easy-to-clean single-tube system
• TMB technology
• Measuring tube made of Titanium
• Robust, ultra-compact transmitter housing
• Highest degree of protection: IP69K
• Local display available
Your benefits
• Energy-saving – full-bore design enables minimal pressure loss
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Space‐saving transmitter – full functionality on smallest footprint
• Time‐saving local operation without additional software and hardware – integrated web server
• Integrated verification – Heartbeat Technology
Specification | 8I1B (Promass I 100) | 8I3B (Promass I 300) | 8I5B (Promass I 500) |
Product Series | Proline Promass I 100 | Proline Promass I 300 | Proline Promass I 500 |
Measuring Principle | Coriolis force, single straight tube design | Coriolis force, single straight tube design | Coriolis force, single straight tube design |
Measured Variables | Mass flow, volume flow, density, temperature | Mass flow, volume flow, density, temperature | Mass flow, volume flow, density, temperature |
Nominal Diameter | DN 8 … DN 40 | DN 8 … DN 50 | DN 15 … DN 80 |
Suitable Media | Liquids, compressed gases, low-viscosity fluids | Liquids, gases, slightly corrosive media | Liquids, gases, high-purity and process fluids |
Mass Flow Accuracy (Liquid) | ±0.15 % o.r. | ±0.10 % o.r. | ±0.05 % o.r. |
Mass Flow Accuracy (Gas) | ±0.75 % o.r. | ±0.50 % o.r. | ±0.35 % o.r. |
Density Accuracy | ±0.001 g/cm³ | ±0.0005 g/cm³ | ±0.0002 g/cm³ |
Process Temperature Range | −40 °C … +150 °C | −50 °C … +200 °C | −50 °C … +200 °C |
Max Process Pressure | PN 40 / Class 150 | PN 100 / Class 600 | PN 100 / Class 600 |
Wetted Materials | 1.4435 (316L stainless steel) | 1.4435 (316L), Alloy C22 optional | 1.4435, high-alloy material options |
Process Connection | Thread, hygienic clamp, compact flange | Flange, thread, sanitary connection | Standard flange, high-pressure flange |
Transmitter Design | Ultra-compact integral transmitter | Compact integral transmitter | Modular integral / remote transmitter |
Power Supply | 18 … 30 VDC / 85 … 260 VAC | 16 … 62 VDC / 85 … 260 VAC | 16 … 62 VDC / 85 … 260 VAC |
Output & Communication | 4–20 mA HART, Pulse / Frequency | 4–20 mA HART, Modbus RTU, PROFIBUS PA | HART 7, PROFINET, EtherNet/IP, FF, Digital I/O |
Enclosure Rating | IP67 / NEMA 4X | IP66 / IP67 / NEMA 4X | IP67 / IP69K / NEMA 4X |
Ambient Temperature | −40 °C … +60 °C | −40 °C … +60 °C | −40 °C … +60 °C |
Global Approvals | CE, ATEX, IECEx | CE, ATEX, IECEx, FM, CSA, SIL 2 | CE, ATEX, IECEx, SIL 2/3, PED |
Key Features | Economical, small footprint, easy installation | Stable high precision, versatile connection types | Custody transfer grade, full Heartbeat diagnostics |
Typical Applications | General industry, dosing, auxiliary piping | Chemical, food & beverage, energy industry | Precision batching, custody transfer, critical process |
Packaging: Original box
