The single-tube measuring instrument for the smallest flow quantities with an ultra-compact transmitter
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Measurement of liquids and gases in utilities and basic applications
• Compact dual-tube sensor
• Medium temperature up to +150 °C (+302 °F)
• Process pressure up to 100 bar (1450 psi)
• System integration with HART, IO-link, Modbus RS485
• Flexible operation with app and optional display
• Easy integration into your plant infrastructure with IO-link
• Cost effective device for basic process and hygienic applications (3-A and cGMP, EHEDG)
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Optimum usability – display with touch screen (HART and Modbus RS485 communication only) or operation with mobile devices and SmartBlue app
• Simple, time-saving commissioning – guided parameterization in advance and in the field
• Integrated verification – Heartbeat Technology
Specification | Technical Data |

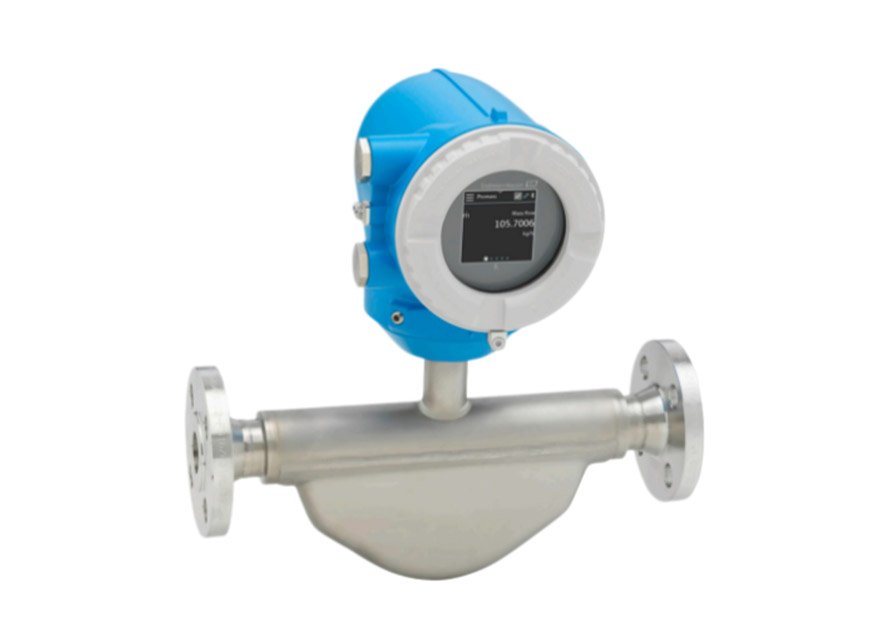

Model Designation | Proline Promass K 8KBB |
Measuring Principle | Coriolis effect, twin bent tube design |
Measured Variables | Mass flow, volume flow, density, temperature |
Nominal Diameter (DN) | DN 15 … DN 150 (½" … 6") |
Applicable Media | Liquids, gases, viscous fluids, aggressive & corrosive media |
Mass Flow Accuracy (Liquid) | Standard: ±0.10 % o.r.Optional (PremiumCal): ±0.05 % o.r. |
Mass Flow Accuracy (Gas) | ±0.35 % o.r. |
Density Accuracy | ±0.0005 g/cm³ |
Process Temperature Range | −50 °C … +200 °C |
Maximum Process Pressure | PN 100 / Class 600 / 63K |
Wetted Materials | Standard: 1.4435 (316L stainless steel)Optional: Alloy C22, Tantalum |
Process Connection | Flanged (EN, ASME, JIS), threaded, hygienic clamp/fitting |
Transmitter Design | Compact integral mount / modular remote mount |
Power Supply | 16 … 62 VDC / 85 … 260 VAC (45…65 Hz) |
Output & Communication | 4–20 mA HART, Pulse / Frequency, Modbus RTUOptional: PROFIBUS PA, PROFINET, EtherNet/IP, FOUNDATION Fieldbus (FF) |
Enclosure Rating | IP66 / IP67 / NEMA 4X |
Ambient Temperature Range | −40 °C … +60 °C |
Global Approvals & Certifications | CE, ATEX, IECEx, FM, CSA, SIL 2/3, PED, CRN |
Key Core Features | Twin tube low-pressure-drop design, no inlet/outlet straight pipe required, bidirectional measurement, Heartbeat Technology for in-situ verification, full self-diagnostic functions |
Typical Applications | Chemical processing, oil & gas midstream, food & beverage, pharmaceutical, general industrial process control, utility pipelines |
Packaging: Original box
